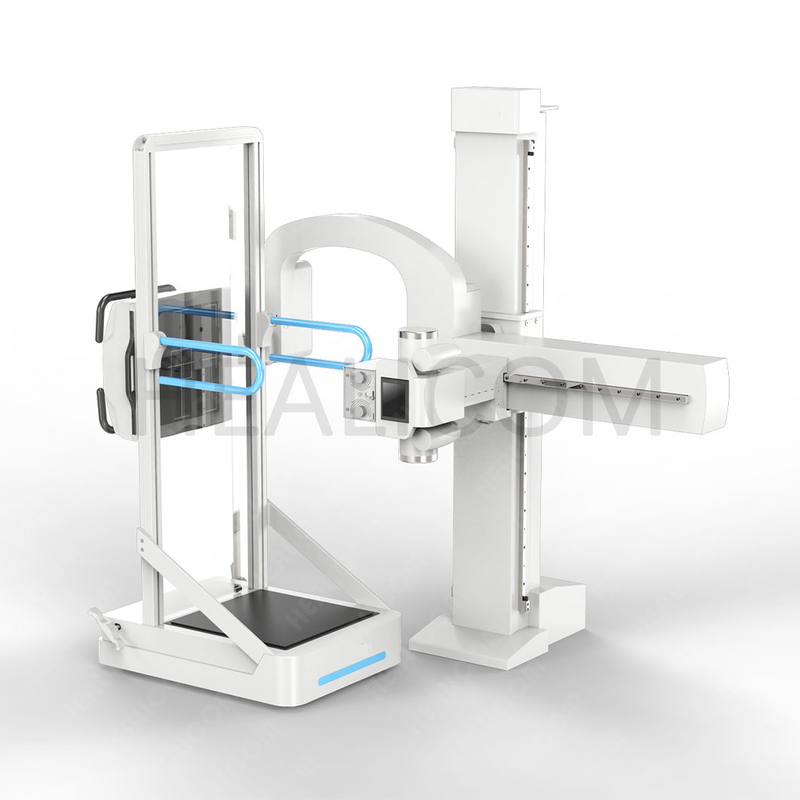

HDR-580 High-end Medical DR U-arm Digital Radiography System

The HDR-580 is a groundbreaking medical marvel, being the world's first UC-ARM dynamic DR. Outfitted with a state of the art flat panel detector, it offers a plethora of functions. Its ingeniously designed mechanical structure ensures smooth operation. This makes it the most comprehensive DR system, ideal for physical examination sections. It can perform various X ray checks, like those on the cervical and lumbar vertebrae, and esophageal angiography. With over 3000 units already installed globally, you can benefit from our R&D advancements and the system's wide - spread reliability.
Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • HDR-580

  • Healicom

Product Description

HDR580 High Frequency Digital X Ray Radiography System Xray Machine

2


h3


h6
HDR-580 SPECIFICATIONS
Part
Remark

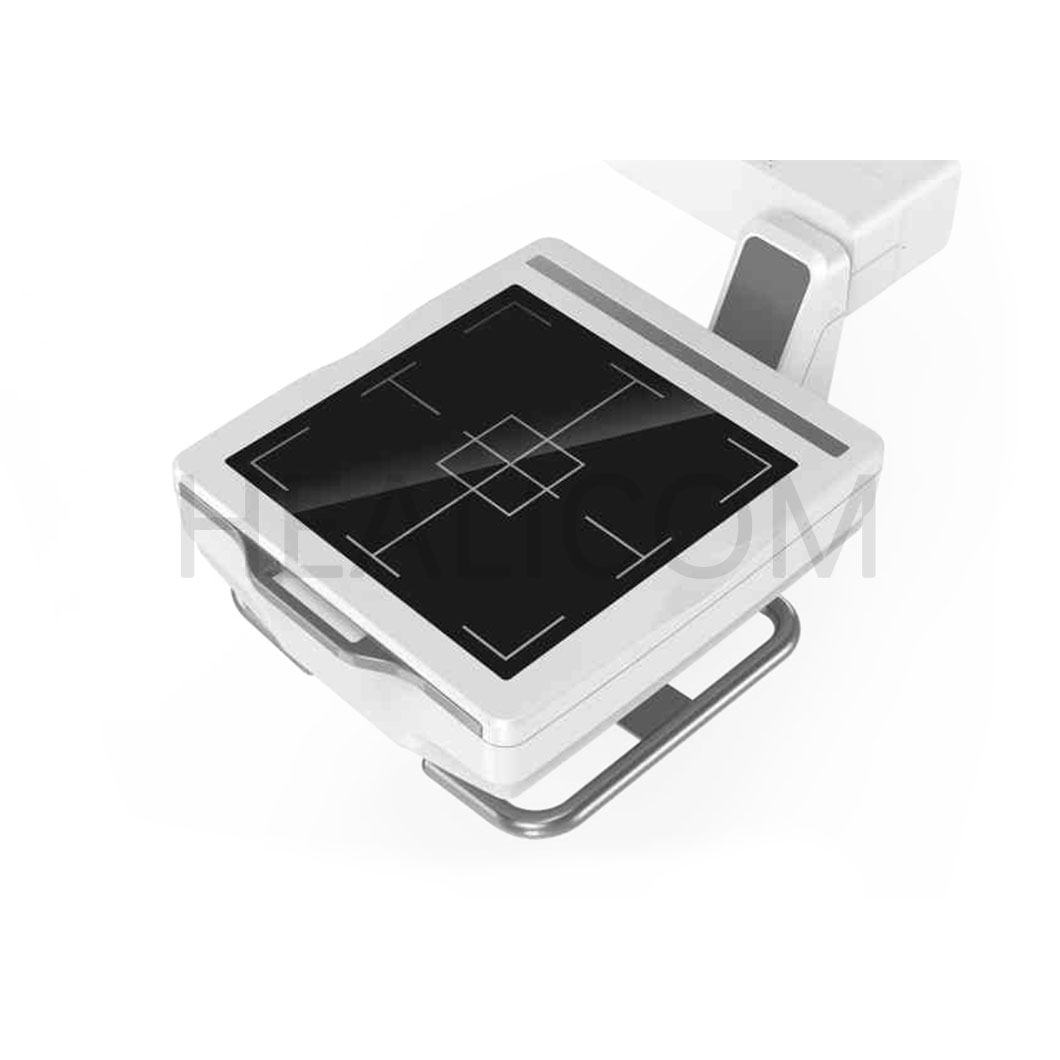

Dynamic Flat Panel Detector
Dynamic Flat Panel Detector Type
a-Si Flat Panel Detector
Scintillator Screen Type
Csl (Cesium lodide)
Effective View Field
17 × 17 in. (43 × 43 cm)
Static Pixel Matrix
3072 x 3072
Dynamic Pixel Matrix
1536x 1536
Spot-Film Pixel Matrix
3072x 3072
Pixel size
140μm
Spot-Film Preparation Time
≤0.8s
Output Grayscale
16bit
Acquisition Time
≤5s
Preview Image Time
≤3s
Maximum Spatial Resolution
3.5lp/mm
Detector Movement Range
0 - 1000mm
X-ray Tube
Tube Focus
0.6mm/1.0mm
Max Output Voltage
150kV
Heat Capacity
330kHU
Speed of Rotating Anode
9000r/min
Output Power
30KW/50KW
Generator
Power Requirement
380V with 3 Phases Wires
Maximum Output Power
50kW
Output Voltage for Radiography
40kV-150kV
Output Voltage for Fluoroscopy
40kV-120kV
Output Current for Radiography
10-650mA
Output Current for Fluoroscopy
0.5-6mA
Range of mAs
0.4mAs-630mAs
Auto Brightness Selection Function(ABS)
UC Arm
One Key Positioning for Chest-Exam /Table-Exam by Electric Control.
FID
465~1700mm
