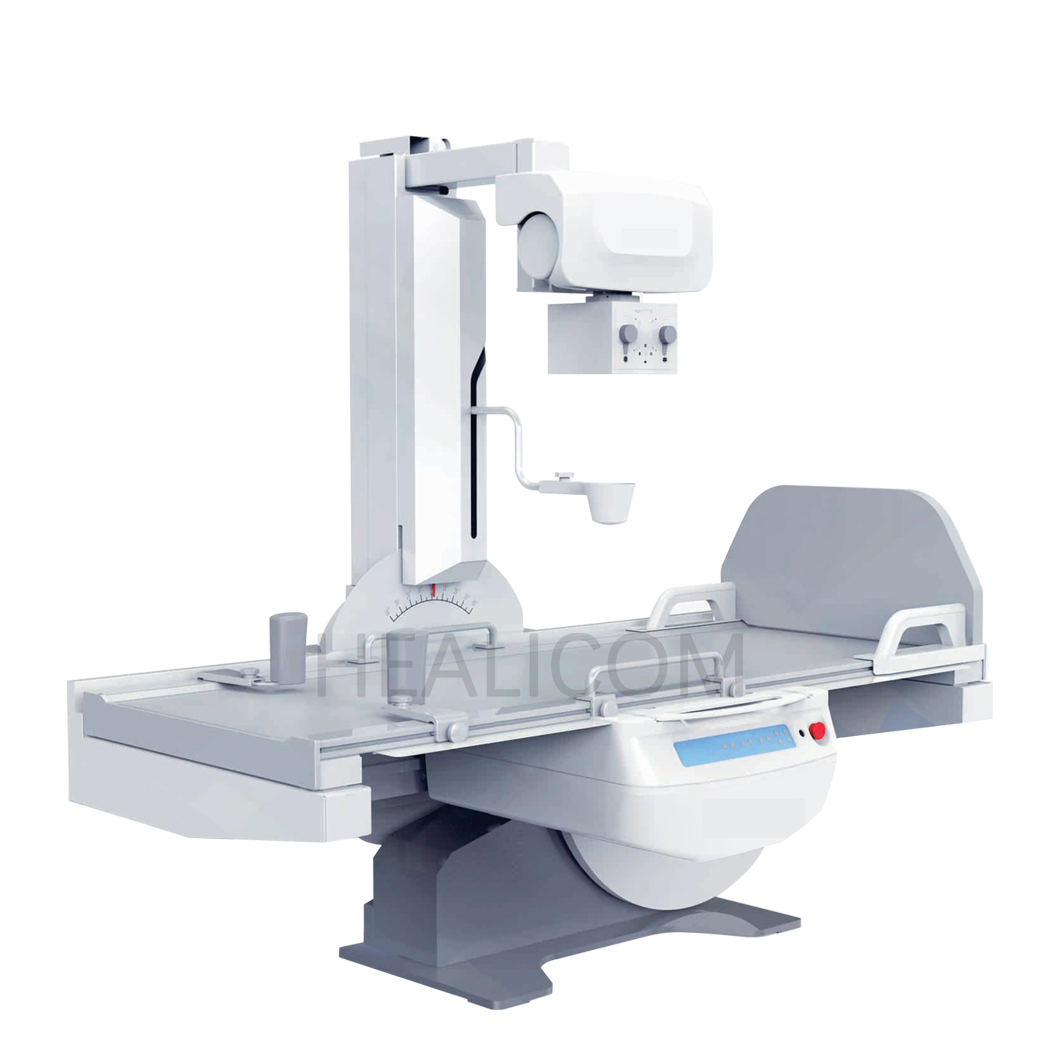

HDR-571
Healicom
Product Description

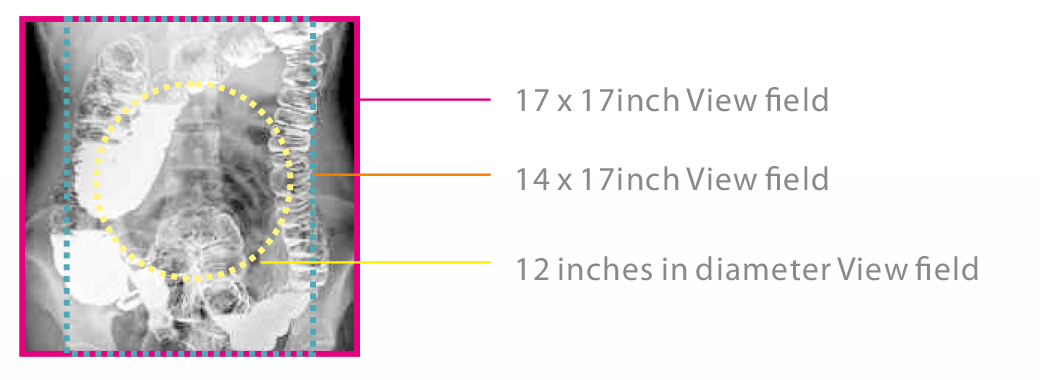

Large view field 43cm x 43cm, avoid missed diagnosis
Outstanding images without distortion
Let you get exceptional image quality with the state-of-the-art dynamic detector and view even the finest details at the lowest possible dose.

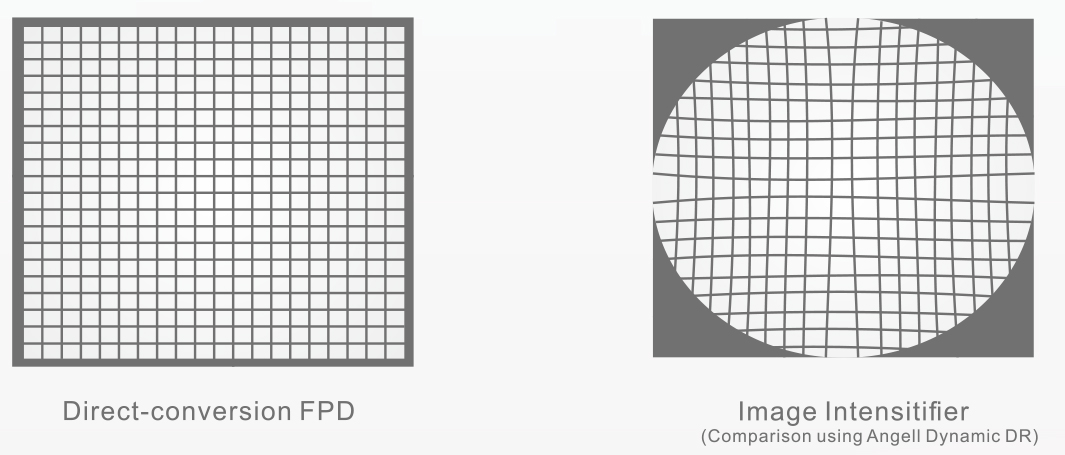

Unlike an image intensifier, the dynamic detector offer a planar and rectangular detector face. The net effect of this technology is uniform resolution and contrast from the center right to the edges.The dynamic detector is unaffected by magnetic fields,ensuring distortion-free images.These high-definition images permit highly accurate measurements even if the target is at the periphery.
Digital recording of fluoroscopy
Fluoroscopy can be recorded in the internal memory at up to 29fps during examinations.These images can be viewed using instantaneous or cyclic playback to reduce exposure during fluoroscopic diagnosis.
Image zooming in fluoroscopy
Image can be enlarged in real time in fluoroscopy, the doctor can view the desired image detail.
All-in-One System Satisfy Various Clinical Demands
Real-time entire contrast observation, one image shows all the details.
Digital radiography

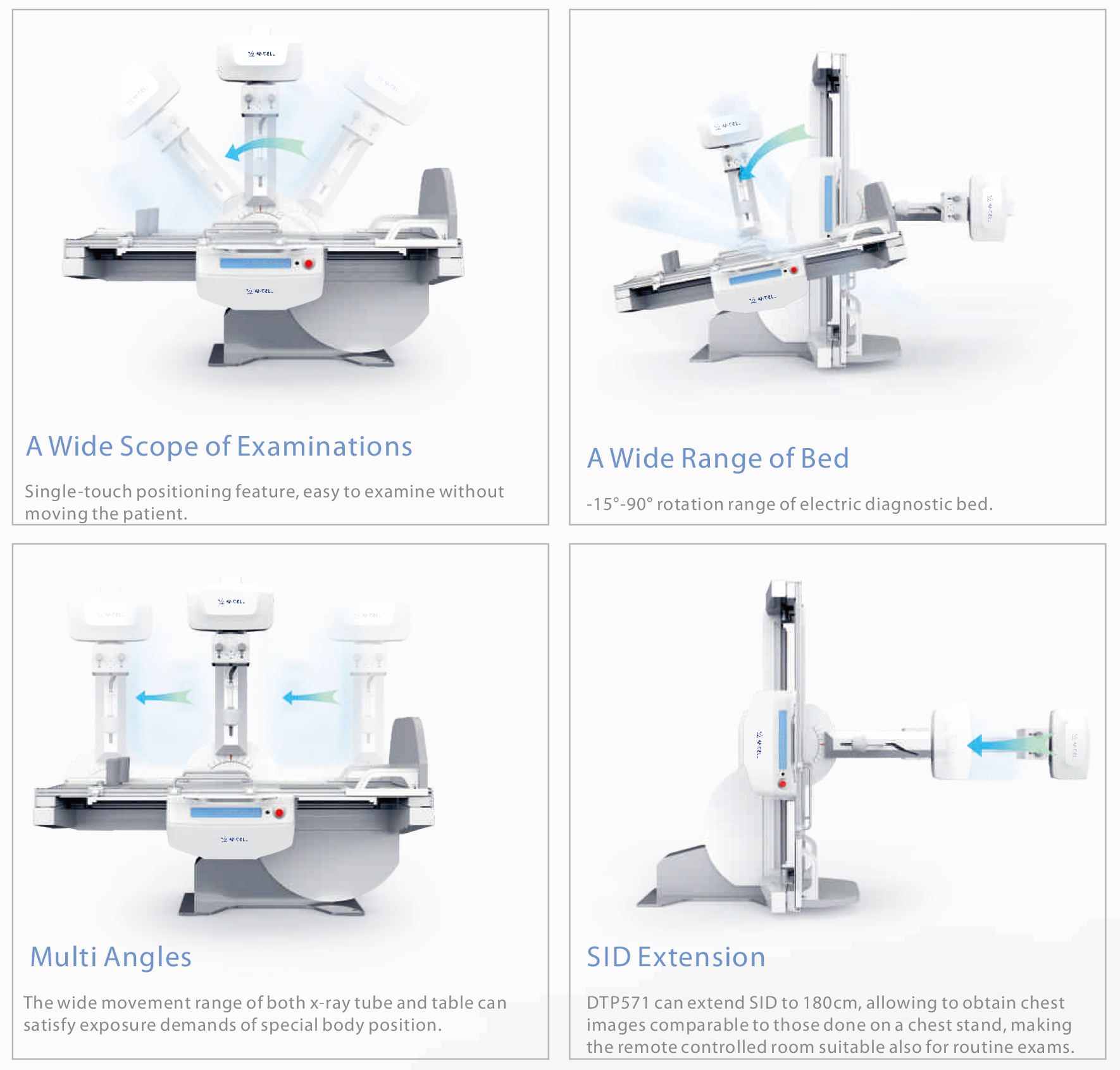

Wide range of examination angles, as well as erect, lying, and oblique positions. Static imaging for radiographic examinations, Skull, Thorax, Abdomen, Vertebral column, Pelvis, Upper and lower extremities and so on.
Digital fluoroscopy
Dynamic imaging for fluoroscopy, esophagoraphy, upper gastrointestinal, (such as barium enemas, barium meals, and barium swallows), intravenous urography (IVP), HSG, T-tube cholangiography and so on.
Remote control table
Rapid and concurrent movements reduce dramatically the patient preparation time and decrease workflow. It makes patient positioning much easier.
Smart image stitching
With large field of view and advanced image processing workstation, Angell Dynamic DR System can provide high definition full-body x-ray image by automatic image stitching function, especially helpful for orthopedics.
