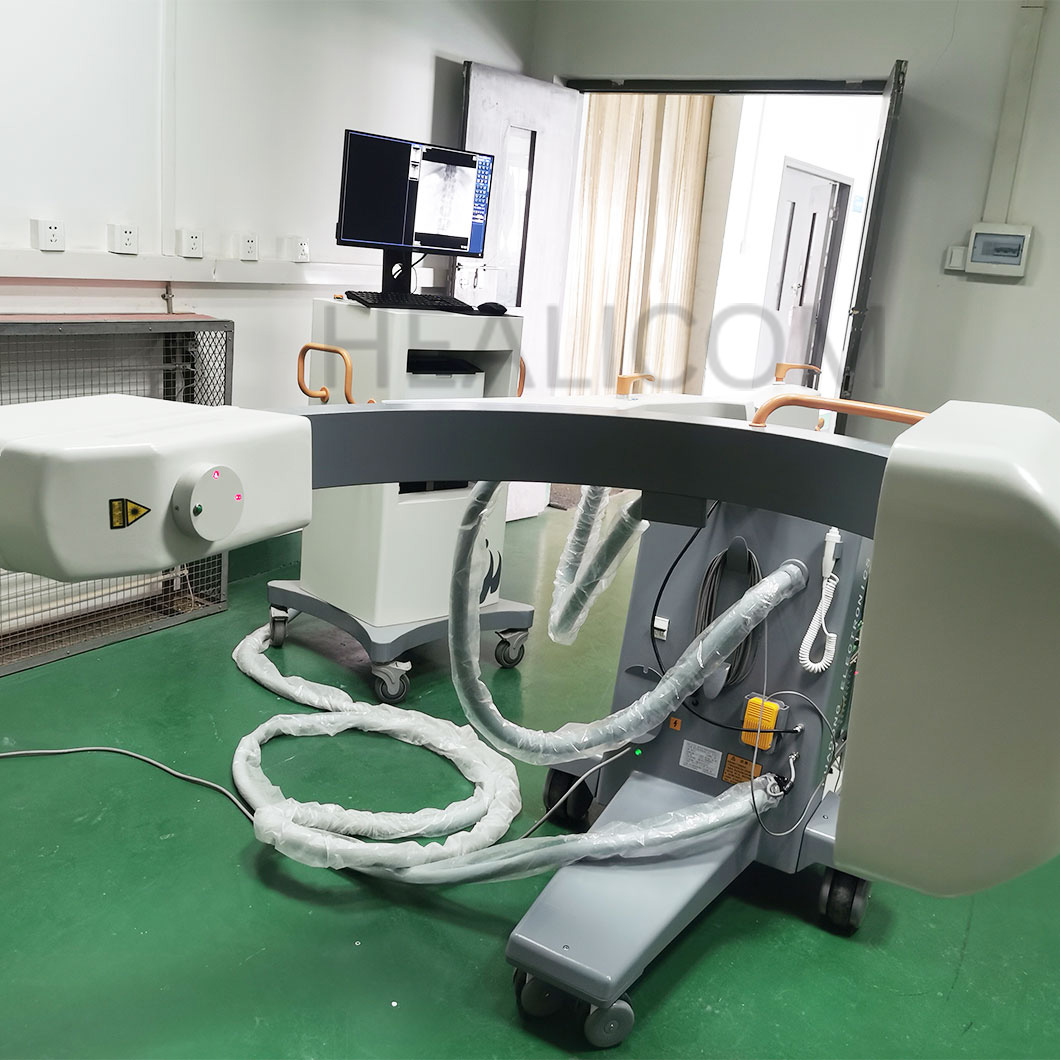

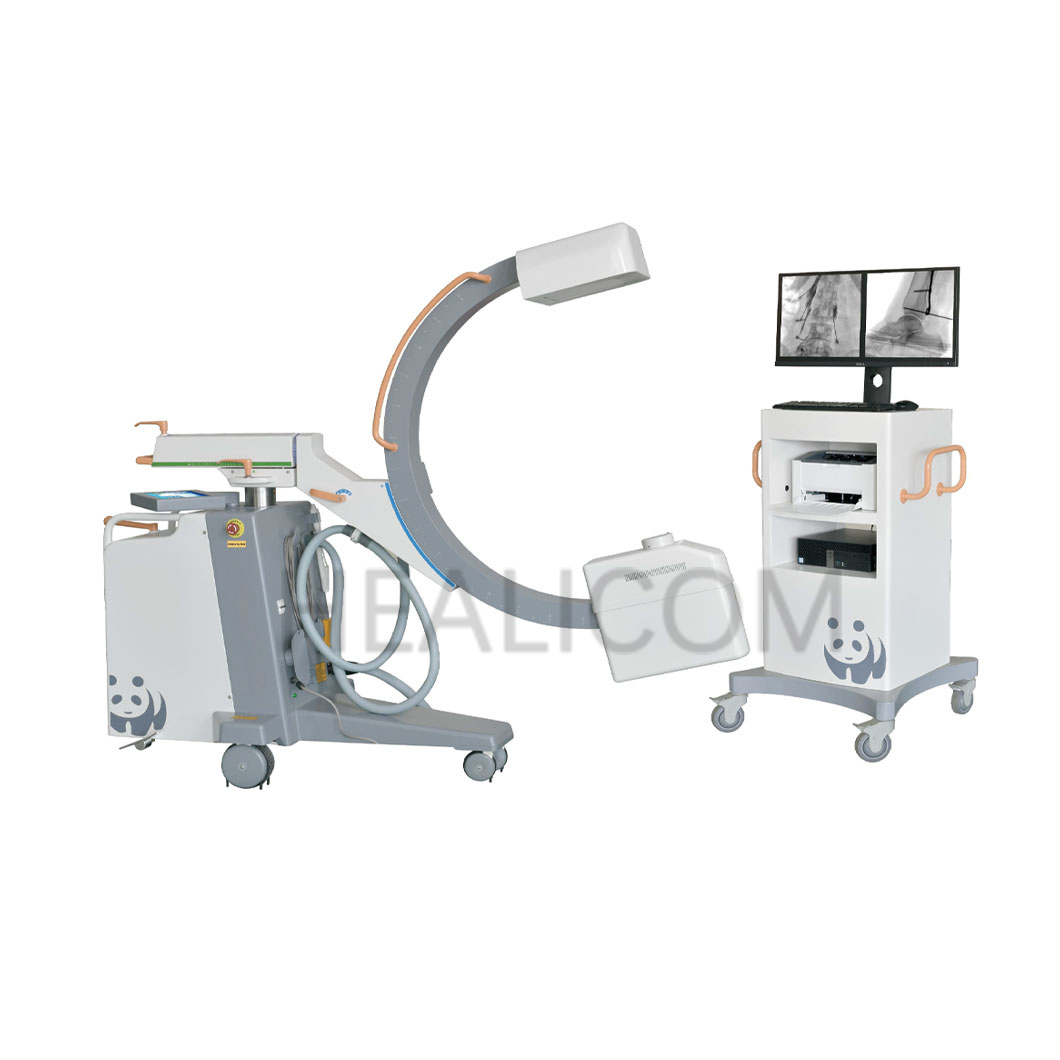

HCX-50B HF Mobile Digital C-arm System(Flat pannel)
Key features:
· With HF & HV generator,inverter,and High quality image intensifier, the x ray generator can work stably.It also reduces the damage for the doctors caused by radiation.
· 10.4"LCD friendly interface control board: easy operation and can be rotated to 180°(L90°,R90°) Compared with ordinary key board, our LCD display is not easy to be oxidized Besides, the trouble will be displayed in Chinese, which will improve the efficiency of fault diagnosis.
· Pulse and boost fluoroscope provides all kinds of size of patients with clear diagnosis.
· With a steering handle, it can adjust the direction quickly when moving.And parallel movement function is also available.
· Equipped with unique block line wheels, it can avoid accident when the machine moves.

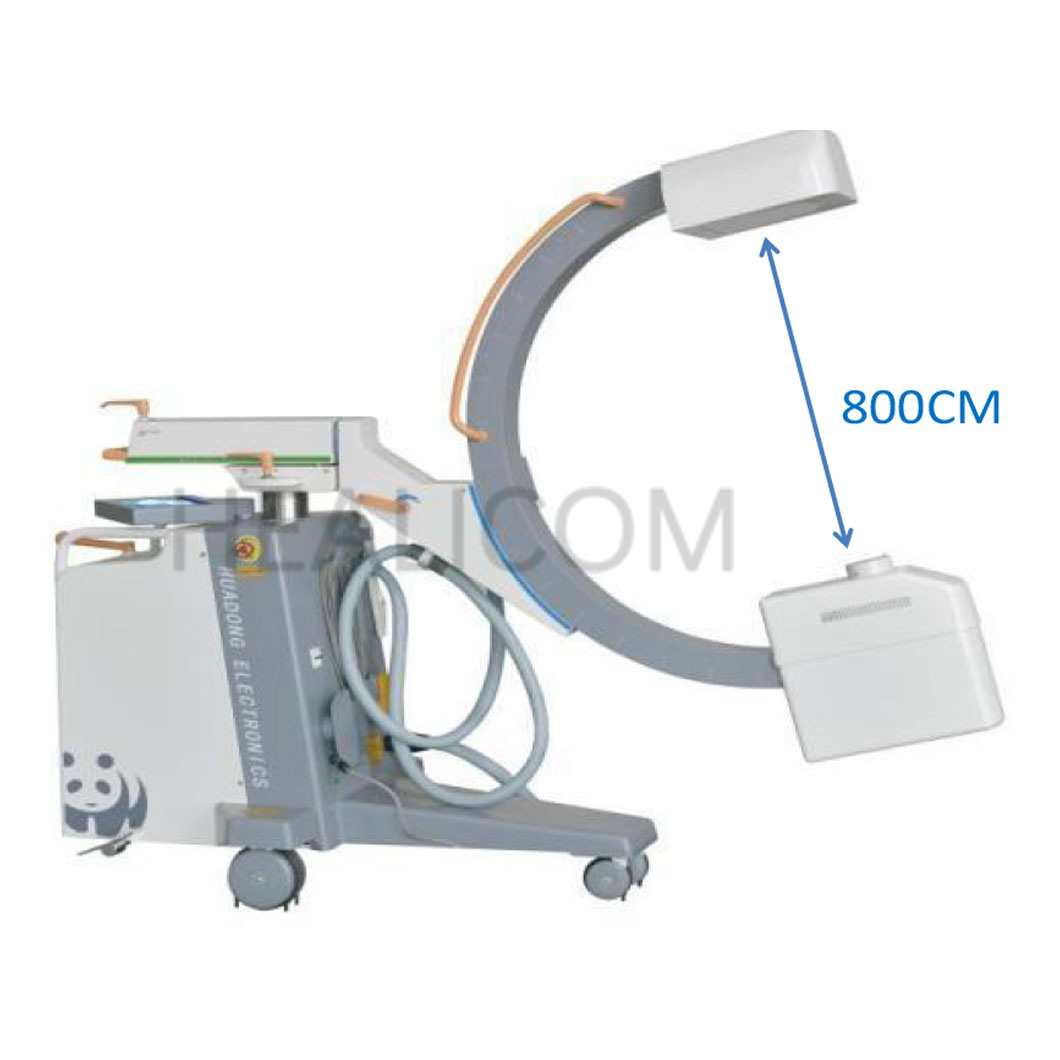

· Large free space in arc: the space can reach 800mm,which is convenient for operation.
· Original Korean linear slide rail can make the the movement of the machine flexibly.
· Applied with Omron Relay,the noise can be reduced and the life time of the equipment can be increased.
| Main specification |
| HF generator | 120KV,5kW ,40kHz |
|
Fluoroscopy mode | Fluoroscopy mode40~120kv0.5~5mA
(KV manual and automatic);
Pulsd fluoroscopy 40~120kv 0,5-5mA
Boost fluoroscopy 40~120kV 5~10mA;
Photography 40~120kV 1~250mAs |
|
X ray tube | Dual-focus Rotating anode:0.3mm/0.6mm,100mA
Thermal capacity：800KHU
Italy IMD Technology |
| | France Trixell
Plate:single A-Si TFT+photodiode plate
Scintillator: Csl
Total transmitted image width: 1024(1344 optional)
Total transmitted image height: 1024(1344 optional)
Pixel pitch: 154
Quantization depth: 16
Power supply input: 24±10%
Communication/ image transfer: Ethernet cable |
| The main feature of the detector are:
Cold start feature
Offset stability validity up to 10 minutes
Fluoroscopy and RAD images capability
Passive cooling device
High speed image transfer using Ethernet link |

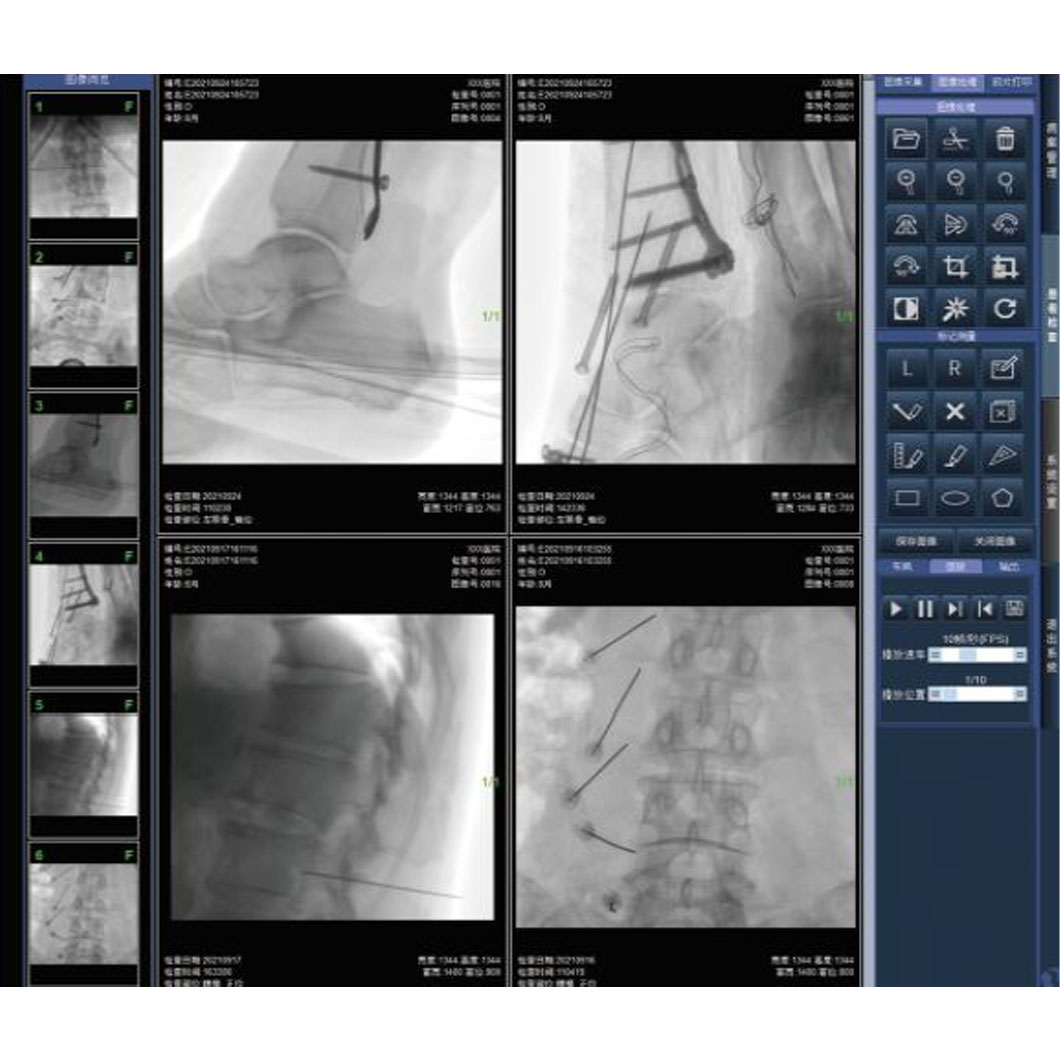

| | 5 Degree recursive Noise Reduction
Frame freezing
Thousands of image data storage
Image conversing and rotating
Screen display with image comparison
Support “one click” print,print the image report
Equip with Dicom 3.0 network port
Support Dicom 3.0standard data export function
DAP (optional) |

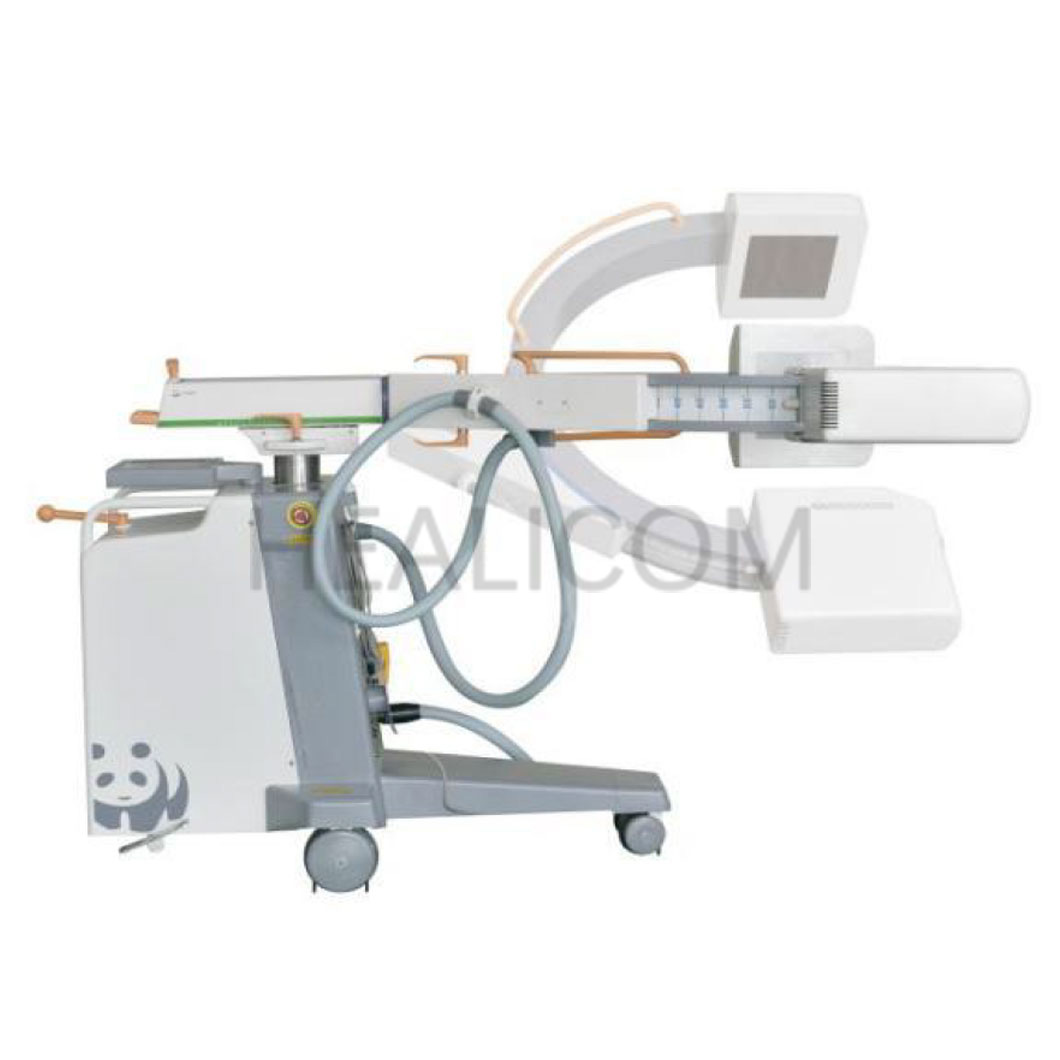

Mechanical motion specifications (electric optional） | Verticaltravel:0-400mm(electric) Horizontaltravel:0~200mm(electric optional)
Rotation about horizontal axis:±180°(electric optional )
Slipping along the circular arcrail (electric optional) |
|
C-arm dimension | Distance of focal spot to image generator(SID):1000mm
Depth in arm≥650mm Mobile stand :1800mm*800mm*1850mm
Image system: 750mm*530mm*1680mm |
|
Standard configuration | Detector :1set
x-ray generator:1set
image processor

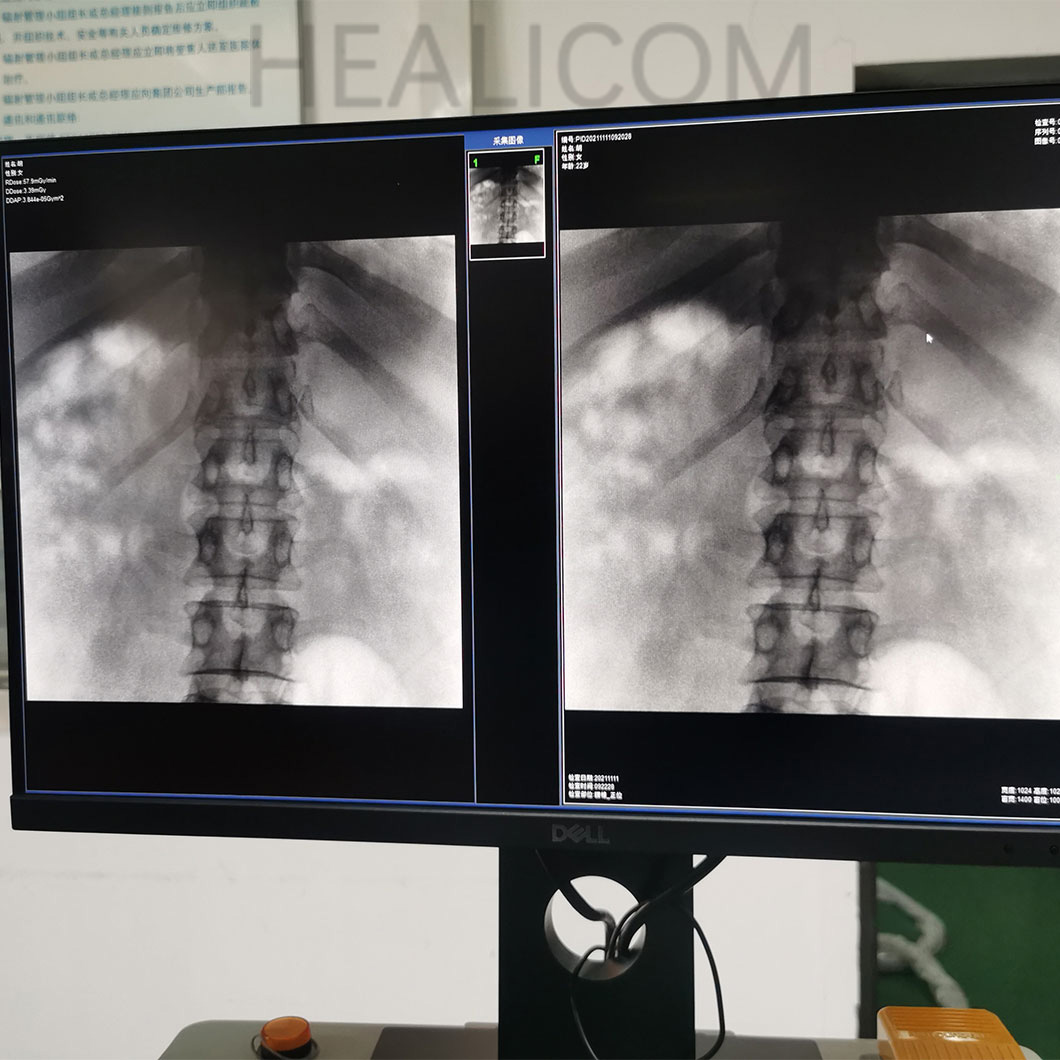

24'' LCD high definition display 1 set
Mobile stand :1 set
Printer: 1set |
