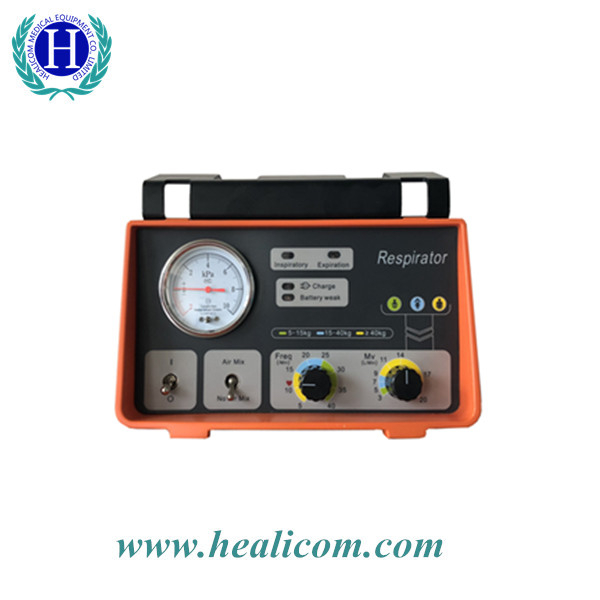

HV-10 Plus Medical Emergency Transport Ventilator

Description:

HV-10 Plus can be used for first-aid, ambulances, emergency treatment and patients’ transport

in hospital.

It can be used for child and adult patients.

Environmental Requirements

Relative humidity:     10%~95%

Ambient temperature:  -20~ 70°C

Atmospheric pressure: 50~106kPa

Gas source:        0.28~0.6Mpa

Power:            AC100V-240V

Classification

Class I, Type B—by protection against electric shock.

IPX4—by protection against harmful ingress of water, particulate matter.

Configuration

Standard Configuration:

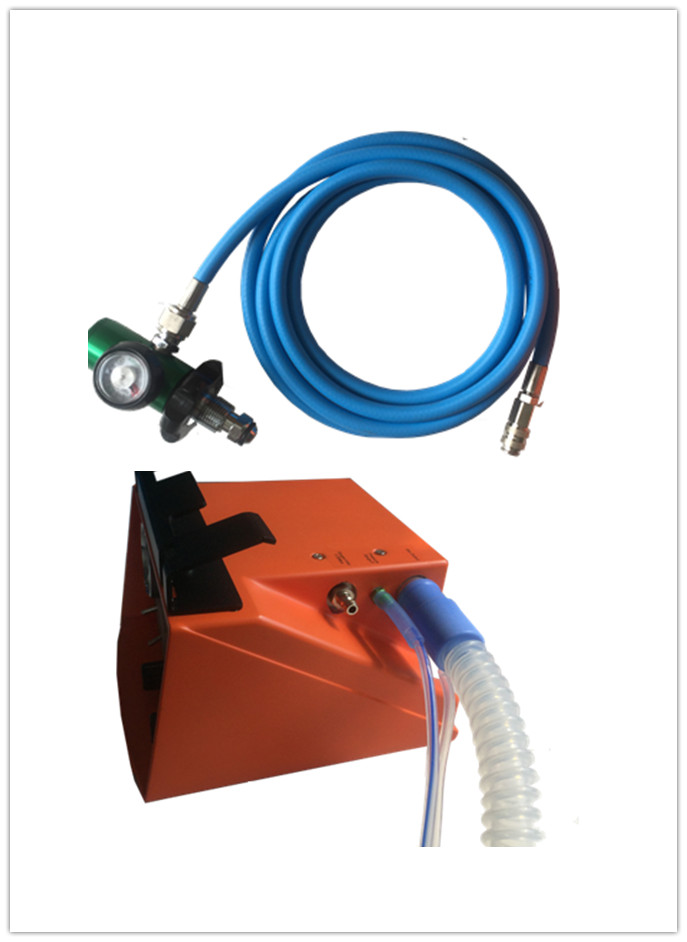

ventilator (with multifunctional handle), lung simulator, charger (optional multinational standards), headband, pressure-reducing valve (optional British/national standards), high pressure tubes, breathing circuits, mask.

Optional: PEEP
