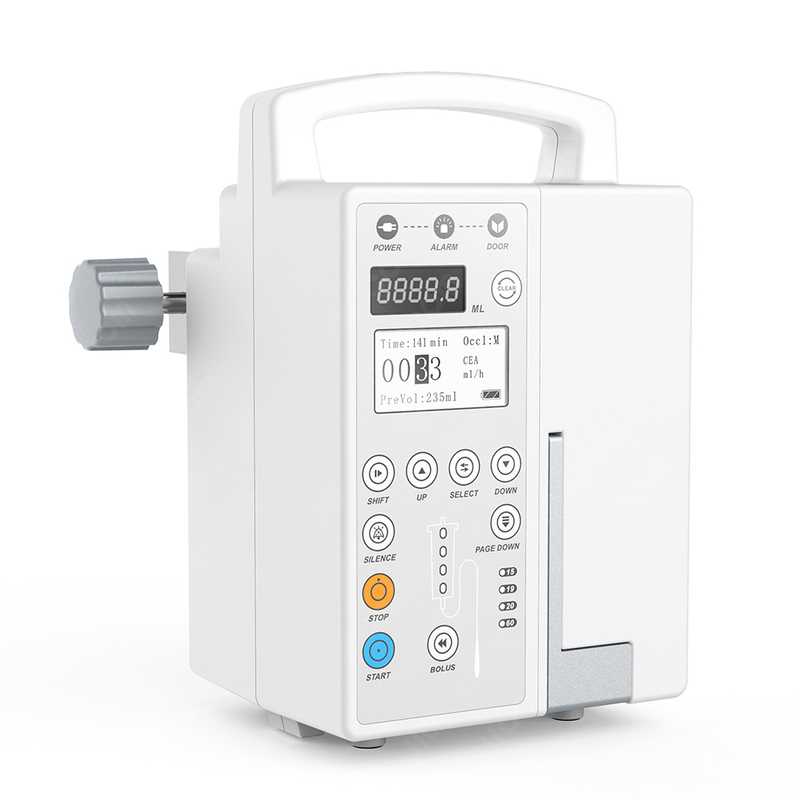

HIP-820 Medical Portable LCD Screen Intravenous IV Drip Infusion Pump
You are here: Home » Products » Surgical&ICU Equipments » Infusion&Syringe pump » HIP-820 Medical Portable LCD Screen Intravenous IV Drip Infusion Pump

Category List

HIP-820 Medical Portable LCD Screen Intravenous IV Drip Infusion Pump

Availability:
Quantity:

PDF Export

  • HIP-820
  • Healicom

Product Description

HIP-820 Medical Portable LCD Screen Intravenous IV Drip Infusion Pump

Features:

1. 128*64 HD LCD Display, high capacity words, friendly user interface, dynamically display working status;

2. Female Voice alarm in English/Russian (other language is optional for customized machine)

3. Compatible with any brands of infusion sets after correct calibration;

4. Preset solution volume to greatly reduce the workload of nurses;

5. Work mode: ml/h and drop/min can switch freely;

6. Three levels of occlusion: high, middle and low;

7. Purge /Bolus function;

8. KVO (keep-vein-open) automatically opens as infusion is completed, KVO rate is 1ml/h---5ml/h (1ml/h step);

9. Power Source:100-240Vac, 50/60Hz;Internal rechargeable Li battery, capacity≥1,800mAh, voltage=11.1V, 4 hours backup time at the rate of 25ml/h (appointed medium rate in IEC60601-2-24) for the new battery charged for 12hours;

10. Automatically record the settings of last infusion;

11. It can store 2000pcs of infusion records and has drug library with 1000durgs.

Technical Specifications
Infusion Rate
ml/h mode: 0.1~1200ml/h (1ml/h step)
drop/min mode: 1~266drop/min (1drop/min step)
Purge Rate
100ml/h---1200ml/h (can be calibrated)
Bolus
800ml/h
Flow Rate Accuracy
ml/h mode: Within ±5% (after correct calibration)
drop/min mode: Within ±3% (after correct calibration)
Mechanical Precision
Within ±2%
Maximum infusion pressure
150kPa
Volume Limit
1---9999ml
Total Infusion Volume
0---9999.9ml
Alarm Pressure
High 800mmHg±200mmHg (106.7kPa±26.7kPa)
Medium 500mmHg±100mmHg (66.7kPa±13.3kPa)
Low 300mmHg±100mmHg (40.7kPa±13.3kPa)
Audible and Visible Alarms
There are bubbles,Tube is blocked,Close the door,IV set Mismatched,Battery running out,Infusion finish,Equipment failure, Abnormally Operation,Software Exception, Low battery,forget the operations etc
Power Source
100-240Vac, 50/60Hz; Internal rechargeable Li battery, capacity≥1,800mAh, voltage=11.1V, 4 hours backup time at the rate of 25ml/h
(appointed medium rate in IEC60601-2-24) for the new battery charged for 12hours.
Bubble Detector
Ultrasonic wave detector; detection sensitivity ≥25μL
KVO Speed
1---5ml/h (1ml/h step)
Power Consumption
40VA
Fuse
T3.15AH/250V, 2pcs installed
IP Classification
IPX2
Equipment Classification
Tubing Bubble, Infusion Completion, Flush Completed, Battery Under voltage, Equipment Failure (ER Series), Pause Timeout, Network Power On / Off, Feeding /watering Switching
Noise
Internal rechargeable lithium battery 11.1V;
battery life > 8 hoursafter and above.
Power supply and input
100-240V ~ 50 /60Hz ≤40VA
Internal battery
Internal rechargeable lithium battery 11.1V;
battery life > 8 hours
Application field
internal medicine, surgical, pediatrics, obstetrics and gynecology, ICU, CCU, operation room and
other clinical infusion treatment,etc.Also support the veterinary purpose
Dimension
140mm(L) x 157mm(W) x 220mm(H)
Certificate
CE 0197, ISO13485, FSC
