HSP-3
Healicom
Product Description

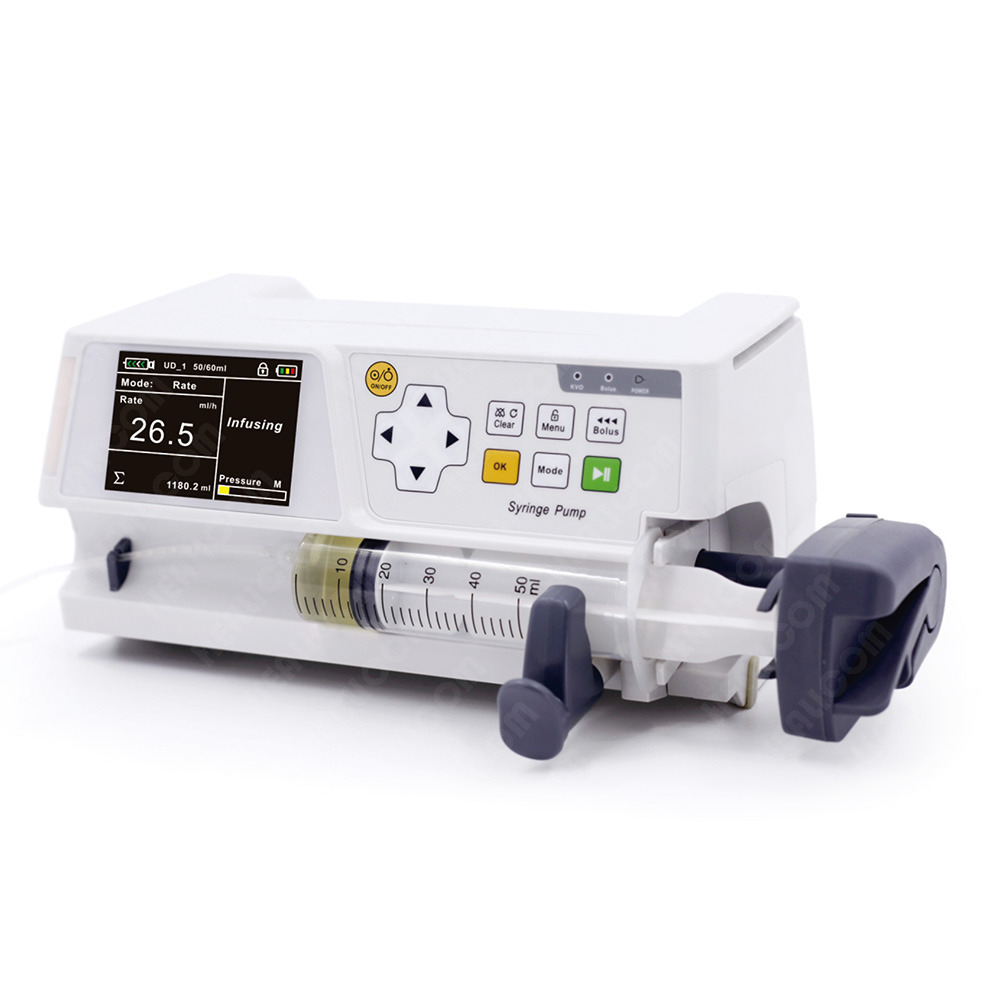

HSP-3 Medical Portable LED Screen Syringe Pump
Features
• Open system: Accepts all standard syringes of 5ml, 10ml, 20ml, 30ml, 50ml, 60ml
• Large COLOR TFT display with adjustable brightness.
• Manual and Automatic Bolus function.
• Vertical & Horizontal mounting.
• Anti-bolus system to reduce significantly after occlusion sudden release.
• DPS Occlusion Pressure display.
• 2000 events stored can be checked and downloaded.
• Five work modes: Rate Mode, Time Mode, Dose Mode, Sequential Mode and Drug Library Mode.
• Drug library with 1030 injection records (Optional).
• Identify the specifications of syringe automatically.
• Audible and visual alarm: Syringe Holder Loose, Syringe Plunger Disengagement, Syringe Flange Insertion Error, Syringe Not Calibrated, Occlusion, Syringe Empty, Rate Abnormal, Battery Empty, No Battery, Key Holding During Infusion, Key Holding During Pause, Infusion Complete, Syringe Near Empty, No Action, Battery Low, Out of Flow Range
• Freely Stackable: Users can freely stack one syringe pump onto another to provide multiple Solutions
• Automatically record of infusion.
• Visual and audible alarm system and accurate injection rate make the injection process safer and reliable.
• KVO and Bolus functions.
• Change the flow rate without stop during infusion.
• 12 Hours Internal Battery continuous operation.
• Accurate and sensitive pressure sensor detects occlusion pressure accurately.
• Excellent injection operation. The accuracy will be ensured even at small-volume injection.
| Applicable syringes | 5ml,10ml,20ml,30ml,50ml,60ml of any standard |
| Accuracy | +/- 2% with correct calibration |
| Rate mode | 50ml(60ml):0.1ml/h-2000.0ml/h (0.1ml/h or 1ml/h step) 30ml:0.1ml/h-1200.0ml/h (0.1ml/h or 1ml/h step) 20ml:0.1ml/h-800.0ml/h (0.1ml/h or 1ml/h step) 10ml:0.1ml/h-400.0ml/h (0.1ml/h or 1ml/h step) 5ml: 0.1~200ml/h (0.1ml/h or 1ml/h step) (Programmable 0.01ml/h~9999.9ml/h) |
| Time Mode | SOL. VOL:0.1-9999.9ml (0.1ml step) TIME:00:01-99:59min (1min step) |
| Dose Mode | Volume:0.1-999.9ml(0.1ml step) DRUG MASS:0.1-999.9mg 0.1mg step) DOSE:0.001-9999ug/kg/min(0.001ug/kg/min step) WEIGHT:0.1-300kg(0.1kg the least step) |
| Total Volume Range | 0.1-9999.9ml (0.1 ml step) |
| Drug library Mode | 10 categories of drugs, amounts to 1030 kinds of drug names, 17kinds of dose units, such as ug/kg/min, mg/kg/min, etc. Makes drug dispensing more convenient and safer. |
| Sequential mode | Available |
| Purge Rate | 50ml(60ml): 1500.0ml/h 30ml: 1200.0ml/h 20ml: 800.0ml/h 10ml: 400.0ml/h 5ml: 200ml/h Programmable and adjustable |
| KVO Rate | 0.1~5.0 ml/h, Programmable and adjustable |
| DPS dynamic pressure | Three levels setting LOW (60(±15)kPa), MEDIUM (90(±15)kPa) or HIGH (120(±15) kPa) |
| Alarms | Syringe Holder Loose ,Syringe Plunger Disengagement, Syringe Flange Insertion Error ,Syringe Not Calibrated, Occlusion, Syringe Empty, Rate Abnormal, Battery Empty, No Battery, Infusion Complete, Syringe Near Empty, No Action, Battery Low Three levels of alarm volume LOW, MEDIUM or HIGH |
| Bolus Rate | 5ml: 0.1~200ml/h,10ml:0.1-400ml/h,20ml:0.1-800ml/h, 30ml:0.1-1200ml/h,50ml(60ml):0.1-2000ml/h Programmable and adjustable, Automatic/Manual bolus available |
| Bolus Volume | Range: 1.0~50.0ml, (0.1ml step) |
| Interface | RS-232 |
| Brightness | 1~10 levels can be selected |
| History records | 2000 events stored can be checked and downloaded |
| Protection Class | Class I, Type CF,IP44 |
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
