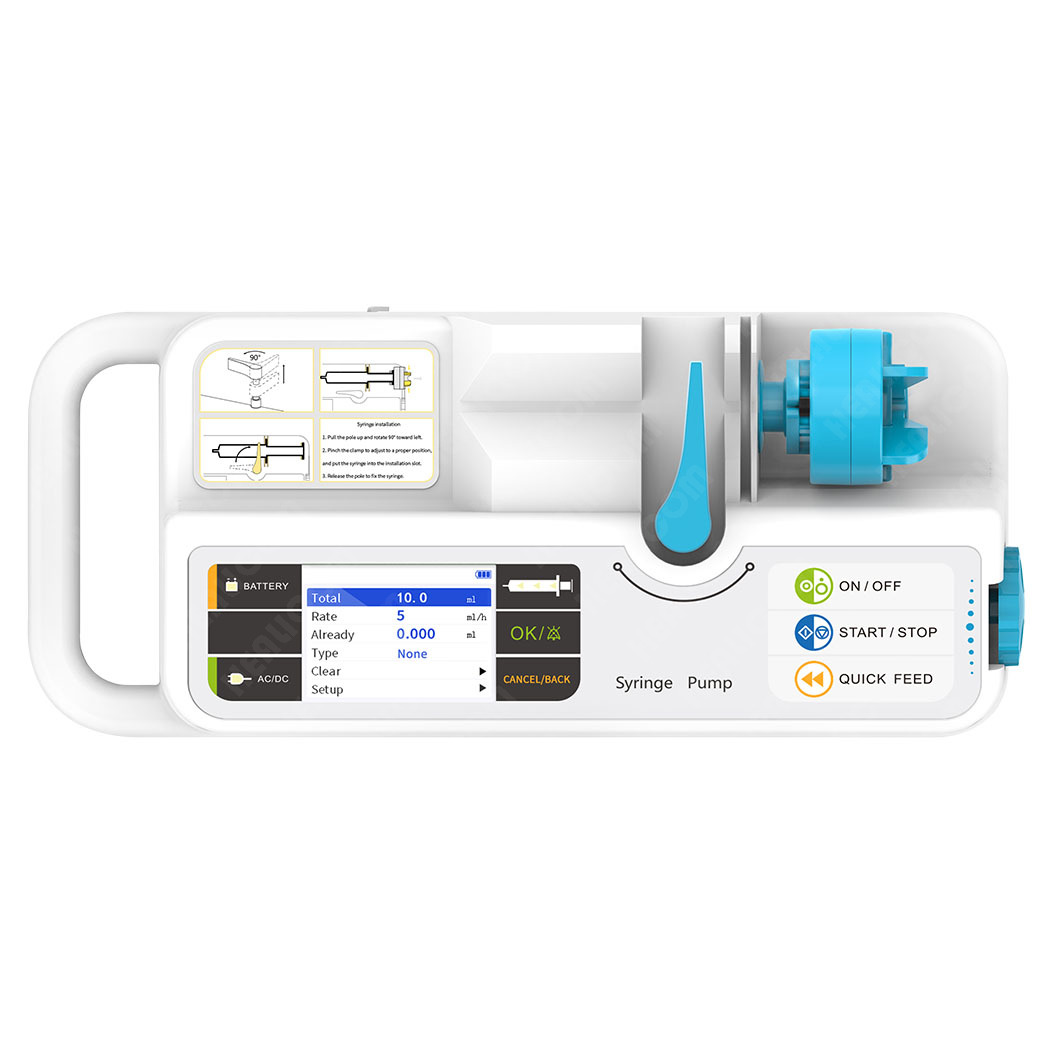

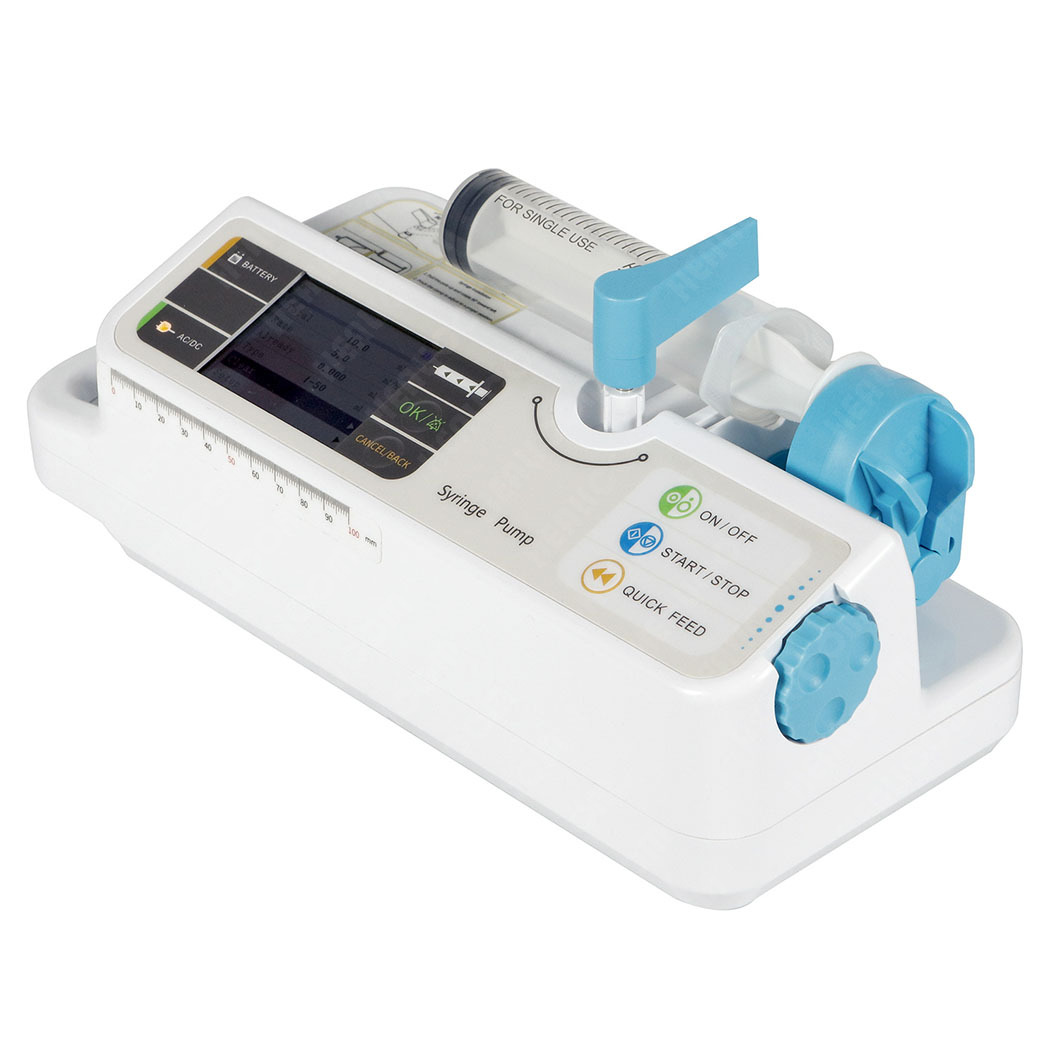

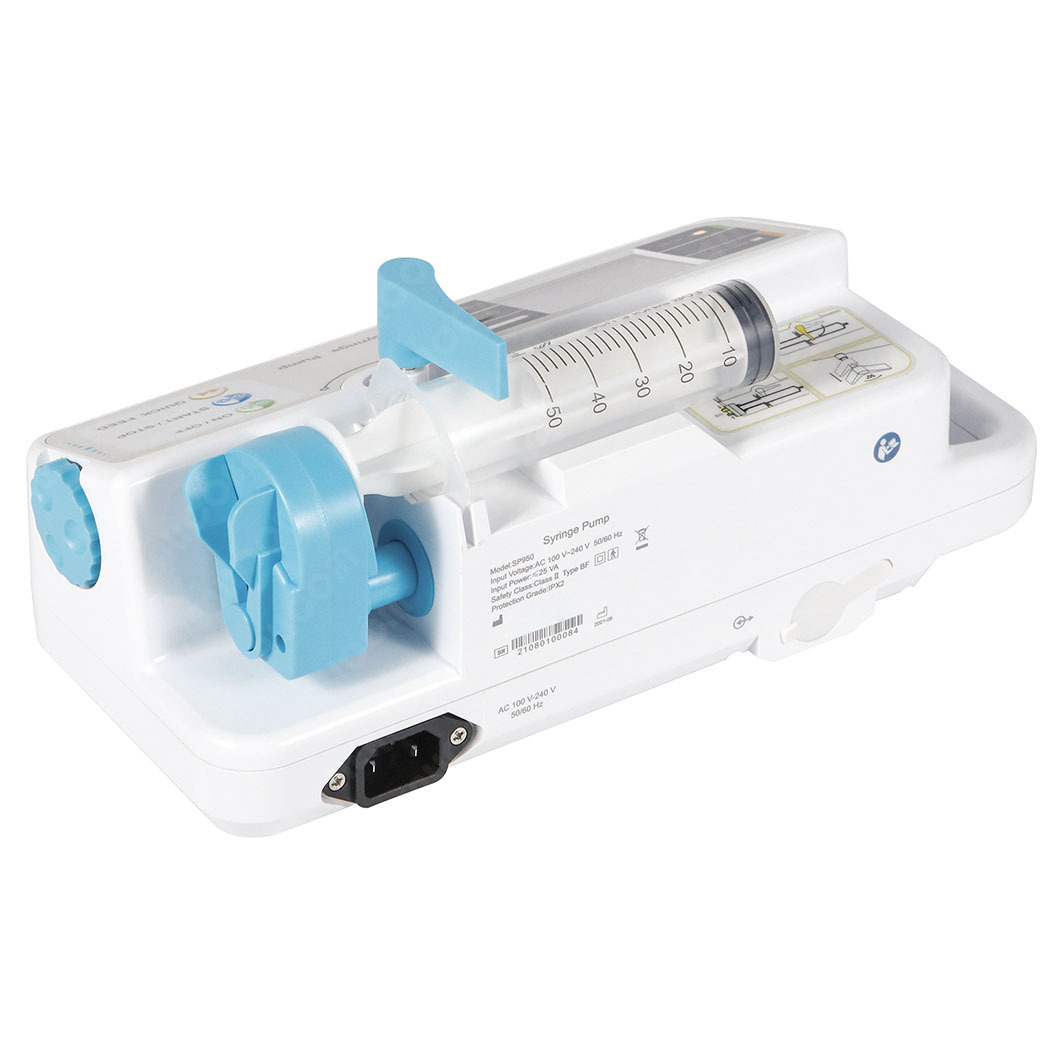

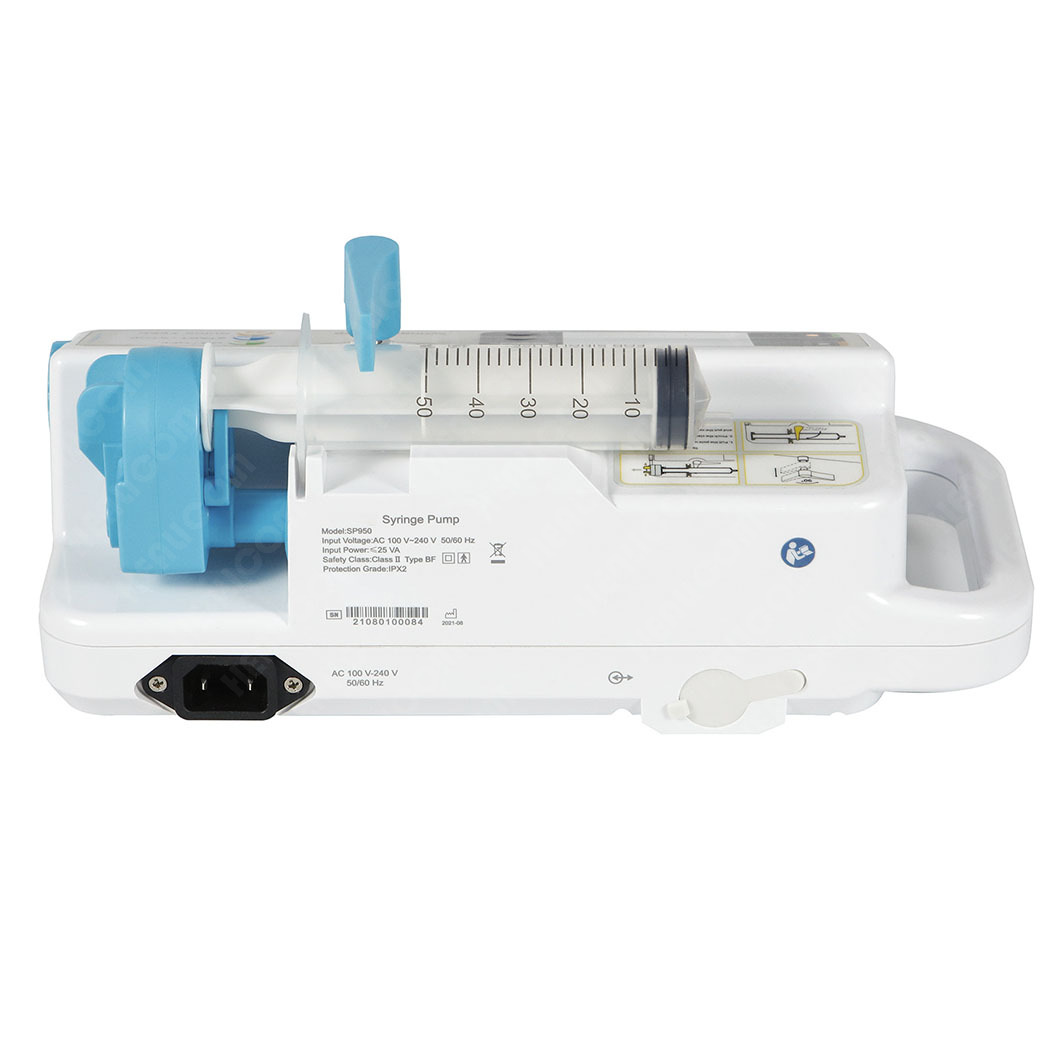

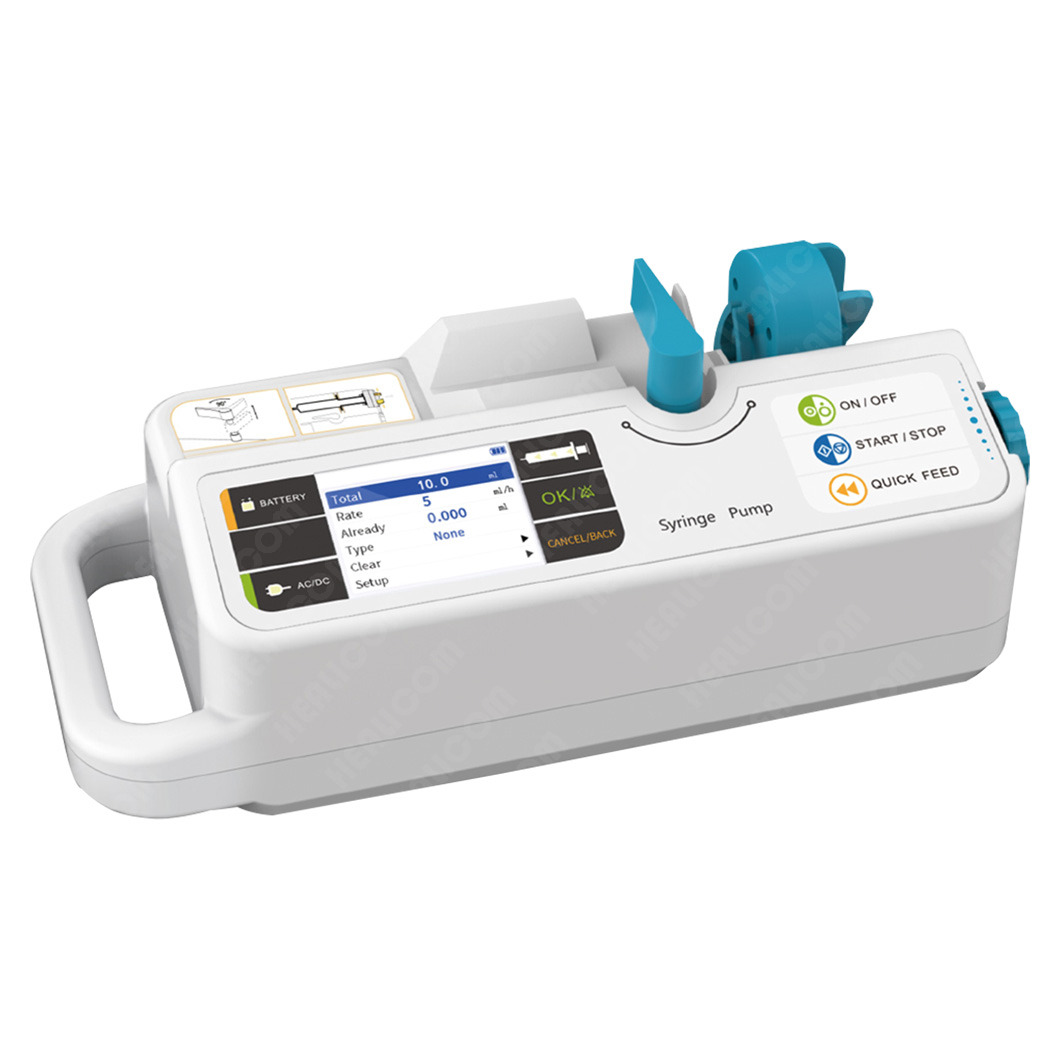

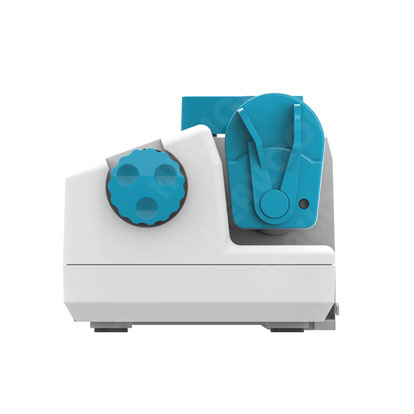

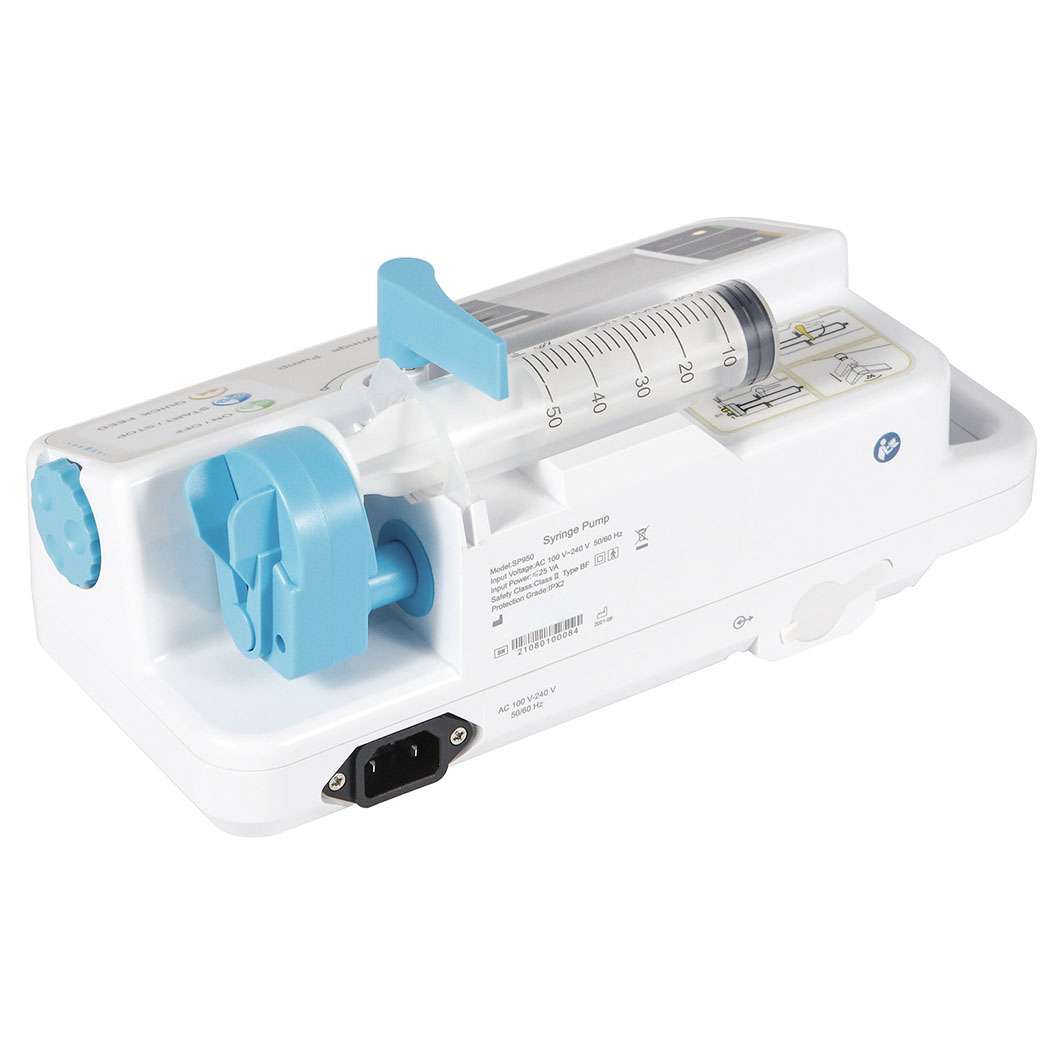

HSP-950 Medical Portable LED Screen Syringe PumP
Function
-Injection rate and total volume can be set by users.
- High priority alarms: occlusion, syringe out, motor abnormity,no syringe installed, battery exhaustion, enter KVO, pressure failure, etc. General alarms: near completion, low battery and standby prompt.
- With bolus injection function, convenient for supplying temporary and rapid medication.
- Enter KVO mode after the injection is completed.
- With a built-in rechargeable battery, it can automatically switch to battery-powered when power is interrupted and automatically charge once power-on.
- 2.8"LCD.
- Audible, visible and text prompt function.
- The system parameter and syringe type settings are protected by the password, prevents changes.
- The disposable syringe met national standards can be used, and the accuracy can be ensured by adjusting parameters.
Accessories
- A versatile bracket
- A power cord
- A user manual
| Physical characteristic |
|
| Dimension | 305 mm (L) X 132 mm (W) X 114 mm (H) |
| Weight | 1.7 Kg |
| Performance |
| Specification for syringe | 10 ml/ 20 ml/ 30 ml/ 50 ml syringe met national standards |
Injection rate:
| 10ml 0.1 m/h ~ 200 ml/h
20 ml 0.1 m/h ~ 400 ml/h
30 ml 0.1 ml/h ~ 600 ml/h
50ml 0.1 ml/h ~ 1200 m/h |
Bolus rate:
| 10 ml 200 ml/h
20 ml 400 m/h
30 ml 600 m/h
50ml 1200 ml/h |
| Accumulated volume | 0 ml ~ 9999 ml |
| Injection accuracy | ±3% |
| Pressure range of occlusion alarm | Low: 40kPa (±16 kPa)
Middle: 70 kPa (±30 kPa)
High: 100 kPa (±35 kPa) |
| KVO rate | 0.1 ml/h |
| Class | Clasll, type BF applied part, internally powered equipment |
| Alarm | occlusion, syringe out, motor abnormity, pressure failure,
enter KVO, battery exhaustion, no syringe installed, near completion,low battery and standby prompt. |
| Max power consumption | 25 VA, at least4-hour continuous operation at the injection rate of5 m/h after fully charged. |
| Power supply | AC:100- 240V, 50/60Hz |
| Battery | lithium battery, 7.4V, 5000mAh |
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
