HY-800A More Reliable Dual CPU System Nursing Infusion Pump
You are here: Home » Products » Surgical&ICU Equipments » Infusion&Syringe pump » HY-800A More Reliable Dual CPU System Nursing Infusion Pump

Category List

HY-800A More Reliable Dual CPU System Nursing Infusion Pump

The HY-800A is a lightweight, portable IV infusion pump designed for precise medication delivery. Featuring an intuitive touchscreen, adjustable flow rates, and long battery life, it ensures reliable performance in clinical and homecare settings. Its compact design, occlusion alarm, and drop sensor enhance safety, while silent operation improves patient comfort. Compatible with various infusion sets, the HY-800A is ideal for continuous or intermittent therapy.
Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • HY-800A

  • Healicom

Product Description

Medical Equipment HY-800A Portable IV Infusion Pump

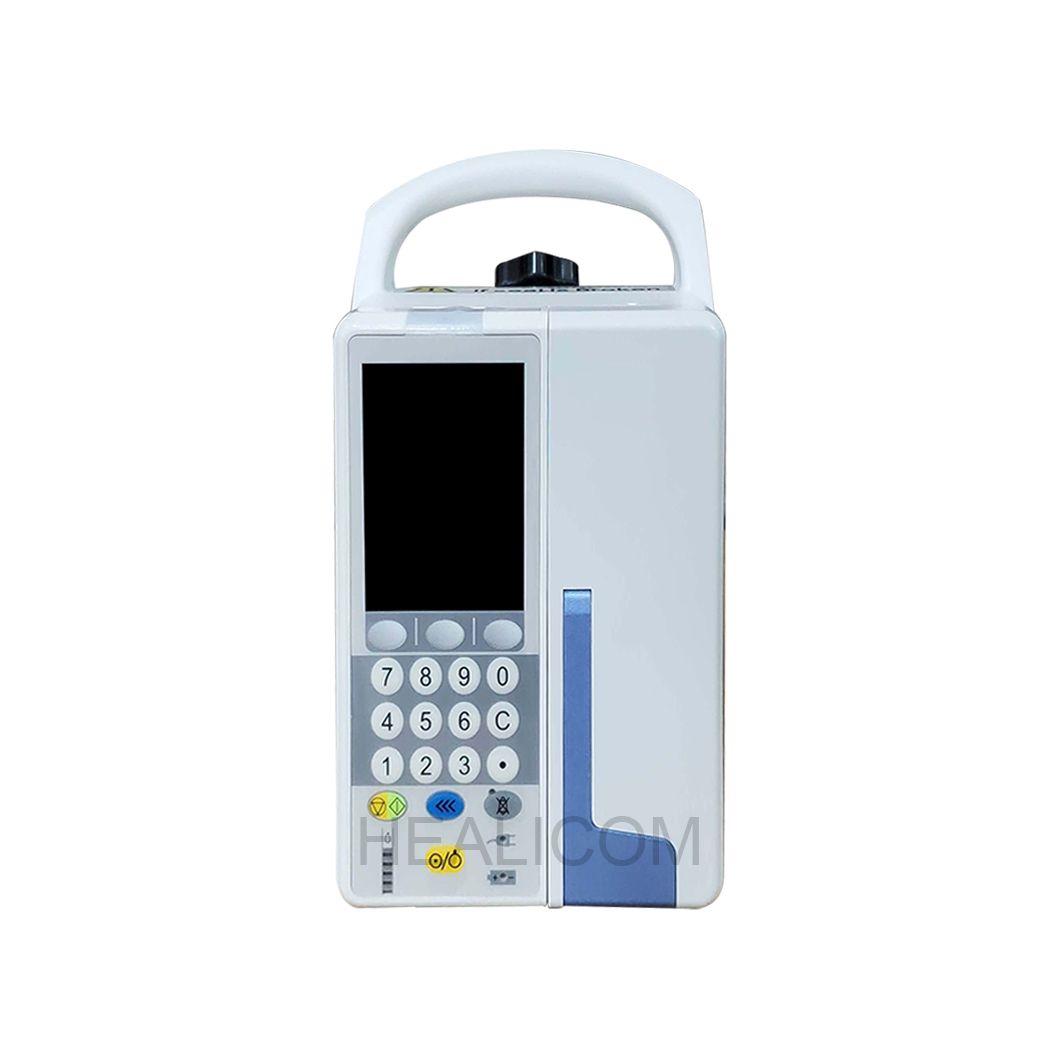

1

Features
·Small & exquisite
·Ergonomic intuitive interface, easy tc operate
·Change the flow rate while operating
·3.2 inch high-defnition color display
·Dual CPU system, safer & more reliable
·Manual bolus and automatic bolus
·Flow rate, time/volume, dosage/weight modes
·Particular stage iinfusion mode
·Drip sensor and fuid heater optional
·All brands infusion sets applicable
·Dynamic pressure display, 3-level occlusion sensitivities setting(the value of each level is programmable)
·Automatically release impact dose after occlusion(anti-bolus)

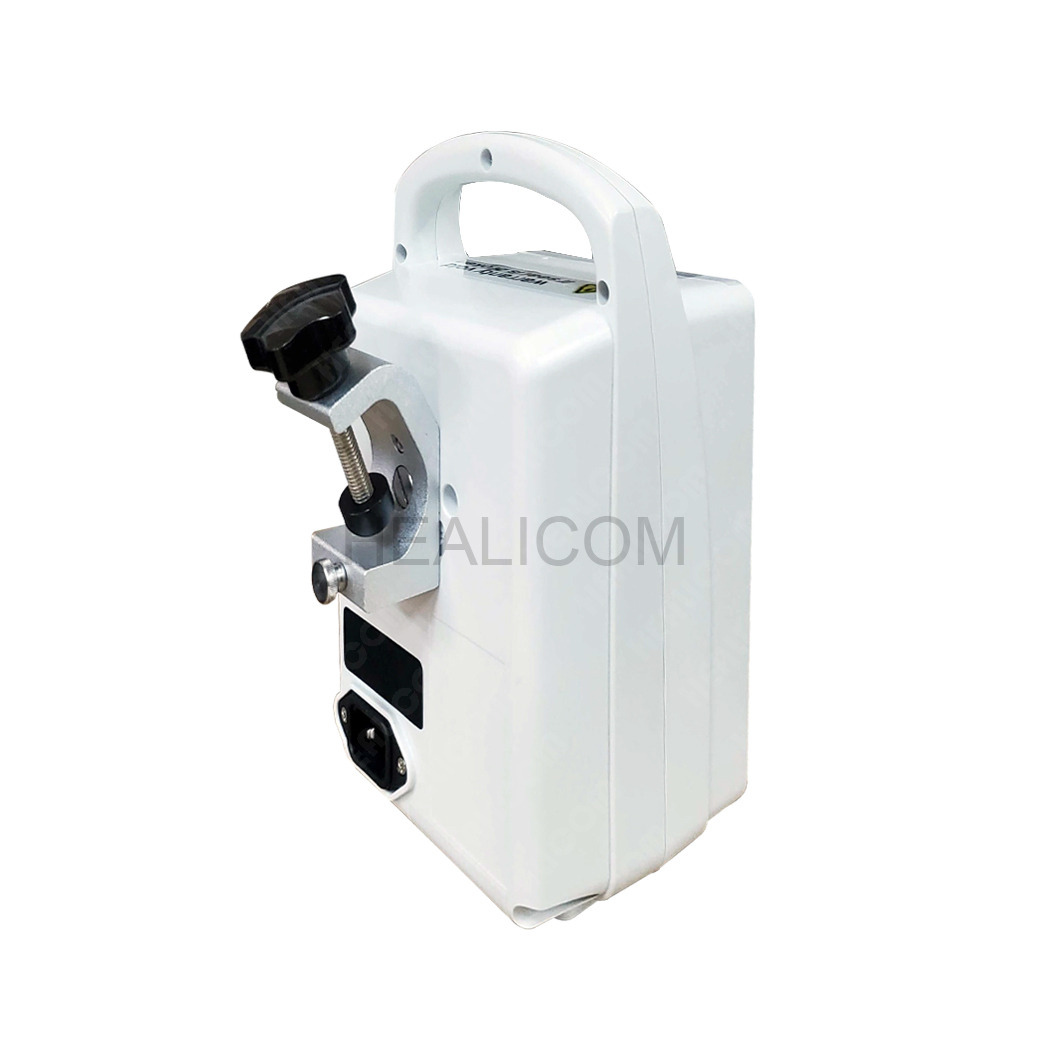

·Vertical 8 horizontal rotatable fixation clamp Drug library& wireless monitoring upgradable

Specifications
IV Sets Standard lV sets of 20,60d/ml,with diameter 3.4-4.5mm
Infusion Modes Volumetric
Infusion Accuracy S+5%(after calibration)
Drip-rate Range 20d/mllv Sets:1~400d/min;60d/mllv Sets:1~150d/min
Flow Rate Range 0.1ml/hr~1200ml/hr
Volume Limit 0.1~9999ml
Purge Rate 600ml/hr
BOLUS Default 300ml/h with volume 3 m:Vaues adiustable
KVO 0.1~10ml/hr
Bubble Detection Ultrasonic with 3-level sensitivities setting.50~300ul
Occlusion Alarm 3-leve sens tivities setting
Audio & Visual Alarm Bubbles, Door open, Finished, Pause Overtime, Leakage Empty , Battery Low, Motor reverse.
incorrect parameters setting, Motor failure, Abnormal drip sensor ,Occlusion ,AC losl etc.
Power Source ≤15W,85V~265V,50Hz/60Hz
Display 3.2 in TFT
Battery DC12V,2000mAh( last 4 hours at 25ml/hr after ful y recharged )
Operation Condition Temperature:+5ºC~+40ºC,Relative Humditys80%,Almospheric Pressure 70KPa ~ 106Kpa
Dimensions 167mmX125mmX115mm
Weight 1.8kg

2

3

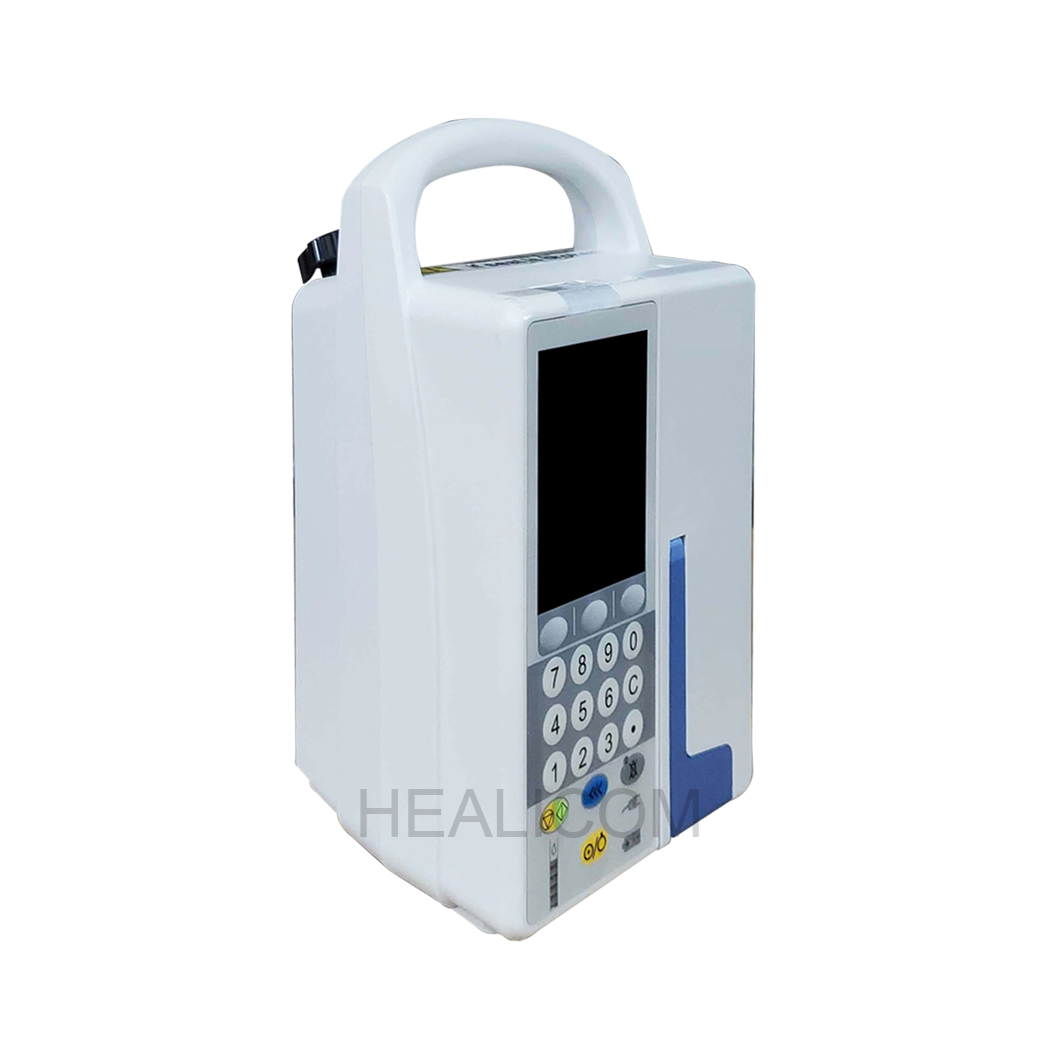

4

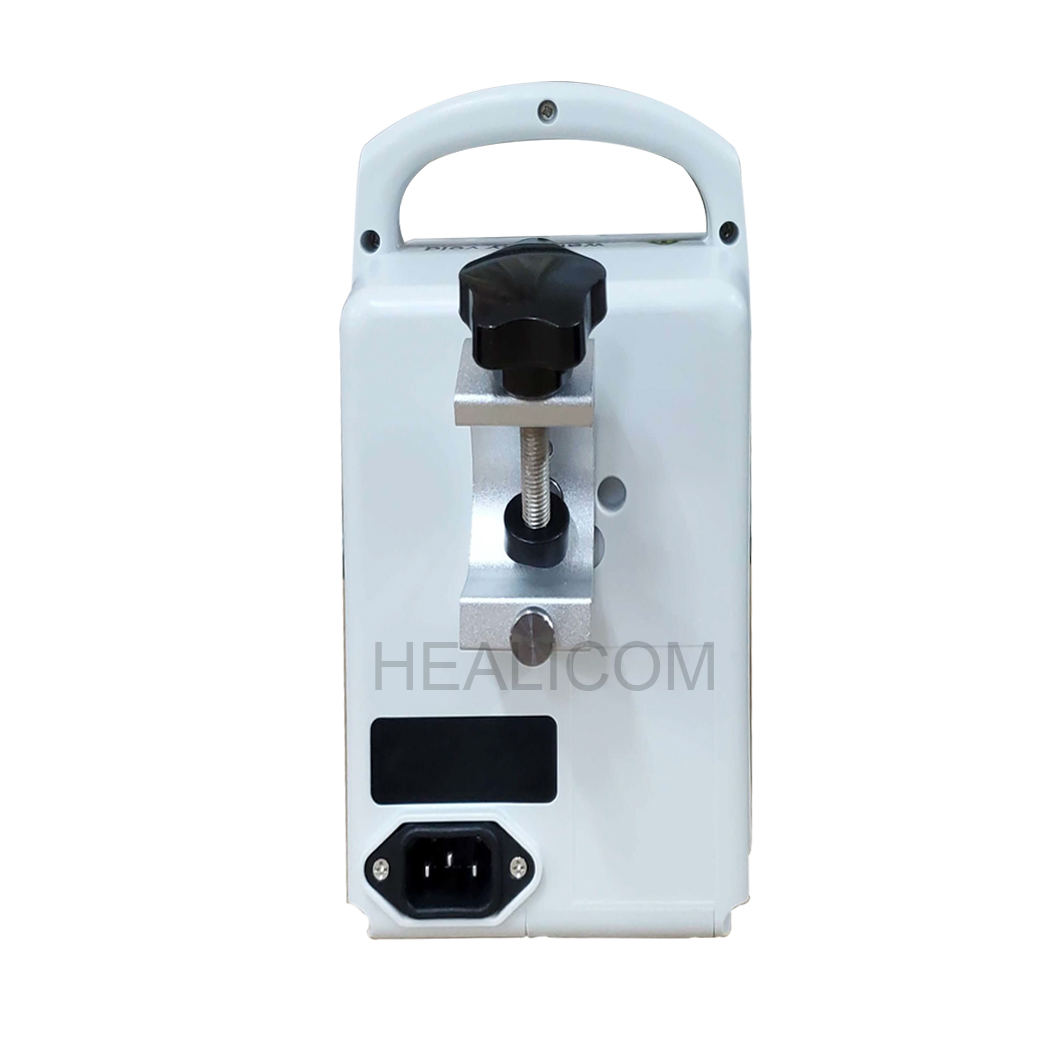

7

Company Profile


2025年2月24MIC详情页_01

2025年2月24MIC详情页_02

2025年2月24MIC详情页_03

2025年2月24MIC详情页_04

FAQ


1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.

2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.

3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.

4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.

5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
