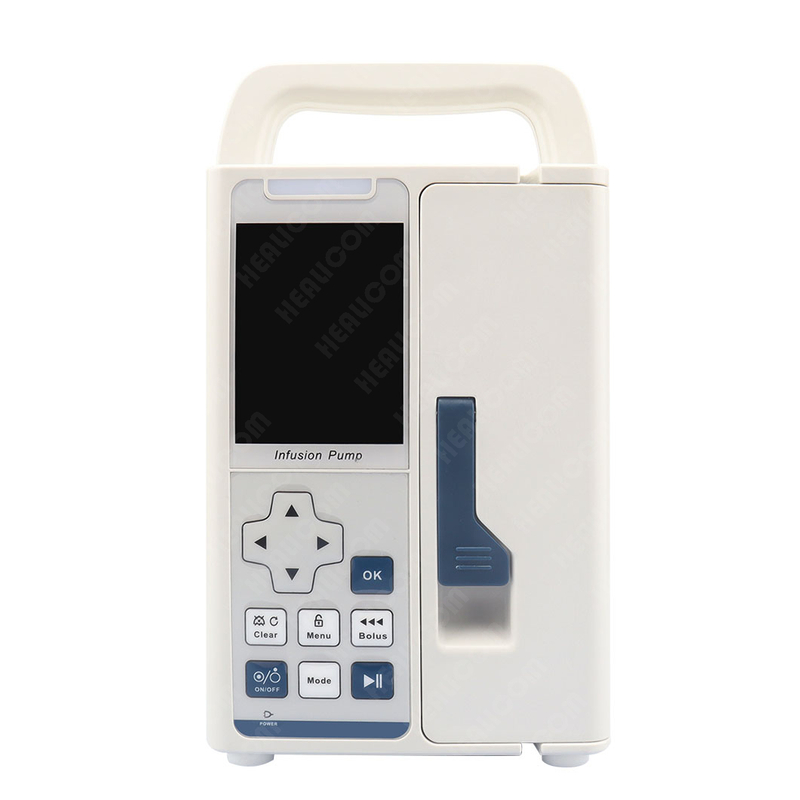

HIP-3 Medical Automatic Electronic Chemotherapy Portable IV Infusion Pump

HIP-3 Medical Automatic Electronic Chemotherapy Portable IV Infusion Pump

Features

• Open system - compatible with all standard IV sets.

• Large COLOR TFT display with adjustable brightness.

• Manual/Automatic Bolus.

• Anti-bolus system.

• DPS dynamic pressure display.

• 2000 events stored can be checked and downloaded.

• Five work modes: Rate Mode, Time Mode, Dose Mode, Sequential Mode and Drug Library Mode.

• Drug library with 1030 drug names (Optional).

• 8 Hours Internal Battery continuous operation.

• Visual and audible Alarm system and accurate infusion rate for safety and reliability.

• Very accurate and reliable.

• Friendly user interface.

• Dynamically display working status.

• KVO and Bolus functions.

• Automatically record the setting of last infusion.

• Preset Solution Volume for nurse workload reduction.

• Change the flow rate without stop during infusion

• Three levels of the occlusion: high, middle, and low.

• Easy to clean through the open door design.

Simple and easy to use

● Open system - compatible with all standard IV sets.

● Large COLOR TFT dislay with adjustable bightness

● Vertical and Horizontal mounting clamp

● 8 Hours Internal Battery continuous operation.

Accurate safety

● Five work modes: Rate Mode, Time Mode, Dose Mode

● Drug library with 1030 drug names (Optional).

● 2000 events stored can be checked and downloaded.

● Automatically record the setting of last infusion.

● KVO and Bolus functions.

● Manual/Automatic Bolus.

Wide range of adaptation

● Very accurate and reliable.

● Visual and audible Alarm system and accurate infusion rate for safety and reliability.

● DPS dynamic pressure display.

● Three levels of the occlusion: high, middle, and low.

● Anti-bolus system.

Energy conservation and environmental protection

● Preset Solution Volume for nurse workload reduction.

● Change the flow rate without stop during infusion

● Dynamically display working status.

● Easy to clean through the open door design.

Technical Specifications
Fit IV tubes	Can be used with any brand IV set after exactly calibration
Pump Type	Peristaltic finger pump
Accuracy	±3%
Delivery rate range	0.1ml/h~1500ml/h (0.1ml/h~99.9ml/h, 0.1ml/h step; >99.9ml/h, 1ml/h step)
Delivery time range	00h01min~99h59min (1 min step)
Volume limit range	0.0-9999ml (1 ml step)
Total Volume Range	0.0-9999ml (1 ml step)
Purge Rate	600.0ml/h (Adjustable)
KVO Rate	0.1~20.0ml/h. Programmable and adjustable
Occlusion pressure	LOW:60(±15)kPa, MEDIUM: 90(±15)kPa or HIGH: 120(±15)kPa (Programmable and adjustable)
Alarms	Rate Abnormal,Door Open,Air-in-Line,Occlusion,Bottle Empty,Battery Empty,No Battery,Key Holding During Infusion/ Pause,Infusion Complete,No Action,Battery Low Three levels of alarm volume LOW, MEDIUM or HIGH
Dose Mode	Volume:0.1-999.9ml(0.1ml step) DRUG MASS:0.1-999.9mg 0.1mg step) DOSE:0.001-9999ug/kg/min(0.001ug/kg/min step) WEIGHT:0.1-300kg(0.1kg the least step) Dose unit: ng/kg/min, ug/kg/min, mg/kg/min, g/kg/min, ug/kg/h,mg/kg/h, g/kg/h,ug/min,mg/min,g/min,ug/h,mg/h,g/h,U/min,U/h,IU/h,U/kg/h,ml/h
Bolus function	Bolus rate:1.0~1200ml/h,Bolus volume:1.0~100ml Programmable and adjustable, Automatic/Manual bolus available
Drug library Mode	10 categories of drugs, amounts to 1030 kinds of drug names, 17kinds of dose units, such as ug/kg/min, mg/kg/min,etc. Makes drug dispensing more convenient and safer.
Sequential mode	Available
Interface	RS-232
Brightness	1~10 levels can be selected
History records	2000 events stored can be checked and downloaded
Power source	AC power supply: AC 100 to 240V( +/-10%),50/60Hz; DC Power supply: 12~15V, power>15W; Built-in Lithium Battery: Rechargeable, 11.1V, 2000mAh. 8 hours of continuous operation
Accessories	AC power line, Operational manual
Protection Class	Class I, Type CF,IPX4
Dimension /N.W	120mm*100mm*215mm , 1.7kg
Packing size/G.W	250*190*155mm, 2.5KG
