HSP-D2
Healicom
Product Description

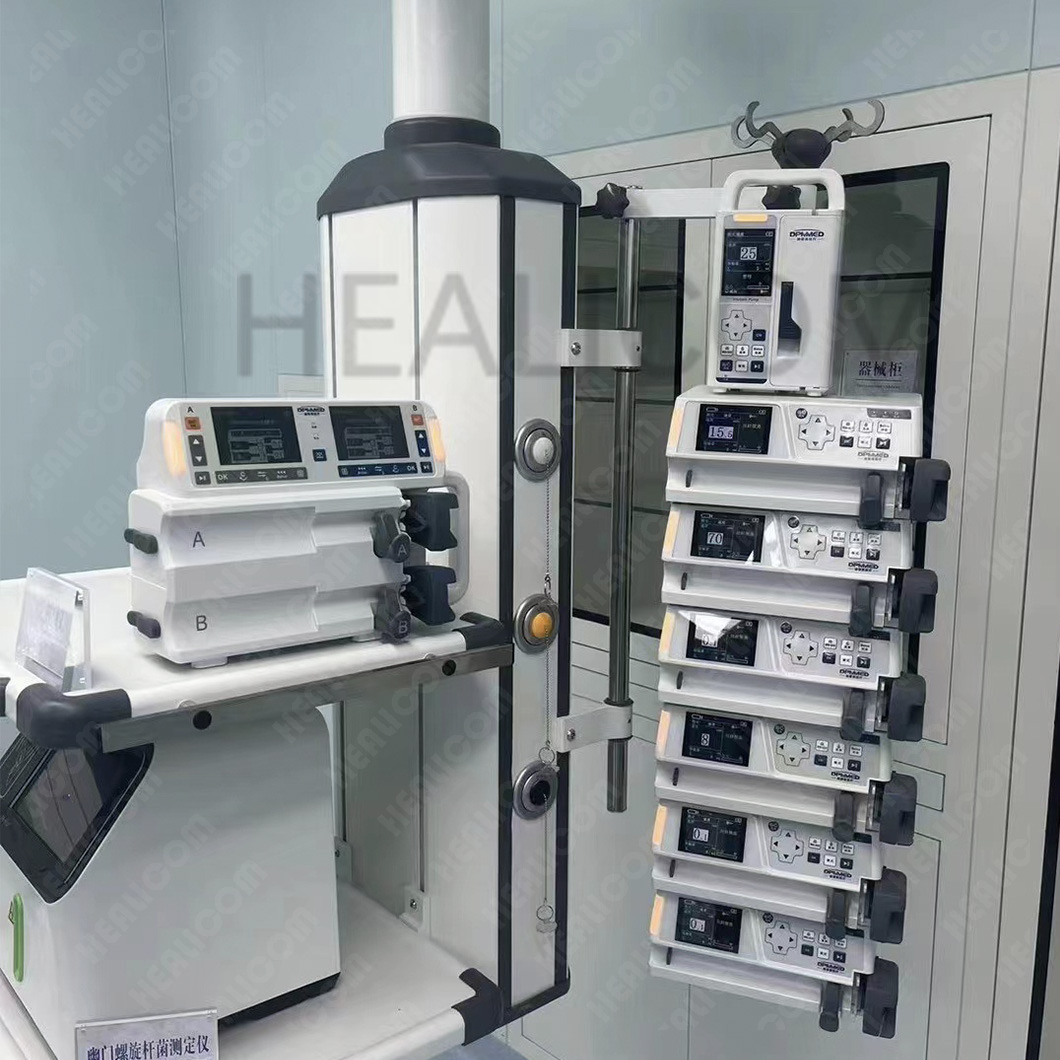

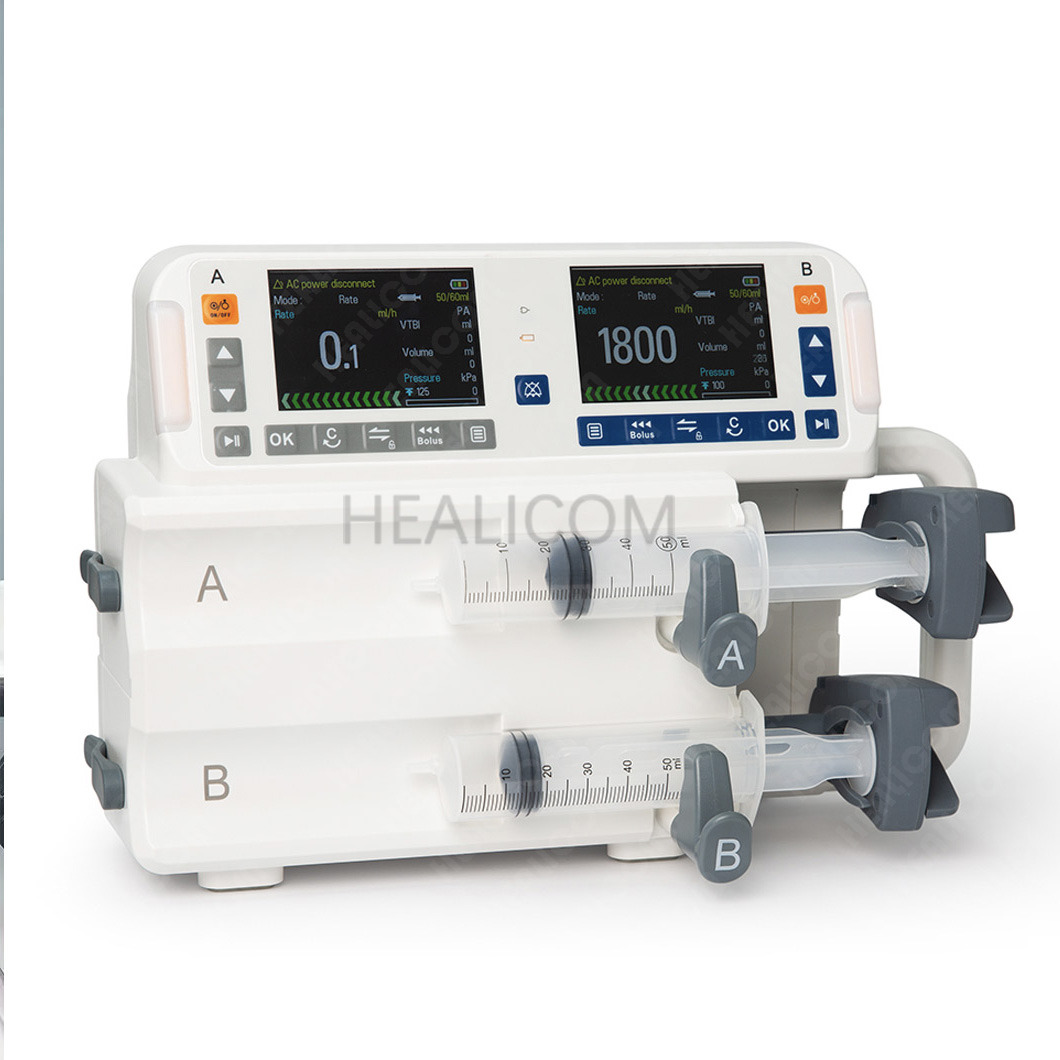

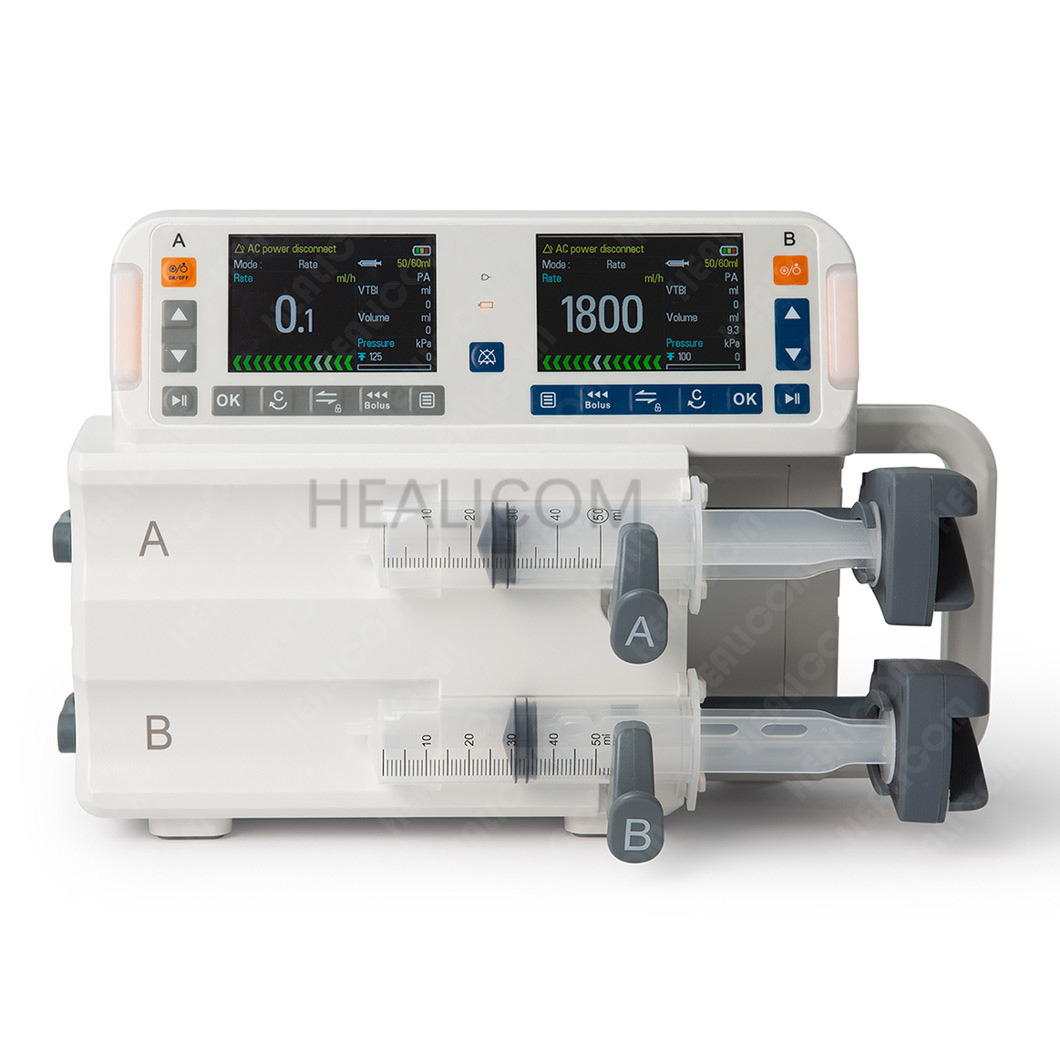

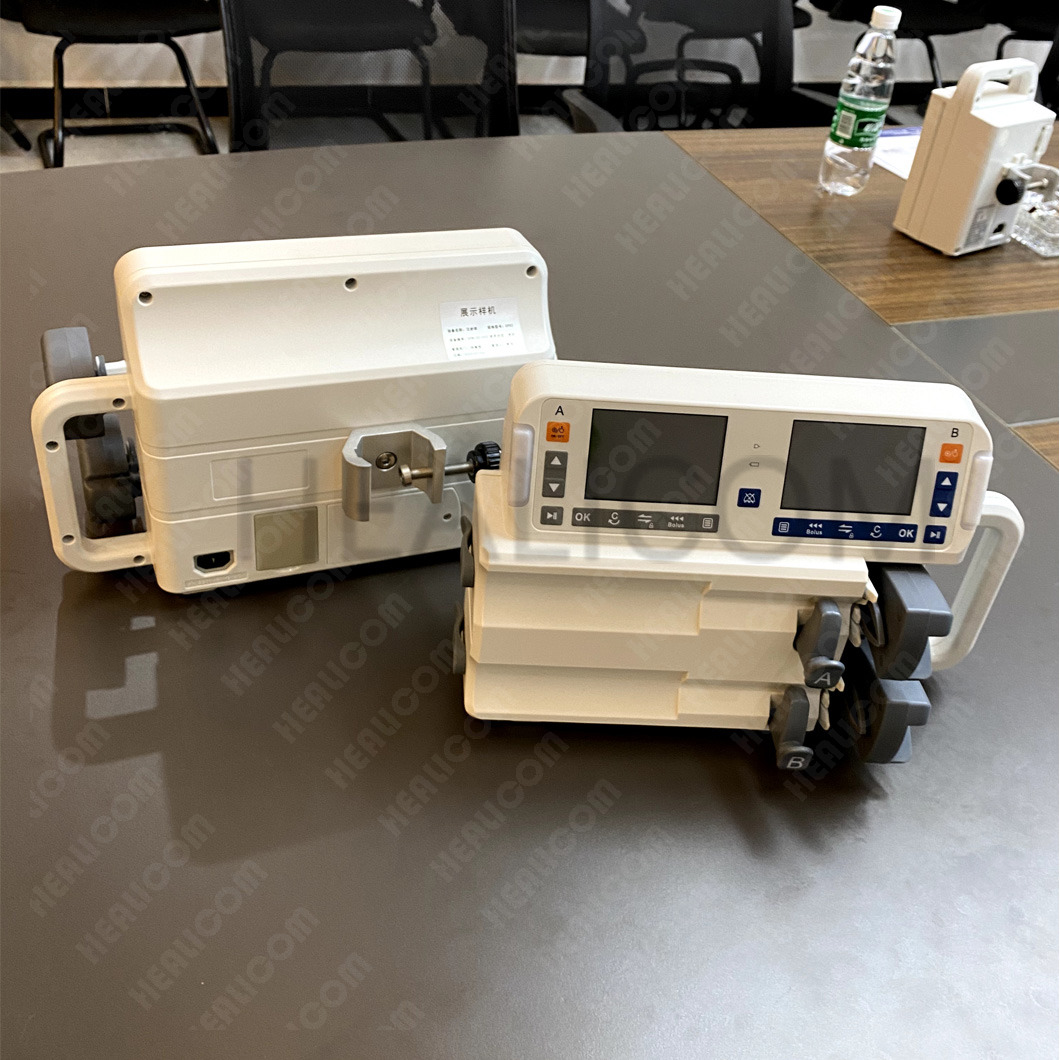

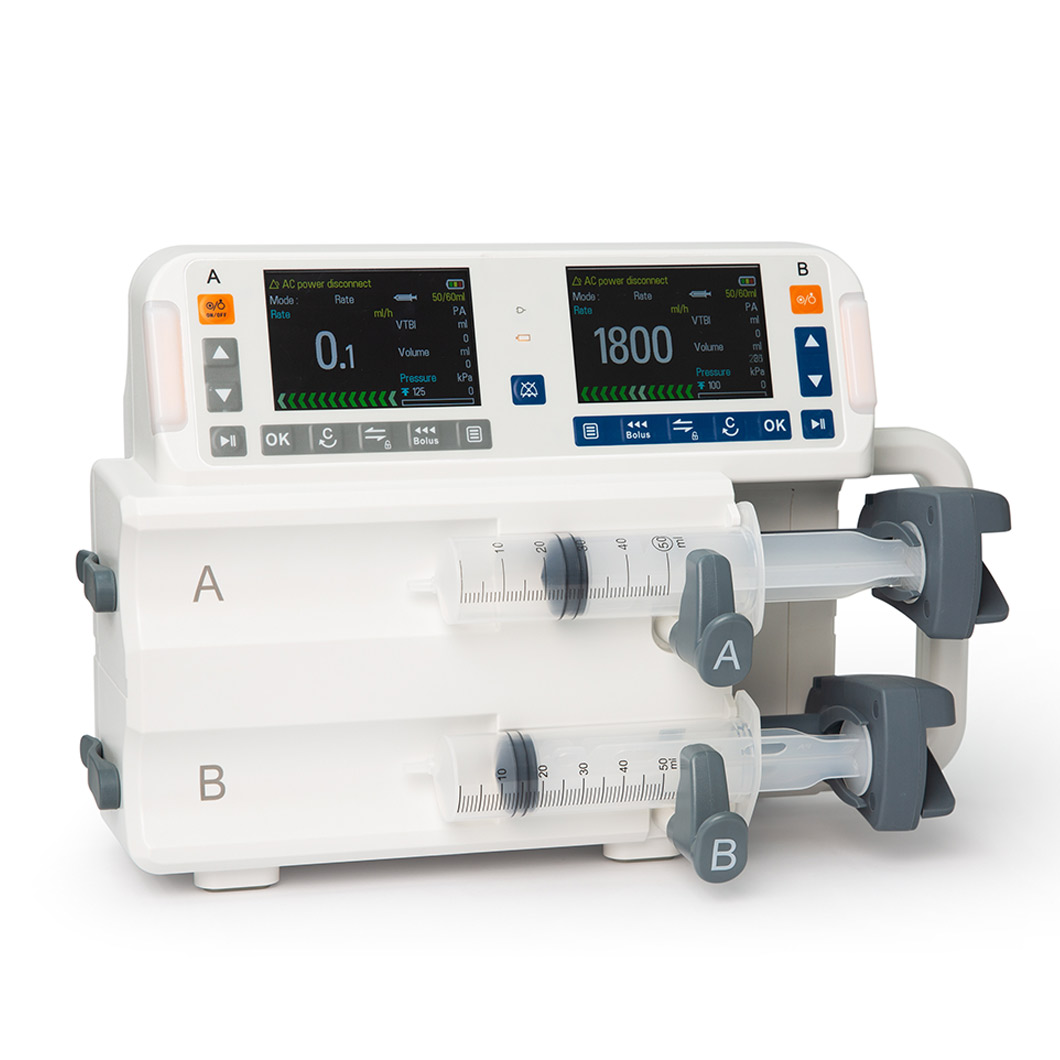

Medical Equipment HSP-D2 Double Channel Portable Syringe Pump
Features
• Manual or Automatic Bolus function.
• Vertical & Horizontal mounting clamp.
• Anti-bolus system.
• DPS Occlusion Pressure display.
• 2000 events stored can be checked and downloaded.
• Large color TFT display with adjustable brightness.
• Independent operating channels, and with Online function: AB channels can be worked cyclically and repeatedly.
Technical specifications
| PARAMETER | SPECIFICATION |
| Applicable syringes | 5ml,10ml,20ml,30ml,50ml,60ml of any standard |
| Accuracy | +/- 2% with correct calibration |
| Rate mode | 0.1mI/h-2000.0ml/h (0.1ml/h or 1ml/h step) |
| Time Mode | SOL.VOL:0.1-9999.9ml(0.1ml step) TIME : 00:01-99:59min (1min step) |
| Dose Mode | Volume : 0.1-999.9ml(0.1ml step) DRUG MASS : 0.1-999.9mg (0.1mg step) DOSE : 0.001-9999(0.001 step) WEIGHT : 0.1-300kg(0.1kg step) |
| Total Volume Range | 0.1-9999.9ml(0.1 ml step) |
| Drug library Mode | Available |
| Sequential mode | Available |
| Purge Rate | Programmable and adjustable |
| KVO Rate | 0.0~5.0 ml/h, Programmable and adjustable |
| DPS Occlusion Pressure | 25 levels setting |
| Alarms | Loose ,Occlusion, Empty, Near Empty Rate Abnormal. Low Battery, No Battery, Infusion Complete, ,No Action, Syringe Plunger Disengagement |
| Alarm volume | |
| Bolus Rate | 0.1-2000ml/h, Programmable and adjustable Automatic/Manual bolus available |
| Bolus Volume | Range: 1.0~50.0ml,(0.1mI step) |
| Interface | RS-232 |
| Brightness | 1~10 levels can be selected |
| History records | 2000 events stored can be checked and downloaded |
| Power source | AC power supply: AC 100 to 240V( +/-10%),50/60Hz; DC Power supply: 12~15V,power>15W; Built-in Lithium Battery: Rechargeable,11.1V,2000mAh. 8 hours of continuous operation |
| Protection Class | Class l, Type CF,IP44 |
| Dimension / N.W | 350*150*220mm,4KG |
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
