HF-610
Healicom
Product Description

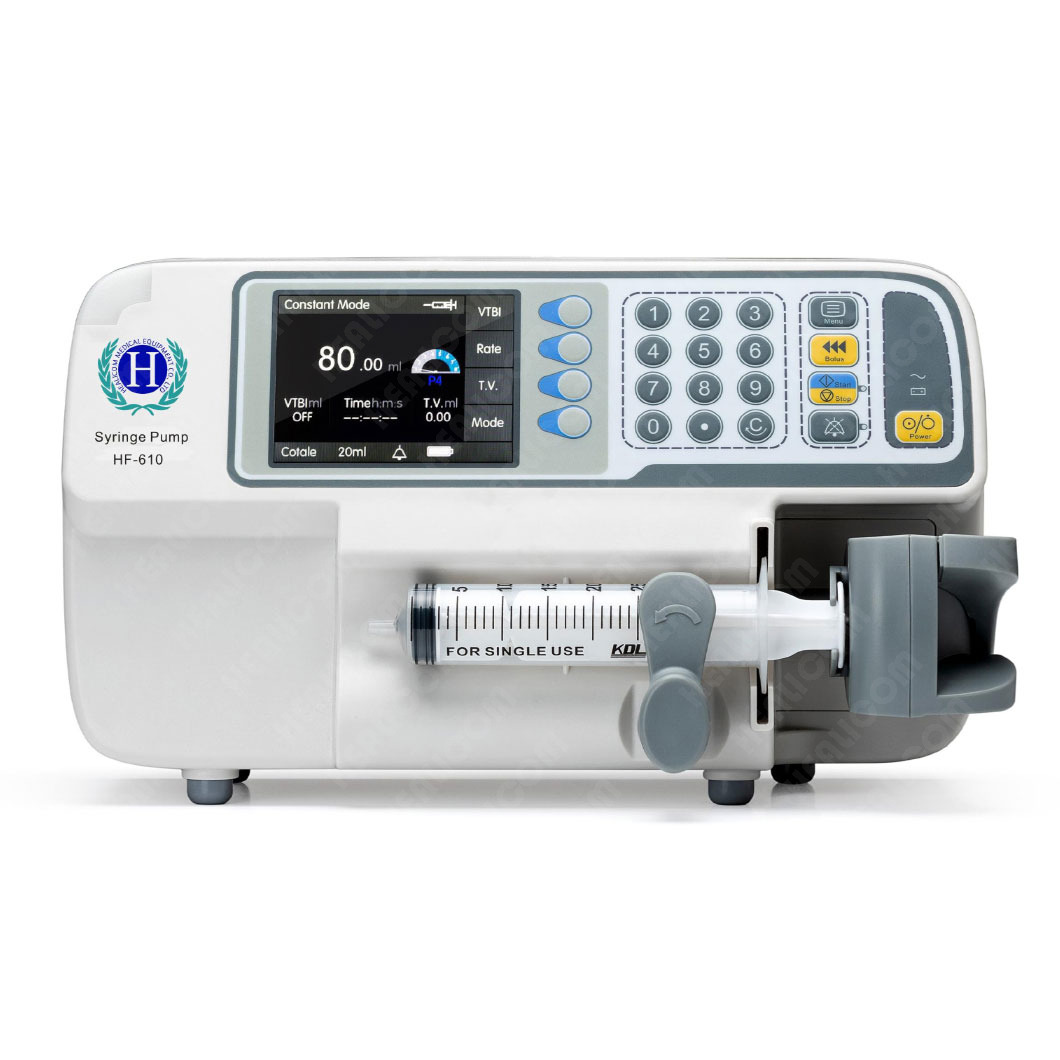

Medical Equipment HF-610 Portable Syringe Pump
Different adjustable level setting
Occlusion pressure sensors, dynamic pressure value display, up-occlusion sensor to avoid underflow, 8 adjustable level for occlusion, air bubble and alarm volume to meet different needs in different department.
Long life battery backup
3000mAh Lithium battery, backup time more than 10hours under battery supply to ensure no interruption when no AC power supply or in moving condition.
Easy Operation

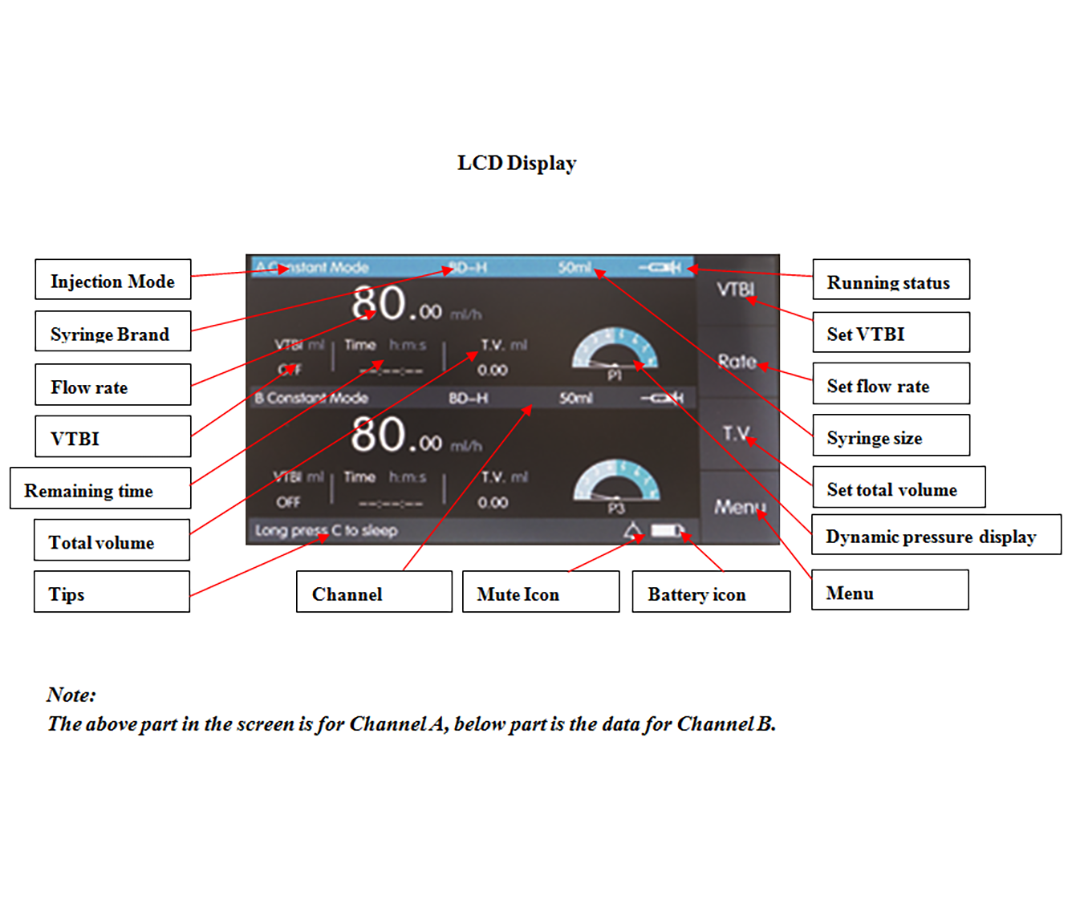

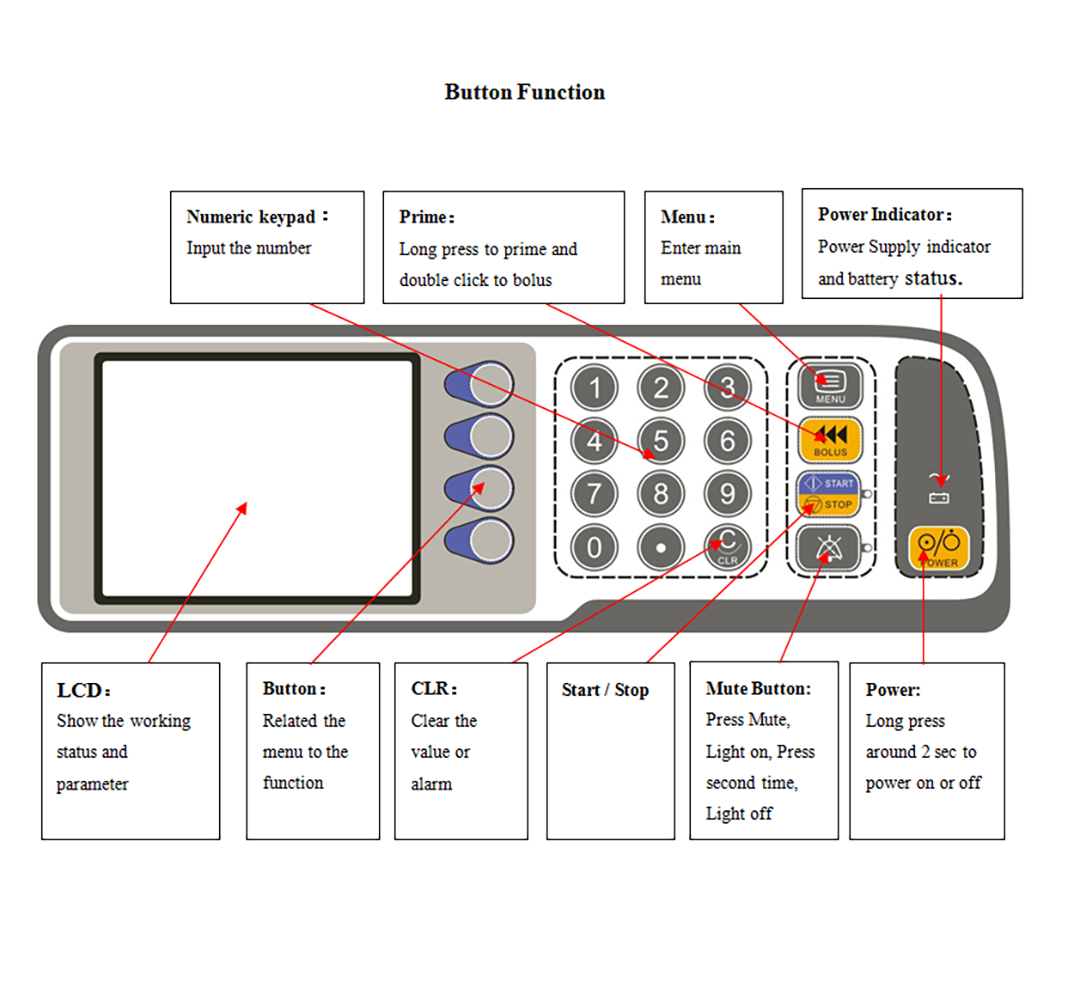

TFT color LCD, number Keypad
Double CPU Design
Independent CPU design, reliable data transmission, safer infusion.
Various mode
Constant Rate, Time/Volume, Drug Weight, Micro, Sequential, Drug Library Mode
Real-time self-testing
Real-time self-testing during startup and infusing process, ensure the safety of each component and each function, safer infusion.
Technical specifications
| Injection Mode | Constant Rate, Time mode, Drug Weight, Micro, Sequential, Drug Library Mode |
| Syringe Size | 5ml, 10ml, 20ml, 30ml, 50/60ml, auto recognition |
| Flow Rate Range | 5ml: 0.10ml/h-60.00ml/h 10ml: 0.10ml/h-300.00ml/h 20ml: 0.10ml/h-400.00ml/h 30ml: 0.10ml/h-600.00ml/h 50/60ml: 0.10ml/h-1200.00ml/h |
| Flow Rate Increment | 0.01ml/h |
| Preset Time | 1s-99hr59min59s |
| Parameter Changed During Injection | Support change of VTBI, flow rate during injection |
| Accuracy | ≤±2%(±1% mechanical accuracy included) |
| Preset Volume(VTBI) | 0.1~9999.99ml or empty |
| Accumulated Volume | 0.00~999.99ml |
| Purge Rate | 5ml: 30-60ml 10ml: 150-300ml 20ml: 200-400ml 30ml: 300-600ml 50/60ml: 600-1200ml |
| Bolus Rate | 5ml: 0.10ml/h-60.00ml/h 10ml: 0.10ml/h-300.00ml/h 20ml: 0.10ml/h-400.00ml/h 30ml: 0.10ml/h-600.00ml/h 50/60ml: 0.10ml/h-1200.00ml/h |
| KVO | 0.10-5.0ml/h adjustable |
| Occlusion Pressure | 8 level adjustable, 20Kpa-150Kpa, dynamically pressure value display. |
| Alarm | Finished, near finished, near empty, empty, occlusion, syringe disconnected, no operation, parameter error, syringe size error,low battery, battery lost, battery ran out, AC power lost, abnormal injection, communication error. |
| Syringe Management | Preset 20 syringe brands, can add or edit the brand, accept all brands after calibration. |
| Display | 3.5'' / 5.0'' TFT color LCD, 10 level brightness adjustable. |
| Communication Port | USB, RJ45 for future use, Ethernet Port |
| Battery | Rechargeable Lithium battery, DC11.1V, 3000mAh, operating time: ≥9h@5ml/h |
| Alarm Voice | Standard Medical Alarm Voice with Mute function, 8 levels adjustable. |
| Event log | 1000 event log, can be transmitted to PC with USB |
| Software Upgrade | Upgrade the software with USB |
| Classification | Class II, Type CF, IPX4 |
| Other Function | Double CPU, Password function, Multi Language, Pressure Release function, 90° rotatable IV pole, 4 soft function key, key lock function, numeric keypad, Pause function etc. |
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
