HSA510 Multifunction Comprehensive Alarm Portable Infusion Pump

The HSA510 is a compact, user-friendly IV infusion pump designed for accurate and safe medication delivery. It features a clear LCD screen, adjustable flow rates and a long-lasting rechargeable battery. Equipped with occlusion, air bubble, and empty bottle alarms, it ensures patient safety in hospitals, clinics, and homecare. Its lightweight, portable design and silent operation enhance mobility and comfort. Compatible with standard infusion sets, the HSA510 supports both continuous and intermittent therapy, making it ideal for diverse medical needs.
Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • HSA510

  • Healicom

Product Description

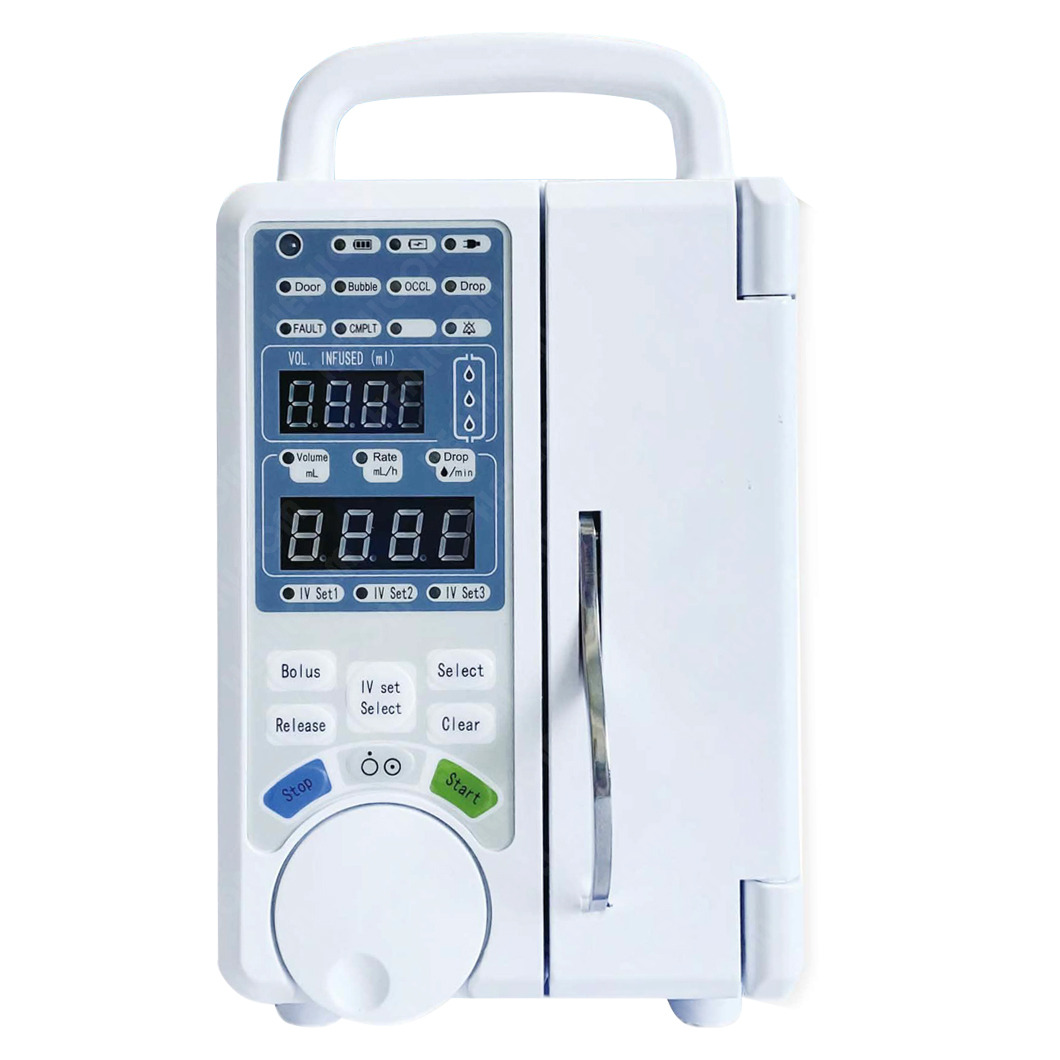

Medical Equipment HSA-510 Portable IV Infusion Pump

1 - 副本 (2)

Feature
Unique Rotary number setter
Compatible with various brands of infusion sets
Comprehensive alarm function
Ultrasonic bubble detection technology
Dynamic pressure detection technology
Emergency power supply
Nursing call port RS232
User-Friendly, Entry-level products preferred


SPECIFICATIONS
Dimension 165*120*220 mm
Weight 2.28kg
Classification Type CF, Class I, IPX1
Compatible Infusion set Compatible with various brands of infusion sets
BASIC PARAMETER
Flow-Rate (ml/h) 1-1200 ml/h
VTBI (ml) 0-9999 ml, Step by 1ml
Volume Range (ml) 0-9999 ml, Step by 1ml
Accuracy ±5%(correctly calibrated)
Purge/Bolus Rate (ml/h) 200-1200ml/h ,adjustable
KVO (ml/h) Flow Rate >10ml/h: KVO =3mI/h ; 1ml/h<Flow Rate≤10ml/h: KVO =1ml/h; adjustable
Bubble Detection (ul) ≥50uL
Occlusion Alarm Threshold (KPA) 50KPa±25KPa
SPECIAL FUNCTION
Emergency power supply Available
Real-Time Pressure Display Dynamic pressure detection technology
POWER SUPPLY
AC Power 100-240V 50/60 Hz
Internal Battery Ni-MH Battery
input Power (VA) 40VA
Battery Duration >3 hours running at the medium speed
ALARM
Visual and Acoustic Alarm Door Open,Occlusion,Occlusion Malfunction,Infusion Completion,Bubble,Bubble Malfunction,Battery Exhausted,Pause Overtime,Low Battery,Near Finished,Drop Error, Drop Sensor Disconnection
CONNECTIVITY
Drop sensor Optional
Wired Nursing call port through RS232
MOUNTING
Handle Available
Pole Clamp Direction 90°,180°,270°,360°
SAFETY REQUIREMENT
Temperature +5ºC-40ºC
Relative humidity 20%-90%
Atmospheric pressure 70KPa-106KPa
Should only work in an environment with no vibration, no strong magnet, or corrosive gas.
