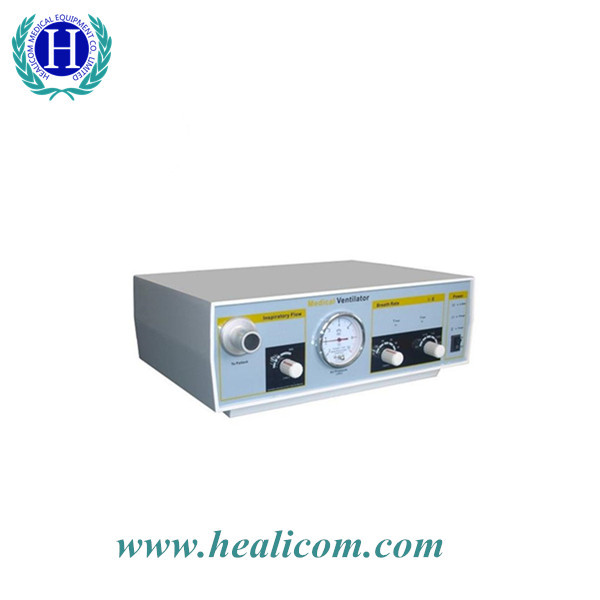

HV-10 Portable Ventilator Machine Oxygen Breathing Apparatus
You are here: Home » Products » Surgical&ICU Equipments » Ventilator » HV-10 Portable Ventilator Machine Oxygen Breathing Apparatus

Category List

HV-10 Portable Ventilator Machine Oxygen Breathing Apparatus

Description:
1. Used for First-Aid, Ambulance;
2. Emergency situation and patients transportation in hospital.

Features:
1. Emergency and transport ventilator
2. Pneumatically driven and electronically controlled
3. Simple operation, compact design, reliable performance
Availability:
Quantity:

PDF Export

  • HV-10
  • Healicom
  • 9019200000

Product Description

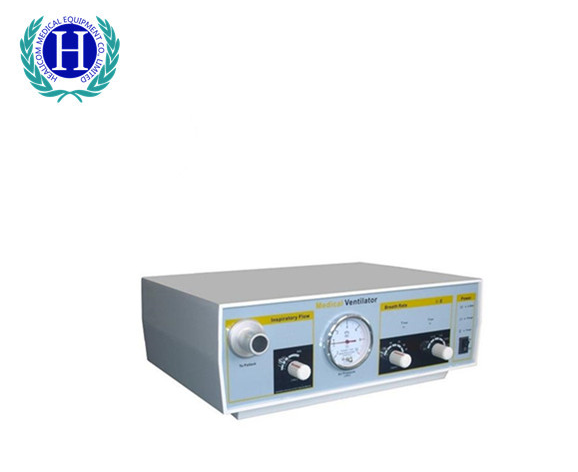

QQ图片20181226164258

Pneumatic Specifications
Oxygen Inlet Pressurized Oxygen(0.28~0.6 MPa medical oxygen)
Monitors
Indicators Specifications
Power Red Indicator
Insp. phase +/-0.1kPa Green Indicator
Chargering Red Indicator
Exh. phase Green Indicator
Low Battery Red Indicator
Breath Rate 10 15 20 25 30 35bpm
I:E 2:1 1:1 1:1.5 1:2 1:2.5 1:3
Tidal Volume 300 ~ 1000 ml
Standard configuration
Parts Name Number Specifications
Ventilator 1
Breath Circuit 1
Breath Value 1
Oxygen Pressure reducer 1 For normal oxygen cylinder
Mask 1
Hand Book 1
Battery 1 Can be used for 8 hours
Charger 1
Flesh 1
CD for operation 1
Dimensions
W*D*H 380X120X240mm
Weight 3kg
Electrical Specifications
AC Voltage 110V~240V
DC Voltage 12V
Inlet Battery 12V , 2Ah

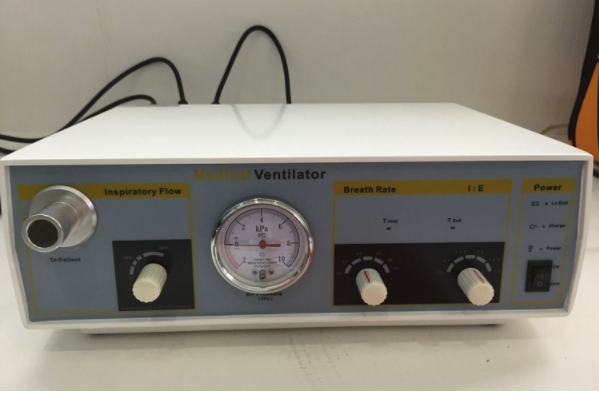

QQ图片20181226164503
