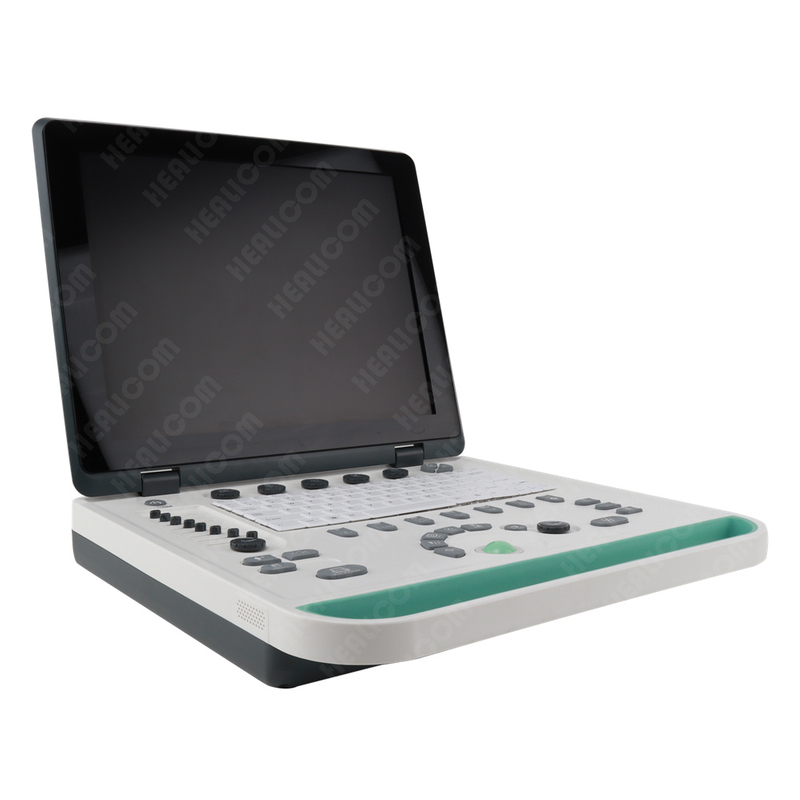

HBW-9
Healicom
Product Description
* Multiple language: English, French, German, Spanish, Russian, Italian, Portuguese, etc.
Maximum Scanning Depth | max. 250mm |
Multi-frequency | 5 segment frequencies |
Cine Loop | max. 64 frames |
Scanning mode | B, 2B, B/M, M, 4B, ZOOM |
Image gray scale | 256 level gray scale |
Image processing | Pre-processing, after-processing, dynamic range, frame rate, line average, edge; enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision. |
Gain | 0-100dB; Time gain control (TGC): 8 segment adjustment, B, M adjustment separately |
Measurement and calculation (human) | B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram; M mode: heart rate, time, distance, slope and stenosis; Gynecology measurement: Uterus, cervix, endometrium, L/R ovary; Obstetric: gestation age, fetal weight, AFI; Cardiology: LV, LV function, LVPW, RVAWT; Urology: transition zone volume, bladder volume, RUV, prostate, kidney; Small parts: optic, thyroid, jaw and face. |
Veterinary | Cattle: BPD, CRL, TD; Horse: GA; Dog: GS; Cat: HD, BD; Sheep: BPD, CRL, TD |
Supported output apparatus | U-Disk, Laser/ink printer, video printer, VGA |
Zoom | 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0 |
Image store | by hardisk or USB disk, can save image and also video(avi or swf format) |
3D image function | can get rebuilt 3D image by any probe |
Monitor | 15 inch color LED screen |
Probe Connector | 2 |
Dimension | 362mm×340mm×60mm |
Weight | Around 4.8Kg |
Standard Configuration
* One main host
