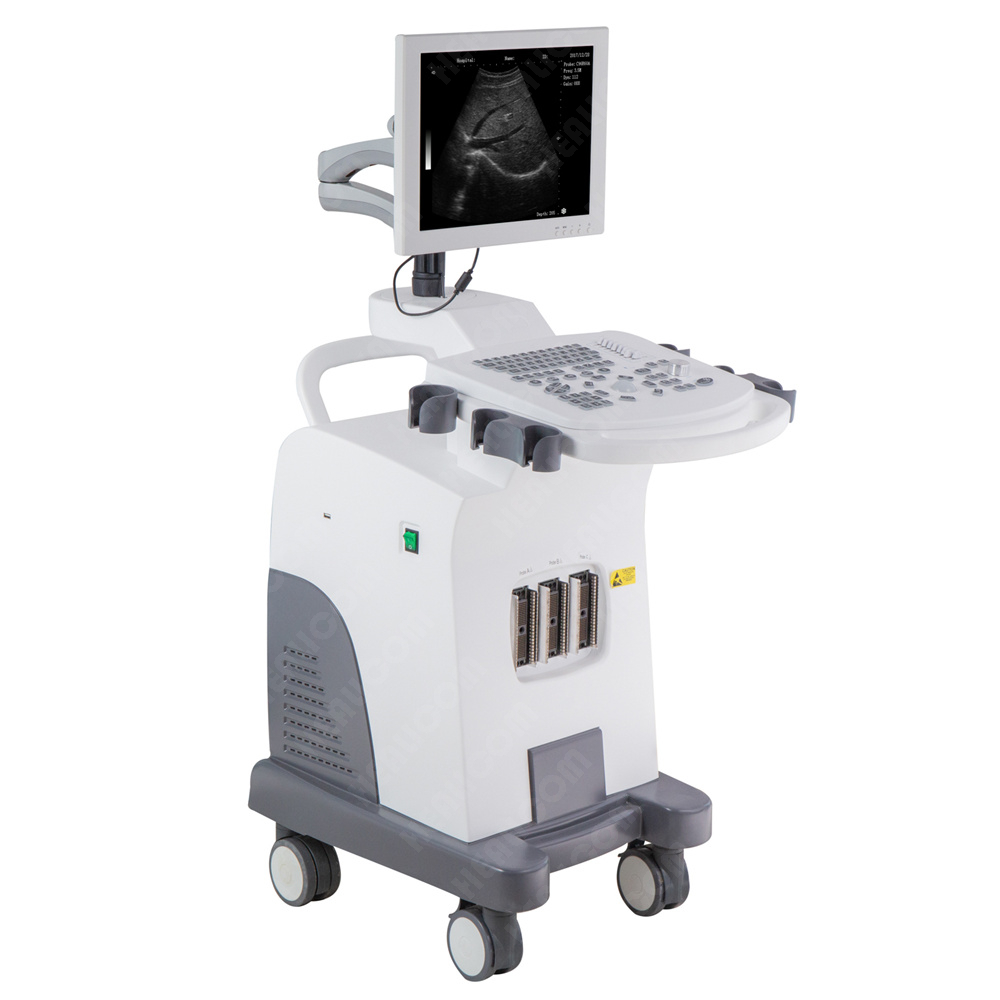

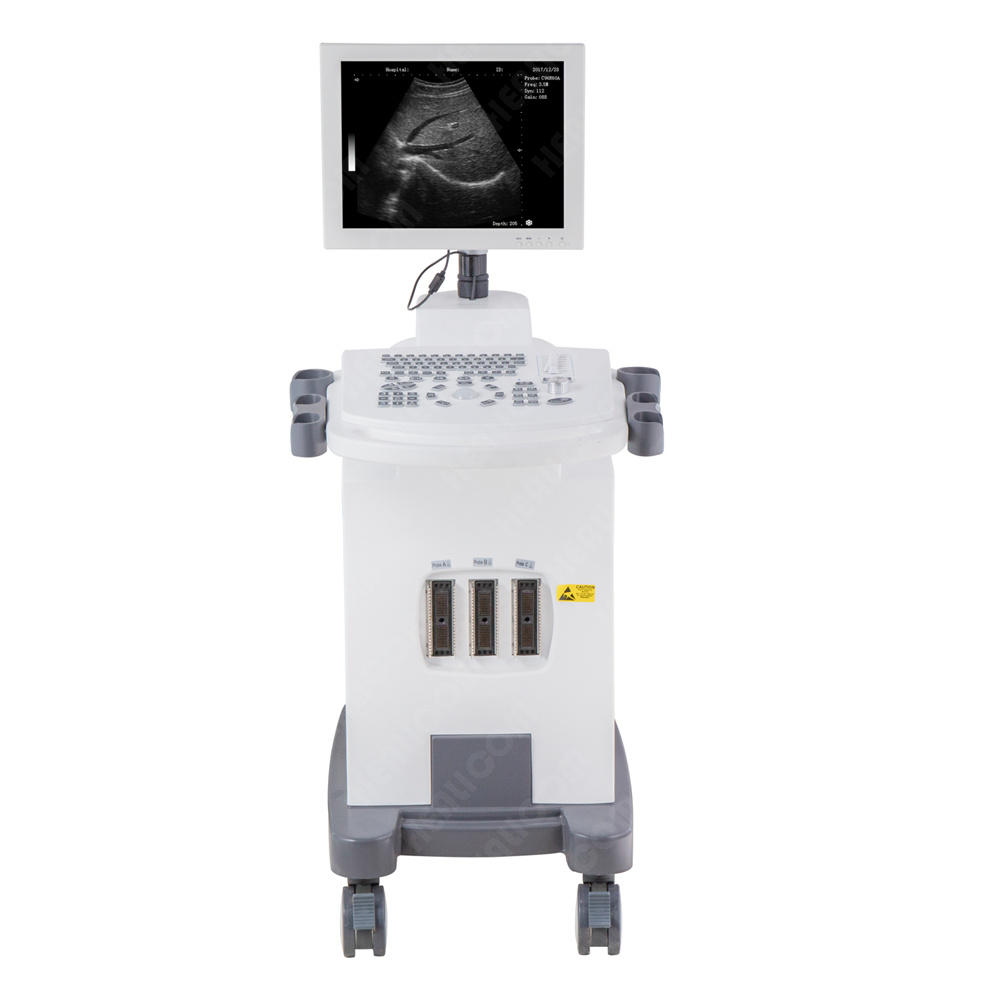

HBW-11 Plus Full Digital PC Based Trolley B/W Ultrasound Machine

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

• Display: 15 inch LED screen

• Real-time dynamic receiving focus point by point

• Real-time dynamic sound velocity changed

• High-accuracy DSC Digital image formation technology

• Intelligentized 8-segment TGC adjustment

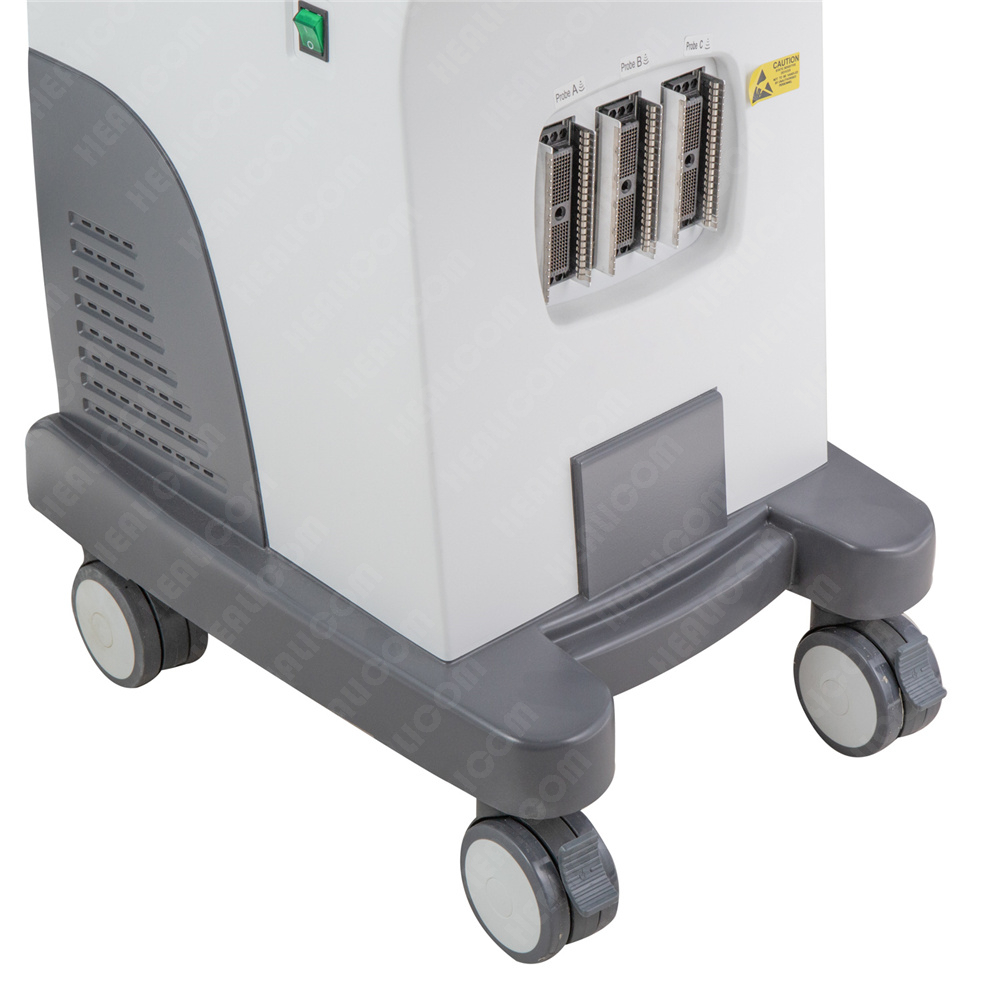

• 3 probe connectors,USB port

• Progressive SMT components technology to ensure machine reliability

Operating System

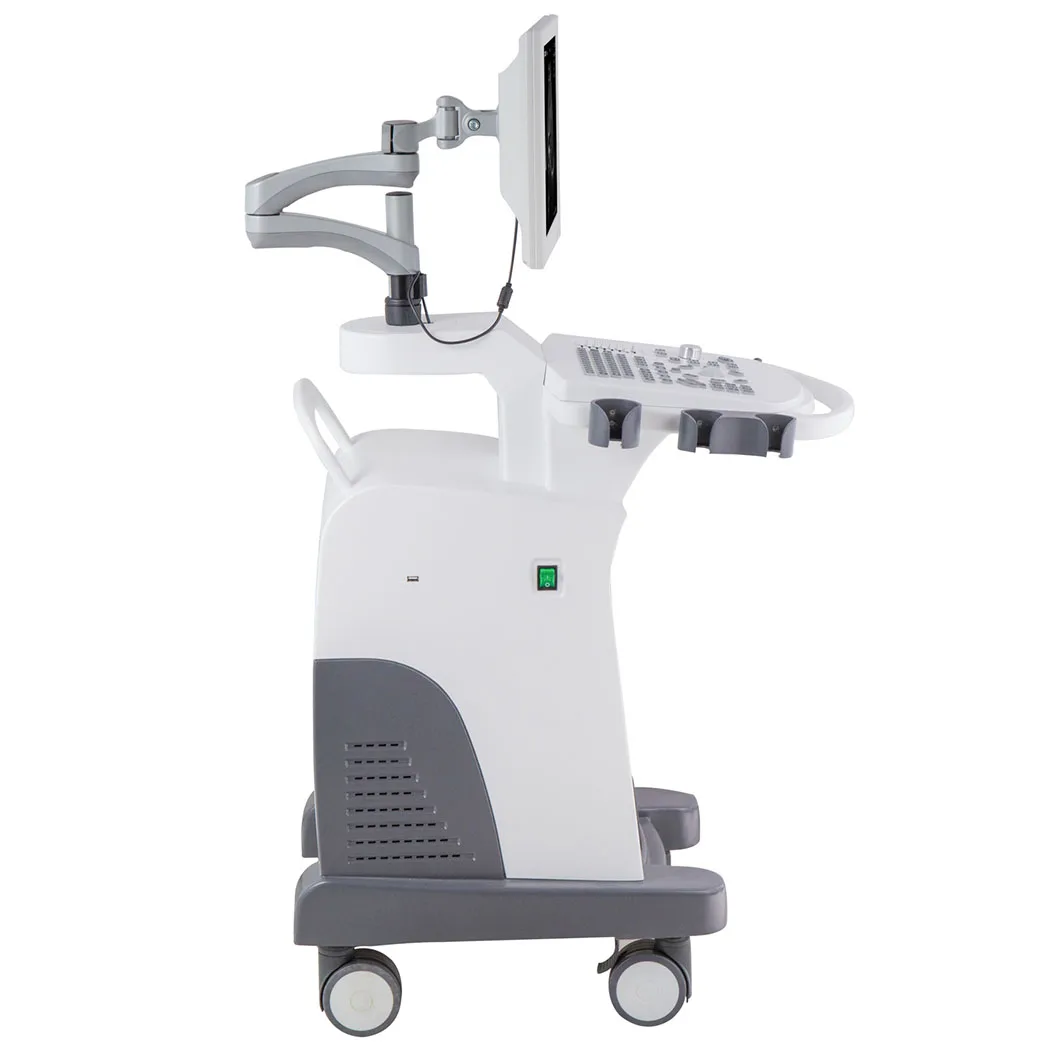

• 15 inch LED liquid crystal display, angle range is more flexible to adjust

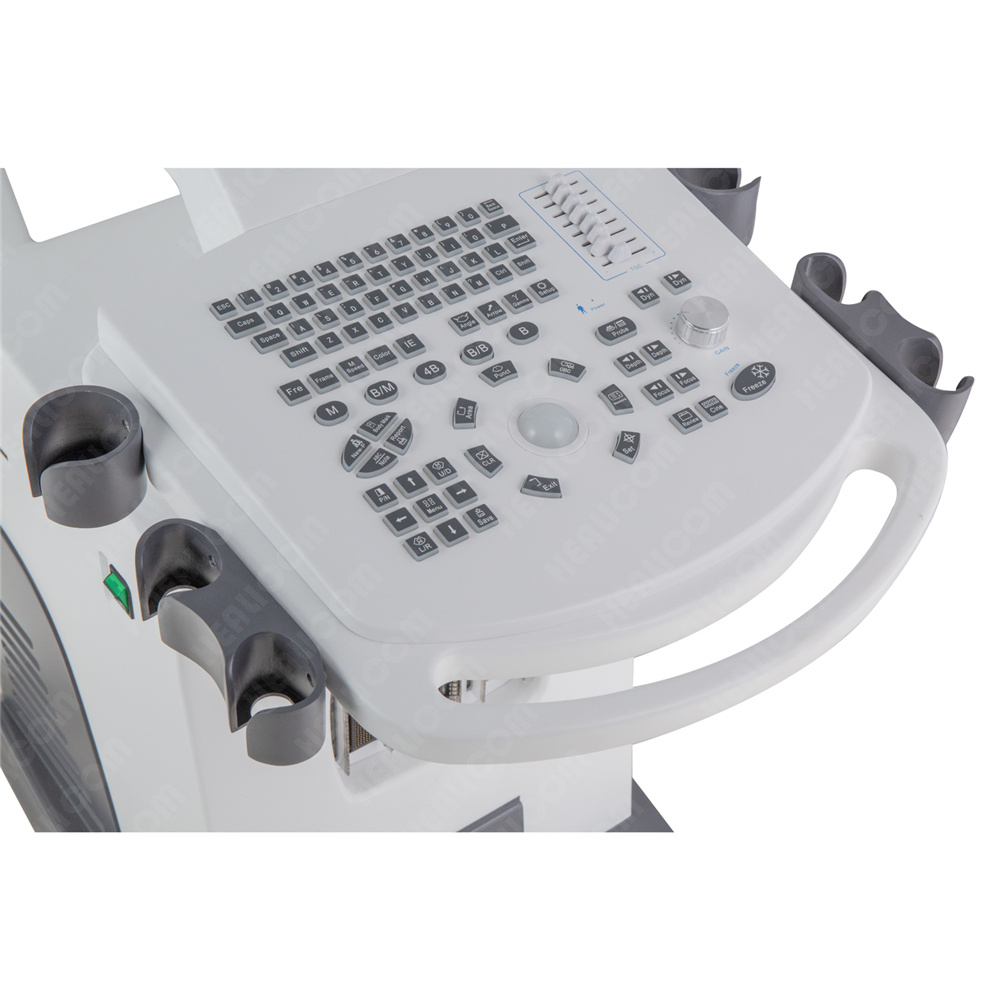

• Back-lit keyboard silicon gel,more comfortable and wearable,no trouble in using in the darkroom

• Intelligentized menu,man-machine diaglogue is easy and quick

• Puncture guide line can display under B mode, angle and position are adjustable

• More magnification display, Disease diagnosis more accurate

• USB storage is connected outside, more convenient to upload pictures

• Large capacity of cine loop, image can display circularly and automatically

Technical Specifications

Scanning mode	Convex / linear / micro-convex
Probes	Convex, Linear, Transvaginal, Rectal
Monitor	15 inch high resolution LED
Operation panel	User-friendly, convenient and flexible with back-lit silica gel keyboard & track ball operation
Display modes	B, B+B, 4B, B+M, M
Detecting depth	≥244mm
Resolution	lateral ≤2mm, axial ≤1mm
Blind Zone	≤3mm
Geometry precision	lateral ≤5%, axial ≤5%
Gray scale	256
Electronical focusing	2 focuses combination randomly
Cine loop	256 frames, realized in automatic successive playback and manual single step forward, backward playback
USB port	storable and readable
Permanent image storage	8
Magnification	×0.8, ×0.85, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20, ×1.30, ×1.40, ×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5 (16 kinds)
Body marks	30 kinds
Probe interface	3
Pseudo color	7 kinds
Image processing	up/ down, left / right, black / white convertion, edge enhancement, gamma correction, frame correlation, pseudo color processor (need external color display)
Measurement	distance, perimeter, area, volume, heart rate, gestational week, FW, AFI, EDD , maternity table, heart package etc
Note	date, time, name, sex, age, doctor, hospital, comment, Chinese/ English conversion

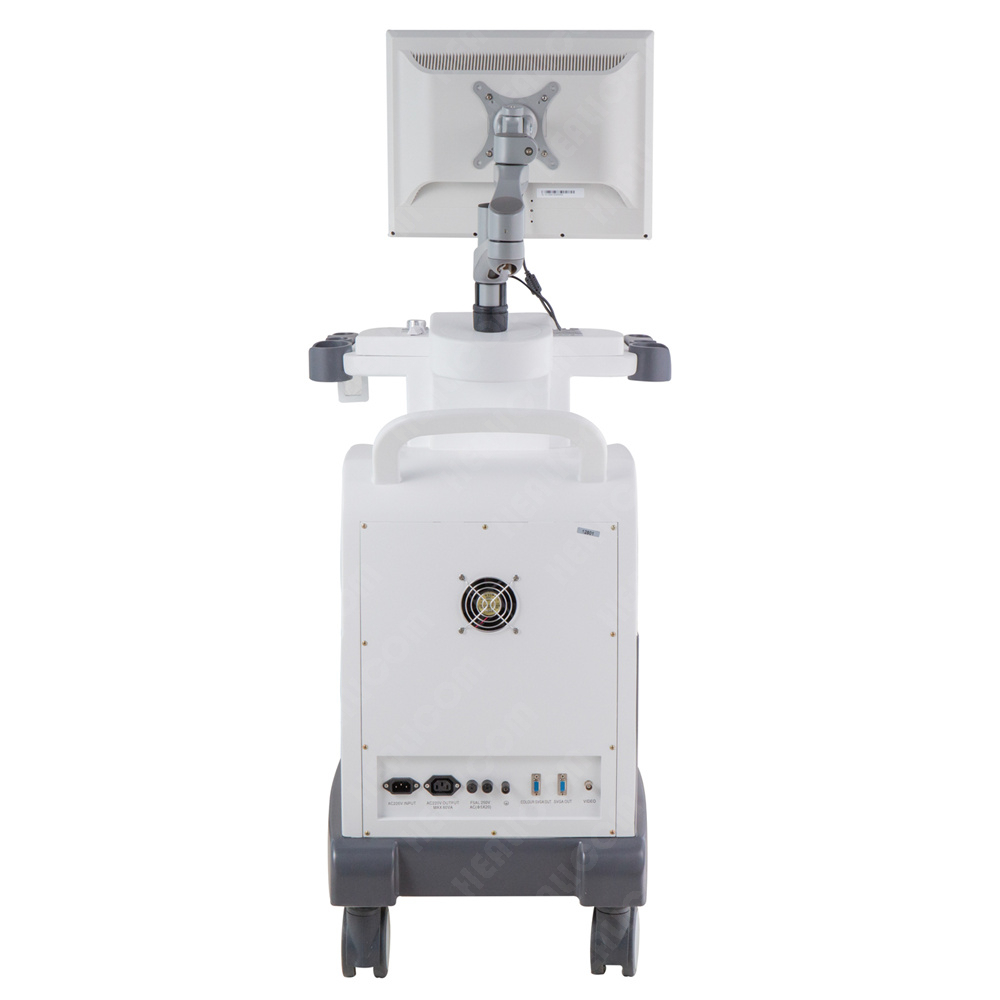

Output interface	PAL-D, SVGA (SVGA color monitor), USB port
