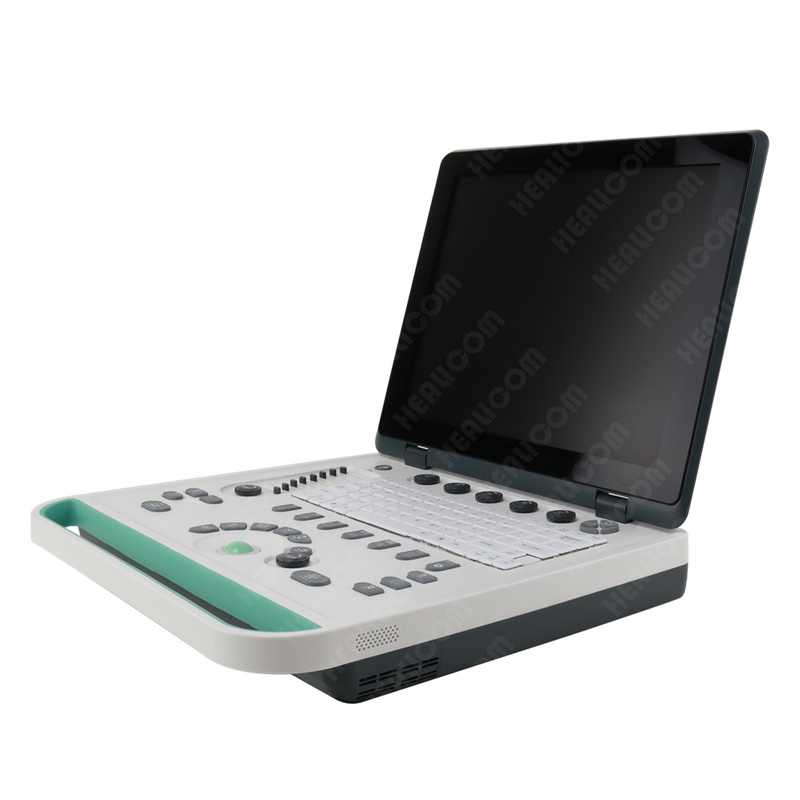

HBW-7
Healicom
Product Description
Working frequency | 2.0MHz~10MHz |
Display mode | B, B+B, B+M, M, 4B |
Scanning range | Convex array 60°~150° |
Amplification factor | 1.0, 1.2, 1.5, 2.0 |
Gain control | 8 segments TGC and overall gain can be adjusted respectively |
Image processing | 8 γ corrections, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc |
Image gray-scale | 256 levels |
Scanning line number | 512 lines/frame |
Frame rate | 30 frames/second |
Digital scanning conversion | 512×512×8 bits |
Memory | USB flash disk large volume image storage |
Conventional measurements | distance, perimeter, area, volume |
Obstetric measurement | gestational weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC), expected date of confinement and fetus weight, etc |
Report function | auto make report |
Built-in battery capacity | can work more than 5 hours |
Output interface | USB port, video |
Overall size | 362mm×340mm×60mm |
Total weight | 4Kg(with battery) |
Standard configuration
* One host
