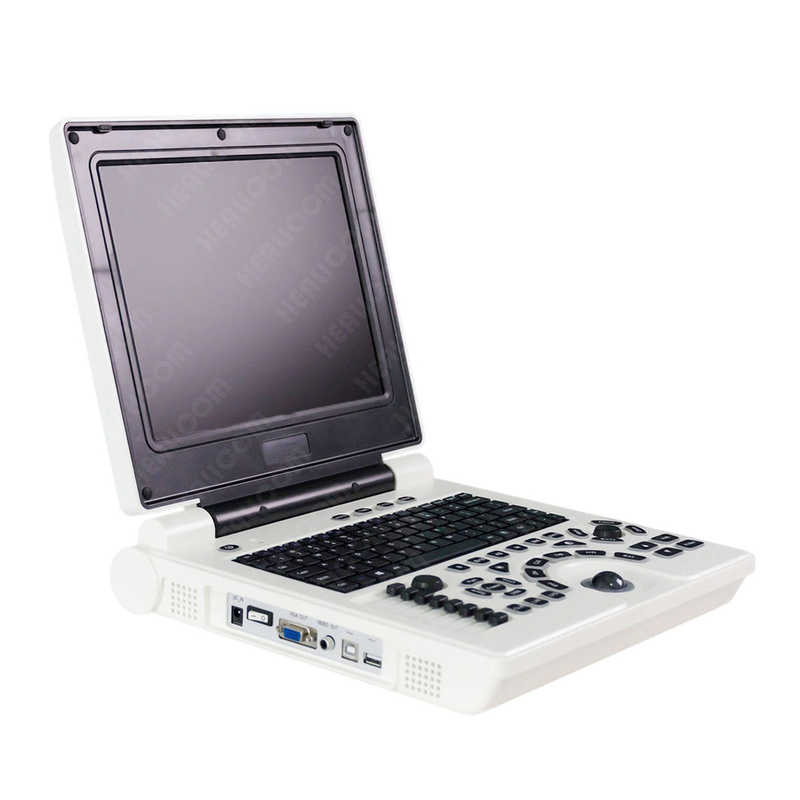

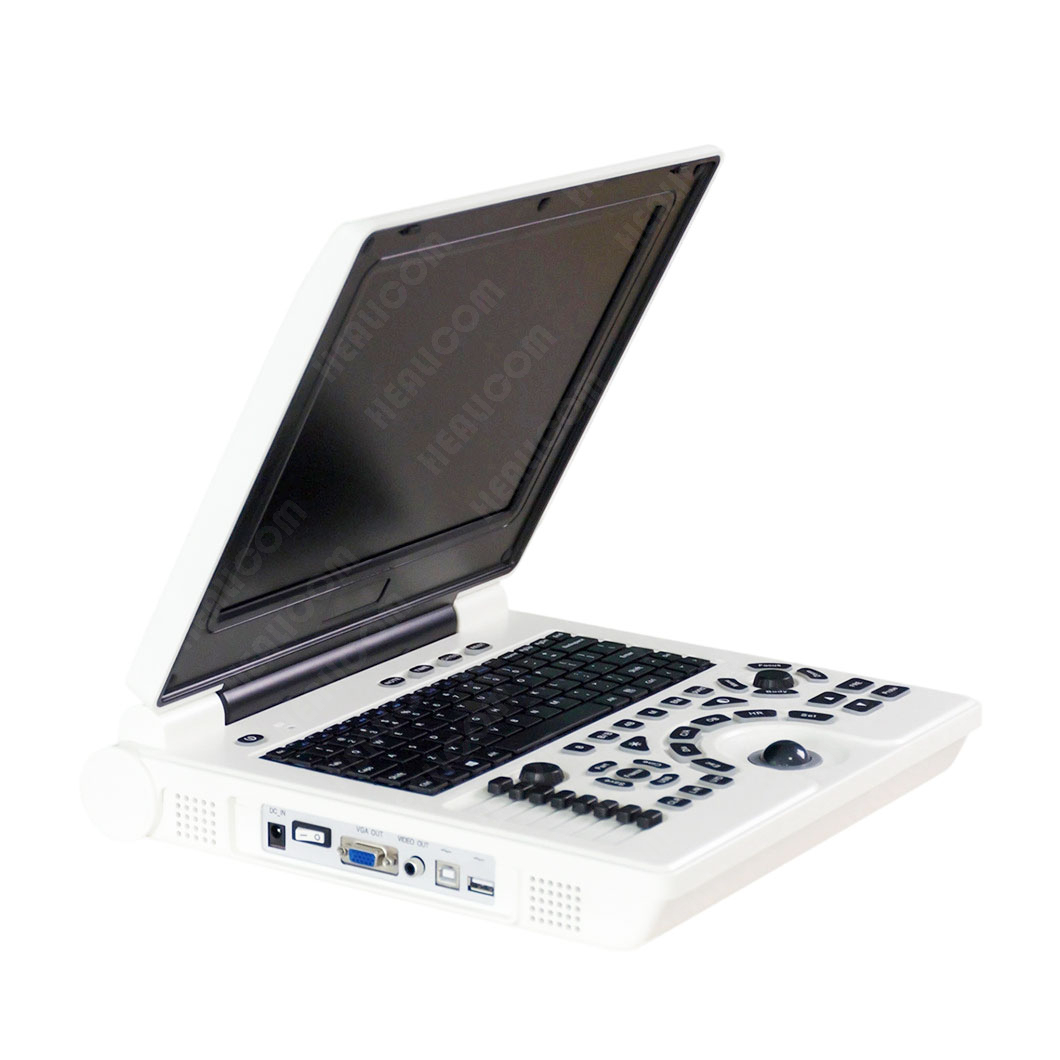

HBW-6
Healicom
Product Description
Display Modes | 3.5MHz/R60 convex array probe: B, B/B,4B, B+M, M 6.5MHz/R13 Dimpling array probe: B 7.5 MHz/L40 Line array probe: B |
Image Mutiplying Factor | 3.5MHz/R60 convex array probe: x0.8, x1.0, x1.2, x1.5, x1 .8, x2.0 (6 modes) x0.8, x2.0 (display penetration depth) 6.5MHz/R13 Dimpling array probe: x0.8, x1.0, x1.2, x1.5 (4 modes) 7.5MHz/L40 Line array probe: x0.8, x1.0, x1.2, x1.5 (4 modes) |
E-zoom | magnify 2 times of real time image |
Dynamic Range | 0~120dB adjustable |
Focus Position | 1,2,3 and 4-segments dynamic electron focusing |
Image Processing | γcorrection, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc. |
According to the user’ s pattern style preference, the parameter will be set up automatically and saved, Boot default this parameter. This default of parameter can also be modified in the menu. | |
Frequency Conversion | 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0MHz/7.5MHz can match high frequency probe |
Measuring Function | Distance, circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD,GS,CRL,FL,HL,OFD,TTD,AC), expected date of confinement and fetus weight, etc. |
Annotation Function | hospital name, patient’ s name, age and gender 64 body marks (with probe’ s position); Full-screen character annotation; Real-time clock display |
Puncture Guide | 3.5MHz convex array probe can display puncture guide line in B mode |
Gain Control | 8 segments TGC and overall gain can be adjusted respectively |
Image Polarity | left and right flip, black and white flip, up and down flip |
Capacity Cine Loop | real time display 256 consecutive images which are memorized successively |
Image Playback | series playback or check one by one |
Permanent Storage | 128 images |
Output Interface | VGA video output offers connection to SVGA color display PAL video output offers connection to PAL display and printer video image recorder and image workstation, etc |
USB Port | Offers storing images in USB flash disk |
