HBW-4
Healicom

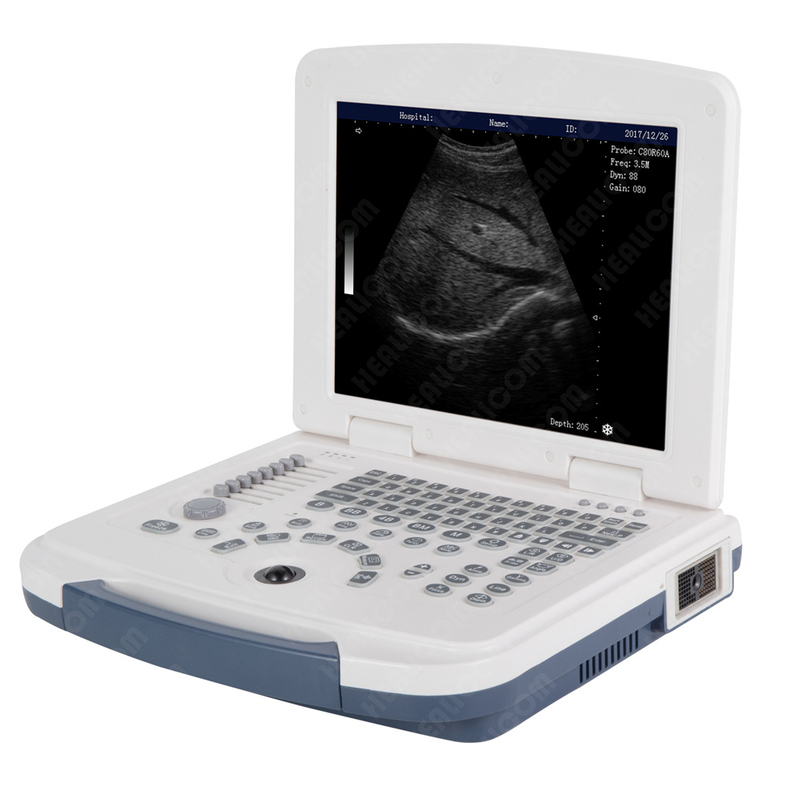

Product Description
1. 12.1 inch LCD display
2. 2D image
3. Depth range:126-307mm
4. Built-in rechargeable battery (4-8H)

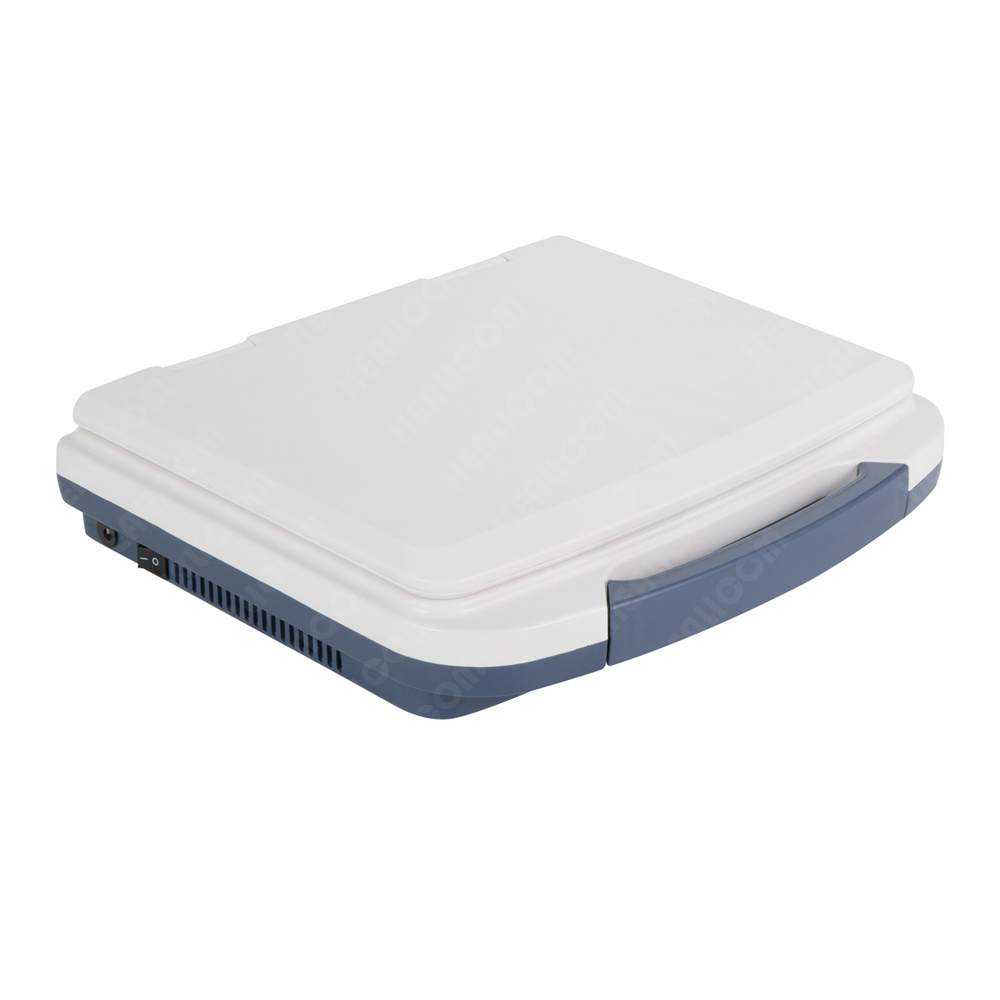

5. Thin and light notebook design
6. Display mode: B, B + B, 4B, B + M, M
7. Full-digital beam imaging technology
First-class digital imaging technology, more clearer image
Application to:
Abdomen, obstetrics and gynecology, pediatrics, urology, small organs, musculoskeletal and so on.
Widely used in expert visits, community service visits, 120 emergency center, Large-scale medical examination car, Severe patient, bedside examination of VIP wards etc.
Technical Specifications
Scanning mode | convex / linear |
Monitor | 12.1 inch high resolution color LED display |
Display mode | B, B+B, B+M, M, 4B |
Total Gain | 0-99 |
Detecting depth | 0-240mm |
Dynamic range | 0-120dB |
Filtering | 1-7 |
Blind Zone | ≤3mm |
Resolution | lateral≤2mm, axial≤1mm |
Geometry precision | lateral≤5%, axial≤5% |
Focus | 4 focuses combination randomly |
Image storage | 127 |
Magnification | ×0.8, ×1.0, ×1.20, ×1.50, ×1.80, ×2.0 (6 kinds) |
Cine loop | 256 frames, realized in automatic successive playback and manual single step forward, backward playback |
Image processing | up/ down, left / right, black / white conversion, gamma correction, frame correlation, pseudo color processor( need external color display) |
Measurement | distance, perimeter, area, volume, HR, BPD, CRL, GS, FL, HC, AC, etc. |
Output interface | PAL-D, SVGA (SVGA color monitor), USB port |
Comprehensive and rich graphic processing functions:
1. Intelligent 8-segment TGC adjustment
2. External USB storage, image upload more convenient
3. Large-capacity movie playback
4. Small size and easy to operate
Probe Optional:
1.Using sound beam sector expansion technology to ensure high speed and quality
2.Cross-fire and receive to eliminate side effects
3.Full-digital technology to Increase resolution and penetration
4. Support Multiple probes
3.5MHz convex probe
3.5MHz micro-convex probe
6.5MHz trans-vaginal probe
7.5MHz linear array probe
7.5MHz trans-rectal probe
