HBW-3P Full Digital Portable B/W Ultrasound Scanner

HBW-3P Full Digital Portable B/W Ultrasound Scanner

This advanced system features mass memory, cine loop, and permanent storage, with optional radium-caved or silicon backlit buttons. It includes an intelligent fluorescence trackball, 8-segment TGC control, and overall gain control. Equipped with 2 USB ports, upgradable printer function, and 2 probe connectors with automatic identification, it supports 2 SVGA and 21 PAL video outputs for connecting to recorders and workstations. Additionally, it automatically generates report pages.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
HBW-3P
Brand:
Healicom

Product Description

Product Description

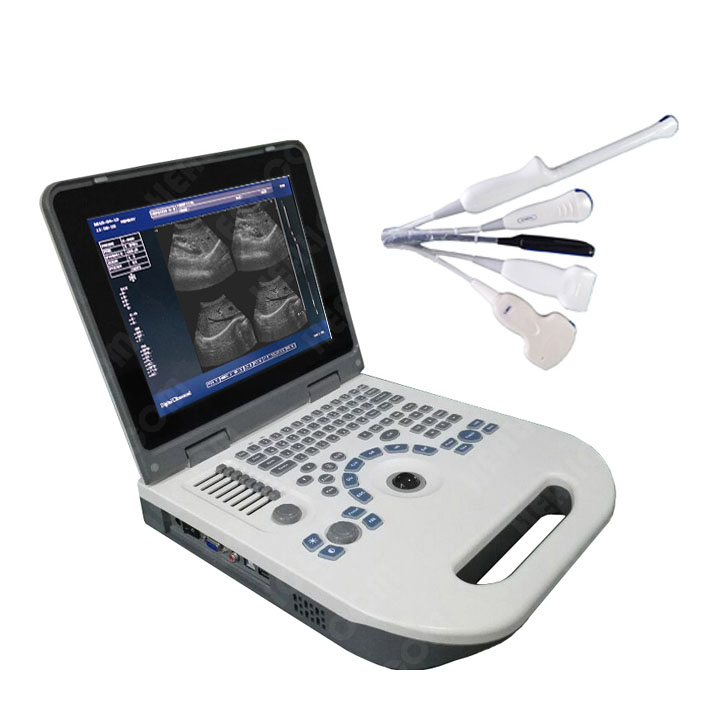

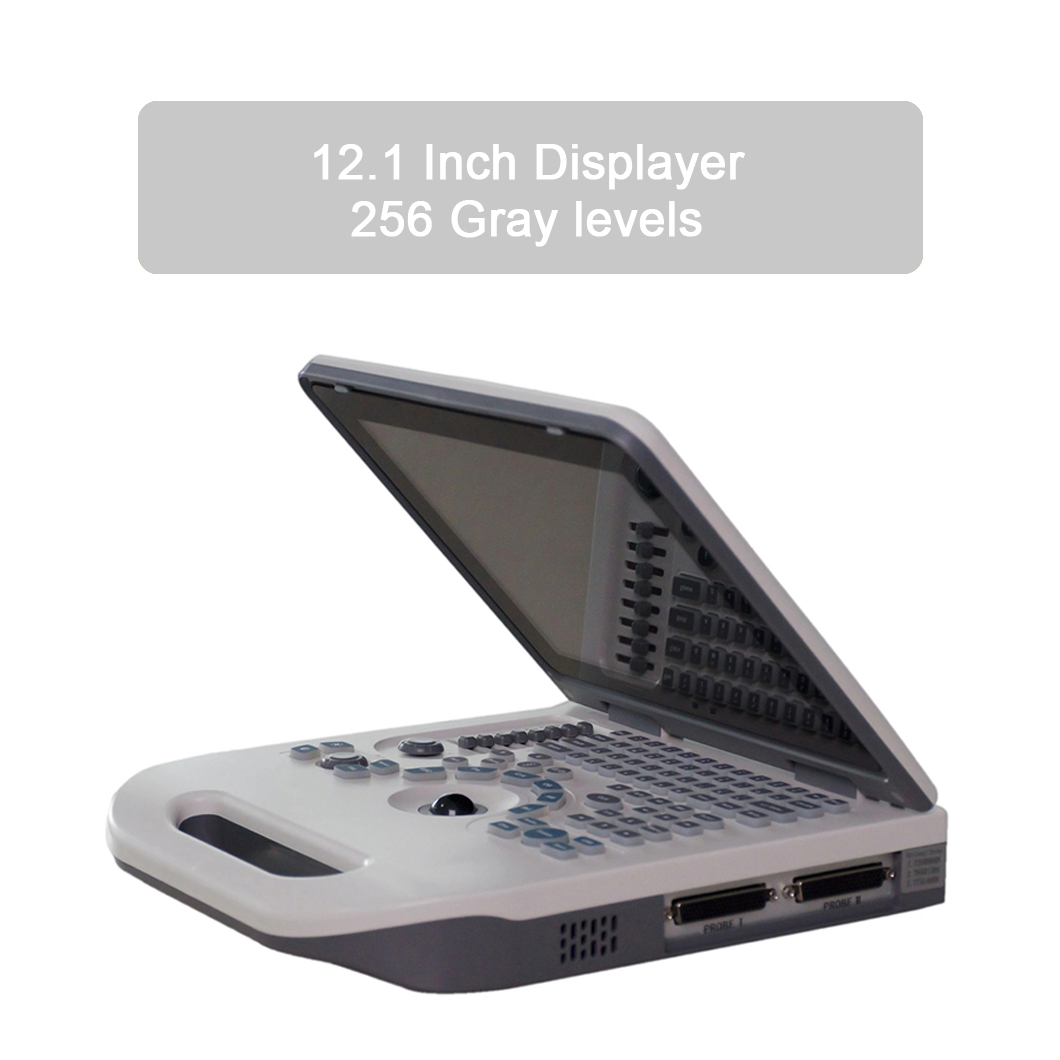

Medical 12.1 Inch Displayer Portable B/W Ultrasound Scanner Machine

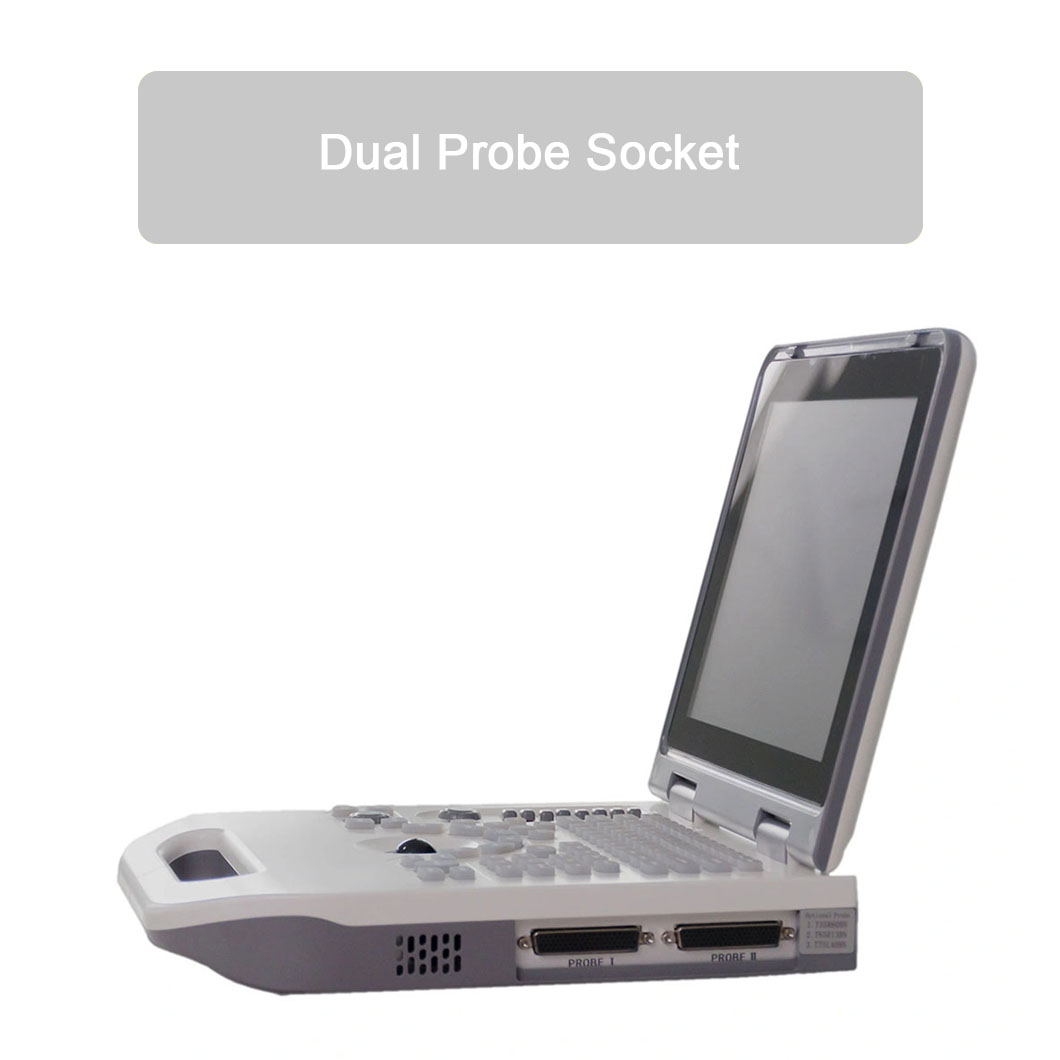

This advanced system features mass memory, cine loop, and permanent storage, with optional radium-caved or silicon backlit buttons. It includes an intelligent fluorescence trackball, 8-segment TGC control, and overall gain control. Equipped with 2 USB ports, upgradable printer function, and 2 probe connectors with automatic identification, it supports 2 SVGA and 21 PAL video outputs for connecting to recorders and workstations. Additionally, it automatically generates report pages.

Technical Specifications

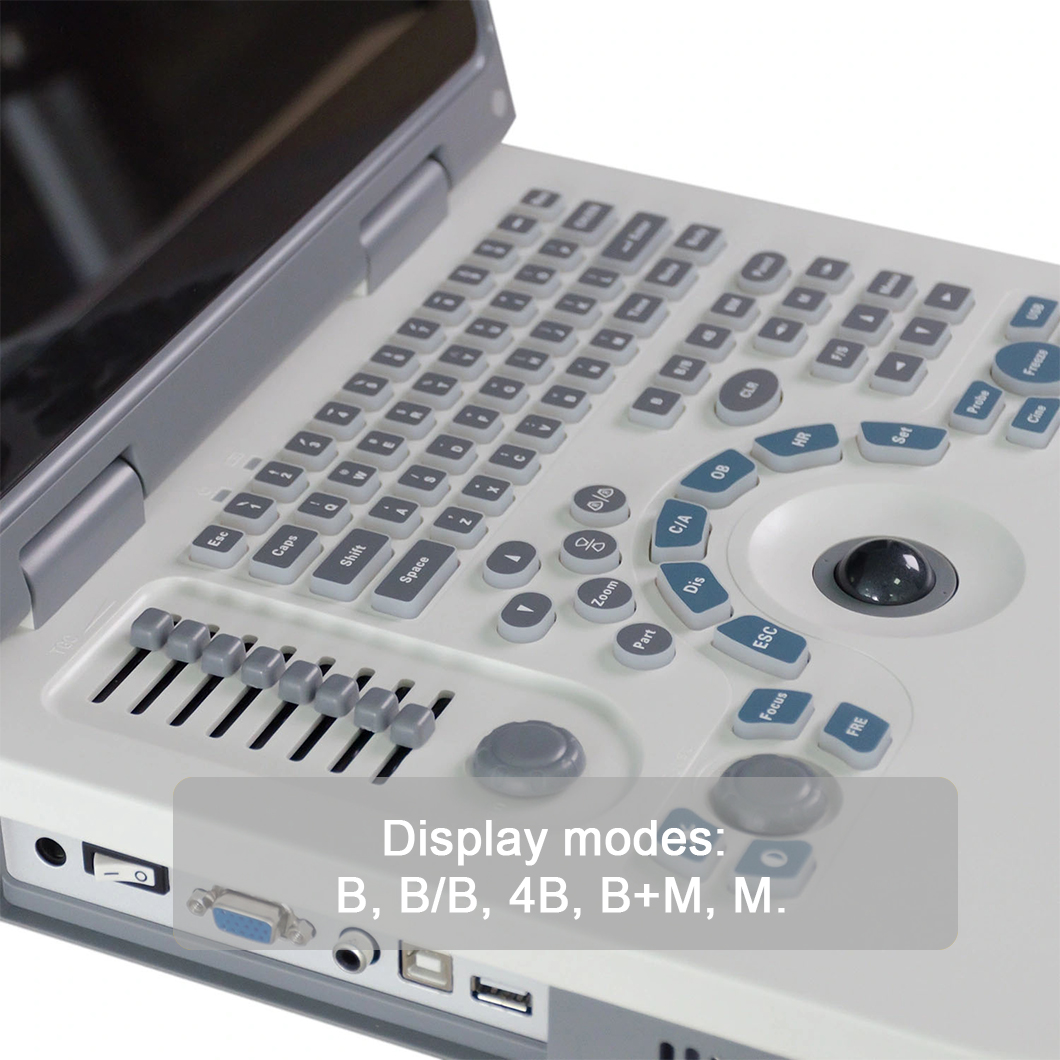

Display Modes	3.5MHz/R60 convex array probe:B,B/B,4B,B+M,M 6.5MHz/R13 Dimpling array probe:B 7.5 MHz/L40 Line array probe:B
Image Mutiplying Factor	3.5MHz/R60 convex array probe: x0.8, x1.0, x1.2, x1.5,x1 .8, x2.0(6modes)x0.8, x2.0 (display penetration depth) 6.5MHz/R13 Dimpling array probe: x0.8, x1.0, x1.2, x1.5 (4 modes) 7.5MHz/L40 Line array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)
E-zoom	magnify 2 times of real time image
Dynamic Range	0~120dB ajustable
Focus Position	1,2,3 and 4-segments dynamic electron focusing
Image Processing	γcorrection, frame correlation,point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.
Frequency Conversion	2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0MHz/7.5MHz can match high frequency probe
Measuring Function	Distance,circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks(BPD,GS,CRL,FL,HL,OFD,TTD,AC), expected date of confinement and fetus weight, etc.
Annotation Function	hospital name, patient’s name, age and gender 64 body marks (with probe’s position); Full-screen character annotation; Real-time clock display
Puncture Guide	3.5MHz convex array probe can display puncture guide line in B mode
Gain Control	8 segments TGC and overall gain can be adjusted respectively
Image Polarity	left and right flip, black and white flip, up and down flip
Capacity Cine Loop	real time display 256 consecutive images which are memorized successively
Image Playback	series playback or check one by one
Permanent Storage	128 images

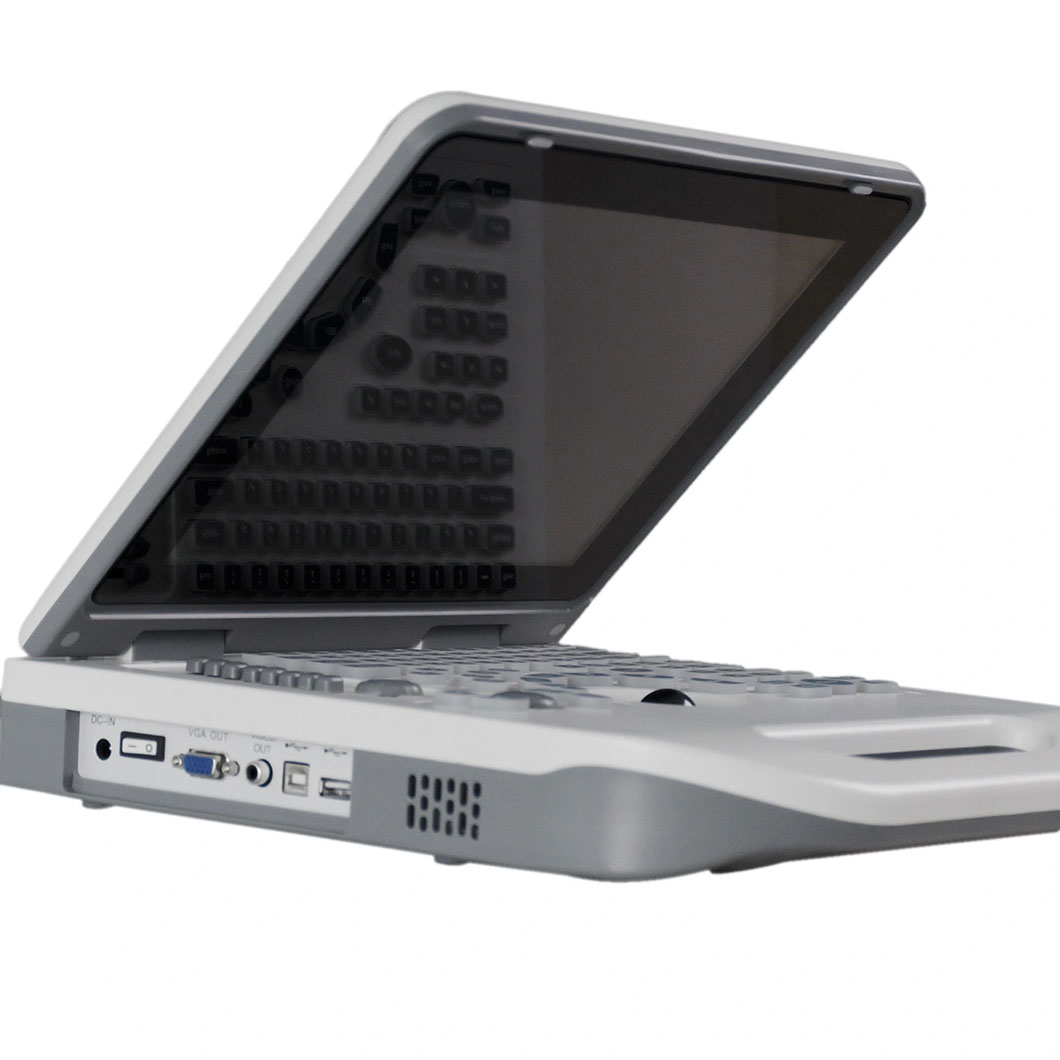

Output Interface	VGA video output offers connection to SVGA color display PAL video output offers connection to PAL display and printer video image recorder and image workstation, etc
USB Port	Offers storing images in USB flash disk
