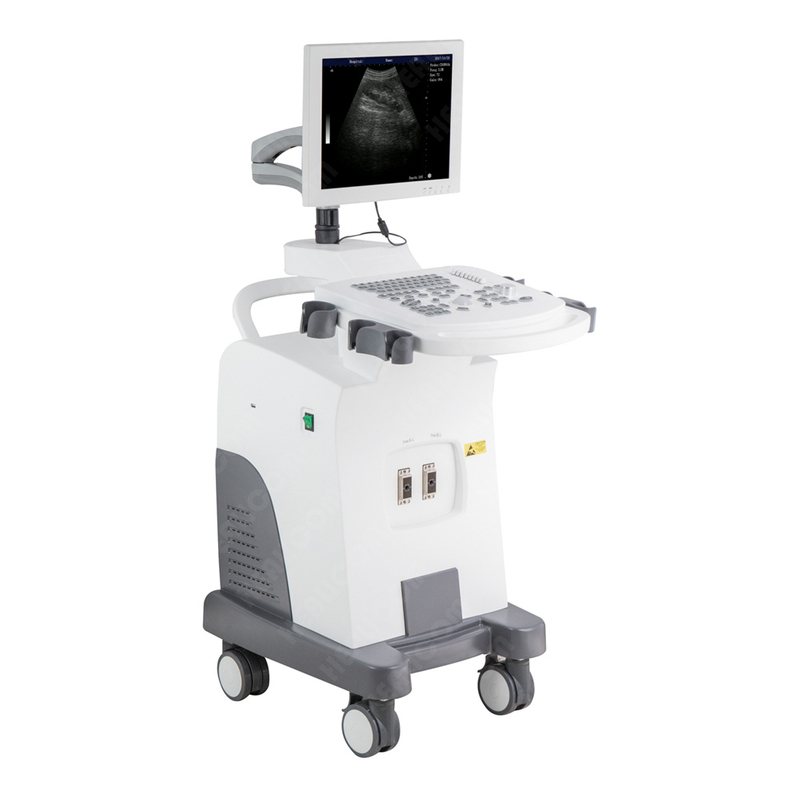

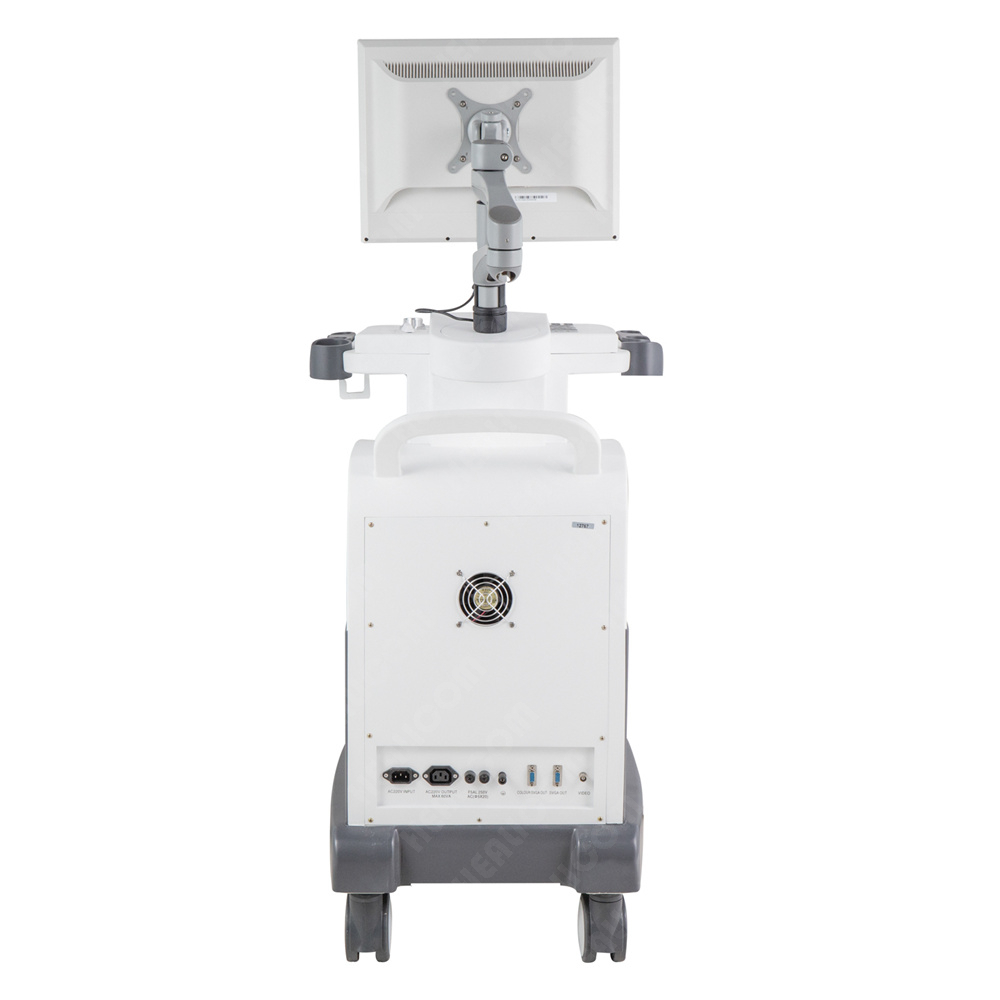

HBW-10 Plus
Healicom
Product Description
• 15 inch high definition SVGA non-interlaced scanning monitor
• Professional embedded ultrasonic platform,
• High definition full digital image formation technology
• Broadband frequency conversion technology
• To achieve the best combination of high penetration and higher resolution of the organization
• Intellectualized TGC gain control of the whole paragraph 8
• Reliable backlit, silica gel keyboard, photoelectric-tracking control
• Powerful software functions
Rich clinical application
Application to:abdomen, uterine attachment, superficial tissue and other clinical tests
Technical Specifications
| Scanning mode | Convex/ linear/ micro-convex |
| Display | 15 inch LED |
| Display mode | B, B+B, 4B, B+M, M. |
| Detecting depth | ≥244mm |
| Lateral resolution | ≤2mm (depth≤80mm) ≤3mm (80< depth≤130mm) |
| Axial resolution | ≤1mm (depth≤80mm) ≤ 2mm (80< depth≤130mm) |
| Blind Zone | ≤2 mm |
| Geometry precision | lateral≤5% ,axial≤5% |
| Gray scale | 256 |
| Magnification | ×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0 |
| Local zoom | Yes |
| Dynamic scope | 0~100dB, visible & adjustable |
| Electronical focusing | multi-point or dynamic focusing |
| Pseudo color | 7 |
| Measurement | distance, perimeter, area, heart rate, gestational week (BPD, CRL, GS, FL, HC, AC, EDD, AFI) etc. |
| Note | ID, sex, age, hospital, doctor, comment, date, time. |
| Body marks | 30 |
| Probe interface | 2 |
| Puncture guide | The puncture guide line can be displayed under B mode. |
| Gain control | The total gain, 8-segment TGC |
| Image conversion | up/ down, left / right, black / white |
| Cine loop | 256 frames |
| Image review | Images can be reviewed successively and checked one by one. |
| Image storage | 40 |
| Video output | SVGA (SVGA color monitor), PAL |
