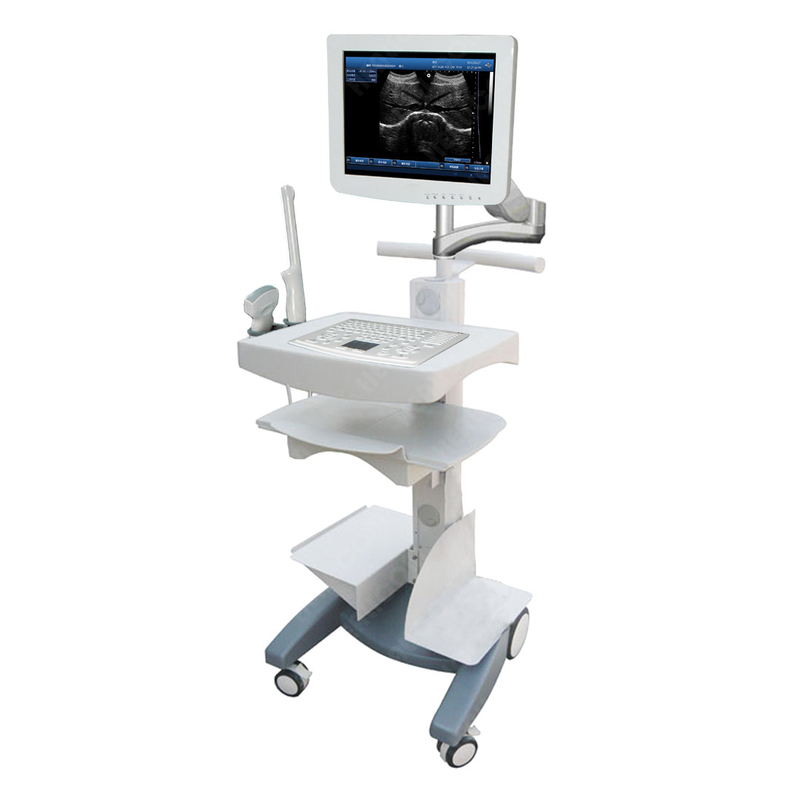

HBW-100
Healicom
Product Description
• Full digital imaging technology
• Crystal-clear Image
• Computer platforms, Abundant functions
• Powerful image and report management
• 3D Image Function (optional)
• DICOM display and transfer
• 250G large Storage volume
• Broadband Multi-frequency probes
• Compatible with USB laser/inkjet printers
• Pretty and new appearance
• 15 inch touch screen color LCD monitor
• Silica gel backlight waterproof keyboard
• 8 segment TGC, 16 step zoom
• Complete application software packages
• Can work with external battery (option)
• 2 probe connector
• Can be fold, the transportation is convenient and lower freight
• Multiple language: English, French, German, Spanish, Russian, Italian, Portuguese, etc.
Technical Specifications
D-Maximum Scanning Depth | max. 250mm |
Multi-frequency | 5 segment frequencies |
Zoom | 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0 |
Image gray scale | 256 level gray scale |
Cine Loop | 1024 frames |
Scanning mode | B, 2B, B/M, M, 4B, 9B, ZOOM; Real-time Zoom on B mode |
Image processing | Pre-processing, after-processing, dynamic range, frame rate, line average, edge; enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision |
Gain | Gain: adjustable between 0-100dB; Time gain control(TGC): 8 segment adjustment, B, M adjustment separately |
Measurement and calculation (human) | B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram; M mode: heart rate, time, distance, slope and stenosis; Gynecology measurement: Uterus, cervix, endometrium, L/R ovary; Obstetric: gestation age, fetal weight, AFI; Cardiology: LV, LV function, LVPW, RVAWT; Urology: transition zone volume, bladder volume, RUV, prostate, kidney; Small parts: optic, thyroid, jaw and face. |
Image store | by hardisk or USB disk, can save image and also video (avi or swf format) |
Print | by USB laser / inkjet printers |
Probe Connector | 2 |
