HBW-8
Healicom
Product Description
Product highlights
· 15-inch high-definition large screen: equipped with a 15-inch LCD display area, presenting large-size, high-quality images, and fine structures are clearly visible.
· Intelligent dual-probe interface: The dual-probe interface has an automatic recognition function, which allows easy switching of probes and more efficient operation.
· ARM platform efficient computing: based on the ARM platform, fast calculation, high-definition imaging, smooth and accurate processing of image data.

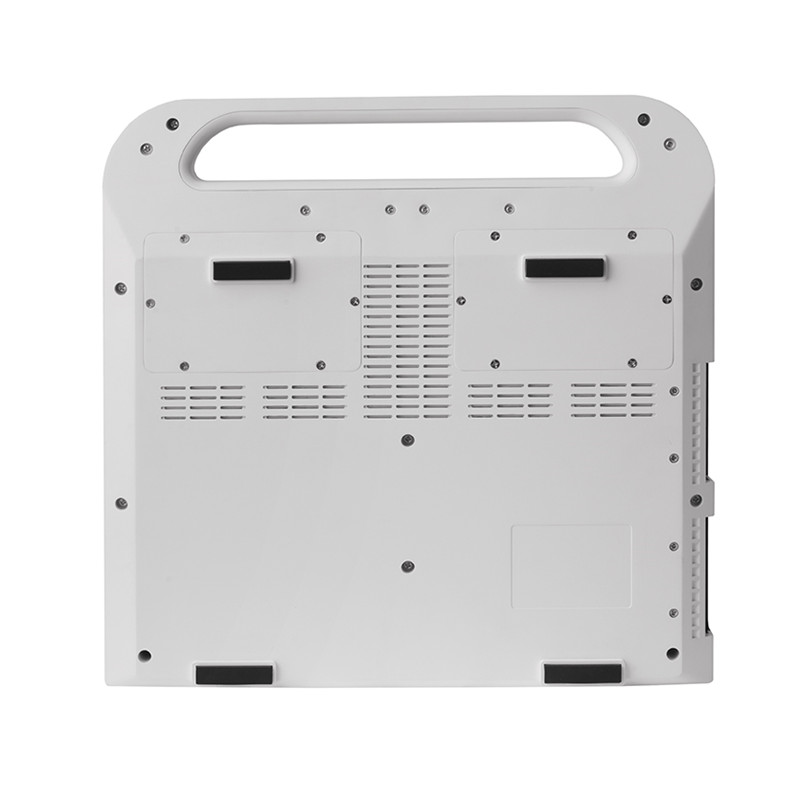

· Large-capacity removable battery: independent battery compartment, built-in 6000mAh removable lithium battery, long battery life, convenient replacement and maintenance.

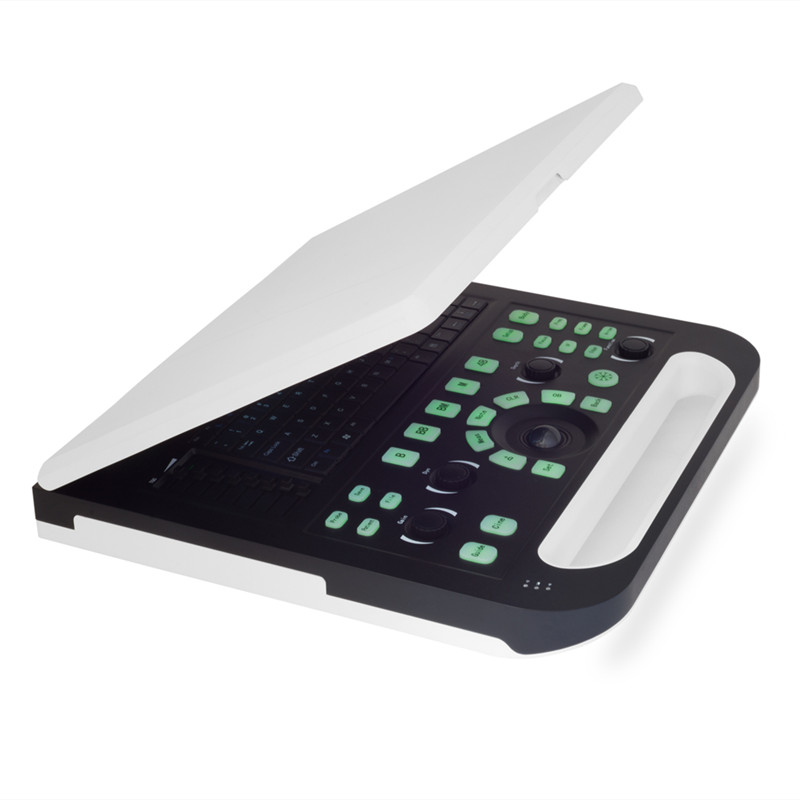

· Convenient knob operation: four encoders adopt knob design, simple operation, and quick completion of parameter adjustment and function switching.
· Free switching of multiple languages: supports multi-language switching to meet the needs of users in different regions and is more convenient to use.
· Flexible video playback: 256-frame video playback, frame-by-frame and pause playback, easy to save images and measurements when paused.
· Professional measurement software: equipped with professional measurement software, accurate measurement, and help disease assessment and diagnosis.
· Compact and portable body: The main unit size is 360mm (length) * 355mm (width) * 65mm (height), which is small and light and easy to move.
Technical Specifications | |
Display | 15 inch LED screen |
Probe Interface | Dual probe interface, with automatic identification function |
Battery Capacity | removable lithium battery /6000 mAh |
Display mode | B, B + B, 4b, B + m, m |
Movie playback | 256 frames, can be played back frame by frame and pause playback, pause playback can be used for image preservation and measurement |
Language | Chinese/English |
Electron focusing | four stage electron focusing |
Frequency conversion | All probes support five-stage frequency conversion |
Image mirror | upper and lower mirror, left and right mirror, black and white flip |
Measurement | Professional software measurement package |
Gain range | 0-135db |

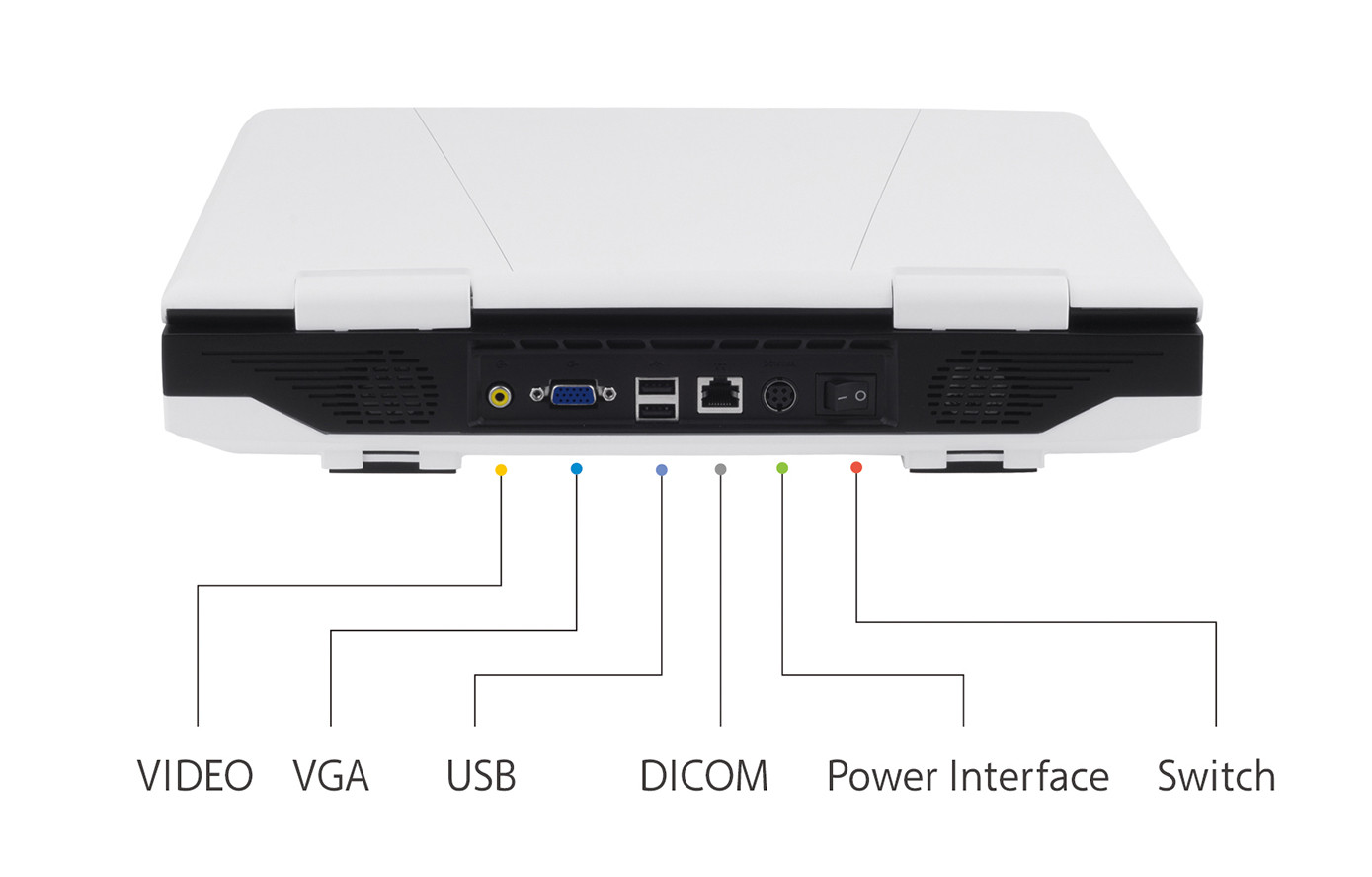

Interface | video interface, two USB interface, DICOM interface, VGA interface, power interface |
Permanent storage | 16G built-in storage, can also be connected to external U disk storage |
Grey scale | level 256 |
Dynamic range | 0-135db |
Front process | variable aperture, dynamic trace change, dynamic digital filtering, etc |
Blind area | ≤4 |
Maximum display depth | 300mm |
Geometric accuracy | transverse ≤5%, longitudinal ≤5% |
Resolution | lateral ≤2mm, axial ≤1mm |
