HX100-POR Touch Screen Portable High Frequency 5KW / 8KW X ray Radiography Machine

Features

• 5KW / 8.0KW extra power.

• Support battery-powered and 220VAC.

• Multipurpose, lightweight.

• Ideal for home medical care or emergencies.

Application scene

• Emergency

• Indoor shooting

• Oversea voyage

Touch screen

• Integrated 7 Inches capacitive display.

• Touch screen APR design, more convenient application.

• Support Multi Touch.

• Wearproof, long service life and low maintenance costs.

Technical specifications
Output power		5KW	8KW
Power requirements		AC220V 50Hz 1kVA
Electric power	Max. nominal electric power	5kW（125mA，100kV）	8kW（160mA，125kV）
	Output nominal electric power	5kW（50mA，100kV，0.1s）	8kW（80mA，100kV，0.1s）
Exposure parameters range	kV	40kV～100kV	40kV～125kV
	mA	3.2mA～100mA	3mA～160mA
	Loading time/ ms	1ms～6300ms
	Current time integration/mAs	0.1mAs～250mAs
Operating environment requirements	Operating environment requirements	30%～75%
	Atmospheric pressure	70kPa～106kPa
	Ambient temperature	10℃～40℃
Transportation and storage conditions	Relative humidity	30%～93%
	Atmospheric pressure	70kPa～106kPa
	Ambient temperature	-20℃～55℃
Touch screen		8 inch
		Choose APR
		Adjust exposure parameters
Dimension		310mm×267mm×465mm
Weight		18.9Kg

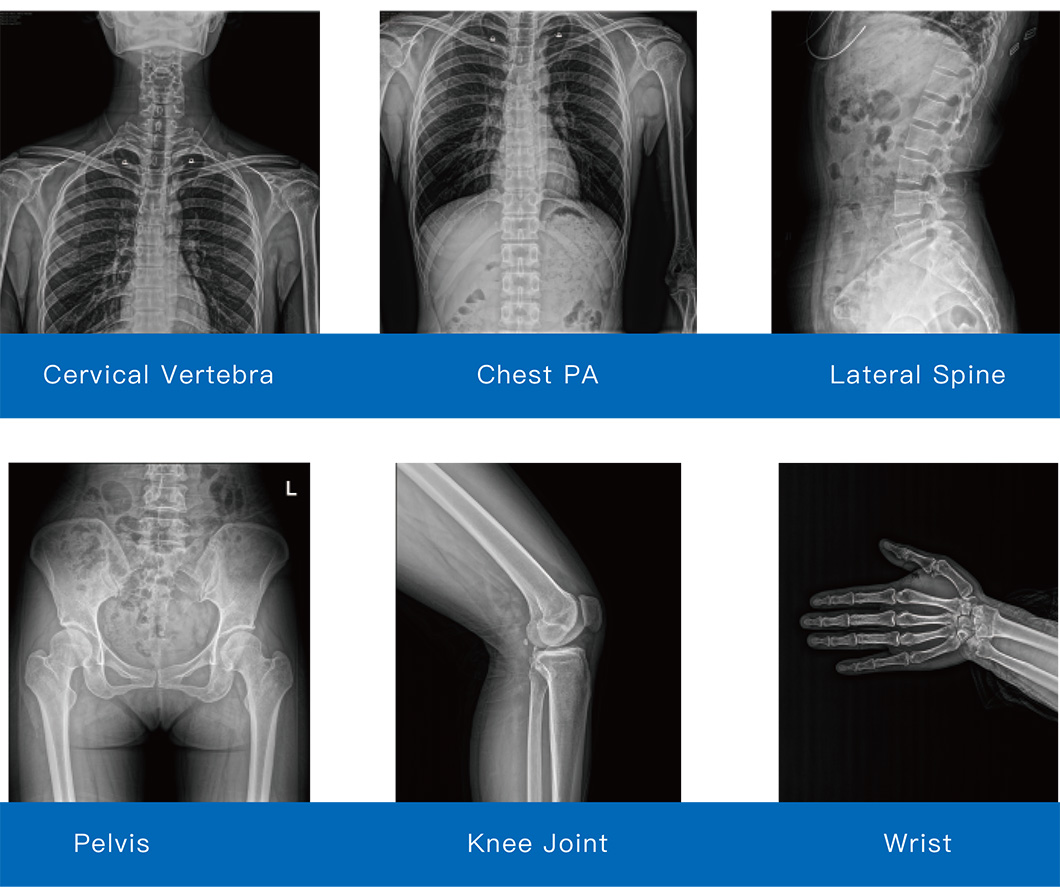

High Quality & Resolution Images

Independent research and development of excellent image chain guarantees high quality & resolution images

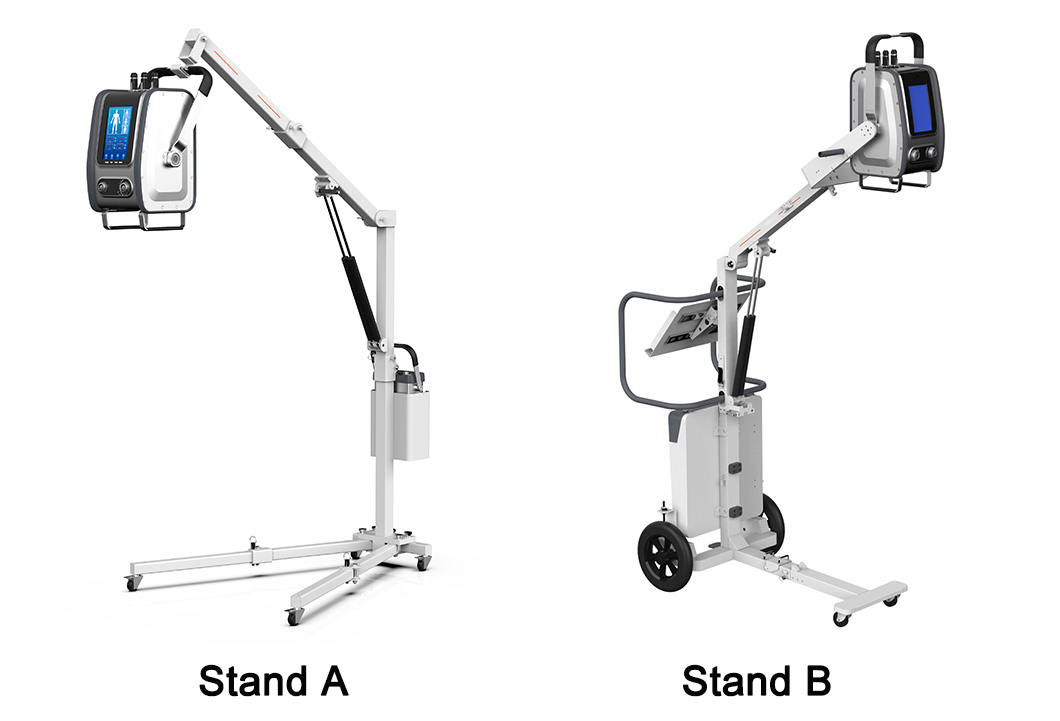

Optional Stand

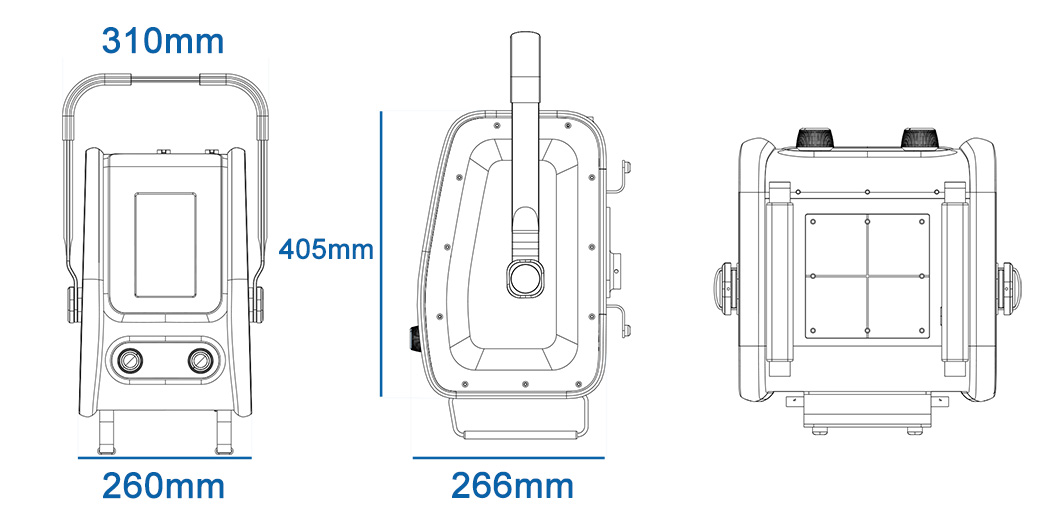

Portable X-ray Size
