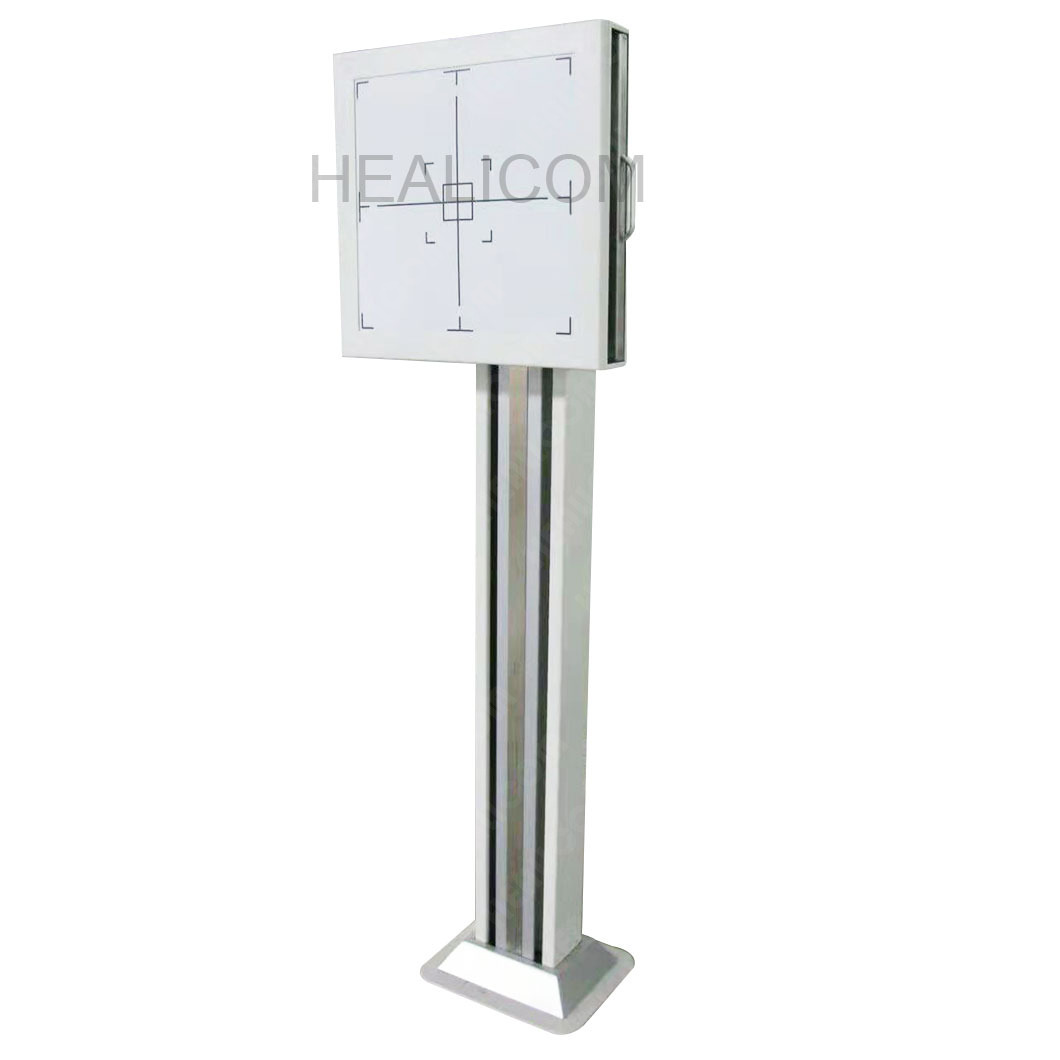

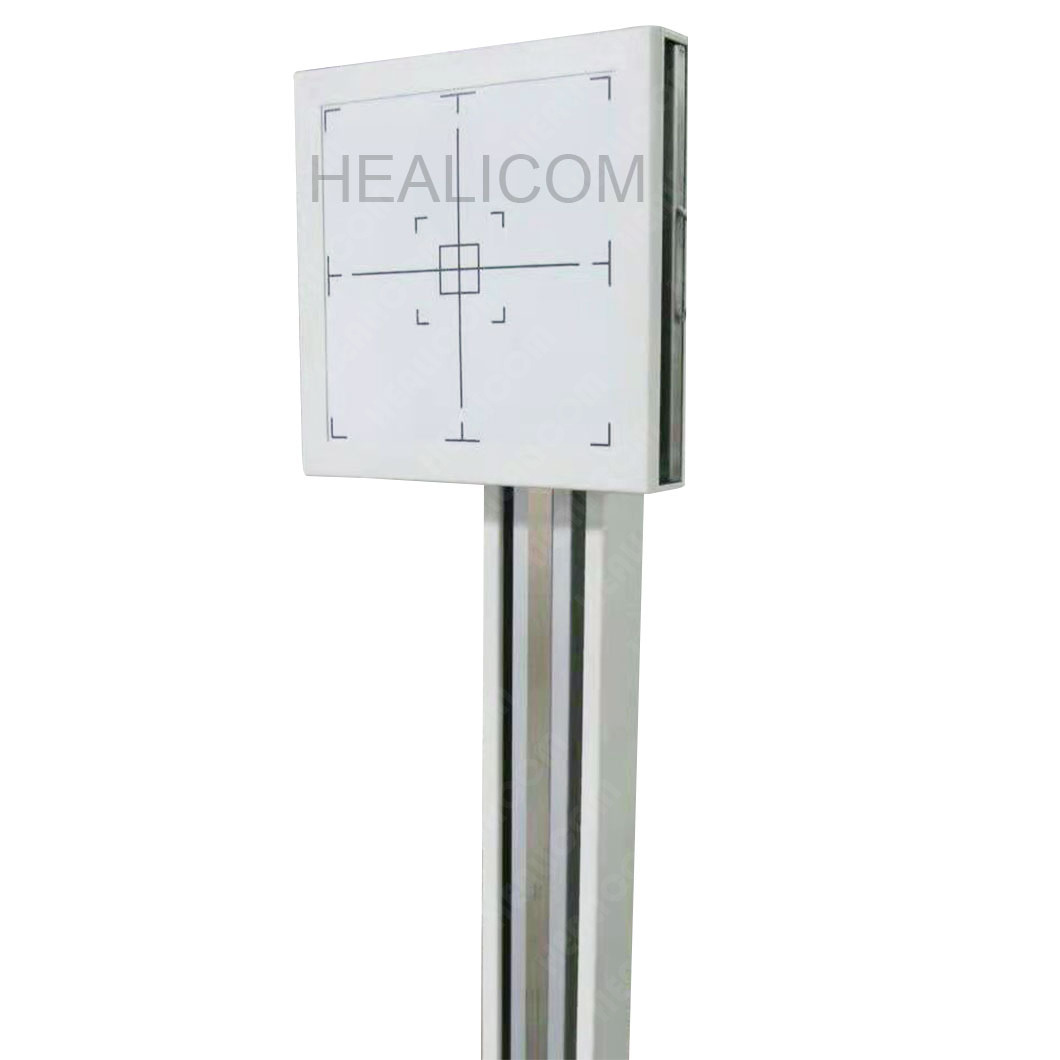

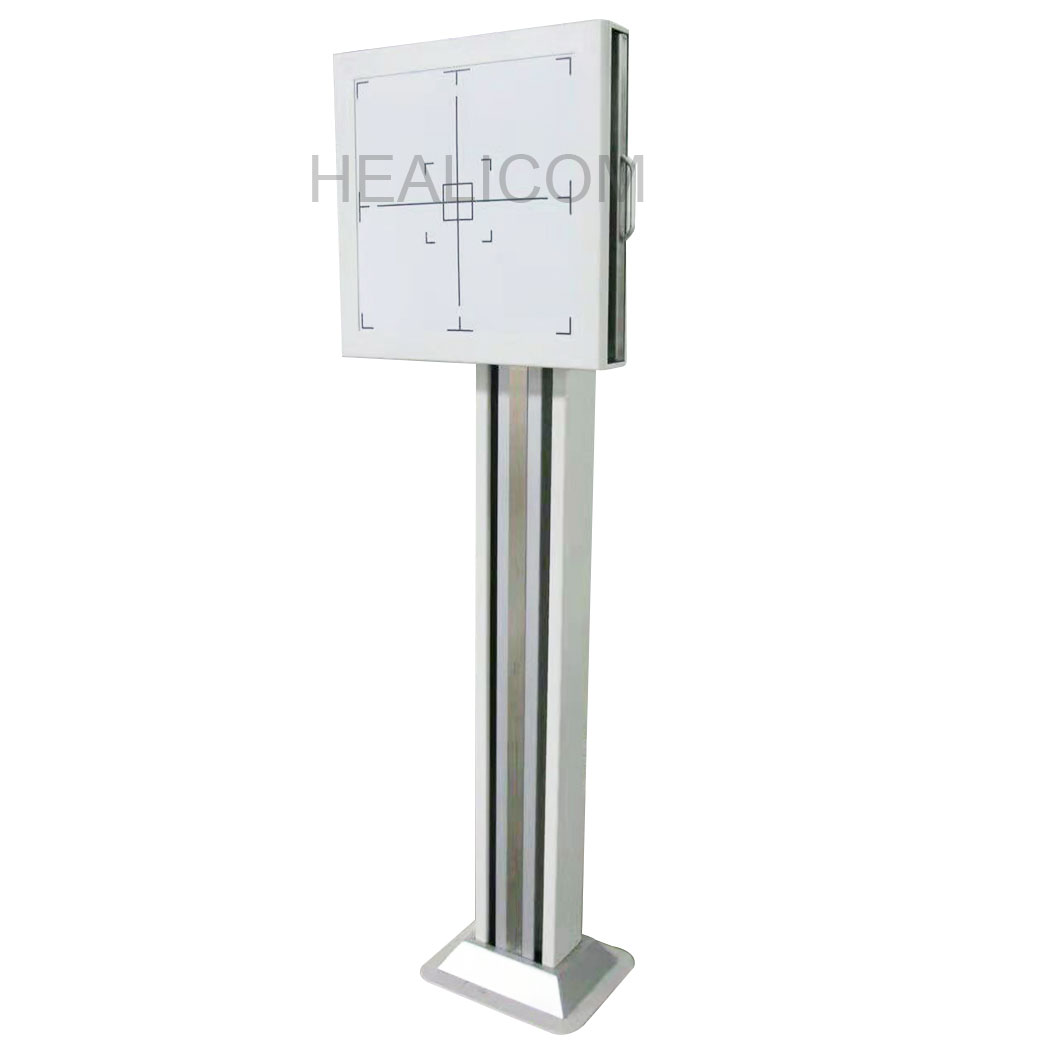

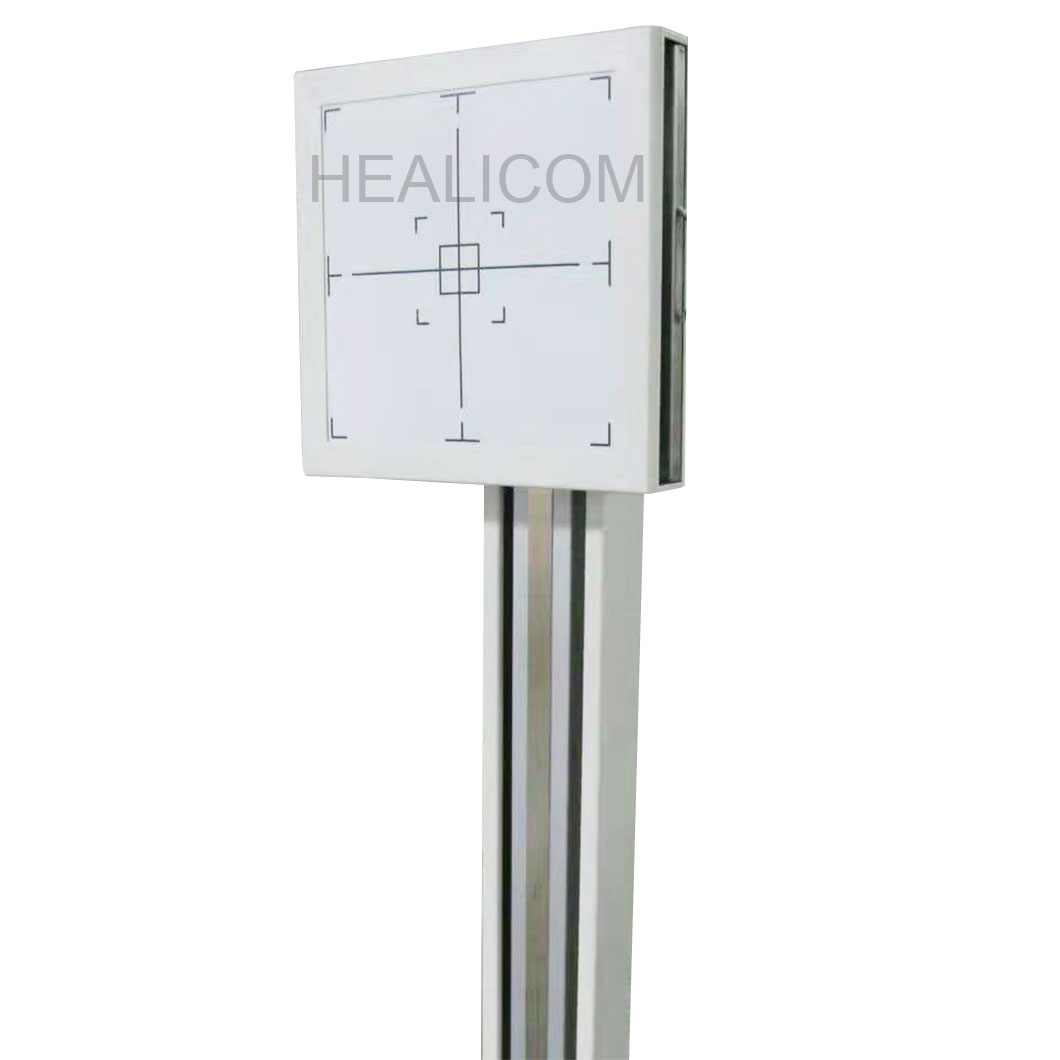

HX-172 Medical Radiology X-ray Chest Vertical Bucky Stand

HX-172 Radiology Vertical Bucky Stand

Features:

1.Dimensions: 520(mm)×300(mm)×1920(mm) ±3%;

2.Dimensions of cassette holder: 440(mm)×520(mm) ±3%;

3.The lifting range of the cassette holder (distance from the center to the ground): ≥ 1100mm±3%, and the minimum distance from the center to the ground should be ≤450mm±3%;

4.Camera Specifications:

It should be able to store photographic cassettes of various specifications of 20.3 cm×25.4cm~35.6cm×43.2cm (8″×10″~14″×17″), and the deviation of the positioning marks should be ≤5mm;

5. The starting force of the cassette holder moving up and down: ≤50N±5%;

6. The braking resistance of the cassette frame moving up and down: ≥100N±5%;

7. The safety system of the balance wire rope in the photo frame> 8;

8. The cassette frame moves up and down, and the handbrake brakes;

9. The safety system of the balance wire rope in the photo frame> 8;
