HFX-08BS
Healicom
Product Description
Features

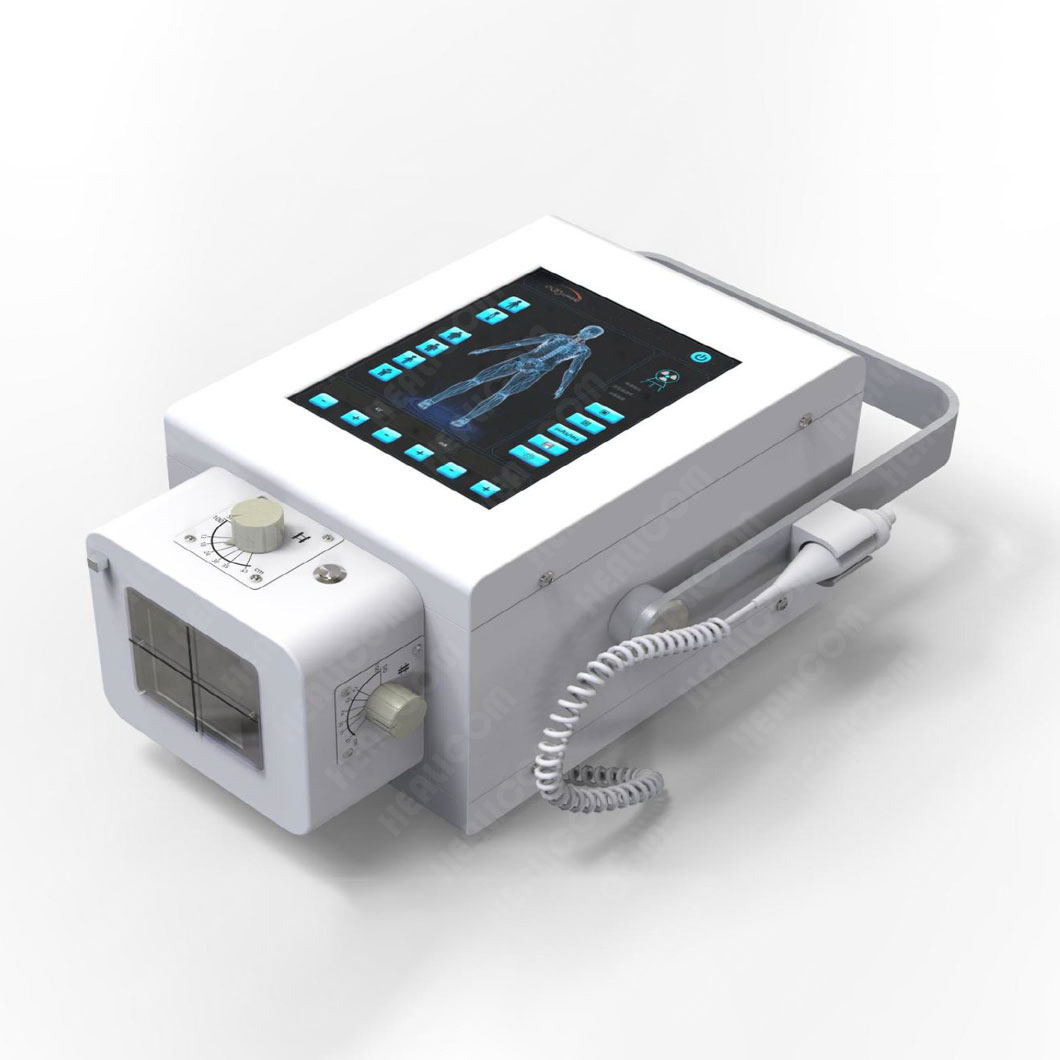

· Powerful and Portable: The 8kW high - power storage portable X - ray machine combines high - power performance with portability, making it suitable for various medical scenarios where mobility is essential.
· Exceptional Energy Storage: It features large - capacity energy storage, capable of continuous cycle charge and discharge tens of thousands of times. This ensures long - term reliability and durability, reducing the need for frequent battery replacements.
· Fast Charging and Long - Lasting Battery: With fast - charging capabilities and a super - long battery life, the machine can be quickly recharged and remain operational for extended periods. This is highly beneficial in busy medical environments or during emergency situations.
· Versatile Exposure Modes: There are 3 exposure modes available, allowing for easy switching according to different examination requirements. This flexibility enables medical professionals to optimize the X - ray imaging process.
Intelligent Temperature Management: The intelligent temperature management system ensures that the machine operates within the optimal temperature range. This not only protects the internal components but also improves the overall performance and lifespan of the device.
· Large Display Screen: Equipped with a 10.4 - inch super - large screen, it provides clear and detailed visuals of the X - ray images and operating parameters. This large screen enhances user experience and makes it easier for medical staff to analyze and diagnose.
Technical Specifications | |
System Requirements | |
Charging voltag | AC 110~220V |
Power | 8KW |
Generator | |
kV range | 40~125 kV |
mAs range | 0.1~200mAs |
mA range | 10~160mA |
Communication mod | RS232 |
Exposure mod | Wired/Wireless |
X-ray Tube | |
Focal spot | 0.6/1.8mm |
Anode Angl | 15° |
Collimator | |
Power suppl | AC/DC 24V±10% |
Light typ | Led 5W |
Light delay tim | 30±2S |
Illuminatio | ≥160Lux |
Intrinsic filterin | 1.2mmAl@75KV |
Mechanics parameters | |
Size | 425 x 240 x 220mm |
Weight | 18kg |
Features a modular design, enabling easy customization.
Compact and lightweight for convenient handling.
Allows exposure operation via touch - screen remote control, offering user - friendly and flexible operation
Add Flat Panel Detector & Film Printer, updated to Digital X-ray System
