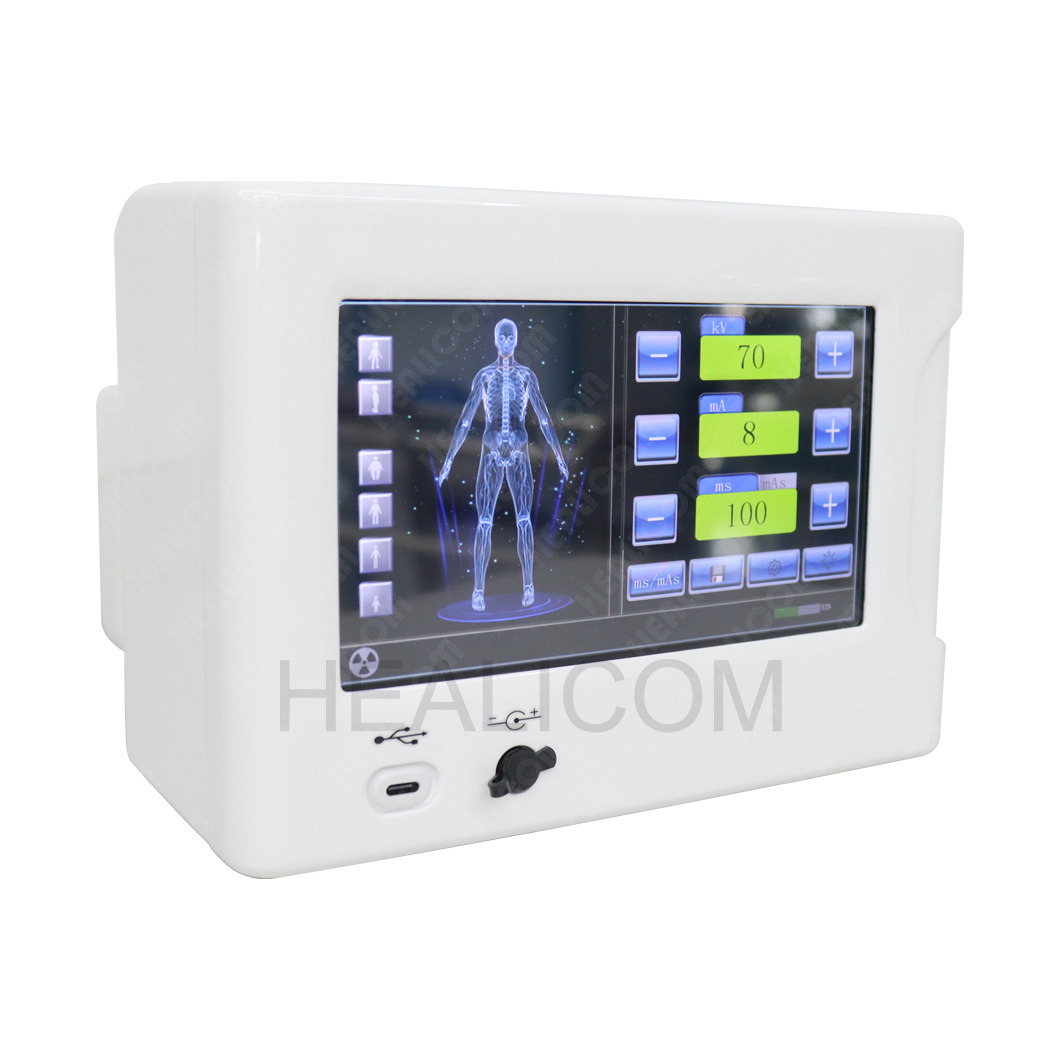

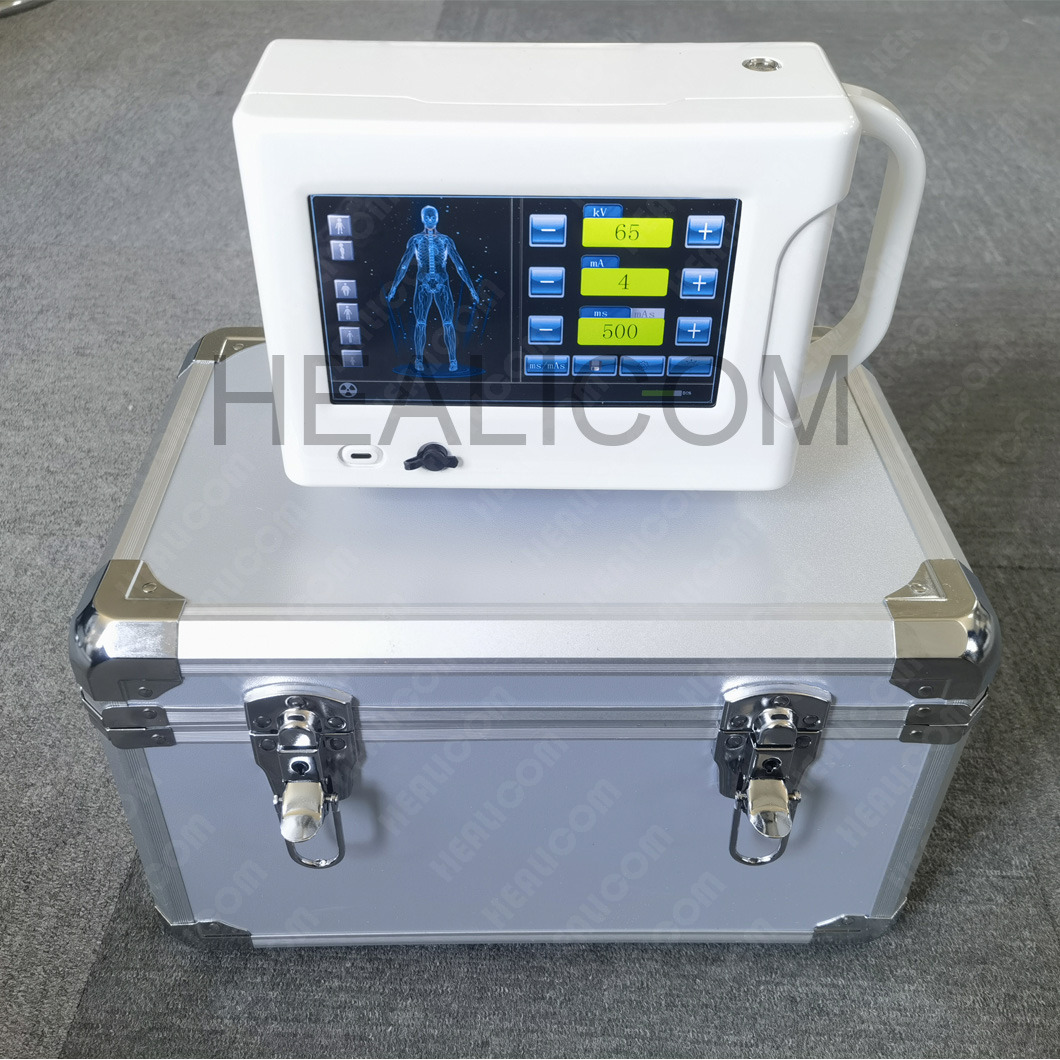

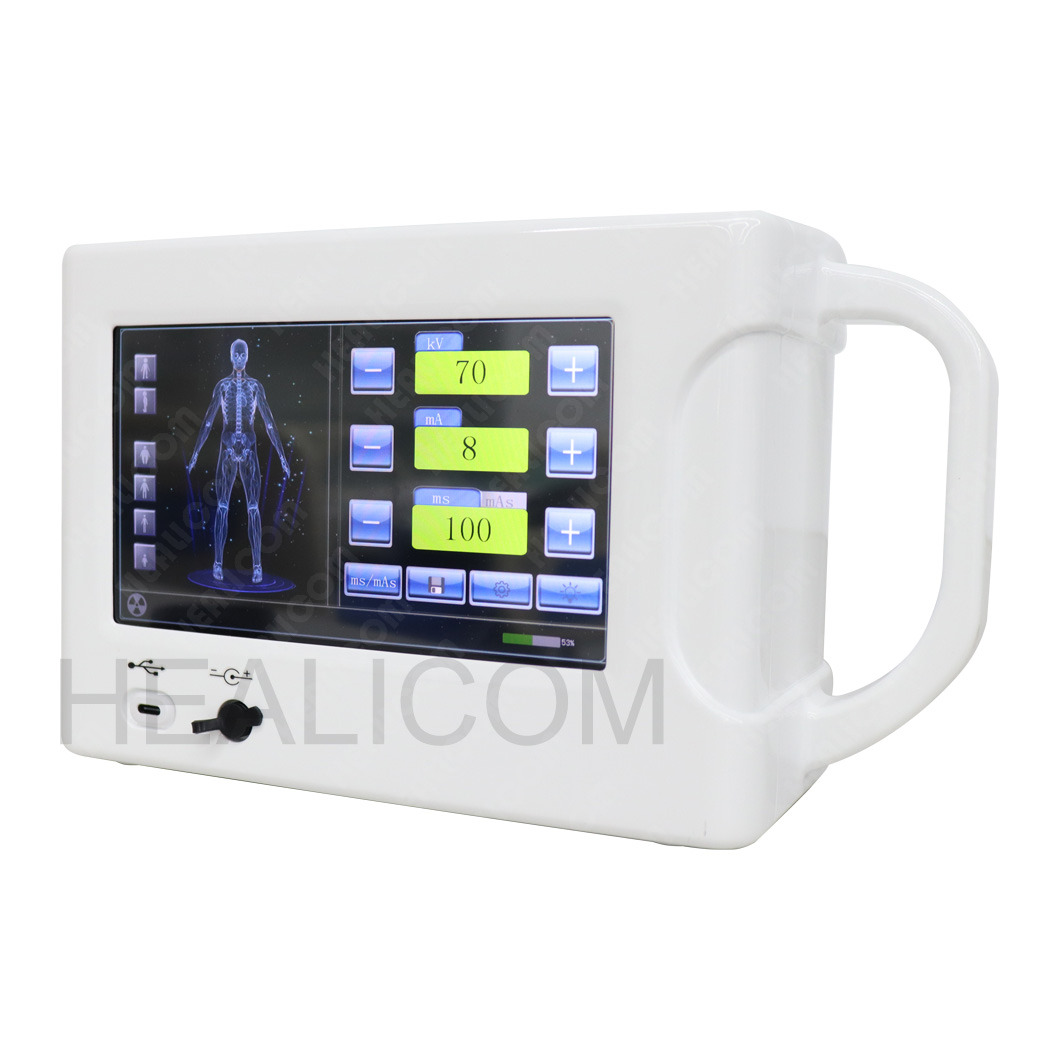

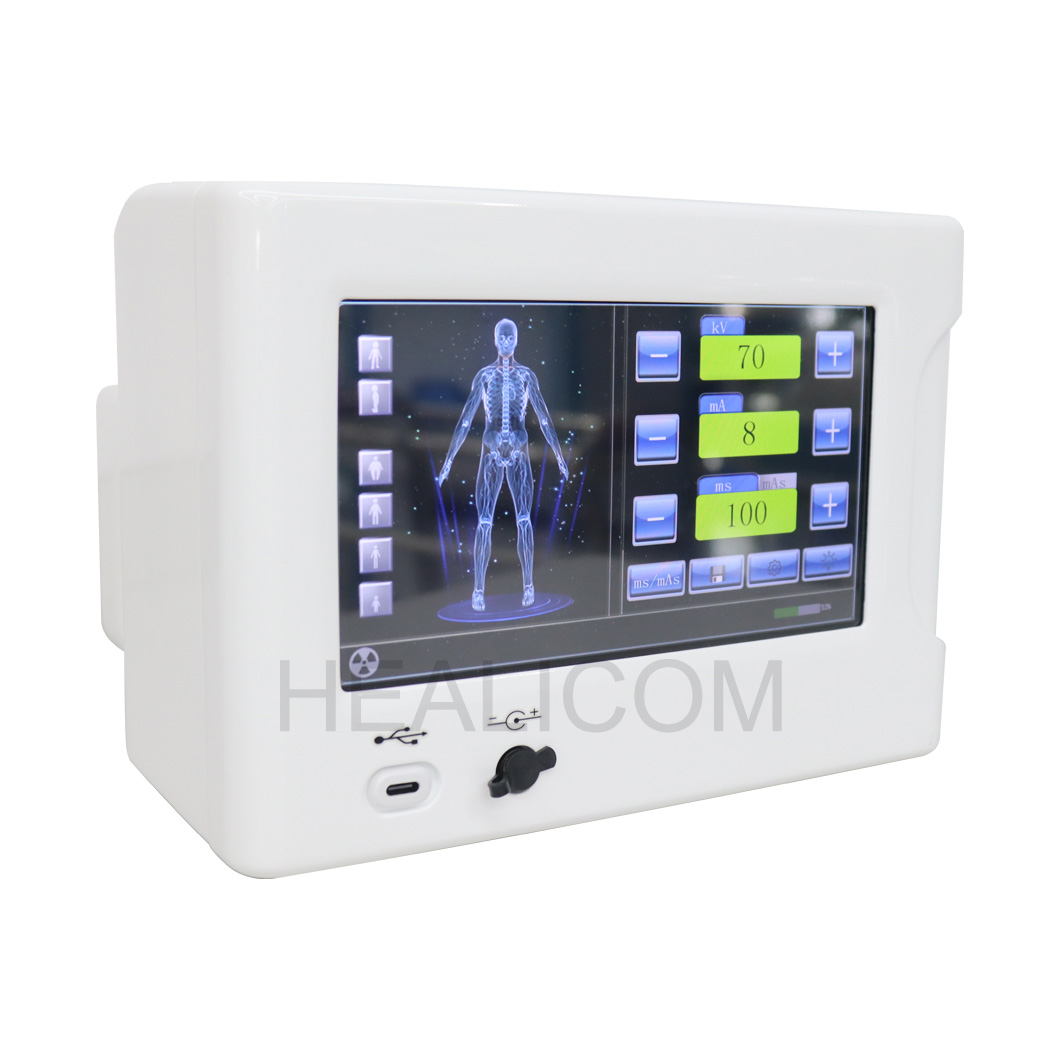

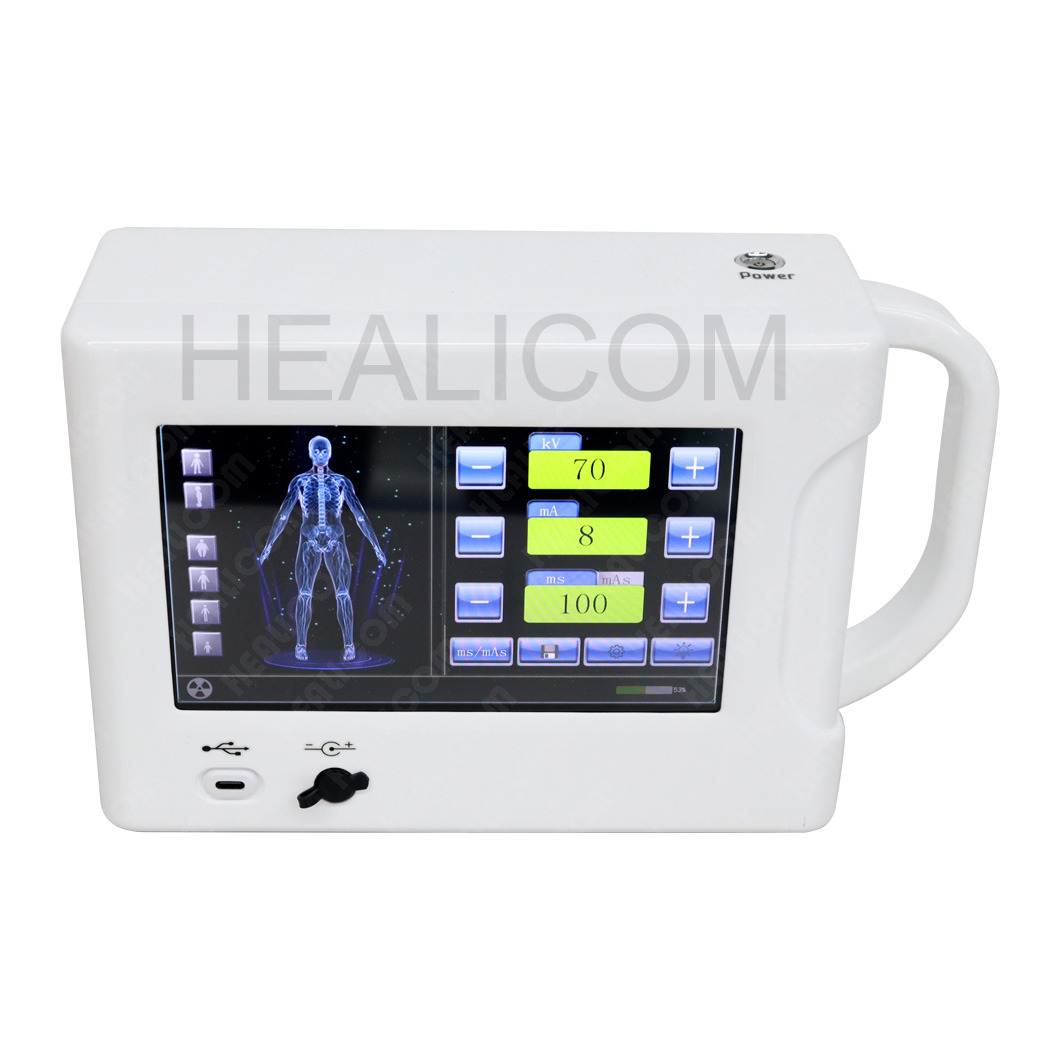

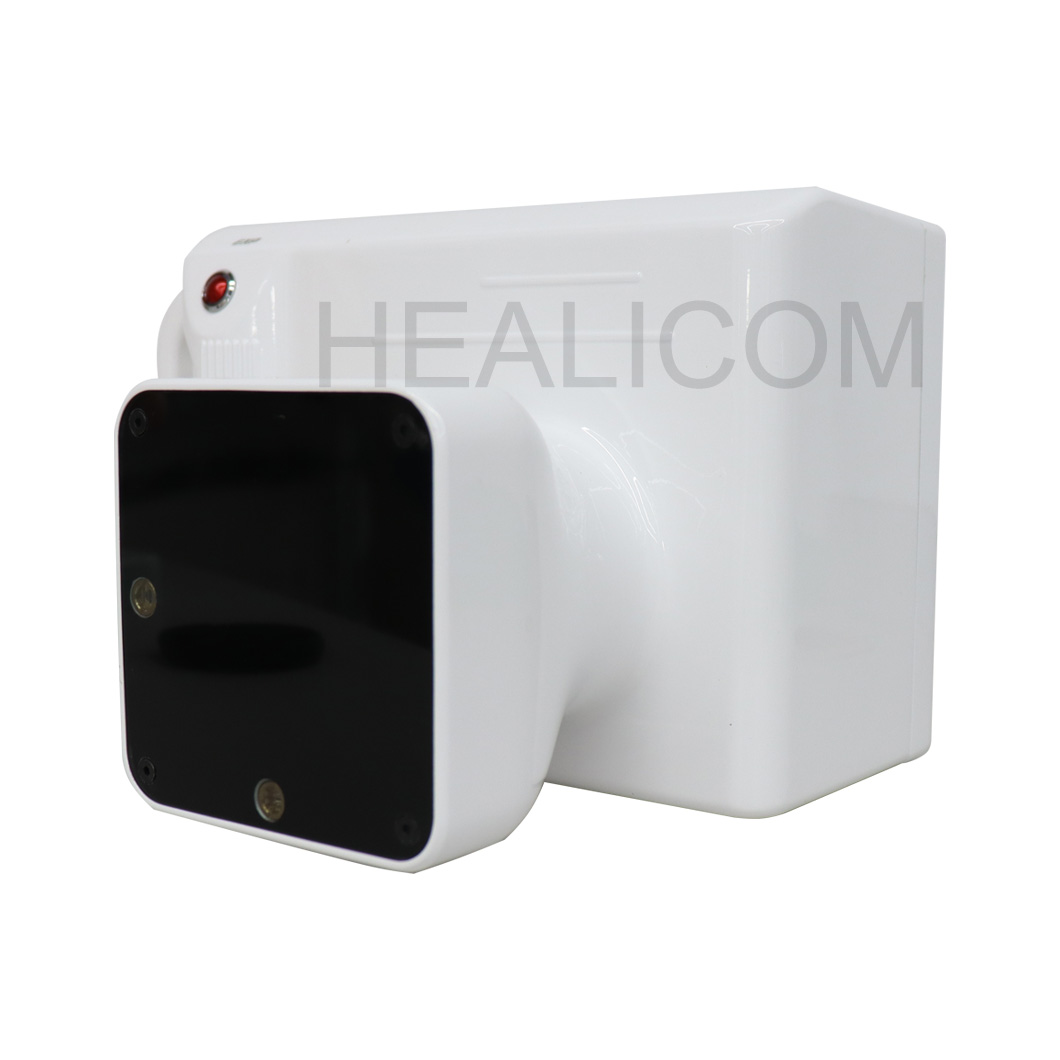

HFX-02D
Healicom
Product Description
Product Advantages
Low Dose
Light Weight
High Resolution
Wireless Remote Switch
Minimized Radiation Exposure / Reduced Time
Reduced radiation exposure time with low dose product design and mechanism minimized radiation exposure for users and patient lmage acquisition under 3 seconds.
Superior Quality X-ray Image
· 75kV:Improved image penetration >Improved bone identification
· 8mA:Reduced required irradiation time >Reduced motion blurring 0.4mm Focal Spot>High resolution

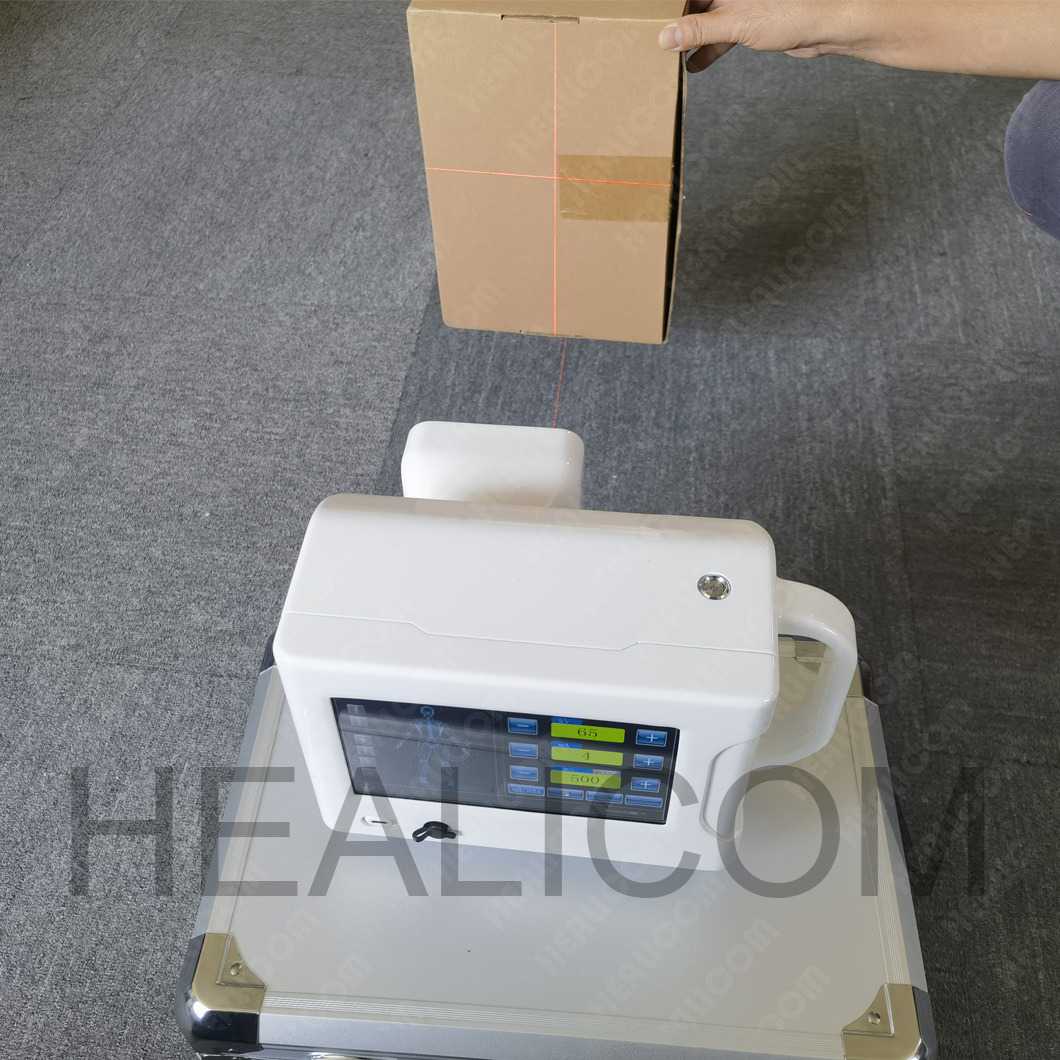

LED and Laser Guided Beam
· Helps users to pinpoint accurate exposure area
0.4 mm
· Focal Spot
· High resolution
| Specification of Device | ||
| Generator | Charging power supply(VAC) | 100-240V |
| Output Power(W) | 560 | |
| kV range(KV) | 40-75 | |
| mA range(mA) | 2-8mA | |
| Exposure time(ms) | 50-2000 | |
| X-ray Tube | focus | 0.4mm |
| Angle of target | 12° | |
| Anode Heat Storage Capacity | 4500J(6300HU) | |
| Detector | Size | 17*17inch |
| Resolution | 3.6 | |
| AD Conversion | 16 | |
| Scintillator | CsI | |
| Pixel Size | 139um | |
| Pixels: | 3072*3072 | |

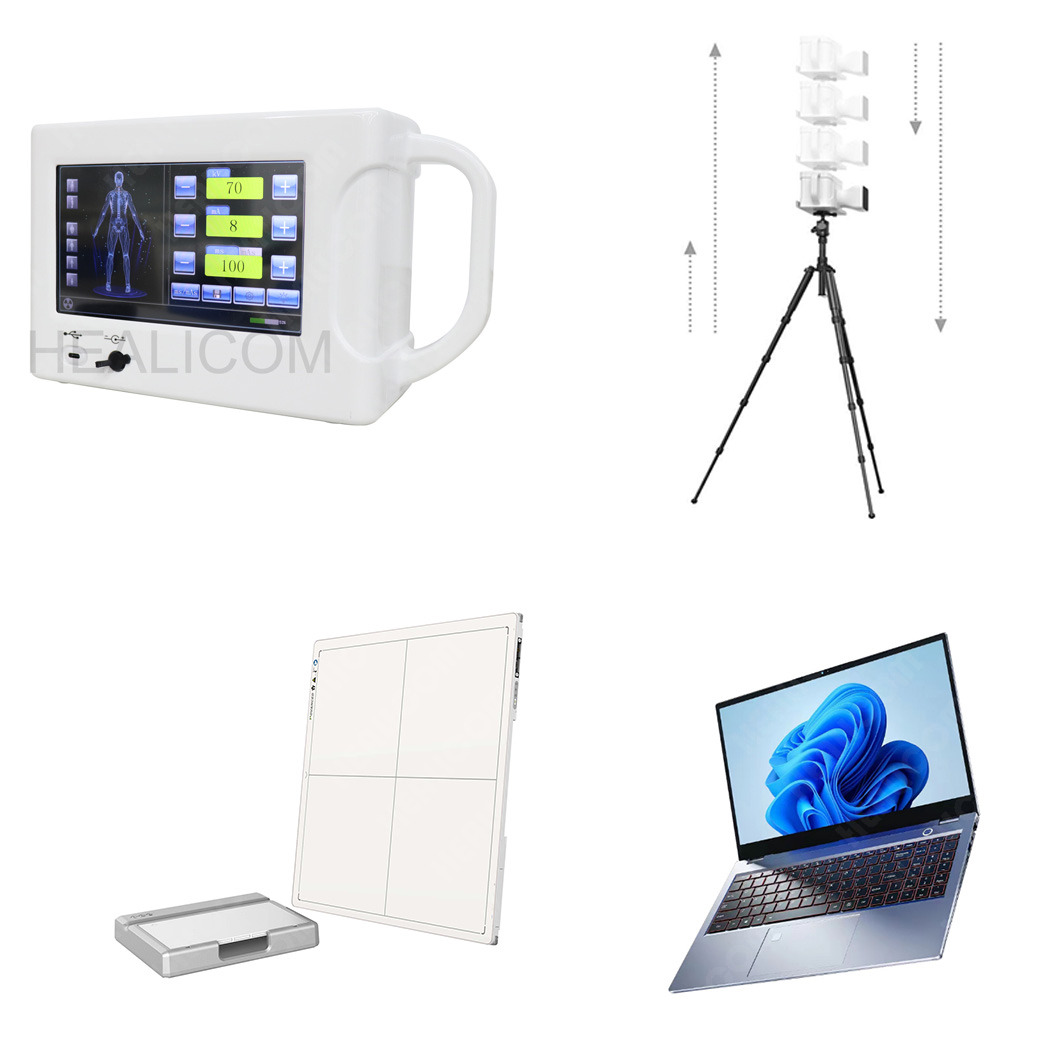

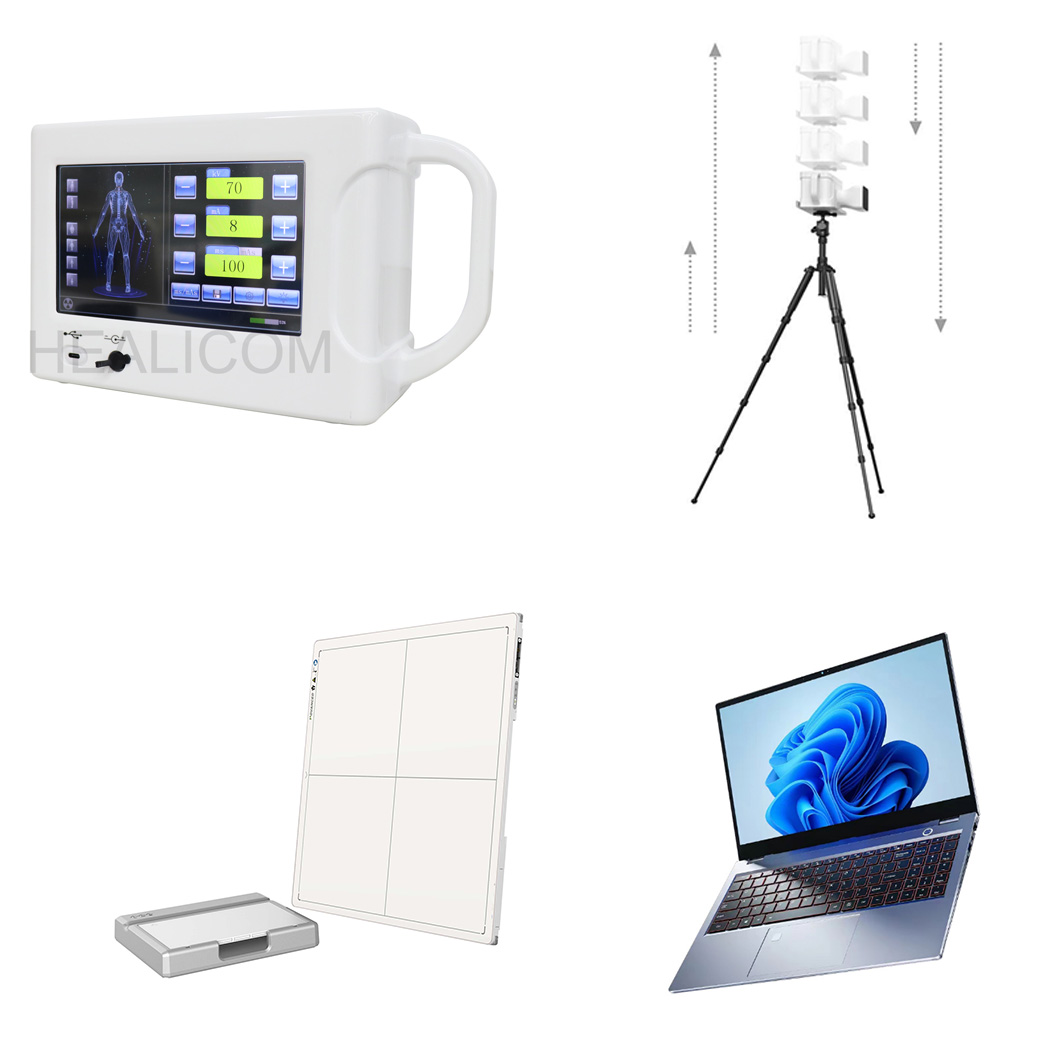

Add Flat Panel Detector & Film Printer, updated to Digital X-ray System
