HFX-05BP Medical Clinical Diagnosis Digital Portable X-ray Machine

The 5.6 kW digital portable high - frequency X - ray machine is a crucial tool for medical diagnosis. Its primary application lies in checking and diagnosing human limbs. Thanks to its portability, it is especially well - suited for use in wild - flow places where traditional fixed - equipment cannot be easily deployed. In battlefield scenarios, it can rapidly provide essential imaging for injured soldiers. At playgrounds, it helps with quick injury assessments of athletes. In pet clinics, it enables veterinarians to examine animals. During rescue operations, it plays a vital role in accurate diagnosis, ensuring timely and effective treatment for those in need.
Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • HFX-05BP

  • Healicom

Product Description

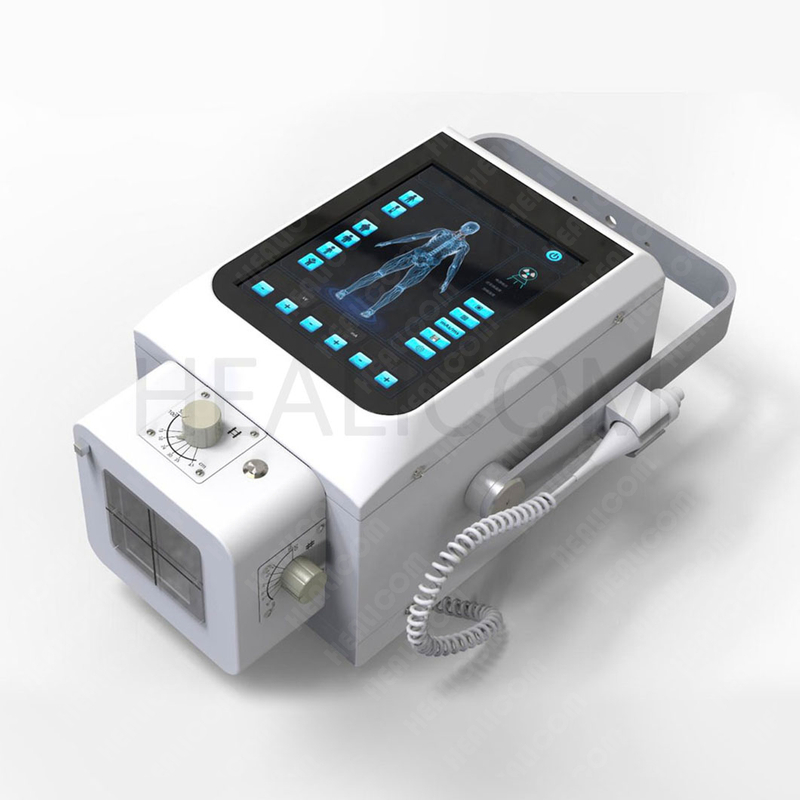

HFX-05BP Portable High Frequency X-ray Machine

h1

Application The 5 . 6 kW digital portable high frequency x ray machine for medical diagnosis, use for human limbs checking, diagnosing, especially used in the wild flow places, battlefield, playground, pet clinic, rescue diagnosis etc.

Technical Specifications
Screen
10.4 inch touch screen,advanced mold opening technology, beautiful and lightweight
Power
5.6kW
Charge power supply
AC220V
kV Range
40~125kV
mA Range
5~100mA
mAs Range
0.1-200mAs
Working Frequency
100kHz
Exposure time
0.005S~6.3S
Focus
1.8 mm
Charging time
20mins
Head size
420mm * 245mm * 240mm
Head Weight
20KG
6 languages
Chinese, English, Russian, French, Portuguese, Spanish
Battery type
The fully charged battery can take 300 images



h2

h3

h4

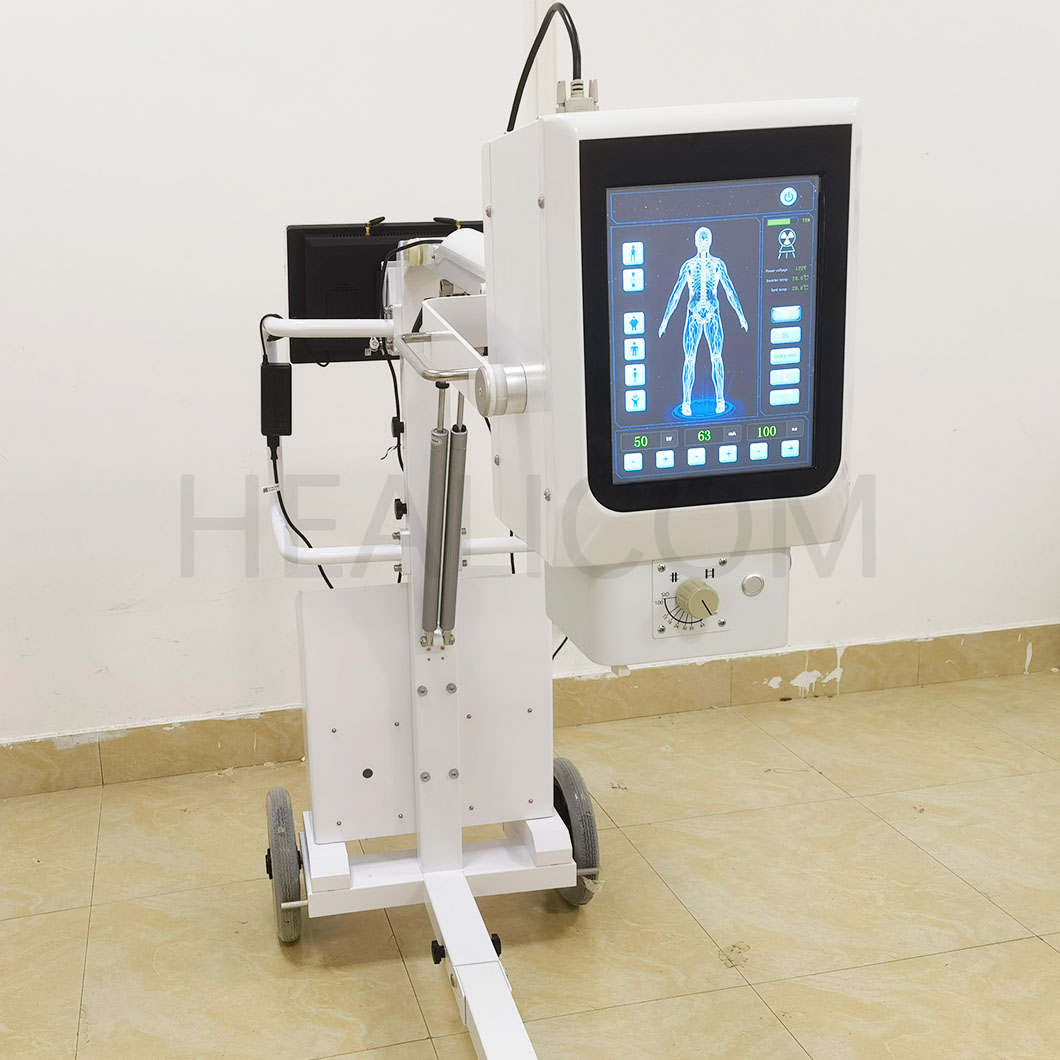

Features a modular design, enabling easy customization.

  • Compact and lightweight for convenient handling.

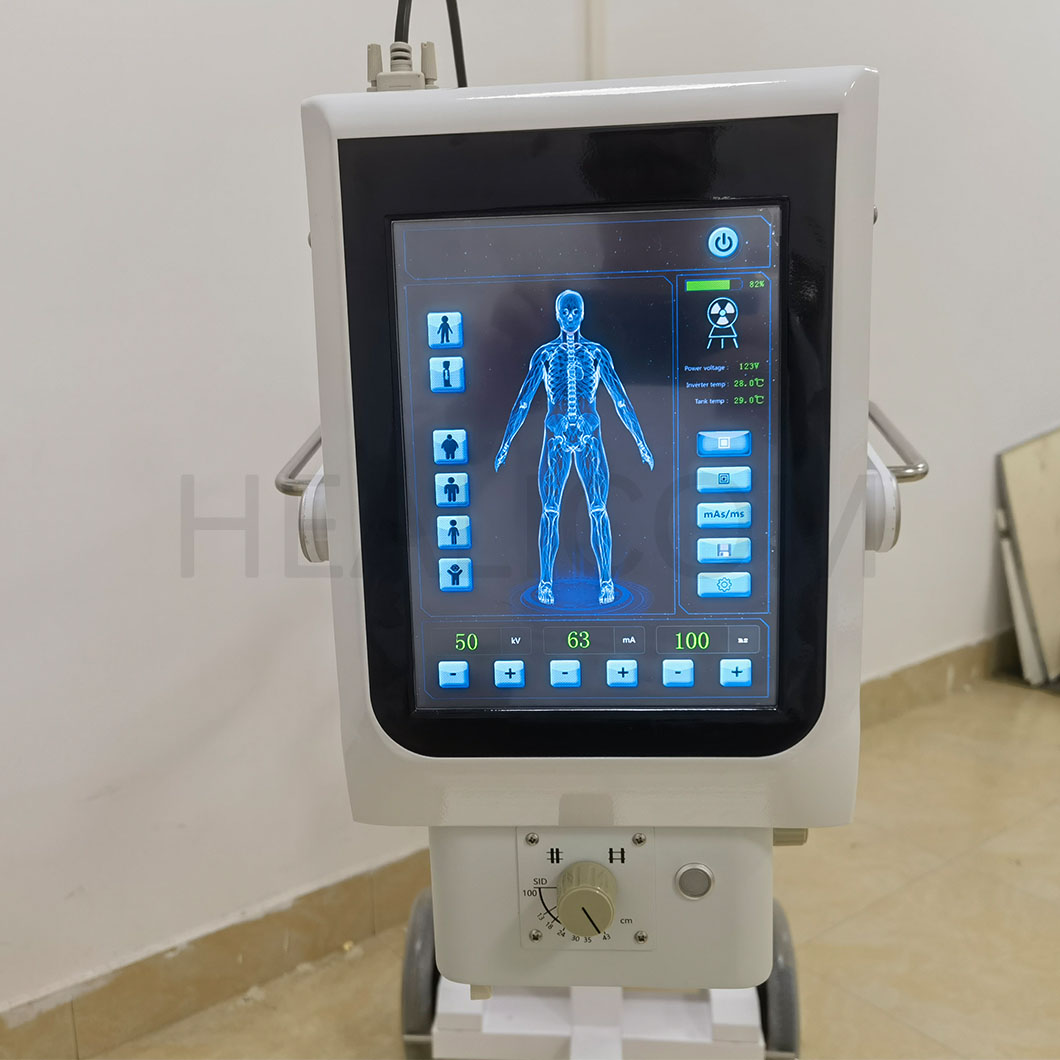

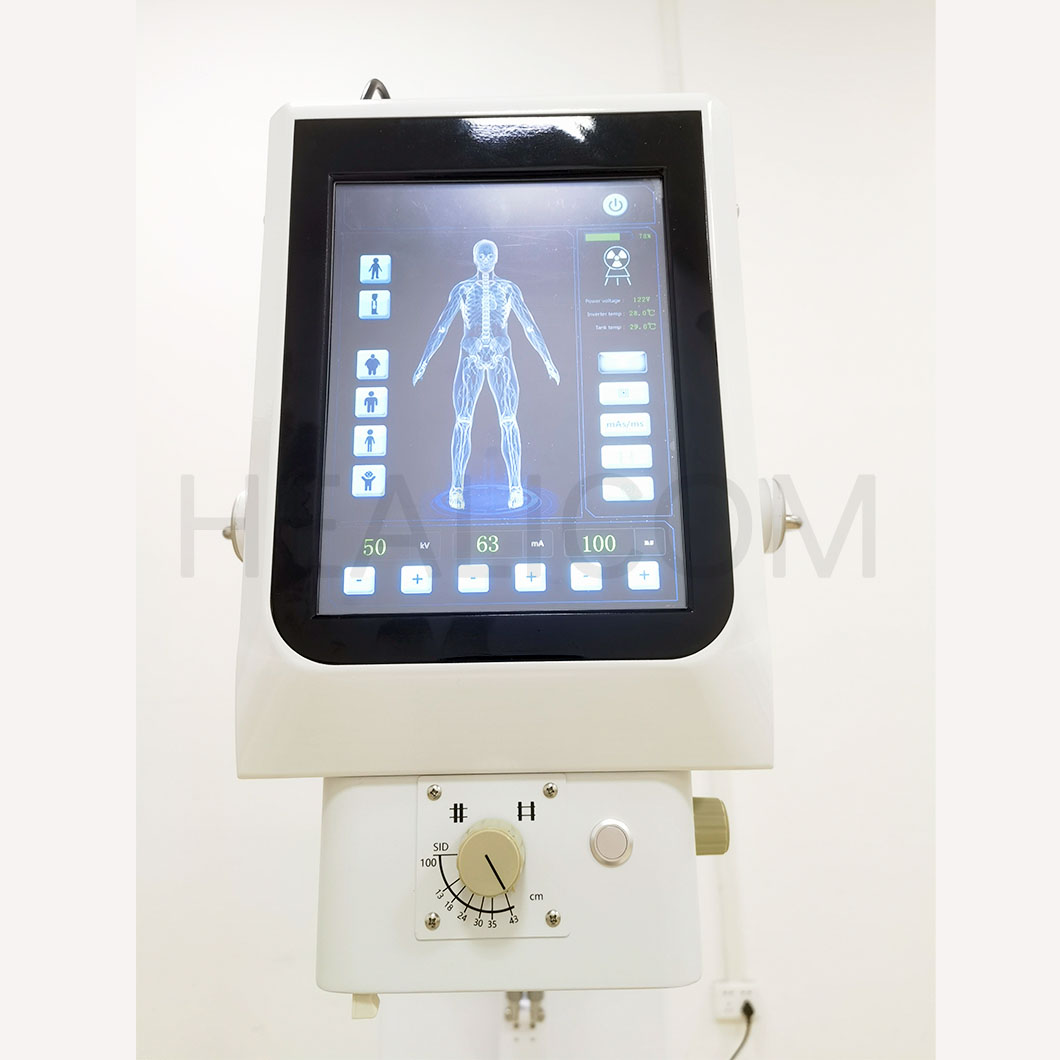

  • Allows exposure operation via touch - screen remote control, offering user - friendly and flexible operation

Add Flat Panel Detector & Film Printer, updated to Digital X-ray System
