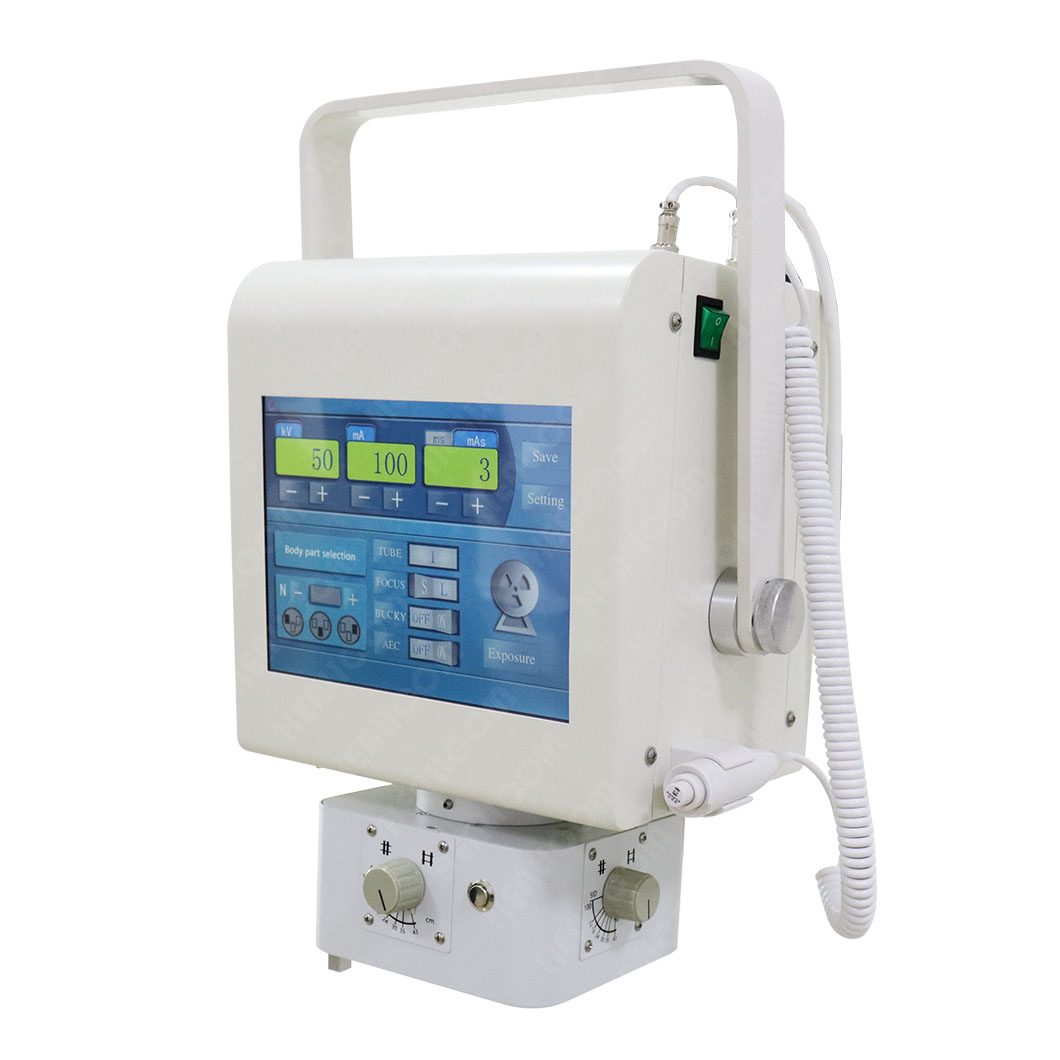

HFX-05
Healicom
Product Description
Features
1. Deft and concise
2. LCD Touch Screen
3. 48 kinds of presupposed anatomy memory pattern choices
4. Accuracy control method of simulation and double digital loops
5. High precision control of tube voltage, tube current
6. Failure self-protection, self-diagnosis

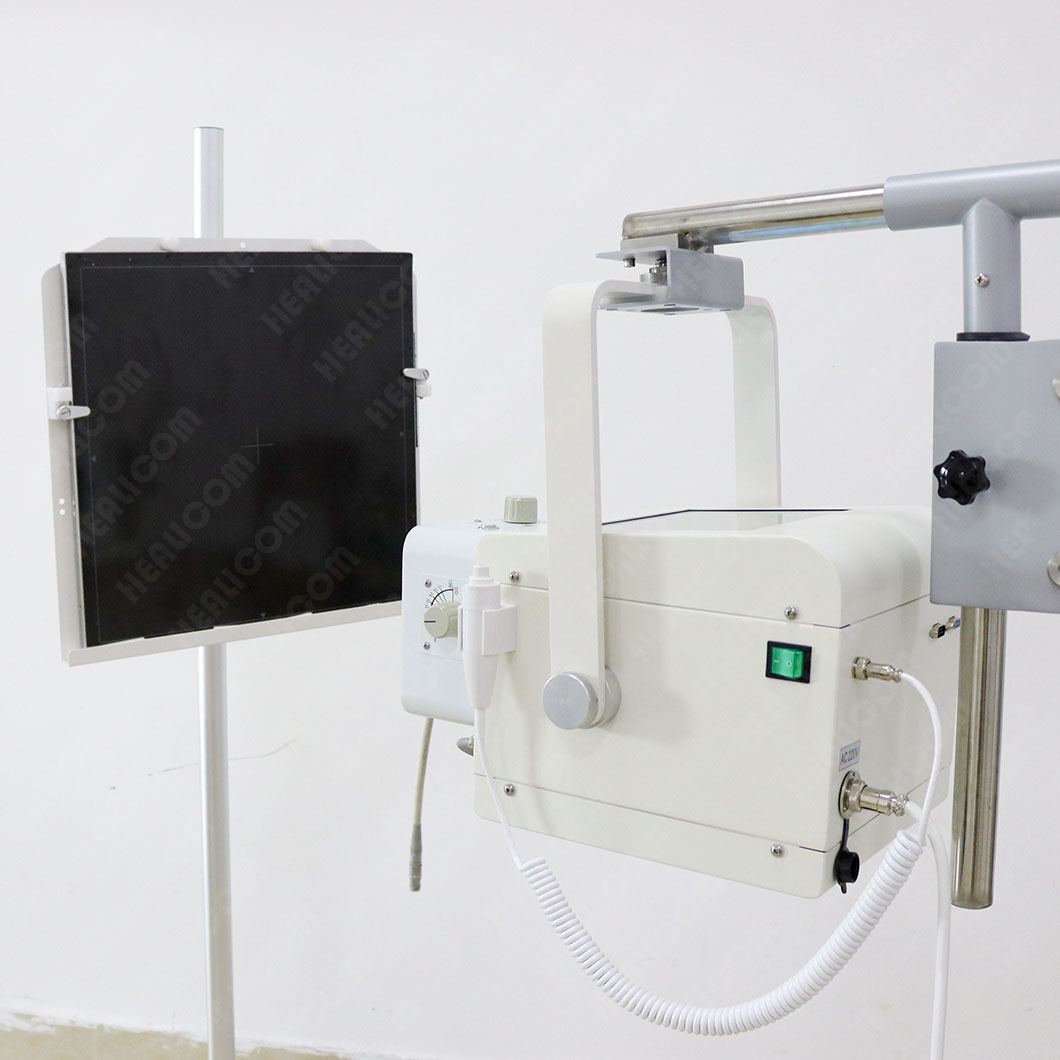

Add Flat Panel Detector & Film Printer, updated to Digital X-ray System
| Technical specifications | |
| Model | HFX-05 |
| Input power | Voltage: AC220V±22V Frequency: 50/60Hz±1Hz Power capacity: ≥5kVA; Inner resistance≤0.5Ω |
| Maximum output power | P = 110kV×50mA = 5kW |
| Nominal power | 50kV, 100mA, 0.1s, 5kW |
| kV adjusting range | 40kV~110kV, step adjustment 1 kV |
| mA adjusting range | 20mA~100mA |
| mAs adjusting range | 0.2mAs-200mAs, shifted adjustment |
| Exposure time | 0.01S~4S |
| X-ray tube | Focus:0.6/1.8mm; Anode heating capacity:40KJ |
| X-ray machine size | 290×260×230mm |
| Weight | 18.8kg |

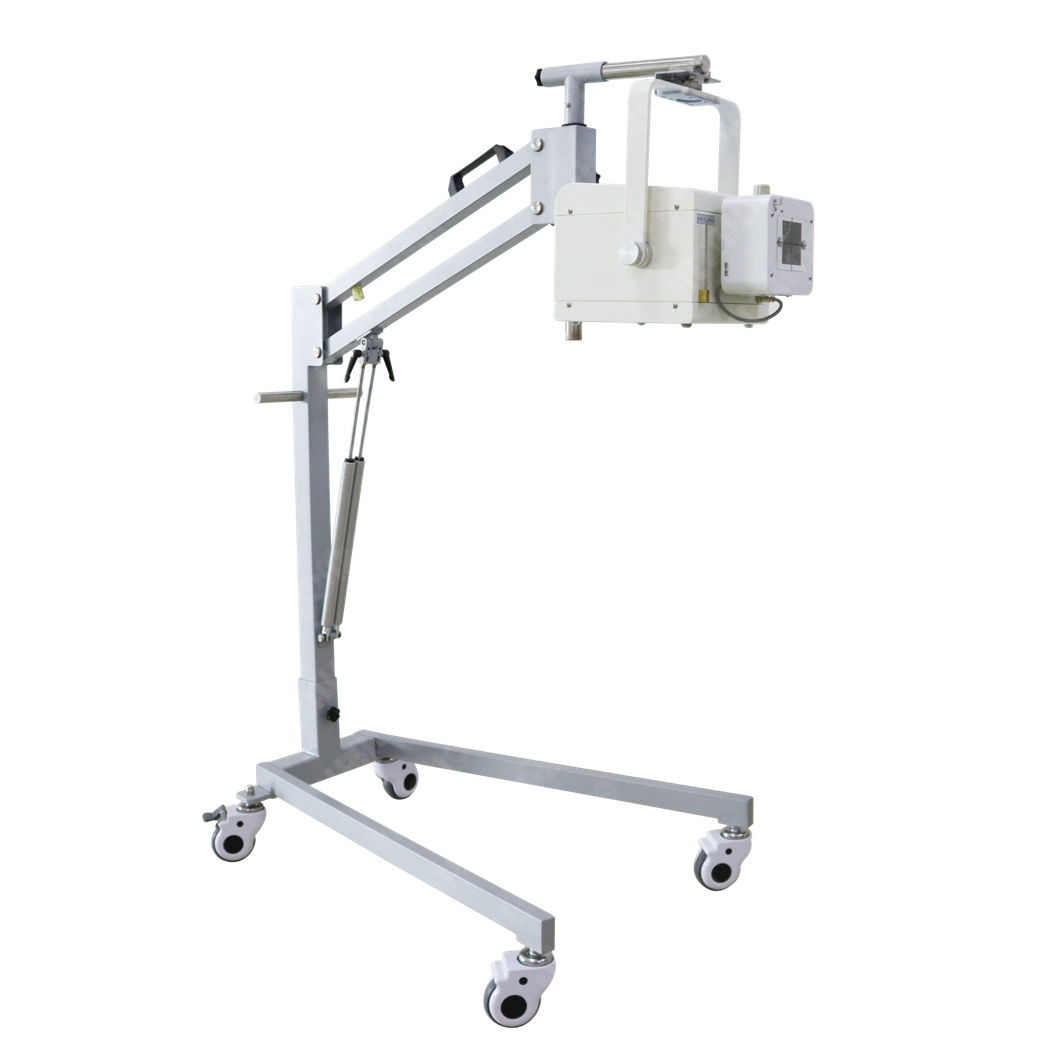

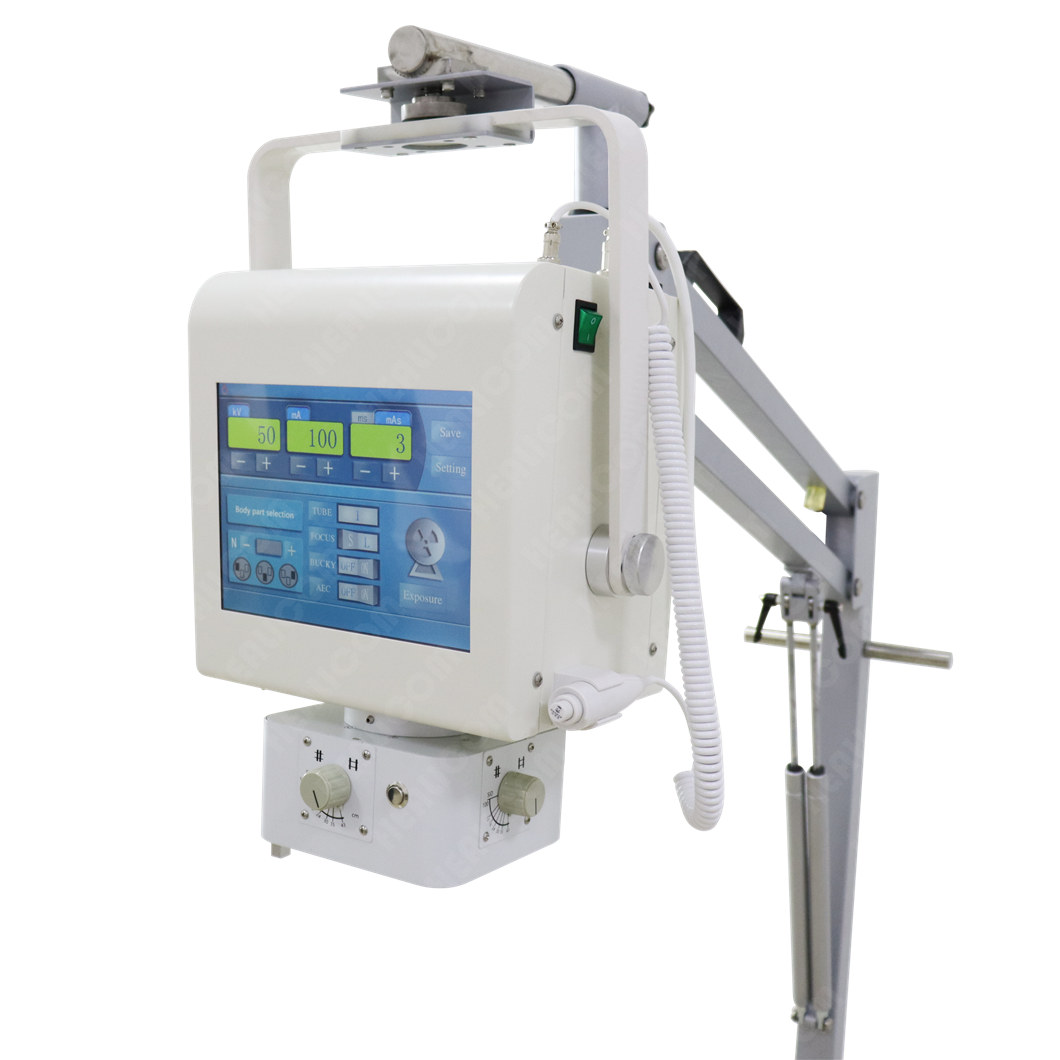

Optional Stand
