HFB-9
healicom
Product Description
HFB-9 Medical surgical endoscopy Fiber Bronchoscope price
Specifications:
Item | Bronchoscope |
Diameter of distal- end | 5.0mm |
Diameter of insert tube | 5.0mm |
Clamp aperture | 2.2 |
Working length | 530mm |
Total length | 770mm |
View of field | 90° |
Depth of view | 3-50mm |
Tip deflection | up 135° down 90° |
| Water delivery | 40ml/min |
Air delivery | 800ml/min |
Liquid absorption | 600ml/min |
| Remark | We can provide OEM service, technical details can be customized |

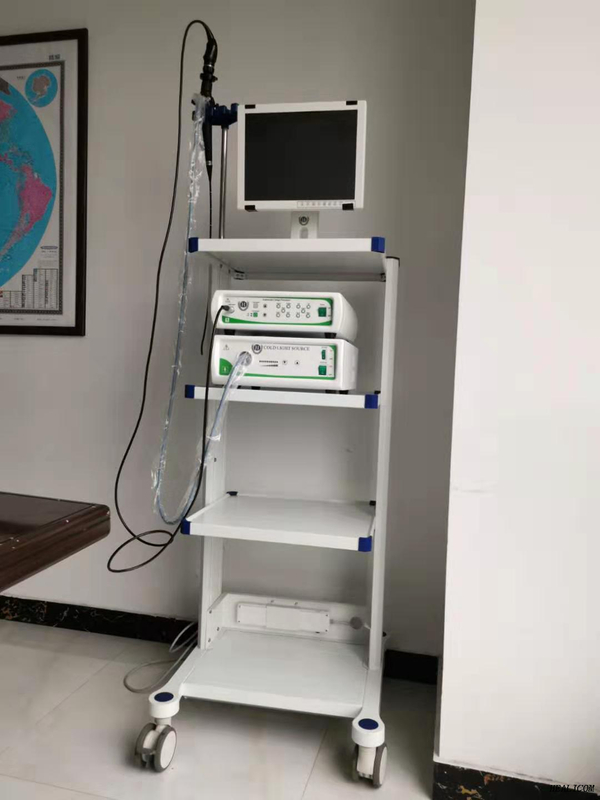

Part 1: Fiber Bronchoscope
Bending operation : Traction chain structure, whole sealed waterproof
Image display : Two image display optional
Quality certification : ISO9001,13485,CE
Warranty : One year(free), permanent repairs (not free)
Package size :64*18*48cm (G.W.:5.0kgs)

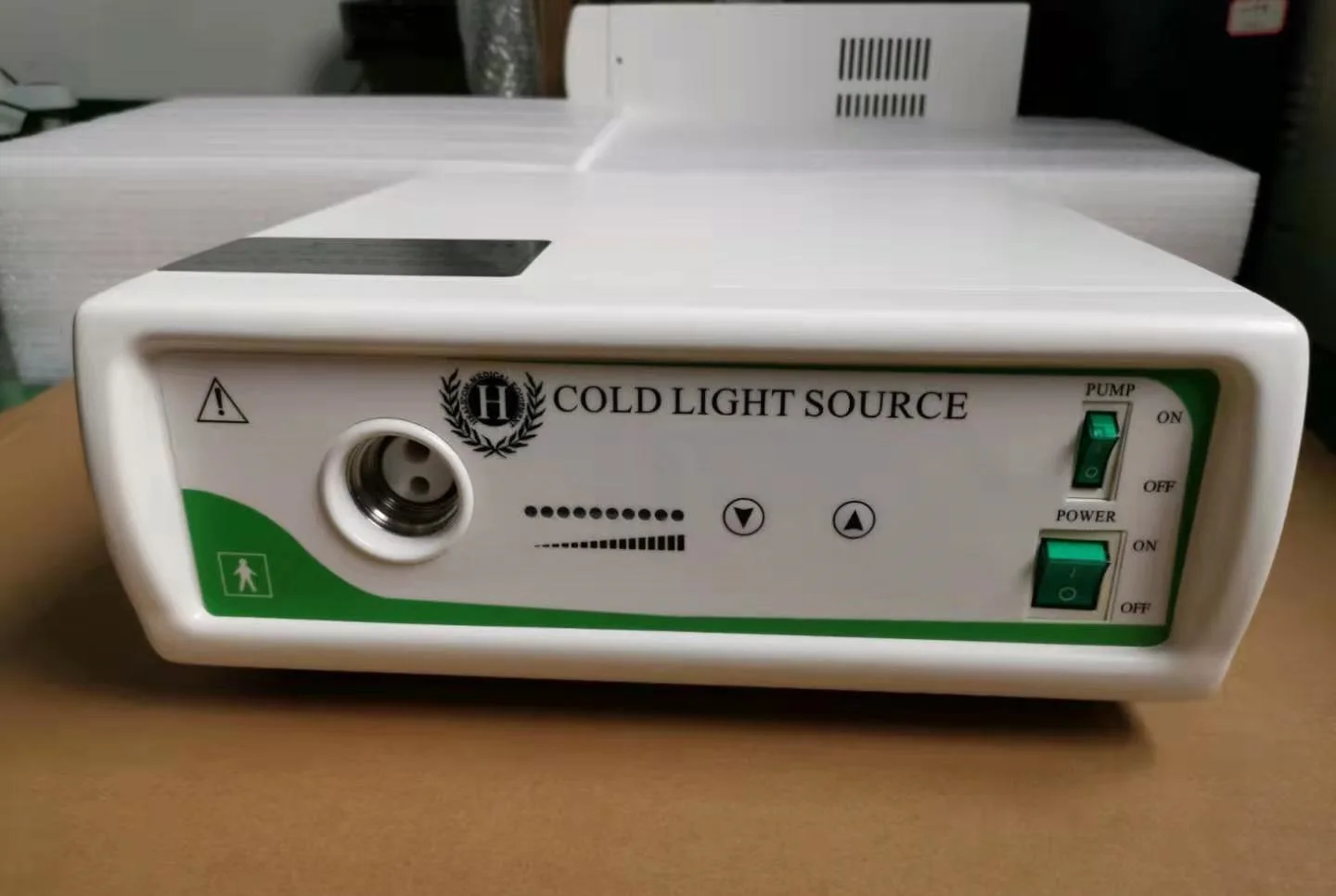

Part 2: Cold light source HG-400
1. Voltage: 220V-240V
2. Frequency: 50-60HZ
3.lamp Power: 15V-150W environmentally friendly halogen tungsten lamp
4. Illumination: 70000LX (using special measuring tools)
5. Color Temperature: 3000~7000K
6. Air Pump Pressure: 30-60kpa Air Flow: 4/L/min-10L/min (Quiet pump)
7.Electric switch : AB light two sets light source
Main Function:
1.Adopt Philips Medical environmentally friendly halogen bulb light, medium cold reflector
irradiation.
2. Built with micro axial fan cooling temperature.
3. Adopt dimming electronic control unit organization.
4. Dual-lamp light sources, the lamp can be freely exchanged in order to extend lamp life,
convenience to the operation
Package box:54*47*27.3cm (10.54kgs)
Part 3: HMV-3000 camera system
1. Voltage: 220-240V
2. Frequency: 50-60HZ
3. System: PAL
4.Image regulation : Automatic regulate light, keep the image EMVat its best
Video processor : DSP-Digital image processor with powerful multi-function , Brightness / color /
contrast adjustable 0-100 level , Svideo / AV output.
Reverse function :Black and white reversed.
White balance : Auto white balance , manual white balance.
Manual white balance :Manual white balance can be calibrated color, color adjustable (Red,
Blue).
Electronic shutter : 10 level electronic shutter adjustment.
Metering : Average metering, peak metering, metering area delineated.
Contour enhancement : 10-level contour enhancement.
Lens optional : Manual lens, automatic lens, video lens three optional.
Sharpness adjustment : 0-30 sharp changes of the image in fine processing.
Digital WDR :Digital broadband function.
Backlight compensation : Improve the average brightness of the whole screen
Cama line :Cama line clarity 6 level adjustment.
R/L Mirroring: The left and right mirror position can be changing.
Package size :50.5*46*20cm (G.W.:8.5kgs)
Part 4: LCD Display
1. Display size: 15"
2. Power Supply:External Power Supply 12V
3. Resolution:1024X768
4. Display Ratio:4:3
5. Color:16.7M
6. Camoration Brightness:180±10 cd/M*2
7. Max.Brightness :400 cd/M*2
8. Contrast Ratio:700 : 1
9. Viewing Angle:120/140 Response Time:8ms
Package size : 44*36.5*16.5cm (G.W.:6.0kgs)
