Medical imaging technology evolves rapidly. Facility directors and surgeons face a massive gap today. They struggle to connect basic radiology concepts to high-stakes capital equipment decisions. Understanding how these machines work goes far beyond simply pushing a button to emit X-rays. The process involves a highly complex interplay. Power generation, advanced image detection, and robust heat management must work together seamlessly. These core technical variables dictate your daily clinical throughput. They also govern patient safety directly during long procedures.
This guide serves as a comprehensive technical teardown. We designed it specifically for facility directors, lead surgeons, and procurement officers. We will help you align complex machine specifications with your specific clinical demands. You will learn to evaluate internal components, understand detector variations, and make confident hardware choices.
Core Mechanism: C-arm fluoroscopy operates via a continuous or pulsed X-ray beam converted into high-resolution, real-time video, enabling precise anatomical navigation during procedures.
Detector Technology Matters: The transition from traditional Image Intensifiers (II) to Flat Panel Detectors (FPD) represents the most significant shift in modern C-arm procurement, impacting dose, image distortion, and equipment lifespan.
Operational Bottlenecks: System heat capacity and cooling mechanisms dictate case volume limits; under-speccing these components leads to mid-procedure thermal shutdowns.
Understanding the physics behind real-time imaging helps you make better clinical choices. The basic architecture of these machines relies on a highly specific geometry. We must look at how physical design impacts daily operation.
The semicircular design gives the machine its distinctive name. You will find an X-ray tube mounted on one end. A specialized detector sits on the exact opposite end. Engineers call this an isocentric design. This architecture proves vital in the operating room. It keeps the targeted anatomy perfectly centered while operators maneuver the arc around the surgical table. Surgeons can rotate the machine freely without losing their critical field of view.
These systems generate live video feeds. They process up to 30 frames per second to provide real-time anatomical feedback. However, they deliver this video in two distinctly different ways.
Continuous radiation emits a steady, unbroken beam. It produces an exceptionally smooth video feed. Surgeons often prefer it for observing rapid, fluid movements. Unfortunately, it results in significantly higher radiation doses. In contrast, pulsed fluoroscopy emits rapid, discrete bursts of X-rays. This heavily reduces the overall radiation dose. It also decreases motion artifacts when imaging moving anatomy, making it the preferred standard for most modern interventions.

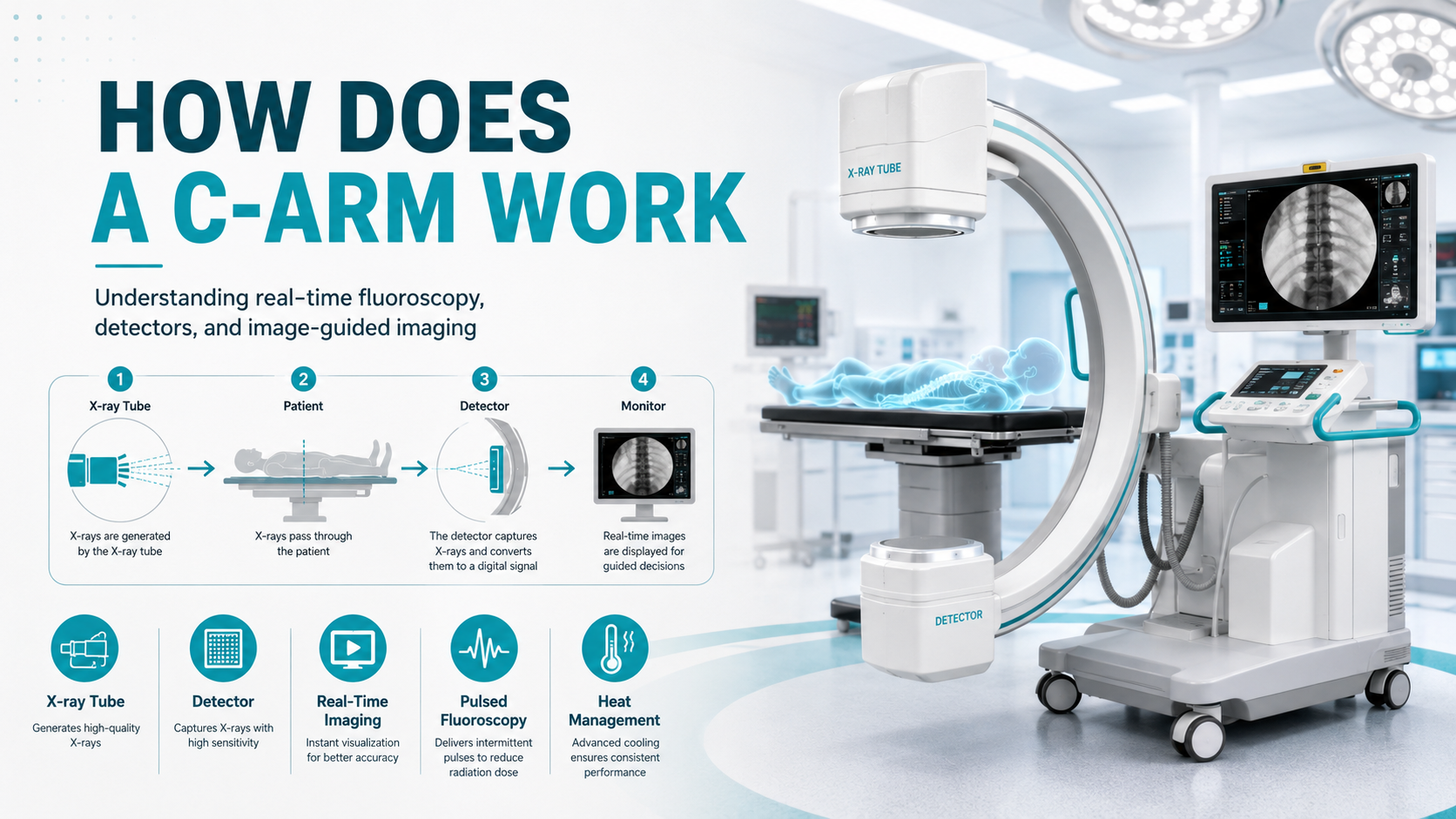

Understanding the technical journey of an image helps clarify equipment specifications. The physical conversion process follows five specific steps:
X-ray Emission: The generator supplies high voltage to the tube. The tube fires a controlled beam of X-ray photons toward the table.
Patient Attenuation: The beam travels through the patient. Dense tissues like bone absorb more photons, while soft tissues let more pass through.
Receptor Capture: The detector catches the remaining photons on the other side. It maps out the intensity of the surviving radiation.
Digital Processing: Internal software algorithms interpret this raw energy. They convert the analog photon map into a digital grid of pixels.
Monitor Display: The system projects the processed video onto dual medical-grade monitors. Surgeons rely on this feed for real-time navigation.
Your machine is only as capable as its weakest internal component. You must evaluate the generator, the detector, and the cooling system as an interconnected triad.
You must evaluate the generator carefully before procurement. Monoblock generators house the high-voltage components directly inside the tube head. They are highly compact but can suffer from severe heat limitations. Split-block generators separate these components. They handle higher power loads much better during lengthy procedures.
Three core metrics determine a system's true imaging capability. The kW rating defines overall system power. The kVp measures beam penetration strength. The mA dictates final image brightness. High ratings let you image thick anatomy clearly. For example, lateral spine imaging requires massive power. You need high penetration to yield clear images without degrading the final picture quality.
Detector technology defines your image clarity. Older systems use Image Intensifiers. This analog process relies on a vacuum tube and specialized phosphors. While functional, it brings distinct clinical limitations. You will often notice peripheral distortion. Technologists call this vignetting. The bulky tube also creates a massive physical profile. Furthermore, the phosphor quality degrades gradually over time, slowly dimming the image.
Flat Panel Detectors (FPD) use direct or indirect digital conversion. They rely on CMOS or amorphous silicon (a-Si) materials. They represent a massive leap forward in imaging technology. FPDs offer zero geometric distortion. They require lower radiation doses and provide a wider dynamic range. Their ultra-slim profile dramatically improves maneuverability around crowded operating rooms.
Feature | Image Intensifier (II) | Flat Panel Detector (FPD) |
|---|---|---|
Image Distortion | High edge distortion (vignetting) | Zero geometric distortion |
Physical Profile | Bulky, restricts table access | Slim, highly maneuverable |
Dose Efficiency | Standard dose required | Allows significant dose reduction |
Lifespan Degradation | Phosphors degrade over time | Consistent quality over lifespan |
Lengthy procedures carry a dangerous implementation reality. We call it thermal overload. Complex vascular or orthopedic cases demand continuous X-ray usage. If the internal components overheat, the system shuts down mid-procedure. This creates unacceptable clinical risks.
You must evaluate Anode Heat Capacity rigorously. Manufacturers measure this capacity in Heat Units (HU). High HU ratings mean the tube can absorb much more heat before failing. You should also check the active cooling mechanisms. Passive cooling relies on ambient air. Active cooling uses circulating water or forced-air fans. Active mechanisms help maintain operational continuity during heavy, back-to-back caseloads.
Different surgical specialties demand entirely different configurations. A machine built for a pain clinic will fail in a cardiovascular suite. You must align your hardware choices with your core clinical focus.
These surgical fields require massive equipment maneuverability. Surgeons need a large field of view (FOV) to visualize multi-level spinal fusions. They also require robust generator power. Pushing X-rays through a lateral lumbar spine demands high penetration. Low-power machines will only produce grainy, unusable images during complex orthopedic reconstructions.
Pain clinics operate under different constraints. They rarely need high-end vascular features. Lower-power systems often suffice perfectly. Mini systems prioritize a compact footprint and ease of daily use. They excel at imaging extremities and navigating tight outpatient clinic spaces. For standard epidurals or nerve blocks, massive generators just add unnecessary weight.
Cardiovascular procedures push imaging machines to their absolute limits. You need specialized software modules here. Digital Subtraction Angiography (DSA) and vascular roadmapping are mandatory. These features isolate moving blood vessels from surrounding dense bone. High heat capacity is non-negotiable for these lengthy cases. You also need high-framerate pulsed fluoroscopy. This allows surgeons to track rapidly moving contrast media without triggering a sudden thermal shutdown.
Buying the right equipment involves looking far past the primary X-ray specifications. You must carefully assess how the machine fits into your current hospital ecosystem.
Always assess your spatial constraints early. The physical footprint includes both the primary base and the separate monitor cart. Ambulatory surgery centers (ASCs) and small operating rooms require highly compact footprints. Bulky equipment slows down nursing staff. It also clutters critical sterile fields.
Common Mistakes: Facilities frequently forget to measure doorway widths and elevator capacities. Buying a high-end system is useless if it cannot physically roll into your surgical suite safely.
Modern C-arm fluoroscopy relies heavily on advanced software integration. Evaluate essential software packages carefully. Check for specific measurement tools or complex vascular mapping algorithms. Furthermore, outline your PACS and DICOM 3.0 integration requirements. Seamless image storage and strict network security compliance are mandatory for modern healthcare IT environments.
Evaluating systems means balancing new technologies against practical clinical needs. A certified refurbished system often meets clinical standards perfectly. They work wonderfully for basic orthopedic or routine pain management tasks. However, new OEM purchases provide extensive warranties. They guarantee immediate access to the latest FPD technology. They also include advanced cooling algorithms that older refurbished models simply lack.
Operating radiological equipment brings heavy safety responsibilities. You must prioritize radiation management to protect both your patients and your clinical staff.
All healthcare facilities must operate under the ALARA principle. This stands for As Low As Reasonably Achievable. Modern machines feature laser targeting and virtual collimation tools. Low-dose pulsing modes also help reduce exposure heavily. These integrated technical mechanisms protect everyone in the room without sacrificing critical image quality.
Best Practices: Train your staff to maximize distance from the primary beam. Ensure they utilize all provided software dose-reduction tools before ever pressing the exposure pedal.
Your facility must be structurally ready for these machines. This means installing proper lead shielding where necessary. You must establish strict staff dosimeter protocols. Always verify state-specific regulatory compliance for operating mobile fluoroscopic equipment. Health departments audit these safety measures strictly.
Do not ignore post-purchase support networks. Assess vendor preventative maintenance schedules thoroughly. Review service-level agreements (SLAs) for emergency repairs. Check the terms for software updates and eventual tube replacements. Strong service agreements keep your OR running smoothly. If you have any questions regarding service requirements or system integration, you can always contact us for tailored guidance.
Finding the right C-arm requires careful balancing of technical specs and clinical reality. Target specialty needs should always dictate your software and power requirements. Required uptime and average case length must guide your cooling and heat capacity choices. Furthermore, your detector preference will directly influence your image quality and operational longevity.
Take proactive next steps today to secure the best equipment. Audit your operating room space to map out physical constraints. Review your historical case volumes to accurately determine heat and power needs. Finally, request specific, high-stress demonstration scenarios from vendors before signing any procurement contracts.
A: Lifespan heavily depends on your case volume and operational habits. Using pulsed fluoroscopy extends tube life compared to continuous use. Pushing the machine to its Heat Unit (HU) limits frequently accelerates wear. Under typical heavy hospital use, you can expect an X-ray tube to last between three to five years before requiring a full replacement.
A: Mini systems feature lower power output and a smaller Field of View (FOV). Manufacturers design them strictly for extremity imaging, like hands or feet. Standard systems provide much higher penetration power and a larger FOV. They can easily image dense torso anatomy, complex vascular networks, and the lumbar spine.
A: Yes, but integration requires specific hardware capabilities. The machine must have robust DICOM compatibility. For precise neurological or spinal navigation, you typically need a 3D-capable, strictly isocentric model. This ensures the digital images perfectly match the real-time spatial coordinates required by the third-party navigation software.
A: Virtual collimation is a software-driven safety feature. It allows the operator to crop and adjust the imaging area directly on the monitor screen before firing the X-ray. By narrowing the specific target zone in advance, the machine eliminates unnecessary scatter radiation. This dramatically lowers the overall dose for both the patient and the staff.
