Underestimating radiation shielding requirements during medical facility buildouts creates massive operational risks. Balancing strict state and federal radiation compliance with project parameters is a major challenge for healthcare administrators and private practice owners. Miscalculations often lead to failed health inspections, delayed clinic openings, or extensive structural retrofits that ruin the initial project scope. Facility managers and contractors must understand the exact material specifications, labor requirements, and engineering prerequisites needed to safely and legally lead line an x-ray room. This guide details exactly what drives these material and labor requirements, how to avoid hidden structural expenses, and the precise steps required to ensure your facility passes its final radiation survey on the first attempt without unnecessary delays.
Baseline Cost Ranges: Radiation shielding specific to a standard diagnostic x-ray room typically ranges from $10,000 to $30,000+, while a full diagnostic room buildout ranges from $40,000 to $120,000+.
Small Clinic Baseline: For small private practices (such as chiropractic or podiatry clinics), basic room shielding and door packages can start in the $8,000 to $12,000 range, depending on workload and existing wall structures.

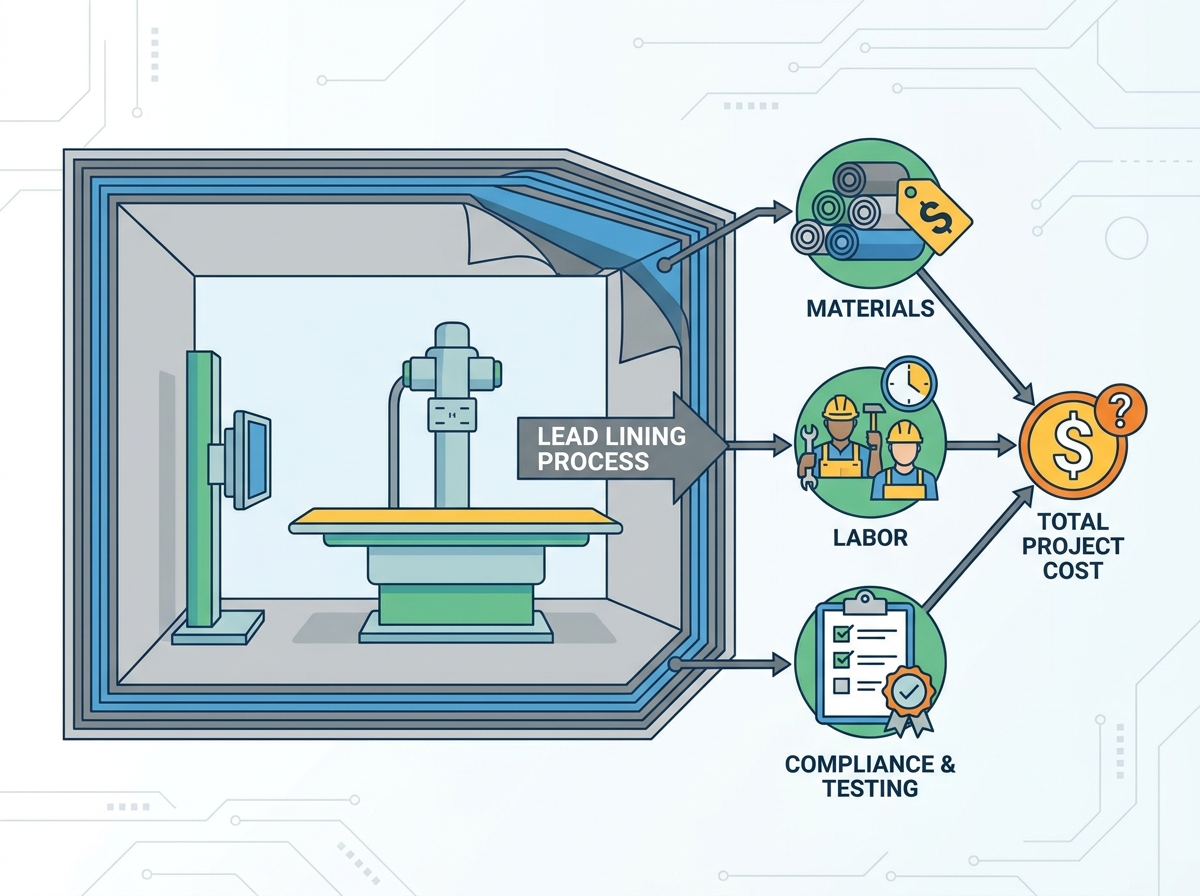

Primary Cost Drivers: Total expenses are dictated by lead thickness (mandated by a physicist), room dimensions, and specialized architectural components like lead-lined doors and leaded glass.
Hidden Expenses: Budgets must account for structural reinforcement to bear the weight of lead, specialized hardware, lead accessories (seam tape, batten strips, outlet boxes), and mandatory pre-construction physicist shielding reports.
Compliance Mandate: There is no universal standard; state-specific Department of Health regulations and individual machine workloads dictate exact specifications.
Before purchasing a single sheet of lead drywall, you must hire a qualified, state-licensed medical physicist. This shielding report is a strict legal requirement before construction begins. The physicist calculates the exact lead thickness required for every wall, floor, and ceiling based on the specific equipment you plan to install. They evaluate the machine's maximum energy output, the expected weekly workload, and the occupancy factors of all adjacent spaces.
For standard diagnostic rooms, this usually means 1/32" or 1/16" lead equivalency. State-specific regulatory variations dictate who is authorized to draft and approve these shielding designs. Skipping this step guarantees compliance failure and forces tear-downs later. The physicist will provide a detailed floor plan marking the exact lead thickness required for each specific wall barrier.
Engage a licensed medical physicist during the initial architectural drafting phase.
Provide the physicist with the exact make and model of the imaging equipment.
Supply detailed floor plans showing adjacent room usage (e.g., waiting room vs. storage closet).
Submit the completed shielding report to the state department of health for pre-construction approval.
Material selection fluctuates based on the required lead thickness. Standard thicknesses include 1/32", 1/16", and 1/8". Lead-lined drywall is typically used for standard walls, while lead-lined plywood is required for areas needing structural backing or where heavy equipment will be mounted. Plywood provides necessary structural integrity for mounting heavy monitors, control panels, or wall-mounted imaging units.
Your project must also factor in essential installation accessories. You need lead batten strips to cover drywall seams, lead discs for screw penetrations, and lead corner shields. These small components prevent radiation leakage and are non-negotiable for passing the final inspection.
Material Type | Primary Application | Structural Support Level | Installation Difficulty |
|---|---|---|---|
Lead-Lined Drywall (1/32") | Standard interior partition walls | Low (Requires standard 16" OC framing) | Moderate (Heavy, requires two installers) |
Lead-Lined Drywall (1/16") | High-workload diagnostic walls | Moderate (May require 12" OC framing) | High (Very heavy, requires mechanical lifts) |
Lead-Lined Plywood | Equipment mounting walls, control booths | High (Excellent fastener retention) | High (Requires specialized cutting tools) |
Lead-lined doors and frames represent a significant portion of the material requirements. This scales with the size of the door, the required lead thickness, and the necessity of specialized, weight-rated hardware. Standard hinges will fail under the weight of a lead door; you must use heavy-duty pivots, continuous geared hinges, and heavy-duty institutional locks. The door frame itself must be lead-lined and securely anchored to reinforced wall studs.
Leaded glass and control booth window frames are also required for operator visibility. The specifications increase based on glass thickness, overall dimensions, and the telescoping steel frames needed to secure the heavy glass safely. The glass must meet the exact lead equivalency of the wall it is installed in, and the frame must overlap the wall's lead lining to prevent scatter radiation from escaping through the rough opening.
Hiring specialized medical contractors carries a premium over standard drywall installers. This is justified by the extreme weight of the materials and the precision required during installation. A single sheet of lead-lined drywall can exceed 200 lbs, requiring specialized handling equipment and additional manpower to prevent injury and material damage.
Installers must ensure zero radiation leakage at seams, outlets, and corners. Standard drywallers often lack the training to properly install lead batten strips or lead-backed electrical boxes. Every single penetration through the lead barrier, including electrical conduits, HVAC ducts, and plumbing pipes, must be properly shielded with lead baffles or wraps.
Square footage directly impacts material volume. Larger rooms require more lead-lined drywall, driving up both material and freight shipping requirements. Lead is exceptionally heavy, and freight logistics can become complicated if not calculated early in the procurement phase.
Strategic architectural positioning can optimize material usage. Placing the machine against an exterior concrete wall, a below-grade basement wall, or adjacent to a low-occupancy area (like a storage closet) often reduces the required lead thickness on those specific barriers. The physicist will factor these structural advantages into their report, potentially allowing for standard drywall on certain walls if the concrete provides sufficient natural shielding.
The specific imaging modality changes the energy output and shielding requirements. Standard diagnostic radiography, chiropractic units, dental cone beam systems, CT scanners, and fluoroscopy all have different energy profiles. Higher energy output requires thicker, denser lead shielding to attenuate the radiation effectively.
A low-volume private chiropractic clinic requires significantly less shielding than a high-volume, 24/7 hospital trauma room. Physicists use the concept of "workload" (measured in mA-min/week) and occupancy factors of adjacent rooms to calculate the required lead equivalencies. A wall shared with a full-time receptionist desk requires far more shielding than a wall shared with an exterior parking lot.
Building a shielded room from scratch is generally more straightforward and predictable than retrofitting an existing space. Retrofitting introduces complex variables, including demolition and structural upgrades. Existing wood or metal floor joists often require reinforcement to support the massive added weight of lead walls and solid-core lead doors.
Wall studs in retrofits usually need upgrading to a maximum of 16-inch on center spacing, and sometimes 12-inch on center, to prevent the lead drywall from sagging or bowing between studs. These structural modifications add significant labor and material requirements to the project. You must also account for the removal and rerouting of existing electrical and plumbing lines to minimize penetrations through the new lead barriers.
While traditional sheet lead bonded to drywall is the industry standard, lead-free shielding options exist. Barium sulfate drywall or plaster and specialized radiation-shielding glass offer alternatives. These options are sometimes preferred in specific jurisdictions or for environmental compliance reasons.
However, an operational analysis usually favors traditional lead. While barium sulfate products might seem easier to install, they often require multiple layers to achieve the same shielding equivalency as a thin sheet of lead. This increases labor time, complicates door frame installations due to increased wall thickness, and reduces usable room space.
Consider the strategic advantage of over-shielding a room slightly during initial construction. Installing 1/16" lead instead of the minimum required 1/32" adds a marginal upfront material requirement but significantly future-proofs the room for subsequent equipment upgrades.
If you upgrade to a more powerful imaging machine or a CT scanner in the future, the room is already compliant. Specifying thicker shielding upfront prevents the massive operational disruption of tearing down walls to upgrade shielding later. It also provides a wider margin of error for passing the initial radiation survey.
Radiation leaks detected at drywall seams, electrical outlets, light switches, HVAC penetrations, or door frames result in failed inspections and delayed launches. This is a common and highly disruptive risk during medical buildouts.
Mitigate this by enforcing the use of lead shielding accessories. Ensure contractors use lead outlet boxes, lead-backed light switch covers, lead sheet lining for HVAC duct penetrations (baffle boxes), and maintain a proper two-inch seam overlap on all drywall joints. The physicist will use a Geiger counter to scan every inch of the room; even a missing lead screw disc will trigger a failure.
Inadequate structural framing leads to sagging doors, compromised frames, or cracked drywall. Lead materials place immense stress on standard building components, especially around door openings and equipment mounting points.
Mitigate this risk by specifying appropriate stud spacing (12-inch or 16-inch on center maximum) in the initial architectural plans. Require heavy-duty framing, such as 16-gauge steel studs, and weight-rated architectural hardware for all doors and windows. Ensure the floor slab can handle the point load of the imaging equipment and the heavy lead-lined walls.
Lead lining an imaging room is a highly regulated, precision-dependent process. Cutting corners on materials or labor guarantees post-construction failures and regulatory headaches. Proper planning, structural reinforcement, and strict adherence to physicist specifications are mandatory for a successful buildout.
Commission a shielding design report from a licensed medical physicist before drafting architectural plans.
Verify all state-specific health codes and submit the shielding design report for approval before procuring materials.
Hire specialized medical contractors with verifiable experience in radiation shielding installation.
Specify heavy-duty structural framing and weight-rated hardware to support the extreme weight of lead materials.
Schedule a preliminary inspection of the lead installation before the drywall is finished and painted to catch missing seam coverage.
A: Standard diagnostic rooms typically require 1/32" or 1/16" lead equivalency. However, the exact thickness must be determined by a licensed medical physicist based on the machine's workload, energy output, and the specific layout of the room.
A: You must use lead-lined drywall or an approved equivalent shielding material like barium sulfate board. Standard drywall provides zero radiation protection, will fail state inspections, and poses a severe health hazard to staff and patients.
A: Often, thick concrete exterior or below-grade walls provide sufficient natural shielding. A medical physicist will calculate if additional lead is necessary based on the concrete's thickness, density, and the occupancy of the exterior space.
A: Shielding requirements for floors and ceilings depend on what is located above and below the room. A physicist will determine this based on the occupancy factors of those adjacent spaces and the structural composition of the floor slabs.
A: A state-licensed medical physicist determines the exact shielding requirements. These specifications must then be submitted to and approved by your state's department of health or radiation safety board before construction begins.
