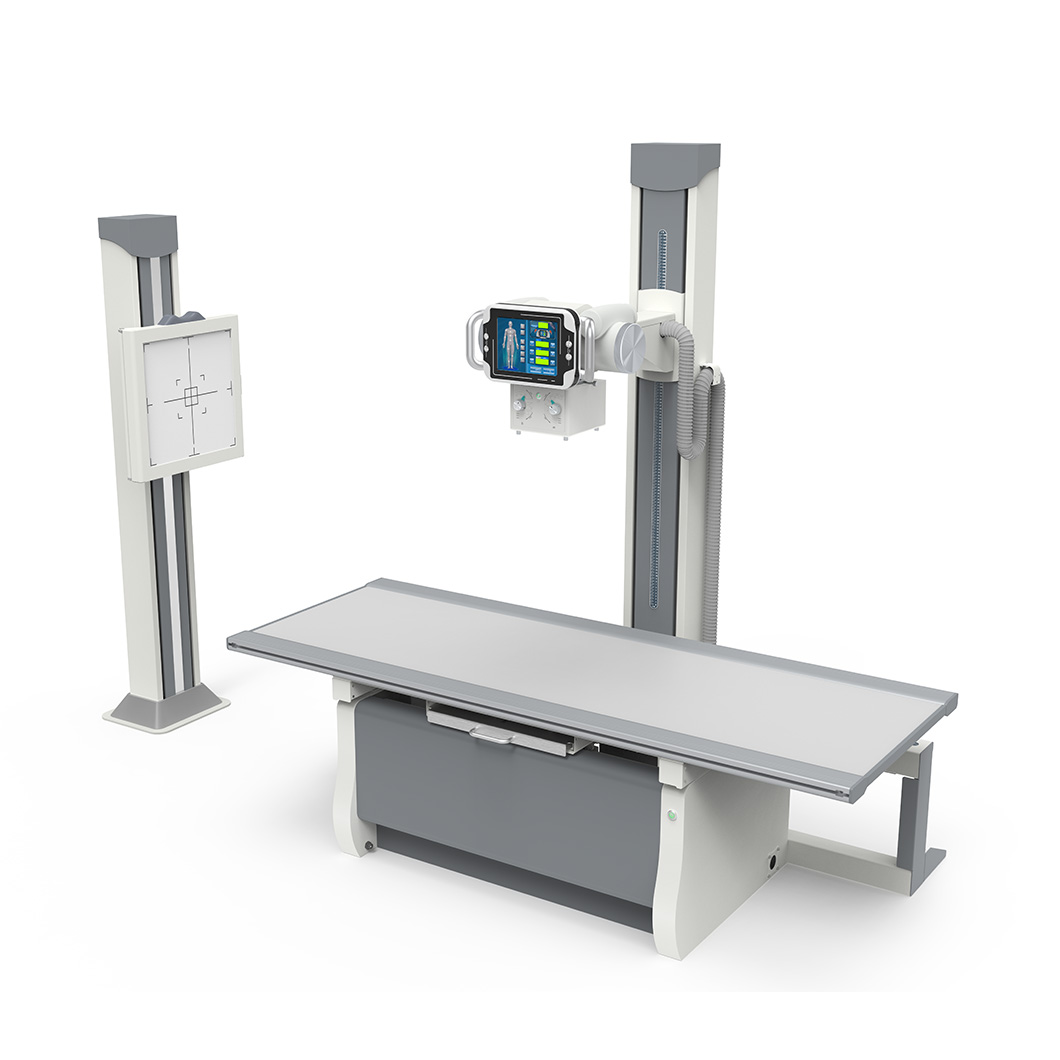

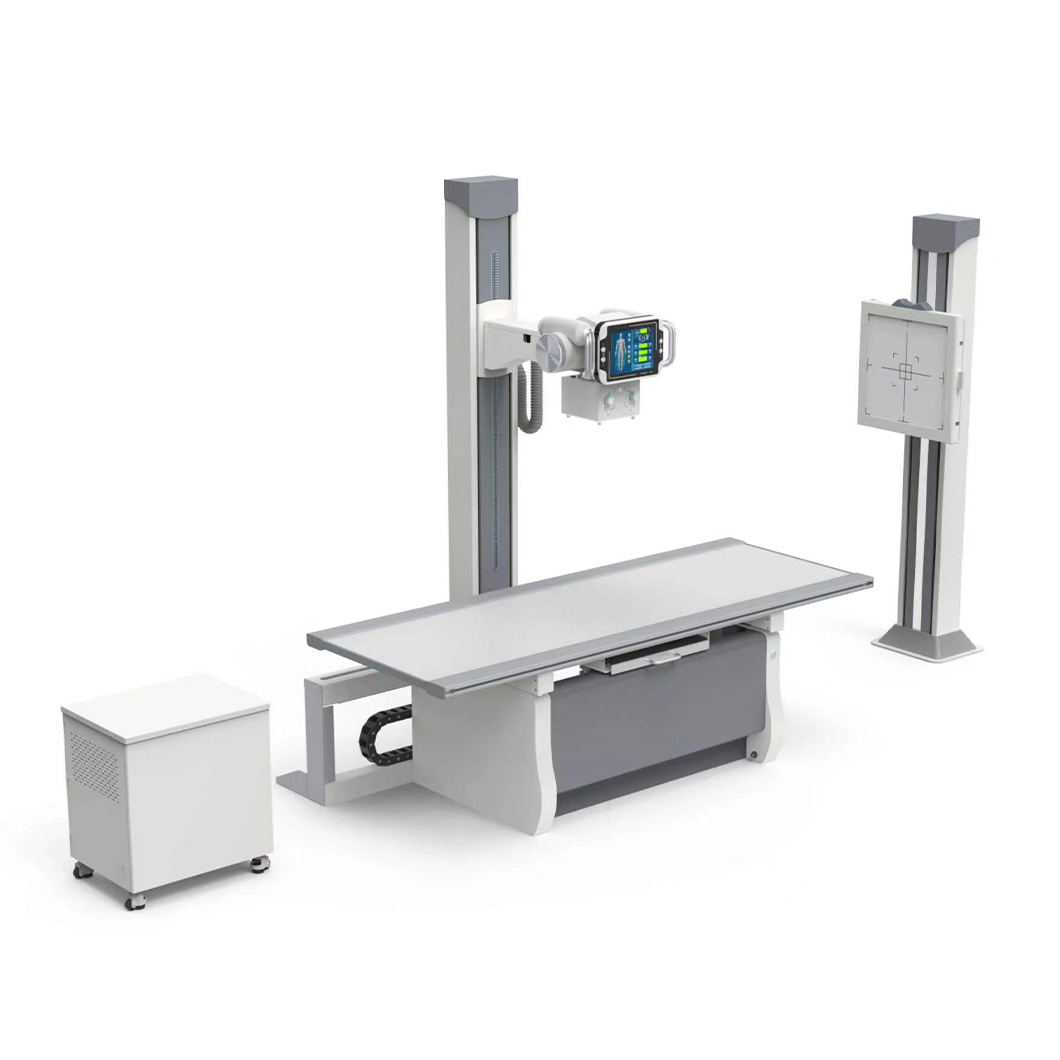

HX50R-X High frequency 10.7 Inch LCD Display Stationary X-ray System
You are here: Home » Products » X-ray Machine » Stationary X-ray System » HX50R-X High frequency 10.7 Inch LCD Display Stationary X-ray System

Category List

HX50R-X High frequency 10.7 Inch LCD Display Stationary X-ray System

The HX50R-X is a versatile and indispensable medical imaging device with a wide range of applications. In orthopedics, it plays a pivotal role in diagnosing fractures, joint diseases, and spinal deformities. In the emergency room, it's a lifesaver, rapidly providing crucial images for trauma patients to help doctors make prompt decisions. During surgical procedures in the operating room, it offers real - time imaging support. For medical diagnosis, it excels in examining the human head for potential injuries or tumors, the limbs to detect fractures or soft - tissue problems, the chest for lung conditions, and the spine and lumbar spine to identify issues like herniated discs or spinal fractures, ensuring comprehensive and accurate healthcare.
Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • HX50R-X

  • Healicom

Product Description

HX50R-X High Frequency X-ray Radiography Machine1

Features

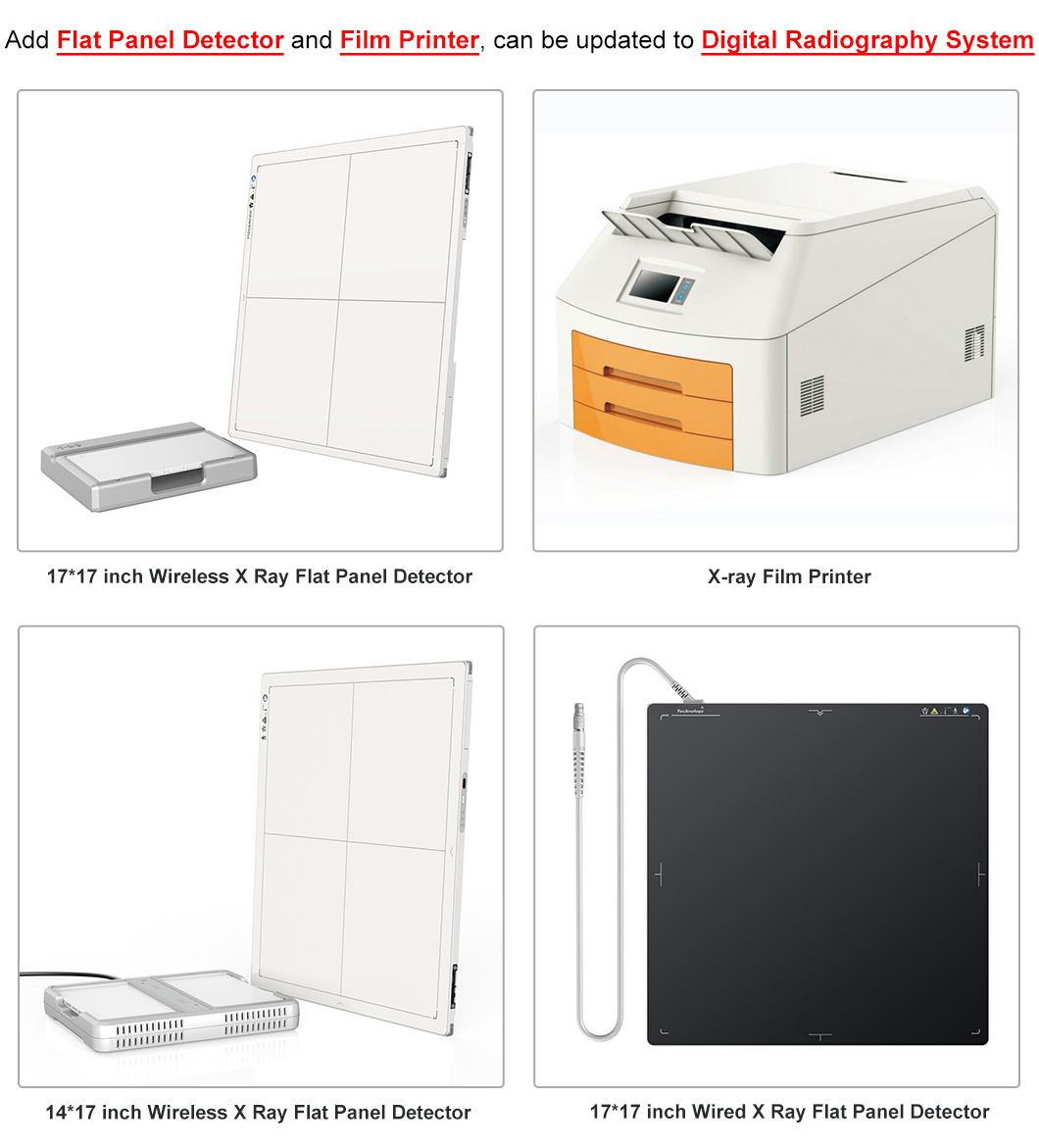

1. Rich DR upgrade reserve interface

2. Fault self-diagnosis and protection

3. Automatic calibration of tube current

4. X-ray tube has the function of filament dormancy

5. AEC function, different ionization chamber as optional

6. Analog - digital double - loop control, simple operation, high intelligence

7. High kV, high current, high power,strong penetration,able to handle obese patients


3

Technical Specifications
X-ray generator (include console)
Output Power
50KW
Power Voltage
380V±38V
kV range
40~150kV
mA range
10~630mA
mAs range
0.1 ~630mAs
Exposure time
0.002~6.3S
X-ray tube
Anode Heat Storage Capacity
240kHU
Small focus
0.6
Large focus
1.2
Anode speed
3000r/min
Collimator
Inherent filtration
1.0mm Al /75kV
Light Source
LED
Radiographic Table
Top Table Size
2100X800X650mm
Bucky Size
18X18inch
Table longitudinal movement
≥900mm
Cassette Movement Distance
≥500mm
Vertical Chest stand
Vertical moving range
≥1200mm
Bucky Size
18X18inch
Double Grid
Size
18X18inch
Ratio
1:1
F.D.
100cm
Density
40 L/cm

2未标题-1
