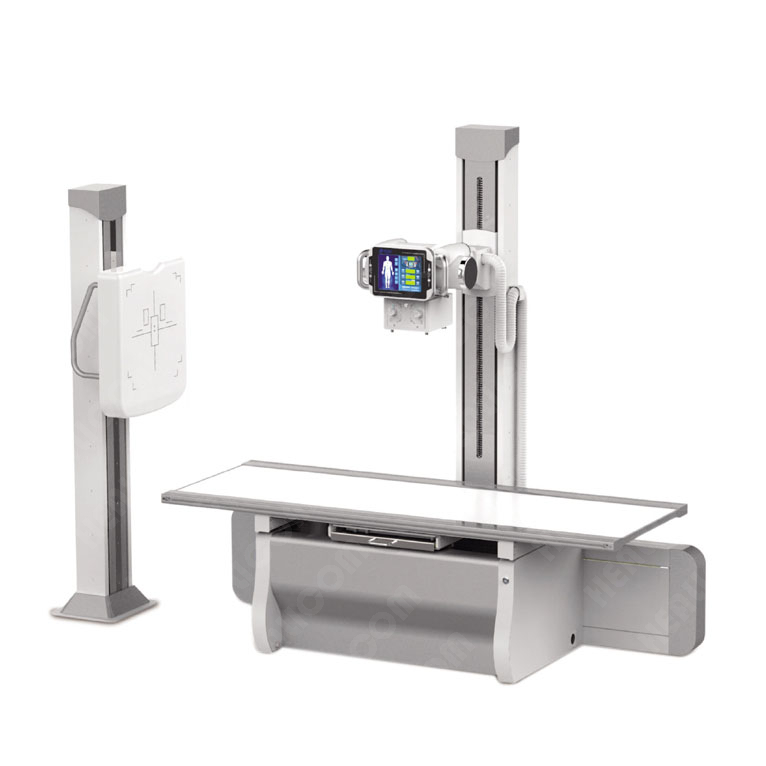

HDR65 65KW High Frequency Stationary Digital X Ray Machine

Application

Applicable to orthopedics, emergency room, operating room, etc.

As human head, limbs, chest, spine, lumbar spine for medical diagnosis

Technical Specifications
X-ray Generator (include console)	Output Power	65KW
	Power Voltage	380V±38V
	kV range	40~150kV
	mA range	10~800mA
	mAs range	0.1 ~630mAs
	Loading time	2~10000mS
X-ray Tube	Small focus	0.6
	Large focus	1.2
	Anode speed	9700r/min
Collimator	Inherent filtration	1.0mm Al /75kV
	Light Source	LED
Radiographic Table	Top Table Size	2100X800X650mm
	Bucky Size	18X18inch
	Table longitudinal movement	≥900mm
	Cassette Movement Distance	≥500mm
Vertical Chest Stand	Vertical moving range	≥1200mm
	Bucky Size	18X18inch
Wire Flat Panel Detector	Size	17X17inch
	Scintillator	CSI
	Pixels	3328*3328
	Resolution	3.9
	AD Conversion	16
Computer& LCD	CPU	≥2.8GHz
	Memory	≥8GB
	Disk Capacity	≥1T
	Medical LCD	23inch

X-ray generator

1. Fault self-diagnosis and protection

2. Automatic calibration of tube current

3. Infrared photoelectric switch for four-way table

4. X-ray tube has the function of filament dormancy

5. AEC function, different ionization chamber as optional

6. Analog - digital double - loop control, simple operation, high intelligence

7. High kV, high current, high power,strong penetration,able to handle obese patients

Profession Acquisition Software

1. Support Multi-languages

2. Support professional tools

3. Support different brand of X-ray generators

4. Support RIS/PACS/DICOM Printer Connection

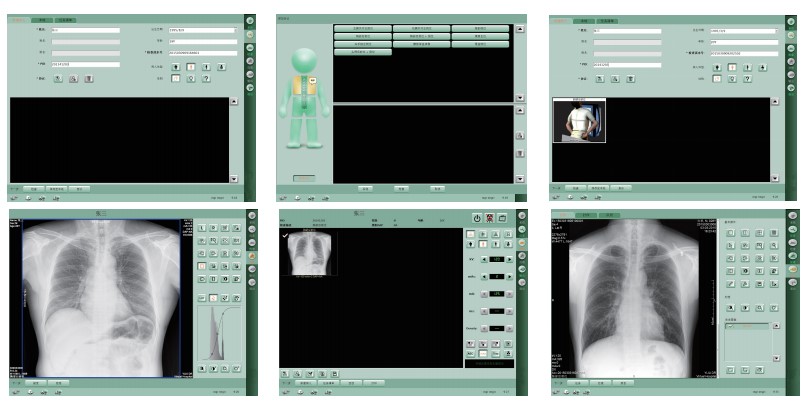

Professional DR workstation

1. Image capture

2. Print and storage

3. Image post-processing

4. Patient management
