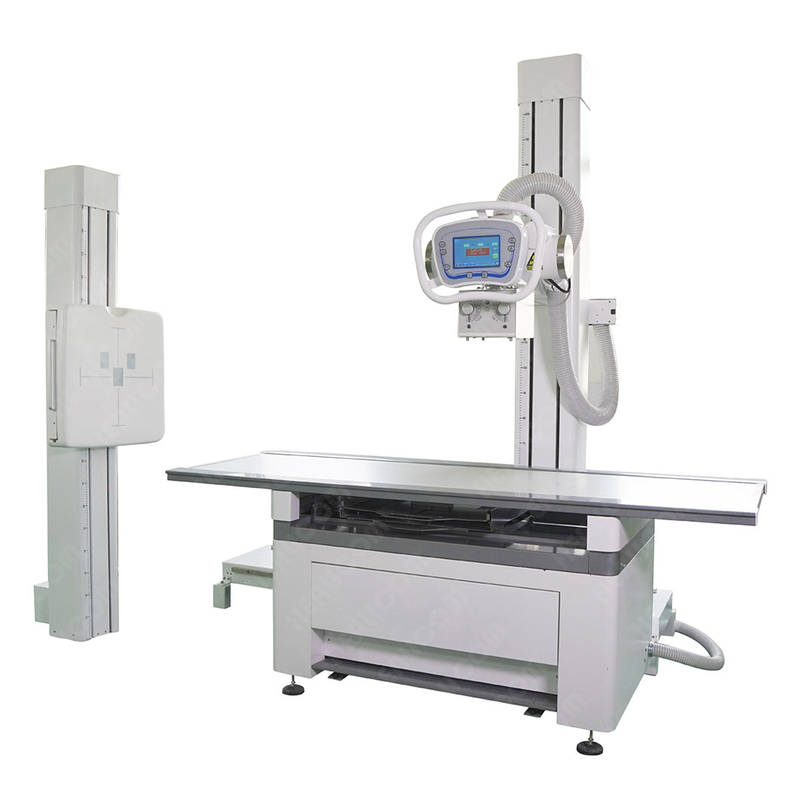

HX50R-E High Frequency 50KW Stationary Digital Radiography X Ray Machine

Focus design

0.6mm／1.2mm

Focus power

30/50kW

Anode heat capacity

190kHU

Beam limiter

Dimensions

250mm×224mm×250mm

Radiation field

maximum when SID=56cm: 43cm×43cm
minimum: 0cm×0cm

Manipulation mode

manual

Frame

Column height

2230mm

Column left and right movement stroke

1500mm

Move up and down

1400mm

Ball tube rotation range

﹣90°～0°～+90°

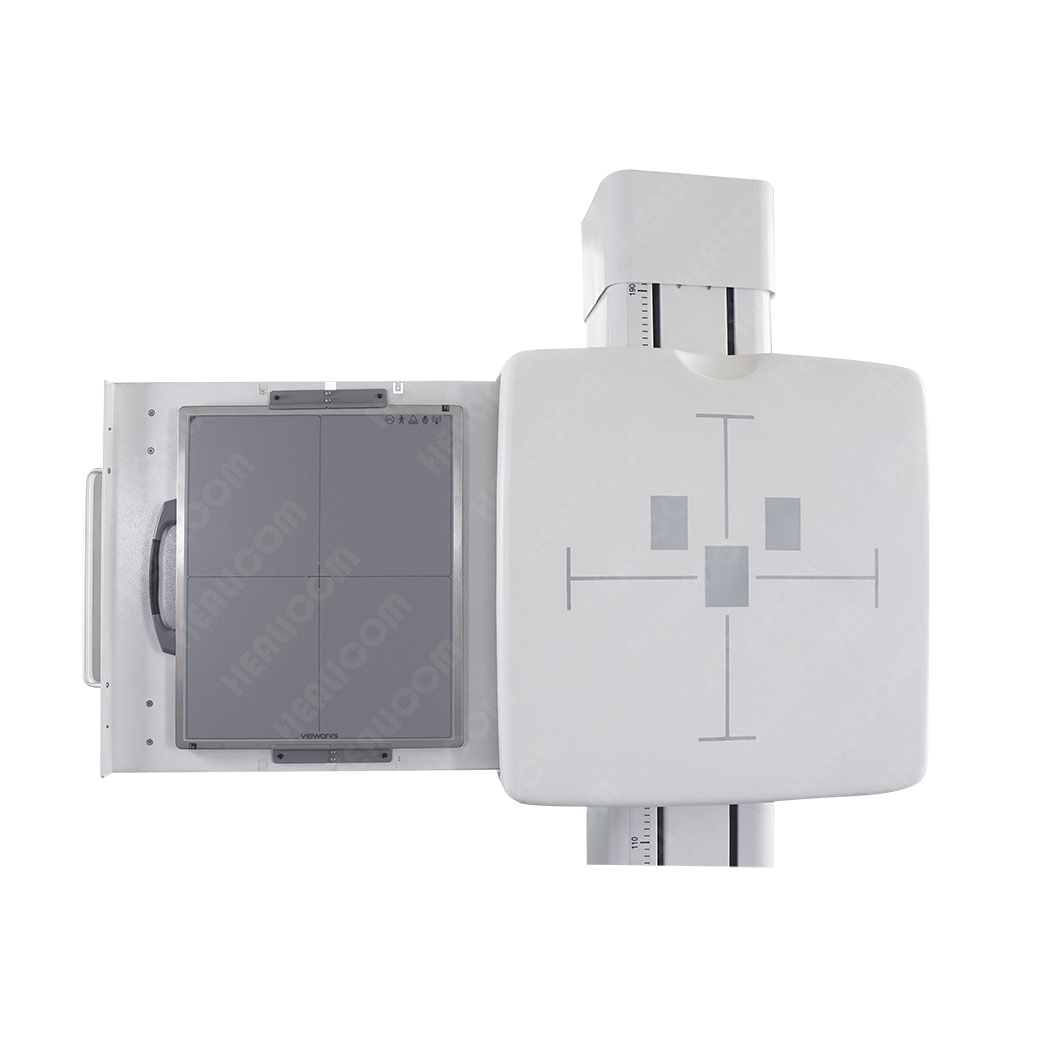

Chest frame height

2100mm

Lifting stroke

1400mm

High frequency and high voltage generating device

Power

50kW

High voltage inverter frequency

50kHz

Photography

kV: 40~150kV mA range: 10~500mA

Exposure time

1ms~10s mAs: 0.1mAs~630mAs

Power condition

three-phase 380VAC

Mobile photography bed

Bed size: length 2000mm, width 730mm, height 680mm The bed board moves forward and backward 200mm, about 720mm
