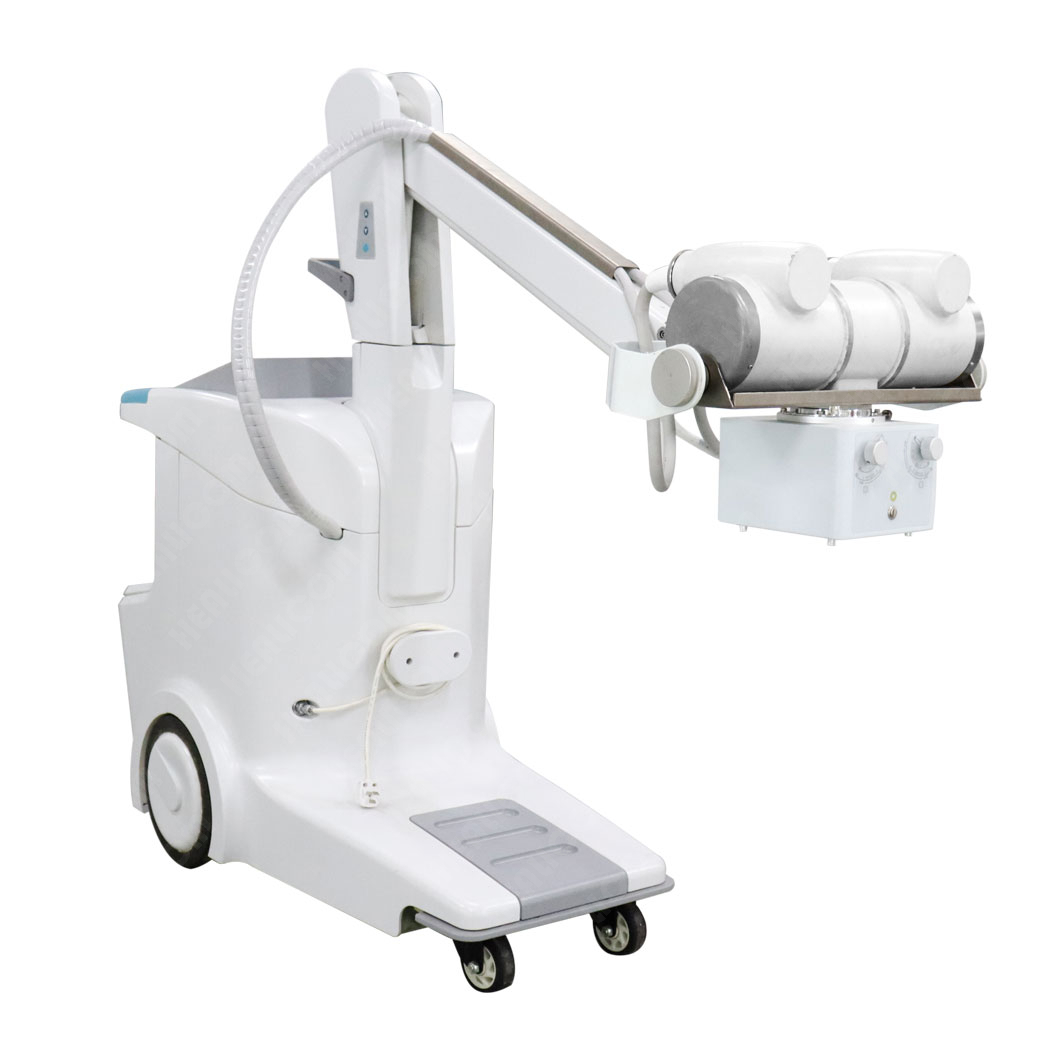

HFX-6000D
Healicom
Product Description
1. The whole machine electric power, the transverse arm as electric lifting.
2. Easy to operate, flexible rotating arm.
3. Wide imaging area, the X-ray tube can be around the column for a wide range of rotation.
4. Arm horizontal rotation function, the tube ball can be rotated ±90° in the same plane.
| Technical Specifications | |
| Component | Description |
| High Voltage X-ray Generator | Power: 30kW Voltage range: 40～125kV Input voltage: AC220V Frequency: 50Hz Inverter frequency: ≥100KHz Support remote exposure |
| X-ray tube (Canon) | Nominal tube voltage: 125KV Focus: 1.0/2.0 |
| Collimator | Control mode: manual Light source limit time: 30s |
| Flat panel detector (Korea Rayence) | Scintillator: CSI Pixel pitch: 127μm Image area: 423mm×423mm Pixel matrix: 3328×3328px（100 million） Limiting resolution: ≥3.9lp/mm Image time: ≤7s Image Display: ≤5s |
| Digital image system | Image acquisition: patient information and examination information should be input, and Dicom 3.0 image acquisition Preview, accept or reject images, and automatically or manually send images, Image Mosaic function. Image display: The collected image should be automatically loaded into the processing interface after exposure. Image processing: with image pre-processing and post-processing functions. Real time image storage, image zooming in and out, image brightness adjustment, image contrast adjustment, image rotation, image flipping, image clipping, image |
