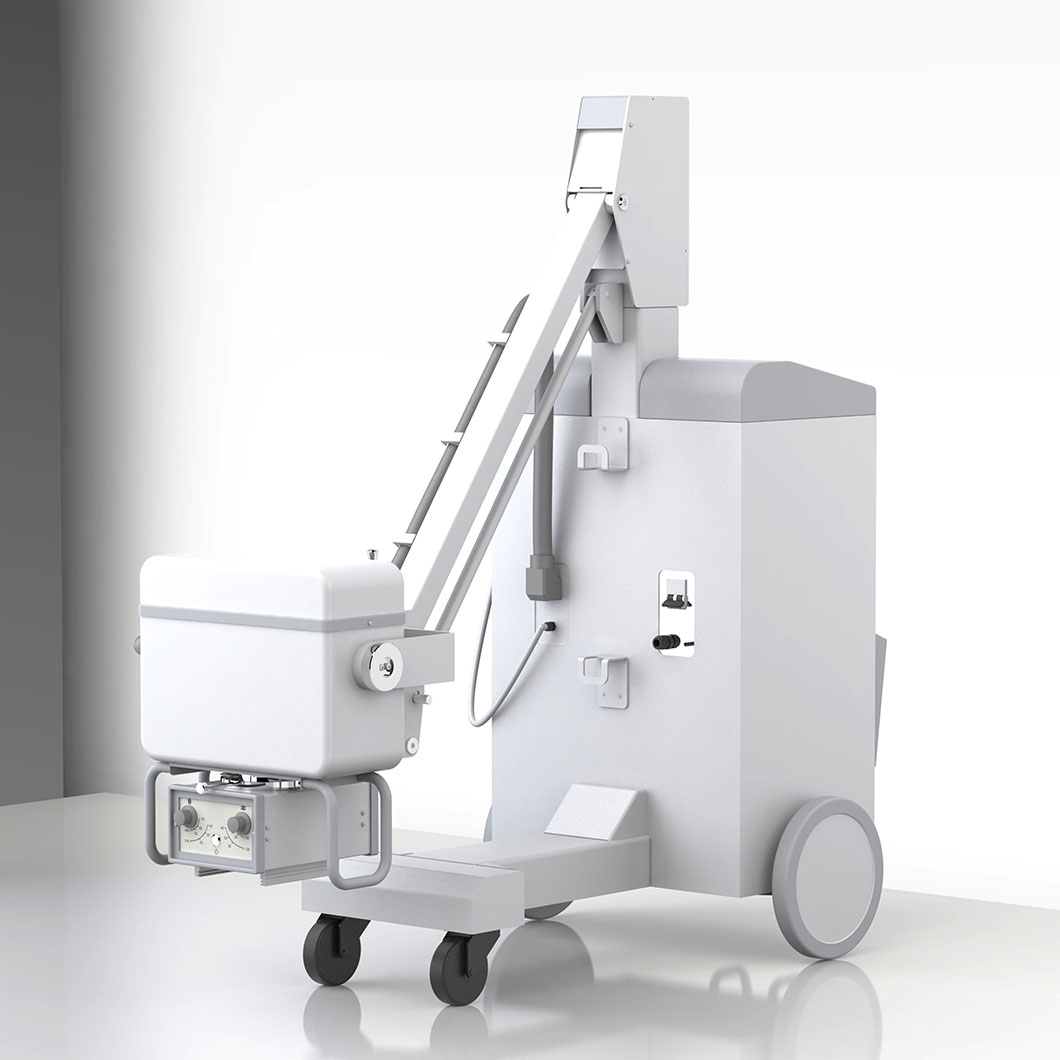

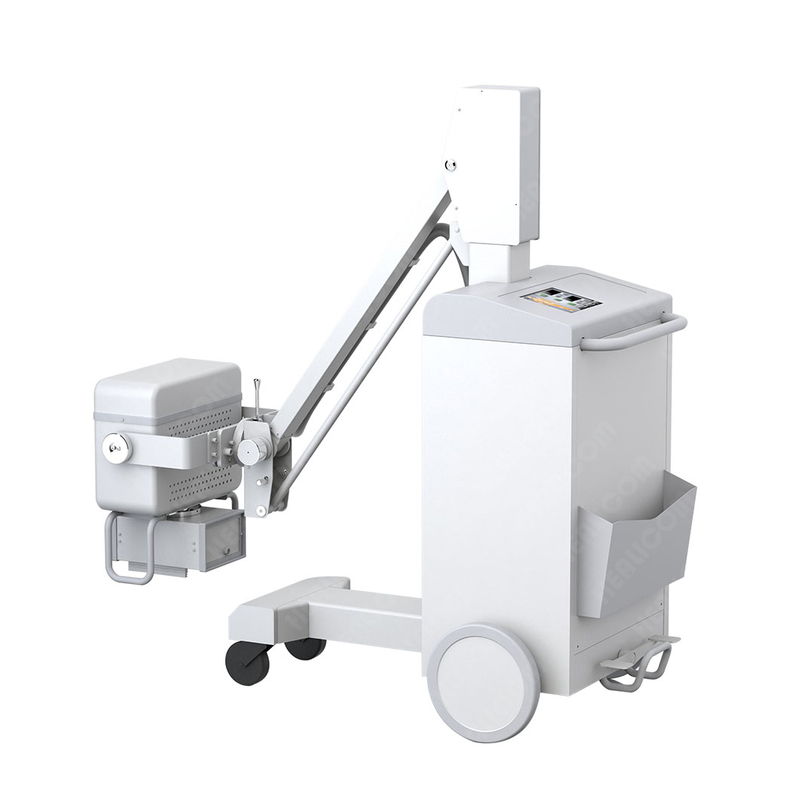

HX-05G High Frequency Touch screen 5 kW X ray Radiograph system

HX-05G High Frequency Touch screen 5 kW X ray Radiograph system

Modular high-voltage generator

High-frequency and high-voltage generator, KV, mAs closed loop control, steady output; Real-time control by microprocessor,guarantee the accuracy and repeatability of dosage.

Wheel

Select the imported large-size wheel, being quiet during moving, portable. Even in narrow space, it also can through steadily and rapidly.

Inverter

Overvoltage and undervoltage protection for high-voltage, overcurrent protection for tube current, output overloading protection,fault prompt.

X-ray Picture

Adoption of high-frequency and high-voltage technology, fusion with computer control technology, precise parameter and excellent ray quality, provide the clear image for you.

Touch screen

Large-size touch colorful liquid crystal display is adopted to be served as human-computer interface, with double CPU control, intuitive operation interface, colorful screen display, easy leaning and easy use. The operation interface style may be set based on user's favorite.

Technical specifications
Power Supply	220V±10%
Input power	7.5kW
Main frequency	50Hz±1Hz
Source resistance	≤0.5Ω
Power modules	30kHz
Filament frequency	20kHz
Focus	1.5mm
Max. generator output	5.3kW
Max. X-ray tube voltage	120KV
kV range	40～120kV
mAs range	1～200mAs
Max. mA	100mA
X ray tube vertical motion range	≥500～1950mm
X ray source components around the cross arm vertical rotation	≥±90°
Exposure size	≥430mm×430mm(SID=100cm)
