HUC-320
Healicom
Product Description
Main Features
1. 2D, CFM, M, PW, CW, CMM, DPDI, AMM, 3D/4D, ZPage, ZLive, TDI, Elastic Imaging, Panoramic Imaging
2. THI, SRI, SCI,TSI, FCI, EFov, HR flow, B-steer
3. Standard Auto IMT measurement
4. Support local and global amplification
5. Support PW auto trace and auto calculation
6. Preposed USB ports, supporting multi-data transmission
7. Dual Live and Multi-synchronization technologies
8. Biopsy function
| Technical Specifications | |
| Computer specs | 12.1″High definition LED monitor,0-90 degree adjustable angle |
| Imaging Modes | B, B Steer, 2B/4B, M, B/M, CDFI, PDI, CM, PW, AMM, CW, TDI (TVI, TVD, TVM, TEI), Panoramic, Color Panoramic, Trapezoidal, 3D/4D. |
| Features | 2 Activated transducer connectors Raw data storage for offline report and parameter adjustment |
| Clinical Applications | Abdomen, Cardiac, Obstetrics, Gynecology, Urology, Pediatric, Small Parts, Vascular, Superficial, Orthopedics, MSK, Nerve, Custom. |
| Input/Output | Support local and global amplification |
| Optimization key | Duleplex and Triplex mode |
| Data Interface | lVideo,VGA, DICOM3.0, USB, Printer port |
Technical Advantages
uSeed Platform
HUC-320 facilitates accurate diagnosis based on uSeed metadata beamforming imaging technology platform. This brand. new platform is developed
byCPU + GPU heterogeneous computing technology. The images in uSeed platform are saved as metadata for postprocessing.
Pulse Inverse Harmonic lmaging PIHI
PIHI reduces the distortion generated by the fundamental wave, and greatly improve the signal-to- noise ratio.
Speckle Reduction Imaging
SRI technology significantly reduces the unwanted speckle, provides enhanced tissue boundary and tissue echo for confident clinical diagnosis.
Spatial Compound Imaging
SCI provides better contrast resolution, reduces the speckle noise and smoothes the imaging of homogeneous tissue.

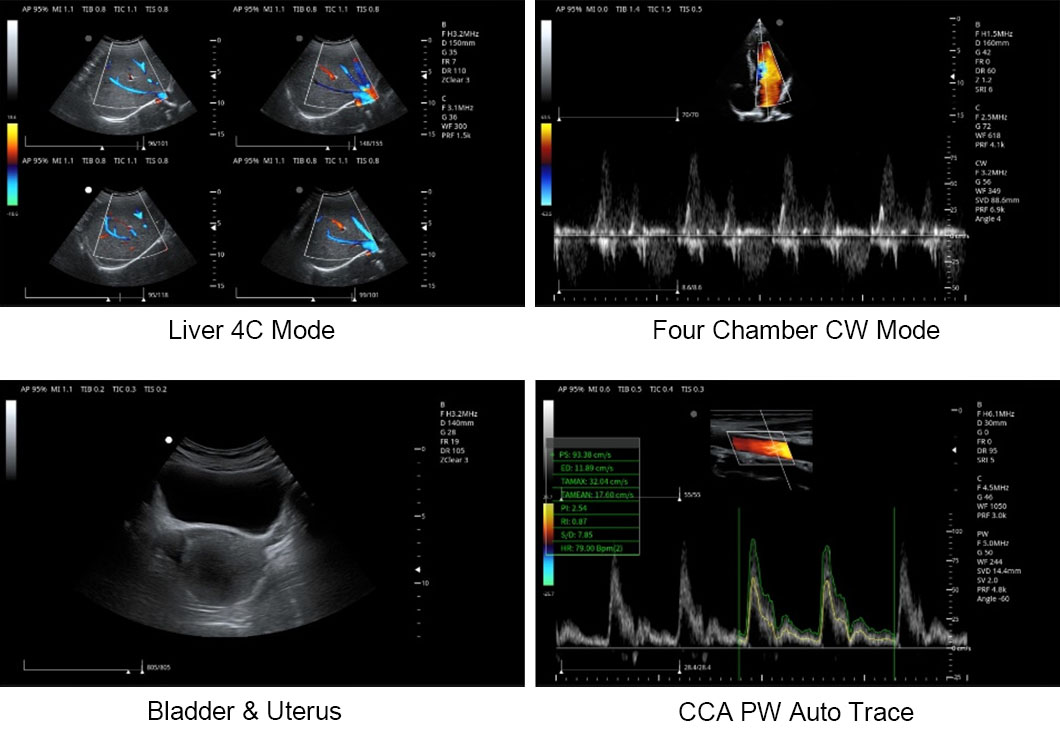

Images
