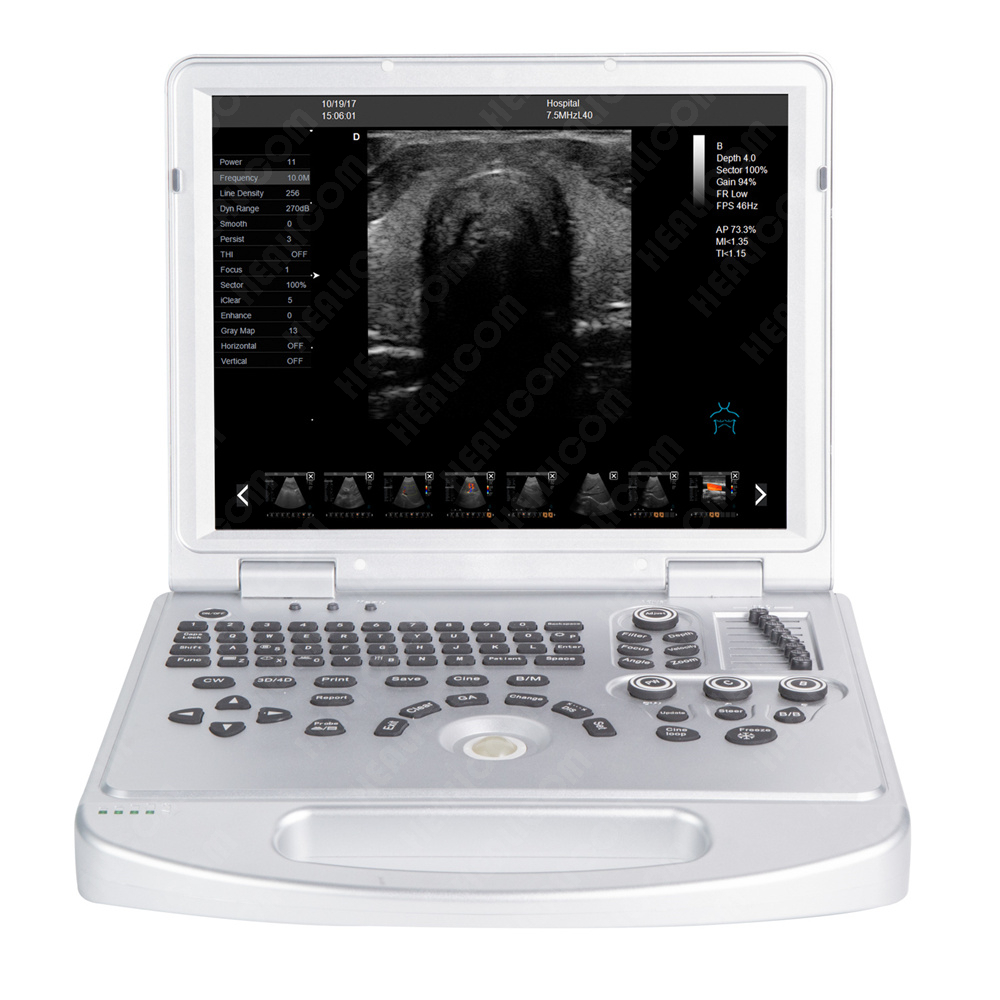

HUC-250
Healicom
Product Description
Main Features:
· 15 inch LCD display
· 4D imaging
· Depth range: 126-320mm
· Built-in 60G solid state drive
· External USB storage
· Thin and light notebook design
· CN/EN/FR/SP/PT/language support
· Large capacity rechargeable battery (4-8H)
Main Function:
· Rich cardiac measurement package
· New intelligent speckle noise suppression imaging technology
· Support LAN/ HDMI /USB port, External video printer, jet printer and so on

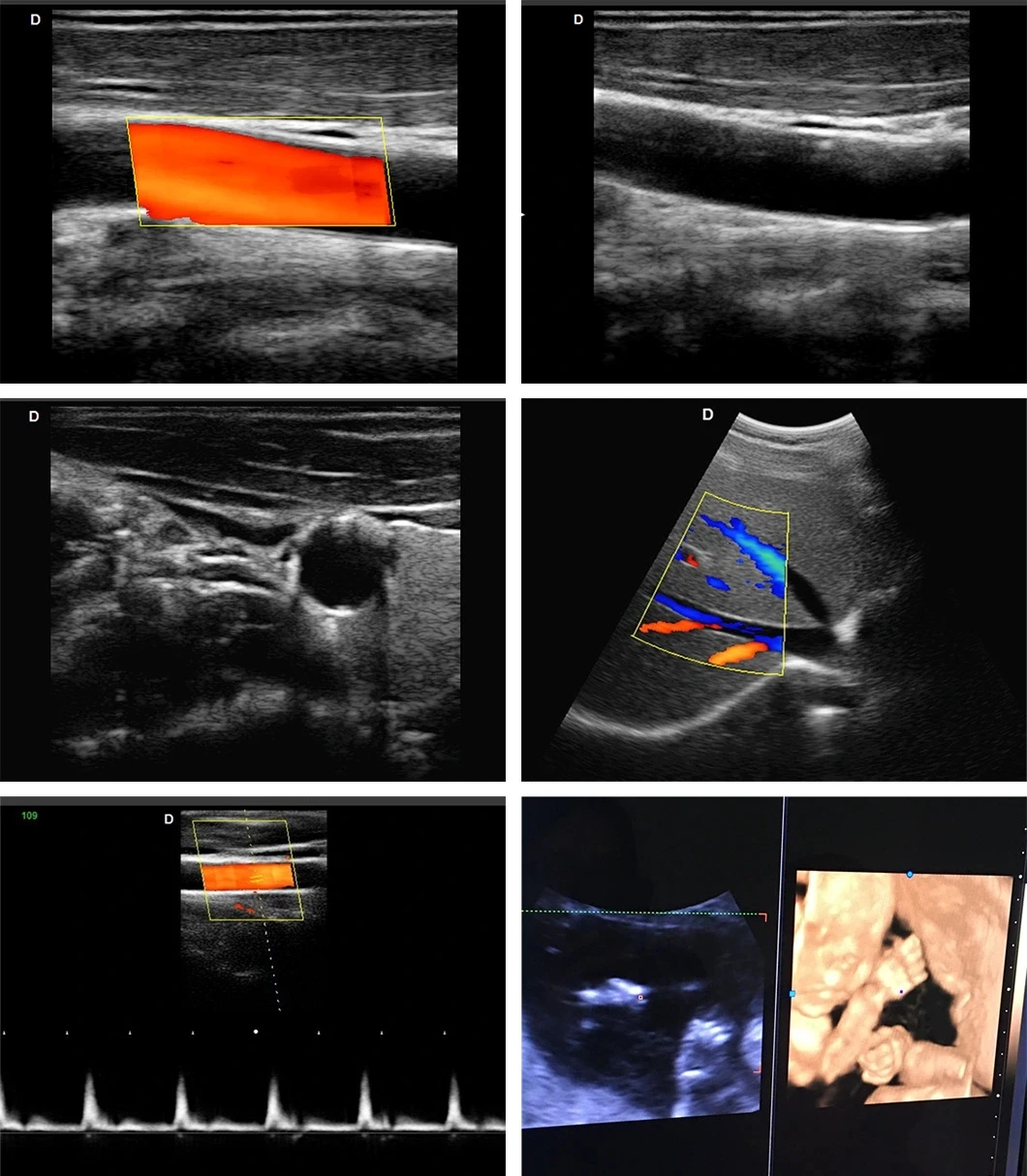

· Display mode: B mode,C mode, PW mode, CW mode, real time 3D mode, B/C, B/C/PW, B/PW.
· Probe Optional: Phased array probe ,Convex probe, micro-convex probe, 4D volume probe ,trans-vaginal probe, linear probe, trans-rectal probe.
Technical Specifications
| Displaying mode | B,BB,4B,BM,M,PW,B/C,B/C/D,B/D,duplex, triplex, part zoom, CFM, CPA |
| Signal processing: | Full-digital beam forming, dynamic filter, space-time filter, dynamic real time receiving focusing, RDA, DRA, spectral processing, CFM processing, gray scale 256, receiving signals dynamic range≥150, All digital, real-time dynamic focusing, dynamic aperture in all fields |
| Gain control | TGC, PW Gain, CFM gain |
| General measurement | B mode-distance, circumference, area, volume, ration, angle, % stenosis, histogram M mode- distance, time, velocity, heart rate |
| OB packages: | EDD table: GS ,BPD, CRL,FL,HL,TAD,LV,OFD,NT,AC,HC,AFI GA and EDD calculated by LMP, BBT calculate GA and EDC, Fetal physiological score, Fetal growth curve OB measuring and calculation report |
| Gynecological packages | Uterine measurement (Cervical length, endometrial thickness, uterine volume) left/right ovary measurement (Length, high, width) left/right follicular measurement Gynecological measuring and calculation report |
| Urology packages: | left/right kidney measurement vesicant urinary /After voiding bladder measuring Urology measuring and calculation report residual urine’s measurement |
| Small parts Measurement | Thyroid,Mammary gland,Mass,Small parts measuring and calculating report |
| Cardiac Measurement Package | Heart rate, Valve speed, LV, aortic, mitral, ventricular |
| Doppler Measurement | Time,Heart Rate Velocity General Measurement Doppler automatic measurement Doppler tracing (auto/manual) |
| Body mark | Abdominal,Anthology,Cardiology,Gynecology,Musculoskeletal,Obstetrics,Pediatrics Small parts,Urology |
| Comment and display | Real time clock,Comment in image area,Scanning density,TI value,MI value |
| Cine loop | Automatic cine loop frames, Replay of stored screen frames, Selection of replay speed, Frame replay, Replay stored files, Cancel, replay, pause control |
| Image storage format | BMP,JPEG,PNG,DICOM, |
| Image storage size | ≥120G |
| Installed work station | OB report,,GYN report Urology report Cardiac measurement - LV report Cardiac measurement - mitral report Cardiac measurement - Ventricular report Small parts measuring report Peripheral vascular measuring report Diagnostic template Printing report |
| Input/output ports: | VGA, USB port DICOM port(network port) RS232 Laser printer (option), Video printer (option) |
| Standard Configuration | Main Unit, 15 inch high definition color LCD, 3.5MHz multi-frequency, User’s Manual, 60G(increasable) Image storage size |
| Option | Probes, trolley, video printer, laser printer, puncture guide standard |
