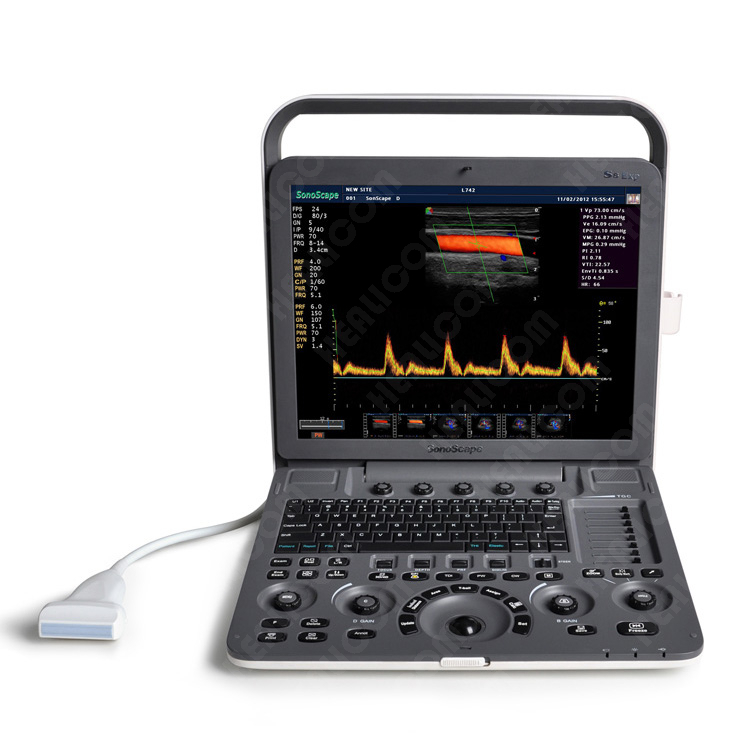

S8 Exp
Healicom
Product Description
Carrying forward the classical design of SonoScape's portable ultrasound products, S8Exp successfully combines the best ergonomics, attractive design and ease of use. This charismatic identity is also enhanced by a sophisticated color palette-with sedate grey as its interior paint color and pearl white as exterior cover, S8Exp reveals a style of aristocrat and strong character among SonoScape's ultrasound systems.
Powerful Platform

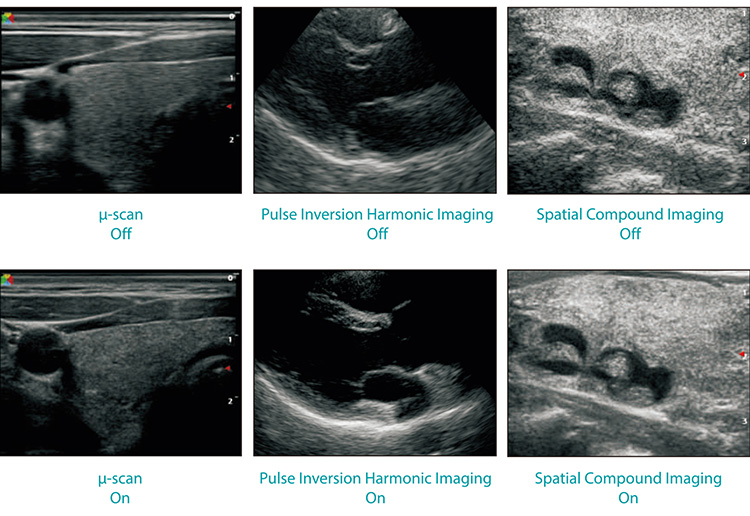

Embedded with SonoScape's core imaging technologies such as μ-scan, PHI and Spatial Compound, S8 Exp boasts exceptional 2D image, sensitive spectral, Color and Power Doppler, displaying well-defined anatomy and pathology and facilitating a highly optimized diagnostic user environment for conclusive diagnoses. Besides, S8 Exp offers a comprehensive selection of electronic probes to maximally extend its capabilities to meet a wide range of applications including abdomen, pediatric, OB/GYN, cardiovascular, musculoskeletal, etc. The advanced probe technologies also effectively enhance the image quality and confidence in reaching clinical diagnoses even in difficult patients.
Standard Hardware include | S8 Exp main unit |
15'' Highg resolution LED color monitor | |
Two transducer connectors | |
USB 2.0/ Hard Disk 500G | |
Built-in Battery | |
Adaptor | |
ECG Module | |
Standard Software include | Imaging modes: B 2B/ 4B/ M/ THI/ CFM/ PDI/ DirPDI/ PW/ HPRF |
Trapezoidal imaging | |
Compound imaging | |
Freehand 3D imaging | |
µ-Scan: 2D speckle reduciton technology | |
Multi-beam technology | |
Advanced cardiovascular kit: IMT/ Steer M | |
DICOM 3.0: Transmission/ Worklist/ Print/ Storage Commitement/ MPPS | |
M-Tuning: One button image optimization | |
Stardard Configured Transducers | 128 elements linear array L741(Vascular, Small parts, MSK etc.), 4-16MHz/46mm |
128 elements convex array C344 (Abdominal, Obstetrics, Gynecology), 2-6.8MHz/ R40mm |
