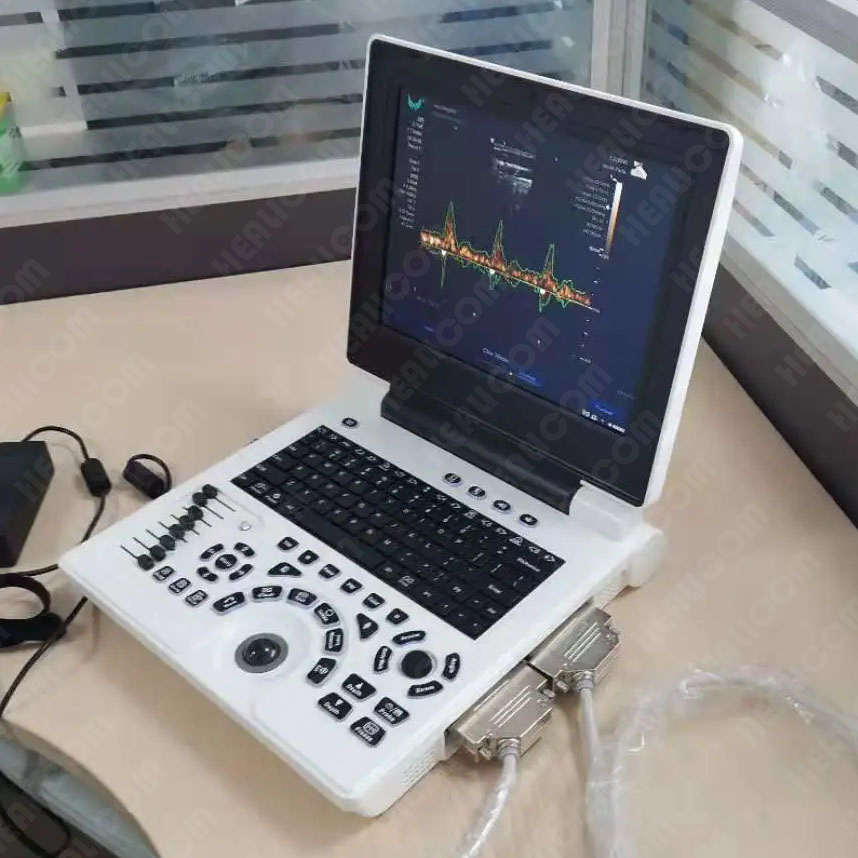

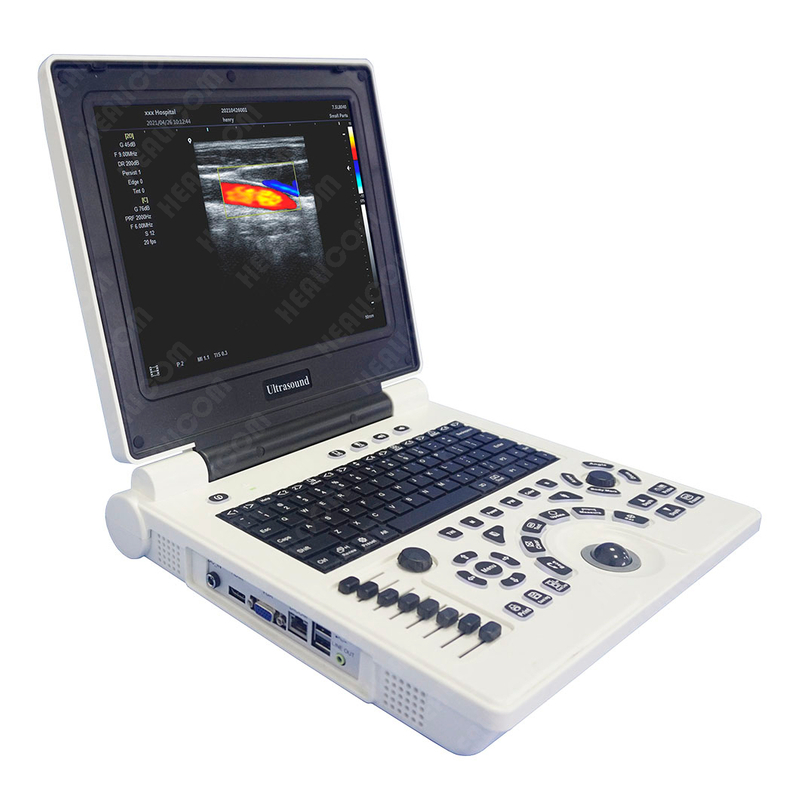

HUC-180 Laptop Color Doppler Ultrasound Scanner

You are here: Home » Products » Ultrasound Machine » Color Doppler Ultrasound System » HUC-180 Laptop Color Doppler Ultrasound Scanner

Category List

Related Products

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

• 12 inch LCD Display;

• Windows 7 platform operation system;

• Imaging mode B, B+B, 4B, B+M, CFM, PDI, PW;

• Support convex, linear, cavity, micro-convex probe;

• Optional 3D;

• THI imaging technology;

• Support 7 kinds languages (CN\EN\RUS\POR\ESP\FR\DE);

• IMT automatic measure function;

• Editable report page;

• Environmental protection and low power consumption design;

• 5 levels image optimization;

• Rich image processing technology, for instance frames average, view angle,edge enhance, Gamma, etc

• Preset the parameter depend on scanning organ;

• IMT automatic measurement and display results;

• 15 kinds of pseudo color;

• Support guide line of biopsy puncture;

• Built-in 120G soild state drive, make the storage safer and more reliable;

• Built-in editable report page;

• 3200mAh chargeable battery with management.

Technical Specifications

Display modes	B, B/B, 4B, B+M, CFM, B+CFM, PDI, B+PDI, PW
Gray scale	256 levels
Dynamic range	80 - 280dB adjustable
Application mode	OB, GYN, Small organ, Urology, Pediatric, Cardiac etc;
Display penetration depth	1~400mm
Probe frequency	2MHz~ 12MHz (depend on probe type)
Gain control	8 segments TGC and overall gain can be adjusted respectively
Focus position	dynamic electron focusing
Probe connector	2 activated
Interface Port	HDMI, VGA, DICOM, USB, Line Out

Excellent Image
