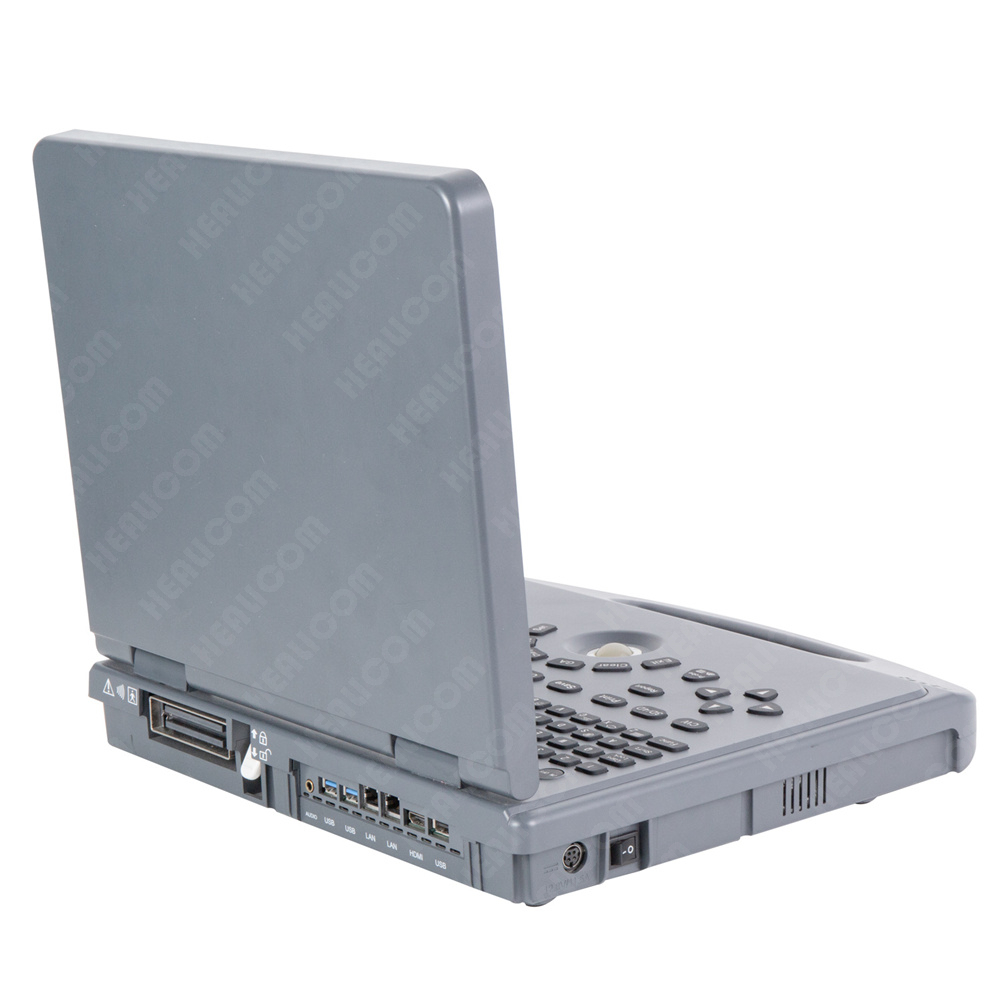

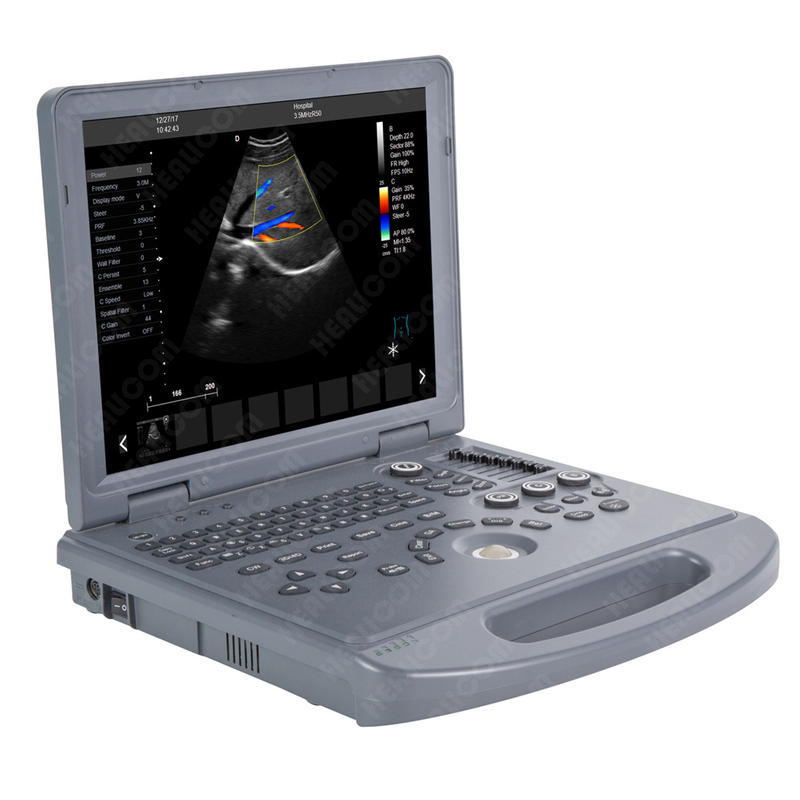

HUC-200
Healicom
Product Description
·15 inch LCD display
· Depth range: 126-320mm
· Built-in 60G solid state drive
· External USB storage
· Multiple languages can be selected
· Large capacity rechargeable battery (4-8H)
· Support 3 USB port, HDMI, Audio and so on
Intelligent image processing technology
1. Tissue harmonic imaging technology
2. Noise suppression speckle technology
3. Multi-beam parallel processing technology
Main Function
· Full digital image management system
· Stable windows system,Support various printers
· Ergonomic design, which greatly improves the range
· PW spectrum with auto measurement.
· Display mode: B mode,C mode, PW mode, CW mode, real time 3D mode, B/C, B/C/PW, B/PW.
· Probe Optional: Convex probe, micro-convex probe, trans-vaginal probe, linear array probe, trans-rectal probe.
Technical Specifications
| General measurement | B mode-distance, circumference, area, volume, ration, angle, % stenosis, histogram M mode- distance, time, velocity, heart rate |
| Signal processing | Full-digital beam forming, dynamic filter, space-time filter, dynamic real time receiving focusing, RDA, DRA, spectral processing, CFM processing, gray scale 256, receiving signals dynamic range≥150, All digital, real-time dynamic focusing, dynamic aperture in all fields |
| Image processing | Image persist THI Speckle-reduction Color coder Power adjustable Multi-frequency Smoothing function Edge enhancement Image optimizing disposal One-key optimization Probe mark Image conversion Up/down conversion Left/right conversion Doppler Sound output volume adjustable Wall filter adjustable Base line adjustable Sampling frame adjustable Area changeable(angle changeable) Spectrum sampling volume adjustable Spectrum sampling volume angle adjustable PRF adjustable Image processing |
| Doppler Measurement | Time Heart Rate Velocity General Measurement Doppler automatic measurement Doppler tracing (auto/manual) |
| Installed work station | OB report GYN report Urology report Cardiac measurement - LV report Cardiac measurement - mitral report Cardiac measurement - Ventricular report Small parts measuring report Peripheral vascular measuring report Diagnostic template Printing report |
| Standard Configuration | Main Unit, 15 inch high definition color LCD, 3.5MHz multi-frequency, User’s Manual, 60G(increasable) Image storage size |

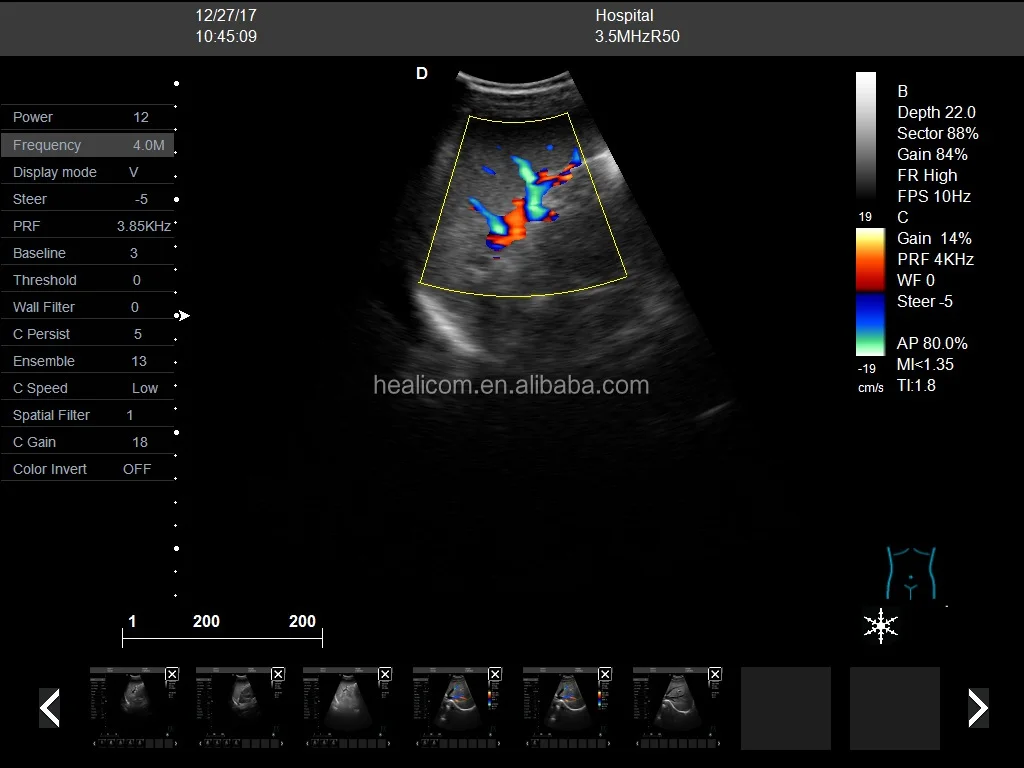

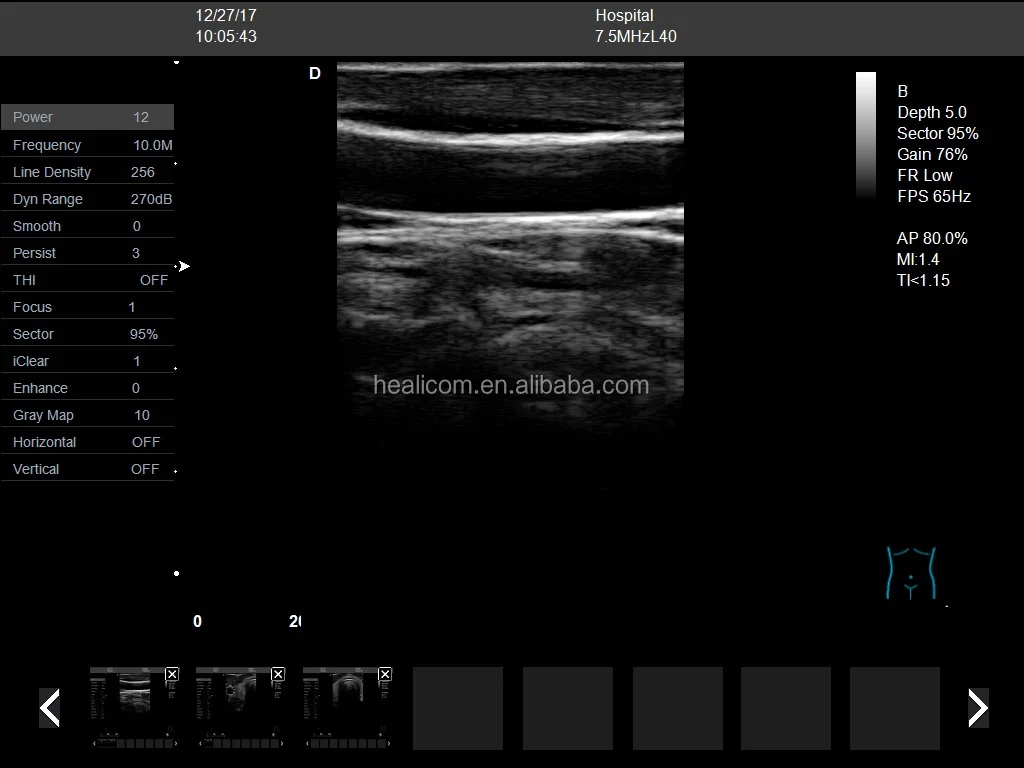

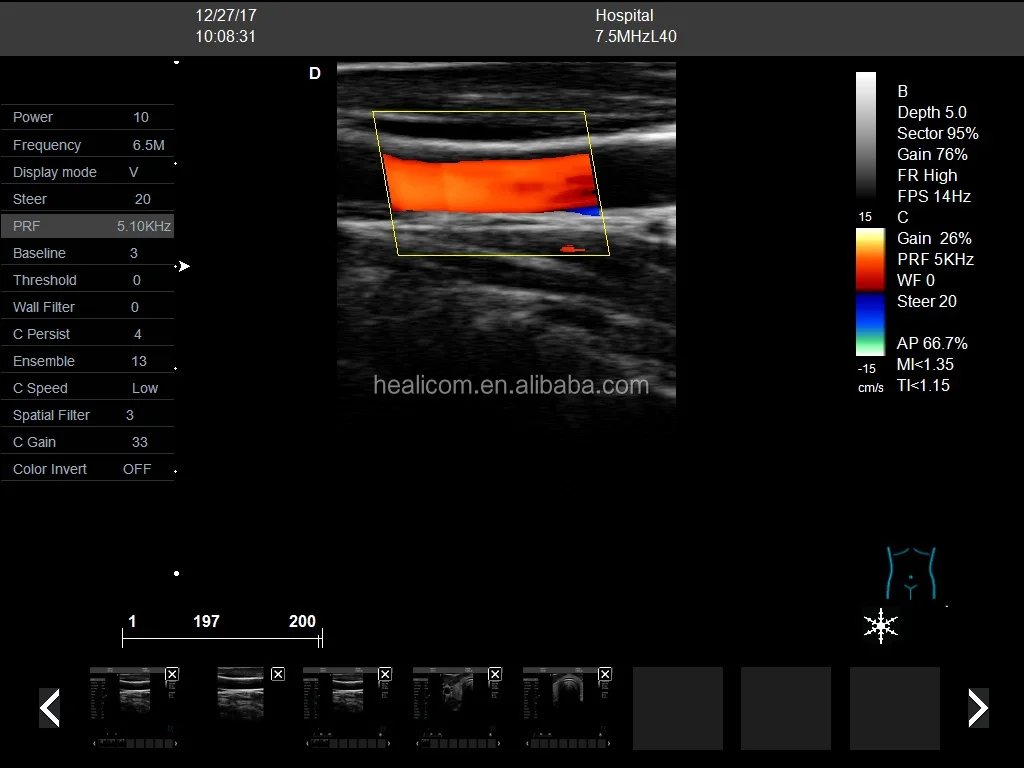

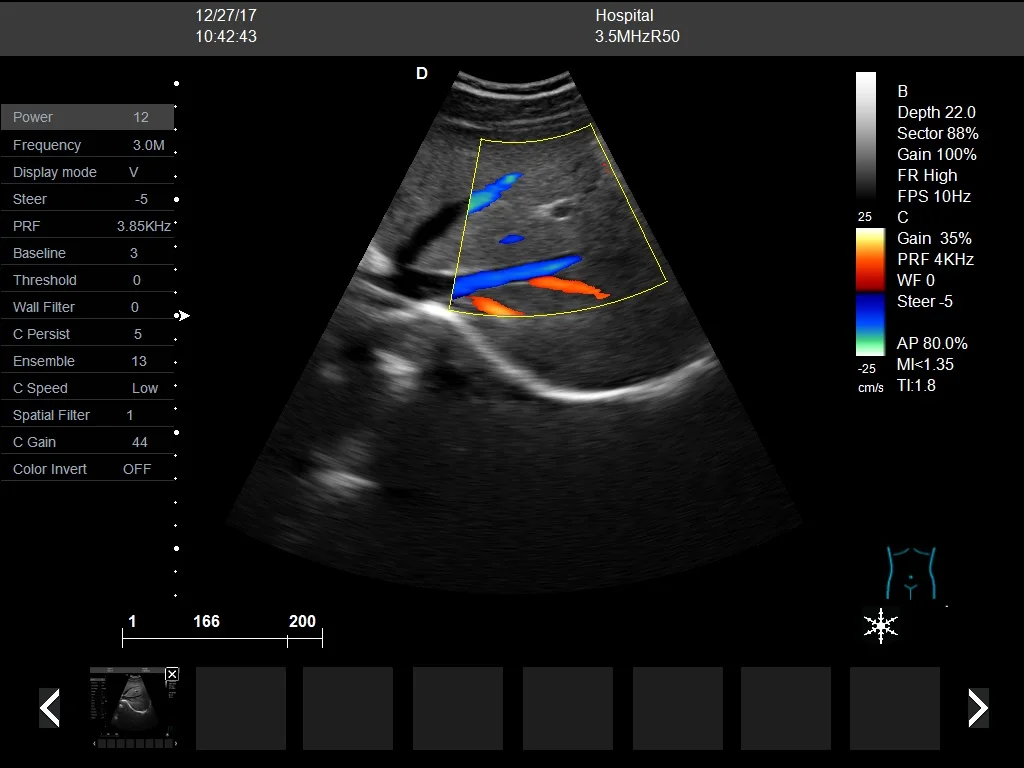

Excellent Image
