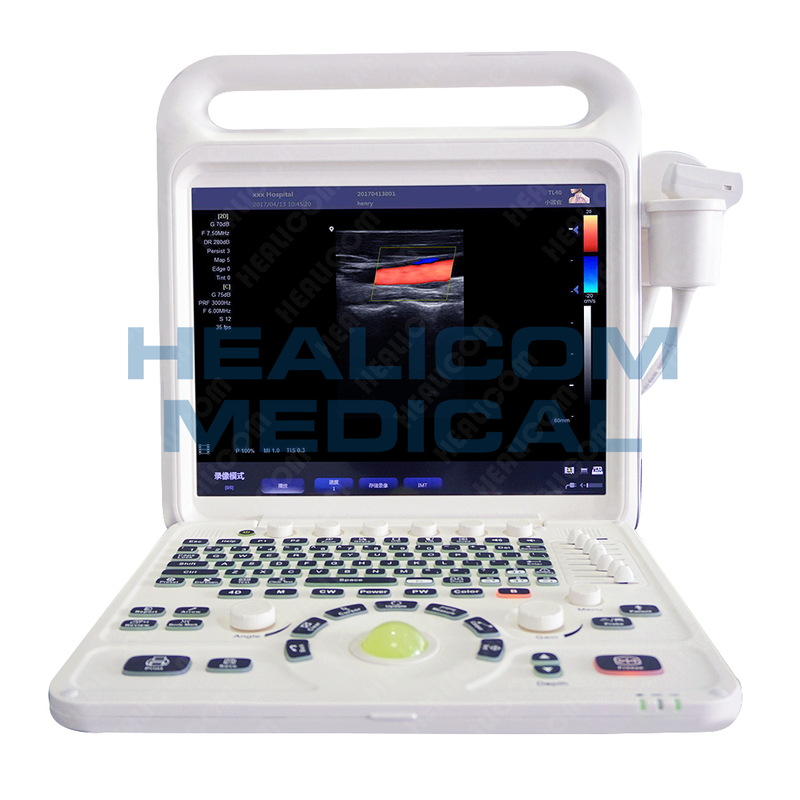

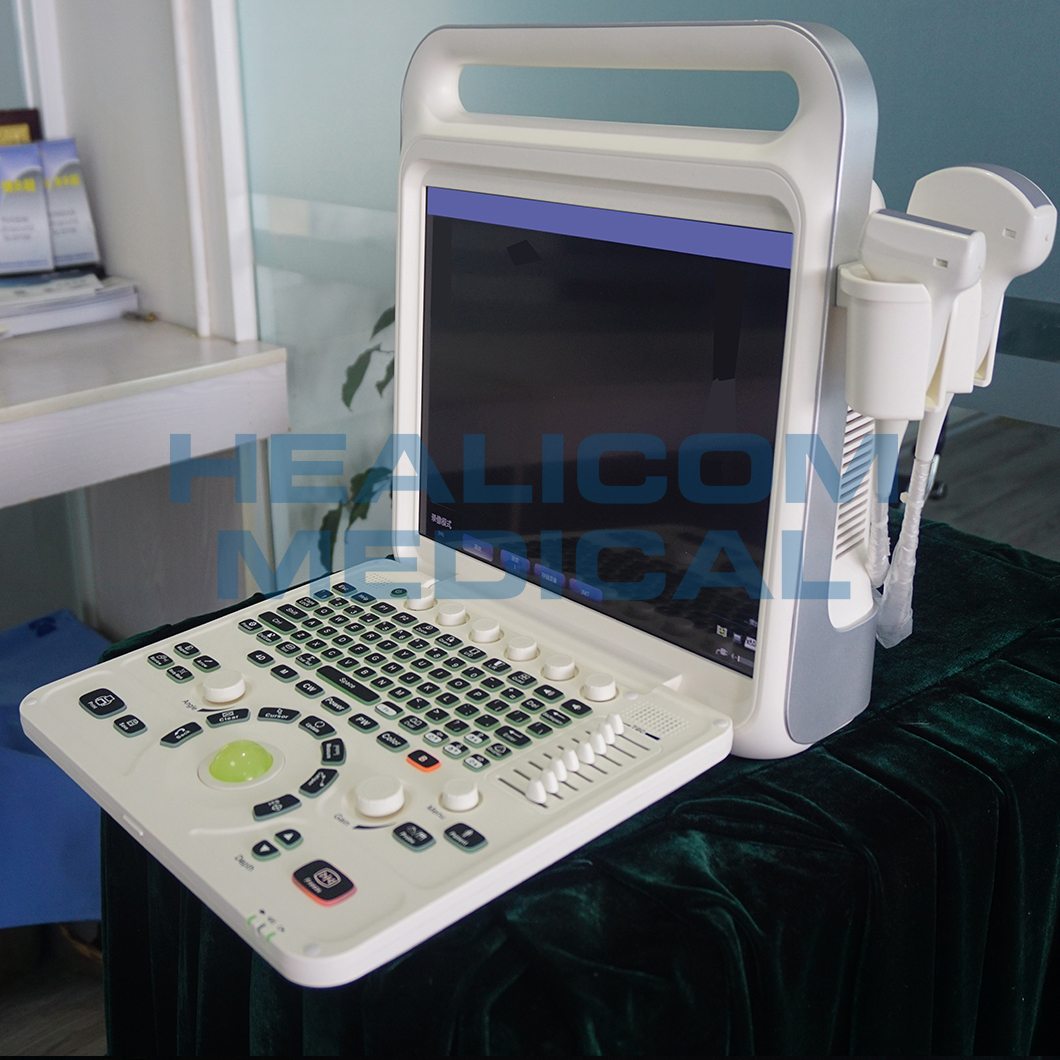

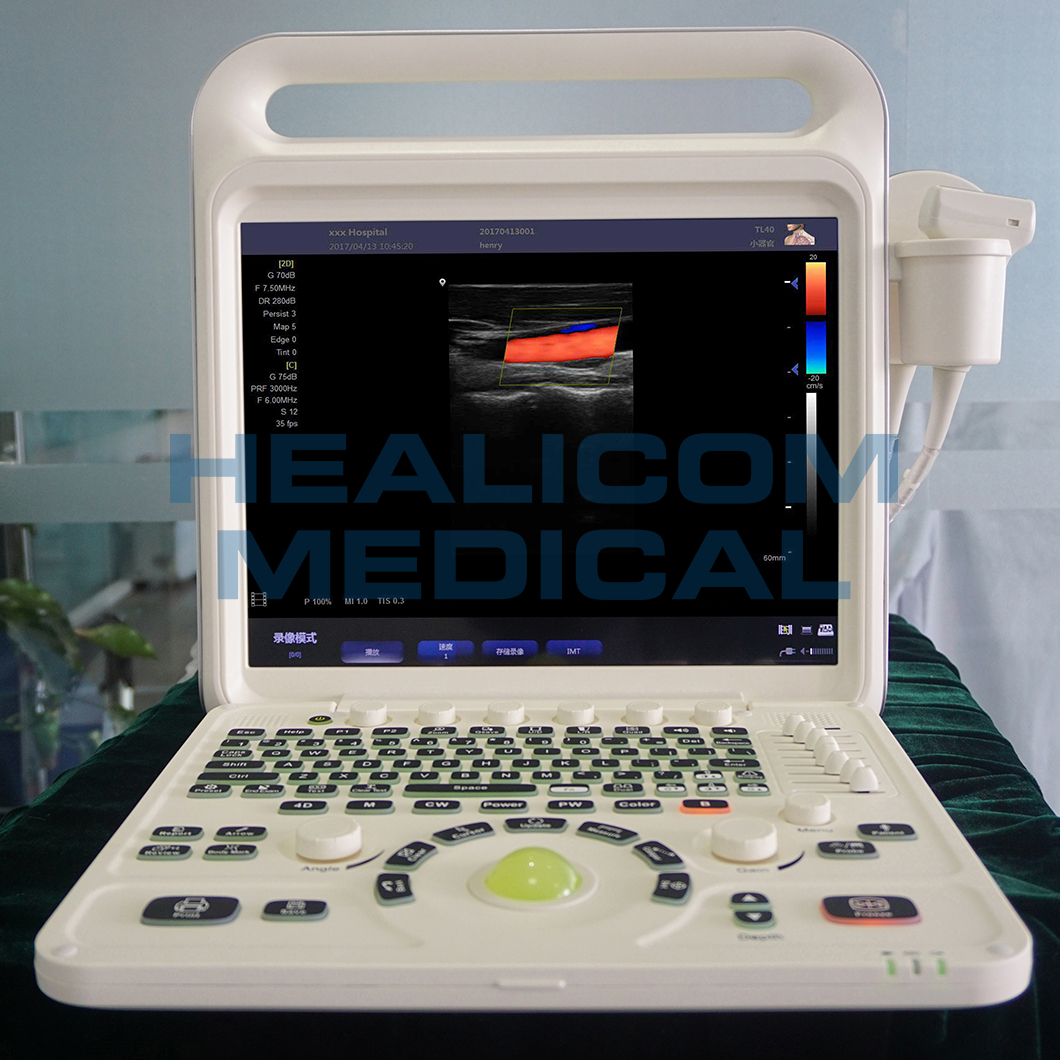

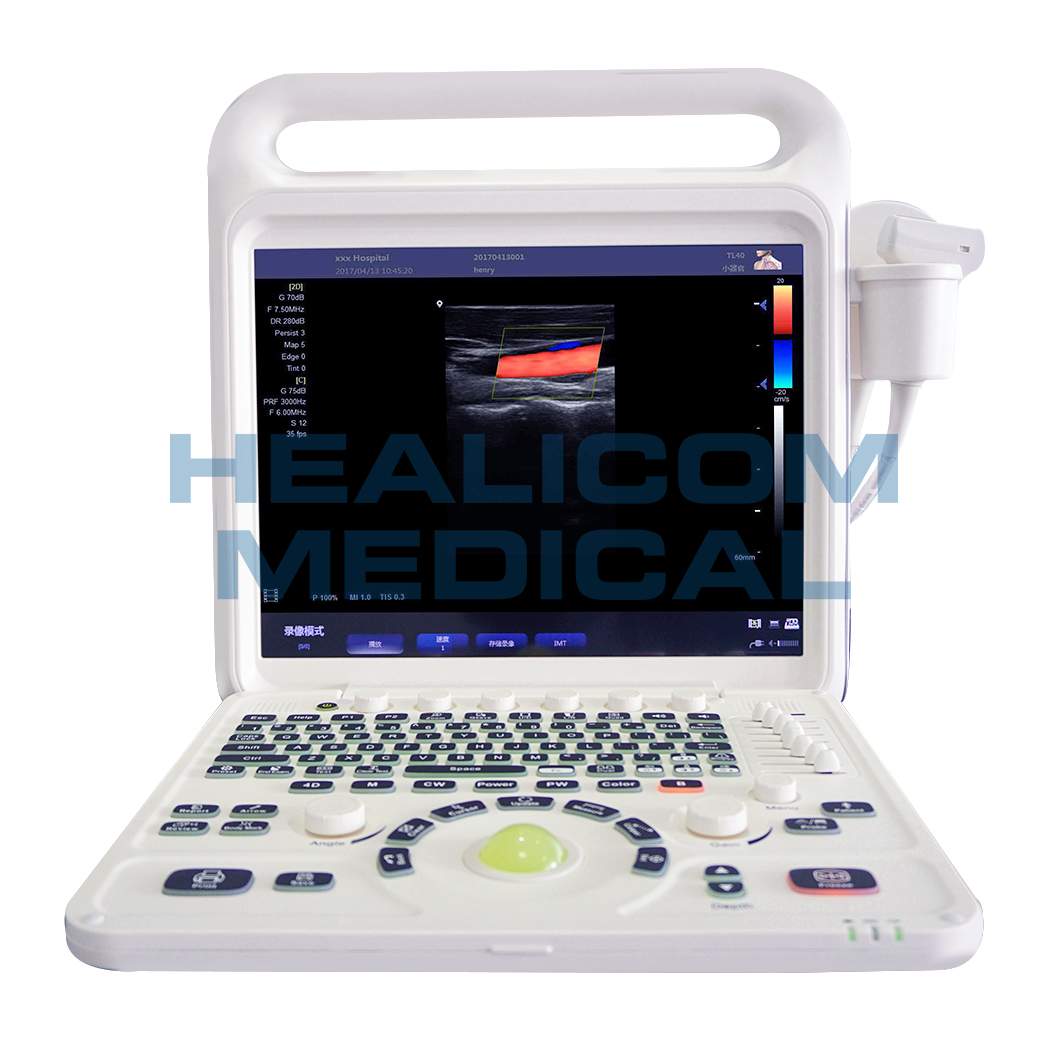

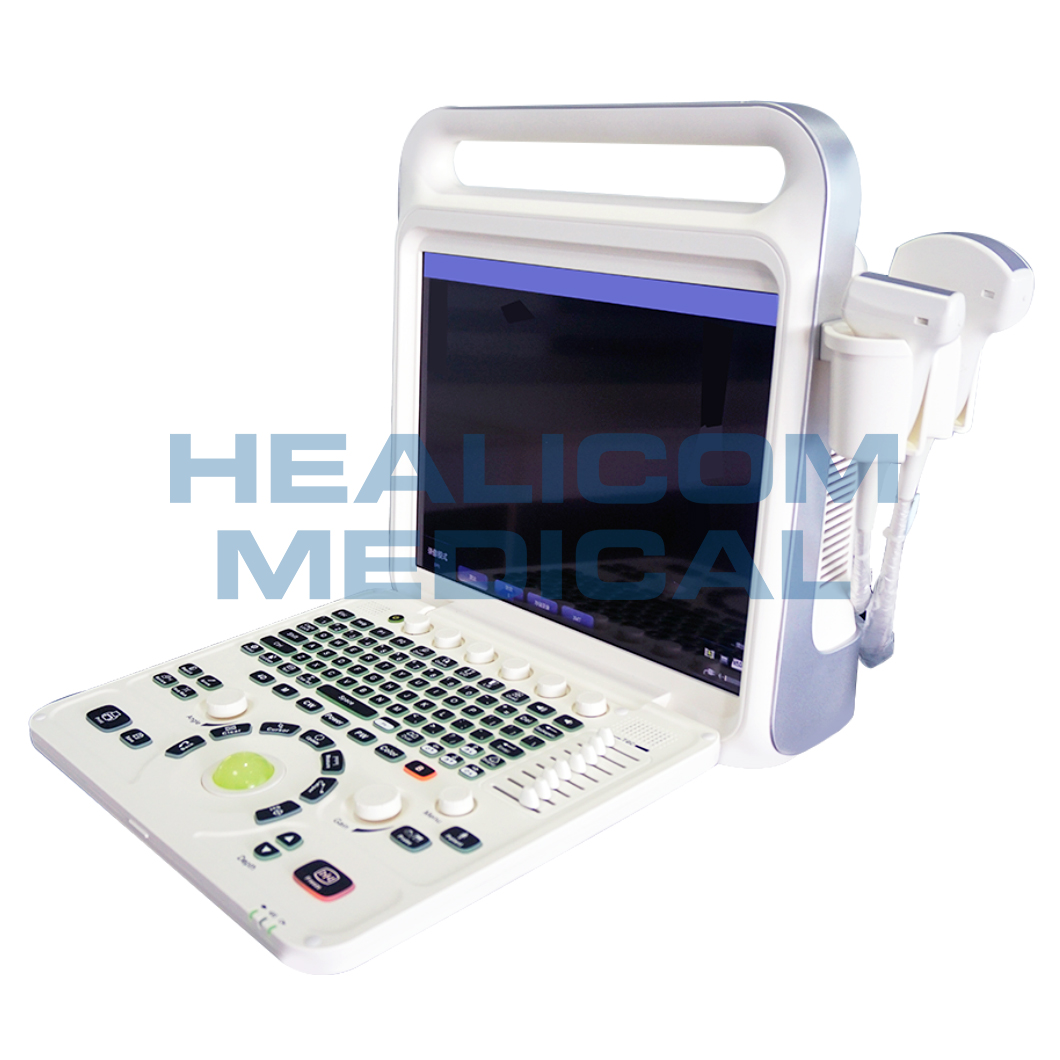

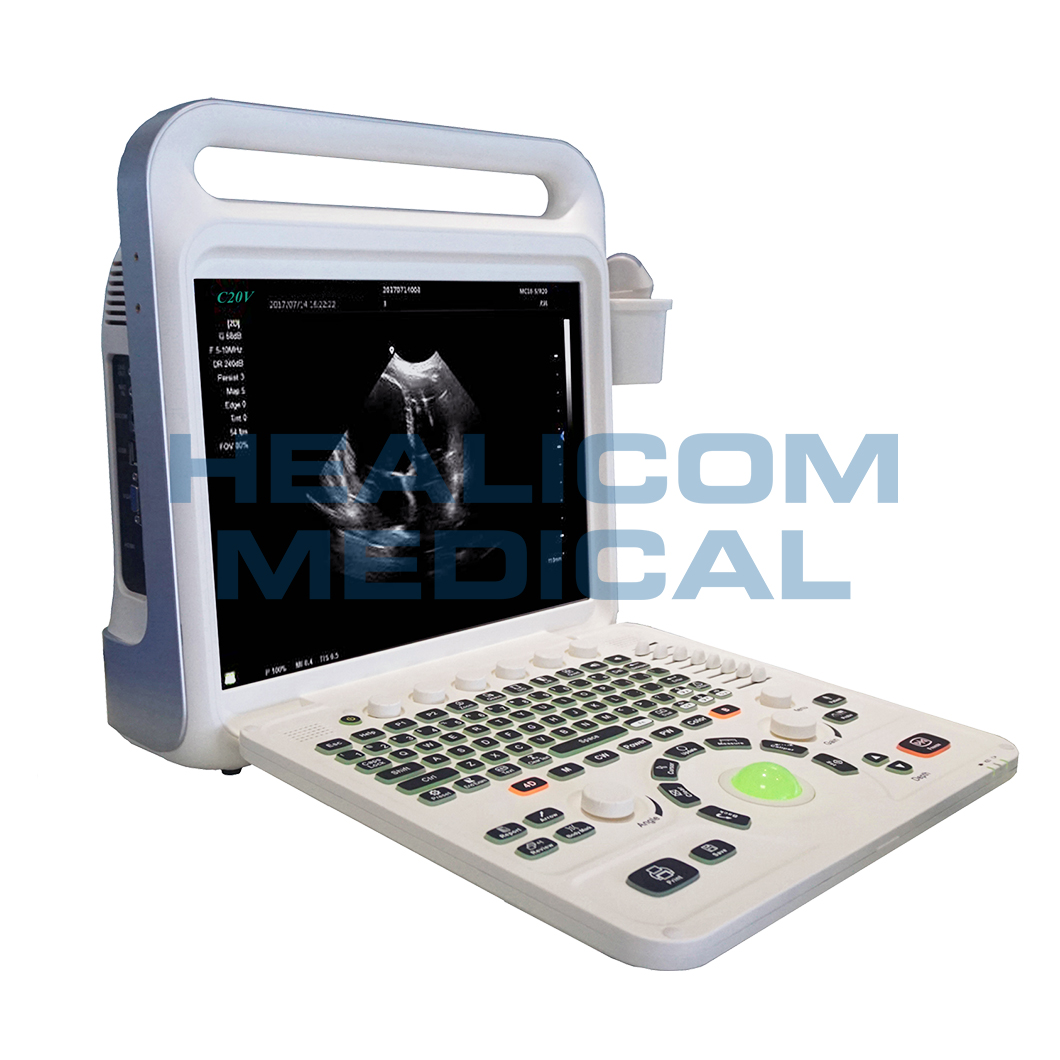

HUC-220 Color Doppler Ultrasonic Diagnostic System
Cutting-edge technology, excellent features
1. Advanced imaging technology: tissue adaptive imaging, automatically adjusts parameters according to different tissue characteristics to present accurate images; SRI - adaptive speckle suppression imaging, effectively suppresses speckle noise and improves image clarity; frequency compound imaging, integrates multi-frequency information to enhance image details; adaptive spatial compound imaging, collects data from multiple angles to optimize image quality; automatic optimization imaging, one-click image optimization, convenient and efficient operation.
2. High-performance beam and Doppler technology: digital multi-beam forming, realizes fast and accurate signal processing, ensures imaging quality; adaptive Doppler imaging, intelligently adjusts according to blood flow conditions, presents clear blood flow signals; spectrum enhancement, improves spectrum resolution, facilitates analysis and diagnosis; automatic Doppler tracking, automatically locks the target, and continuously monitors blood flow changes.
3. Multi-language support: supports Chinese, English, Russian, Spanish, Portuguese, and French to meet the needs of users in different regions around the world.
| System Overview |

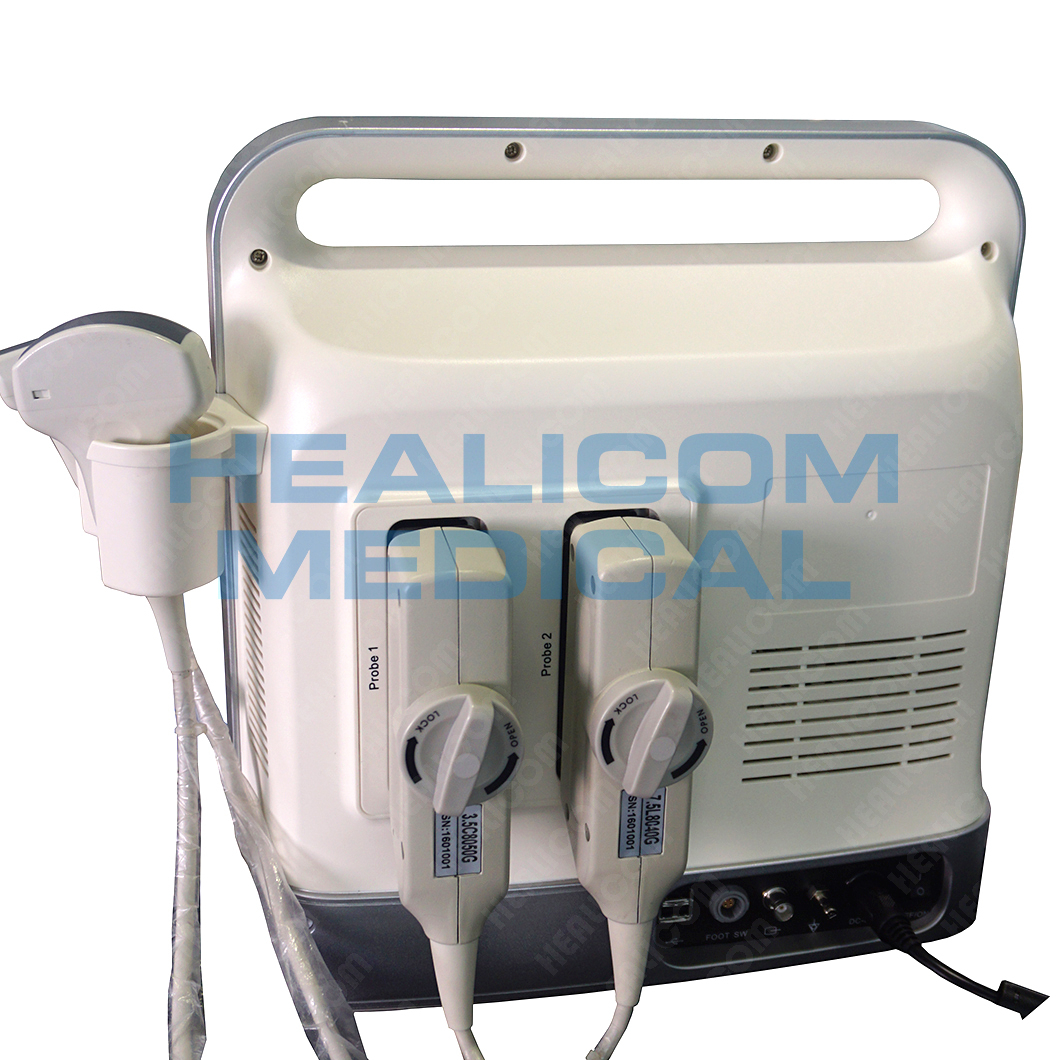

| System Architecture | Dual active transducer ports Physical Channels 24
Beam Forming Quad beam Processor Memory 2GB
Hard Drive 256G SSD Operating System Win7
|
| Dimensions and Weight | Dimension 470 mm×335 mm×560mm Net Weight (No battery) 6.2kg
|
| Monitor | 15’high resolution LCD monitor Image Size: 1024*780
Magnetic latch closure Built-in stereo speaker
|
| I/O Ports | VGA USB 2.0(two)
HDMI DICOM
|
| Battery
| Rechargeable 4000mAh capacity Battery fully charged in about 2 hours.
Battery indicator on the right of console Battery level icon displayed on the main screen.
|
| AC Power Requirements
| Voltage 100 -240 V~ Frequency 50 Hz/60 Hz
|
| Options
| Transducers Needle Guide Bracket Kits 3Dsoftware 4D hardware and software
Printers Battery
Simple Trolley |
| Imaging |
| Imaging Modes | B-mode dual- B mode
4B mode M-mode
Color Doppler PDI
PW Doppler Display Modes
Available for B and Color(PDI) mode Allows to switch between two images
Displays two image side-by-side, two frozen or one active/one frozen.
|
| Imaging Mode Combinations | B 4B
B+M B/C(PDI ), Single
B/C(PDI ), Dual B+B/C(PDI ), Dual live
B+PW (Duplex) B+PW (Update)
B/C(PDI)+PW (Triplex)
|
| User Interface | Interactive back-lighting User-defined keys
6 shortcut menu knobs 8 Stage TGC sliders
Standard keyboard for text input Brightness and contrast adjustable |
| Main Screen Display |
| Information Field | - Brand logo - Hospital name
- Date - Time
- Patient ID - Patient Name
- Patient Gender - Patient Age
- Transducer model - Body parts icon
- application
|
| Image Field | - Imaging parameters - Gray Scale bar
- Depth Scale - Measured result window
- TGC curve - Mechanical Index (MI)
- Thermal Index (TI)
|
| Editable Report | - Measurement and calculation results import - Printer adjustable
- Measurement and calculation results for multiple fetus - Picture size adjustable
|
| Thumbnail Field | - All captured static images and cine clips
- Shortcut keys for selecting, viewing, deleting,exporting images.
|
| User status Field
| - Cine bar - Exit icon for exiting Raw Data review status.
- Image Storage state - Real time power dynamic display
- Battery Icon |
