HLED-700/500A -TV HD Camera Surgical Two Domes LED Shadowless Operating Light

The HLED-700/500A-TV ceiling surgical lamp combines advanced features. It has a SONY HD camera with a Dell monitor on the balance arm for synchronous display. The LCD control panel allows 10 step illumination and 5 step color temperature adjustment. With a large capacity video recorder and optional UPS, it's reliable. It uses PWM dimming, has LED cold light with minimal head temperature rise, a high color rendering index, an ultra thin design, and a removable sterilizer handle for easy disinfection.
Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • HLED-700/500A -TV

  • Healicom

Product Description

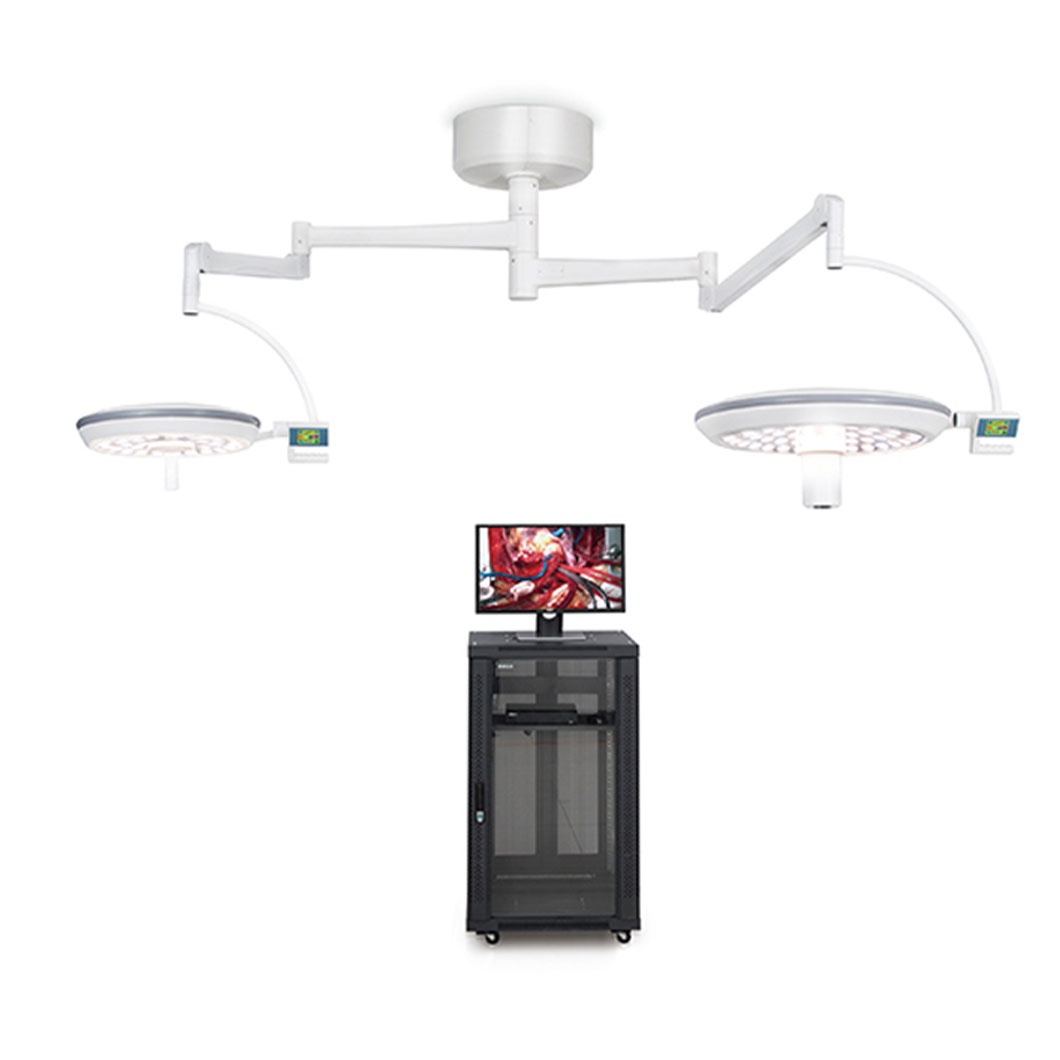

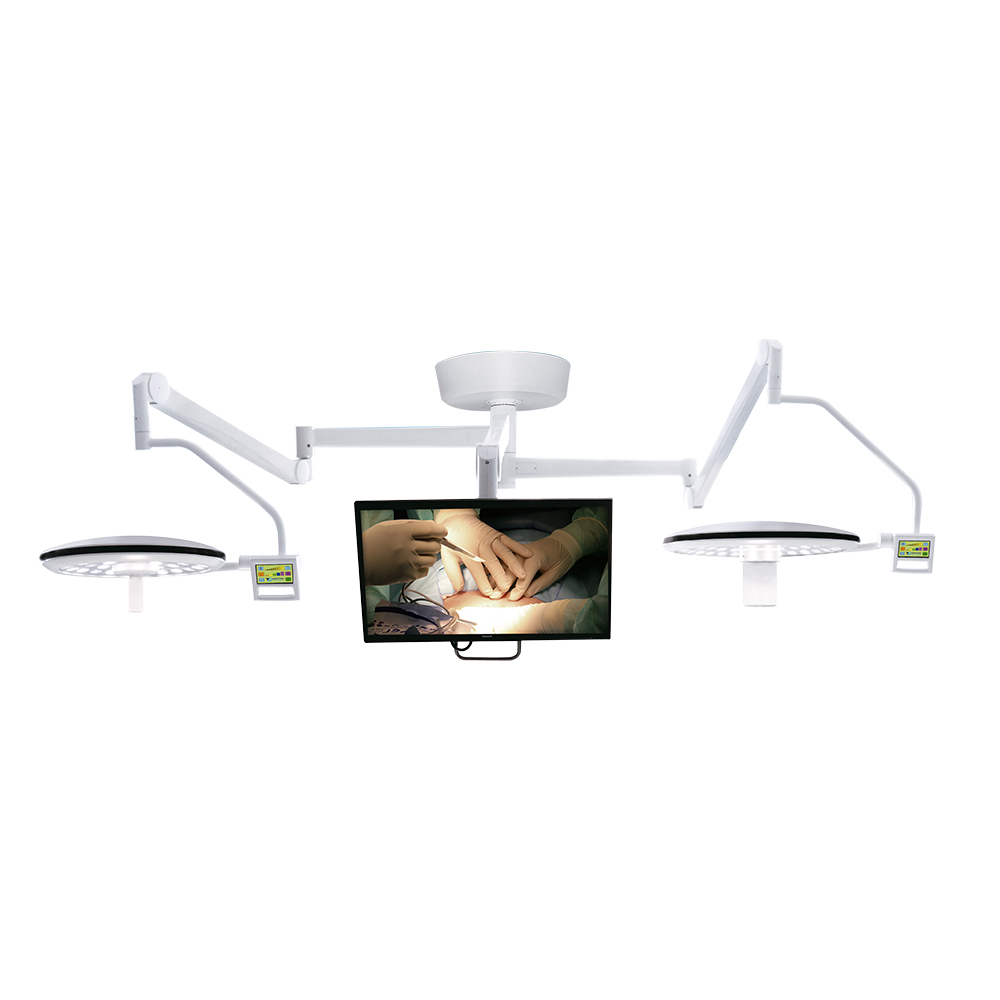

HLED-700/500A-TV Medical Ceiling Mount Led Shadowless Surgical Operation Lamp

1

Features

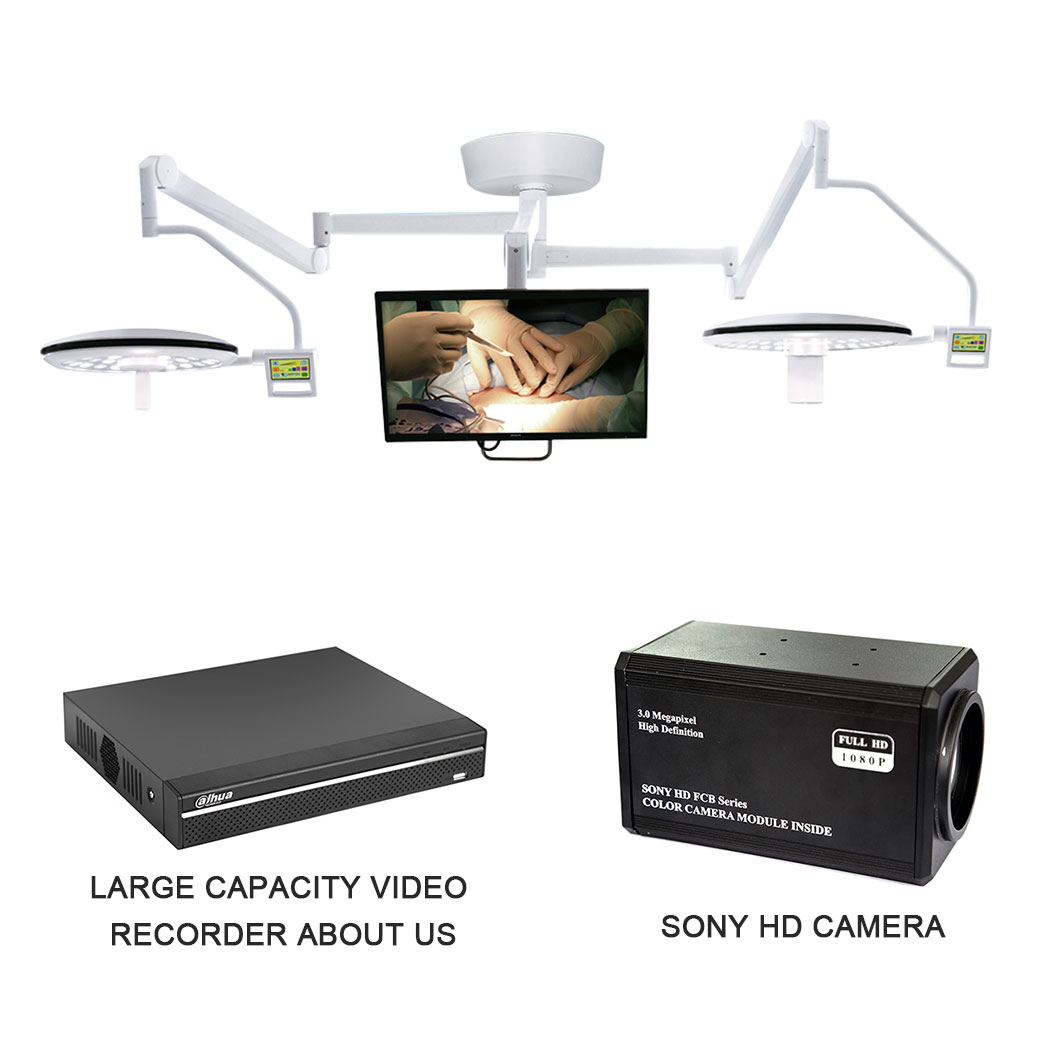

1. SONY HD camera

Dell monitor on balance arm synchronous display

2. LCD control panel

Illumination 10 steps adjustable

Color temperature 5 steps adjustable

3. Large capacity video recorder

4. Optional UPS

5. Suspension mirror technology which makes depth lighting

6. Use the most advanced PWM dimming technology, no strobe, slow eye fatigue

7. LED cold light, head temperature rise less than 1ºC

8. High color rendering index, makes the doctor distinguish the tissue and organ easily

9. Ultra-thin lamp head design, beautiful and generous

10. Removable sterilizer handle, which is convenient for disinfection

6

Technical Specifications
Type
HLED-700 Main lamp
HLED-500 Main lamp
Head Diameter
700mm
500mm
LEDS
80
48
Illumination
40~160klx
40~160klx
CRI
Ra>95
Ra>95
Color Temperature
3500-5000K
3500-5000K
Illumination Depth
1200mm
1200mm
Spot Diameter
120-300mm
120-300mm
LED Life
>50,000 Hours
>50,000 Hours
LED Brand
OSRAM GWCS8PM1.CM
OSRAM GWCS8PM1.CM
UPS
Optional
Optional



8

catalogue-4


Company Profile


2025年2月24MIC详情页_01

2025年2月24MIC详情页_02

2025年2月24MIC详情页_03

2025年2月24MIC详情页_04

FAQ


1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.

2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.

3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.

4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.

5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
