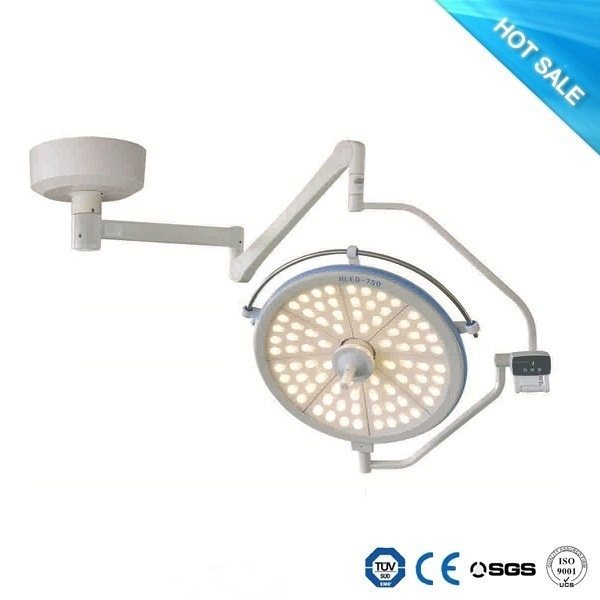

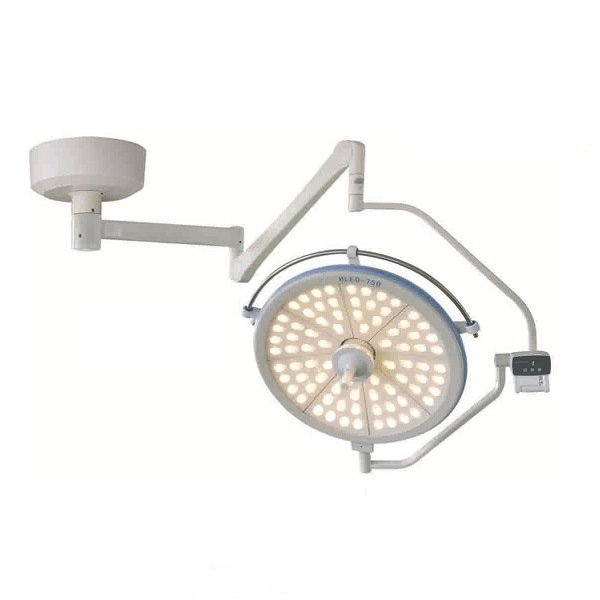

Hled-M5
Product Description
HLED series operating lamp is suitable for all kinds of operations. It is an ideal lighting technical equipment for modern operating room and purification operating room.
1. Ideal cold light effects. Imported LED cold light source for lighting devices as surgery. Doctors head and wound will have no temperature rise.
2. Reliability of circuit design. Digitally regulated LED brightness, wide range of uniform brightness, adjust and flicker-free.
3. Extremely long service life of light source. LED lamp life of up to 50,000 hours, each LED can be replaced individually, which guarantees maximum economy.
4. Ideal for meeting the requirements of clean appearance. Streamlined design meets the requirements of modernization in laminar flow operation room.
5. Advanced digital imaging technology.
SPECIFICATION
| HLED M7 main lamp | JHLED M5 main lamp | |
| Reflector diameter | 750mm | 550mm |
| Center illuminance | 40~160klx | 40~120klx |
| Spot diameter(d10) | 230mm | 150mm |
| Spot diameter(d50) | 160mm | 120mm |
| Light beam depth | 700mm | 700mm |
| Color temperature | 4200±300k | 4200±300k |
| Color rendering index | Ra>95 | Ra>95 |
| Maximum illuminance | Ec<1000W/m2 | Ec<1000W/m2 |
| Light source | LED(1W×152) | LED(1W×88) |
| The model of LED | CREE XPE-Q3 | |
FAQ
1.What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
2.What about quality assurance?
We offer one and half year warrantee period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. But if the machine is damaged due to rough handling during the transportation, we are free of any responsibility, but we will still provide help to the buyer issue claims against the shipping company or insurance company, thus all the spare parts or expenses should be borne by buyer.
3.What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
