HL-05
Product Description

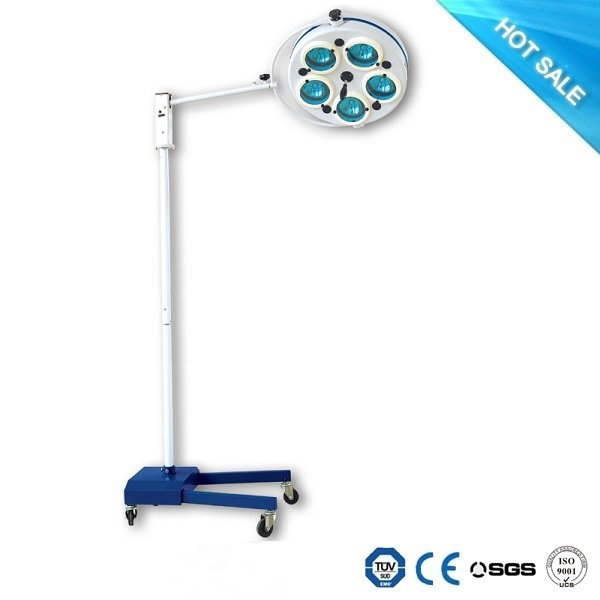

HL-05 adopts light sources from different positions for focus to eliminate shadows from different parts of medical workers. Vertical mobile setup with braking device is not limited by the space of surgical room and is safe and reliable in use.
Technical Specifications
| Mode | HL-05 |
| Illumination Lx | 160000≥Ec≥50000 |
| Color Temperature | 4000±500 |
| Color rendering index | 100≥Ra≥85 |
| Depth of light beam | ≥500 |
| The value of the total irradiance(service range for temperature rise) | <6mW/m⊃2;x |
| Total irradiance (Temperature rise on the head of patient under surgical operation) | ≤600W/m⊃2; |
| Power supply | AC220V1050Hz |
| Rated Voltage of Bulb | AC24V |
| Rated Power of Bulb | 125W |
| Input power | 150VA |
Warranty
Healicom Medical guarantees each product to be free from defects in workmanship and materials within warranty period under normal use and service.If any malfunction is caused by quality related problems within one year after the date of purchasing, the product will be repaired free or returned to Healicom.
The following items will not be included in the above warranty:
1. If malfunction is caused by misuse, negligence or accidents.
2. If the original serial number label or product identification marks have been altered or removed.
3. If the equipments have been modified or repaired by any other person who is not from Healicom.
4. If products are not produced by Healicom.
