HLED-4/3 Petal-shaped Shadowless LED Operating Lamps
You are here: Home » Products » Surgical&ICU Equipments » Operating Lamp » HLED-4/3 Petal-shaped Shadowless LED Operating Lamps

Category List

HLED-4/3 Petal-shaped Shadowless LED Operating Lamps

The HLED-4/3 LED Operating Shadowless Lamp features a modern laminar-flow lamp head with a petal-shaped, ultra-thin design (≤6.5cm), made of durable ABS material for corrosion resistance and longevity. It uses an imported LED cold light source, energy-efficient and eco-friendly, with a 60,000-hour lifespan and minimal heat (<1℃ at the physician's head). The lamp provides a perfect cold light effect, emitting no infrared or ultraviolet radiation, preventing tissue damage, and promoting faster wound healing. Its constant color temperature and soft, natural light reduce eye strain, making it ideal for surgical environments.
Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • HLED-4/3

  • Healicom

Product Description

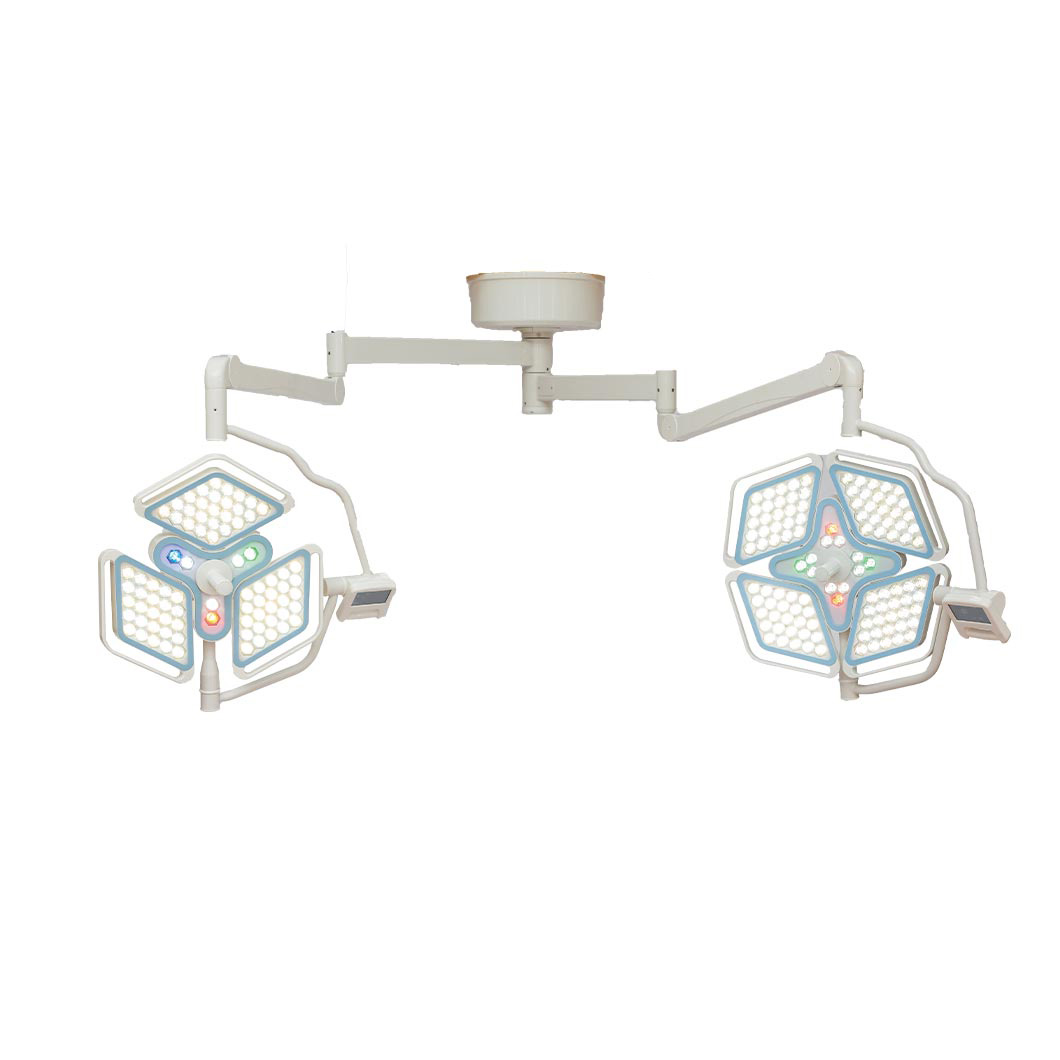

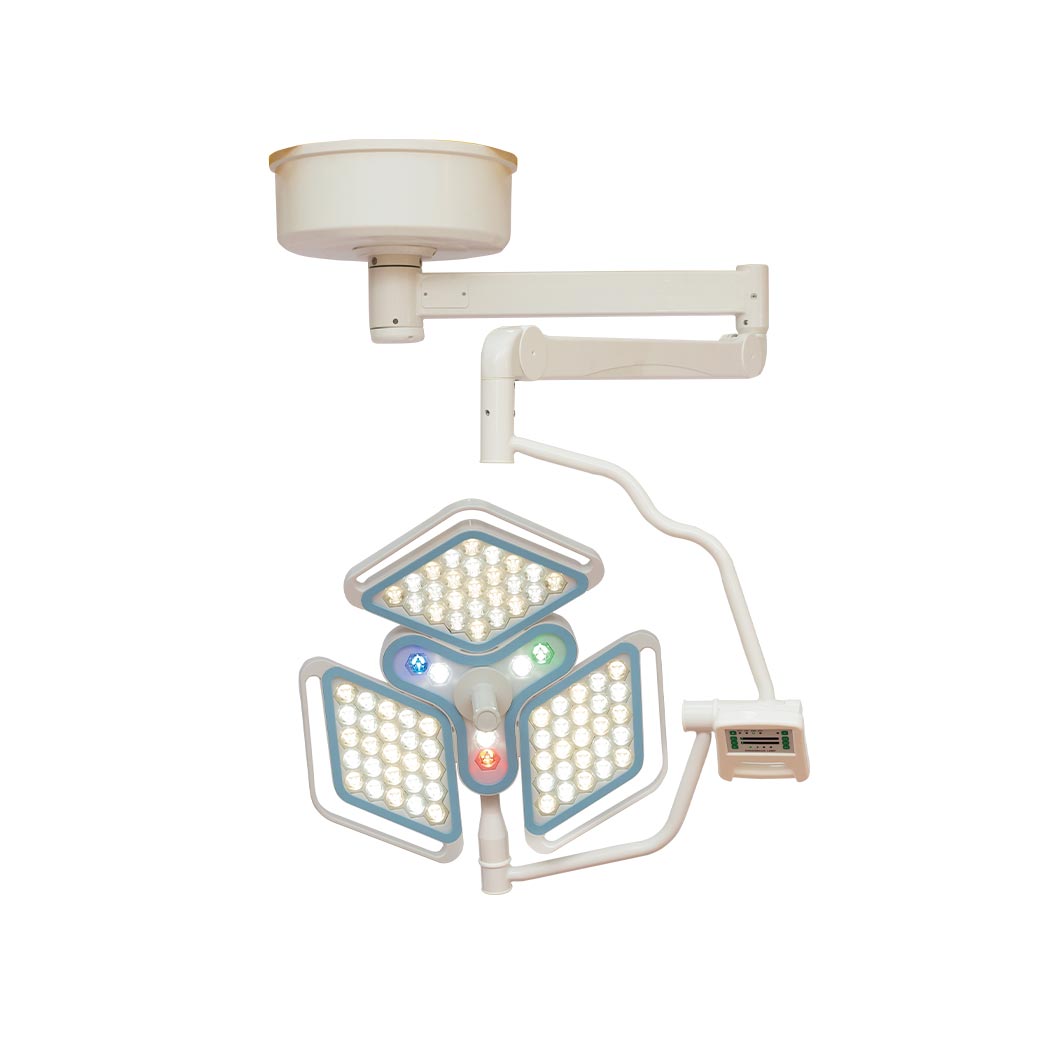

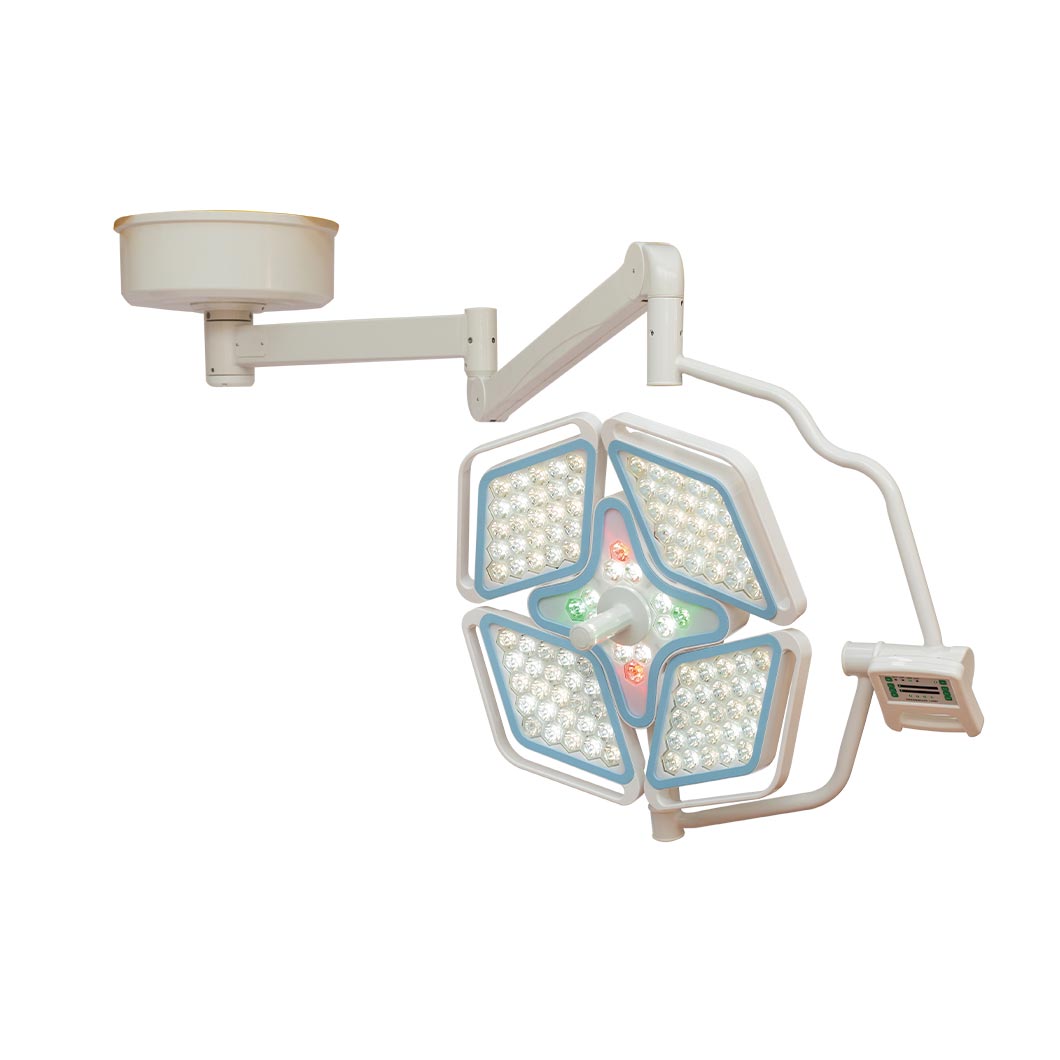

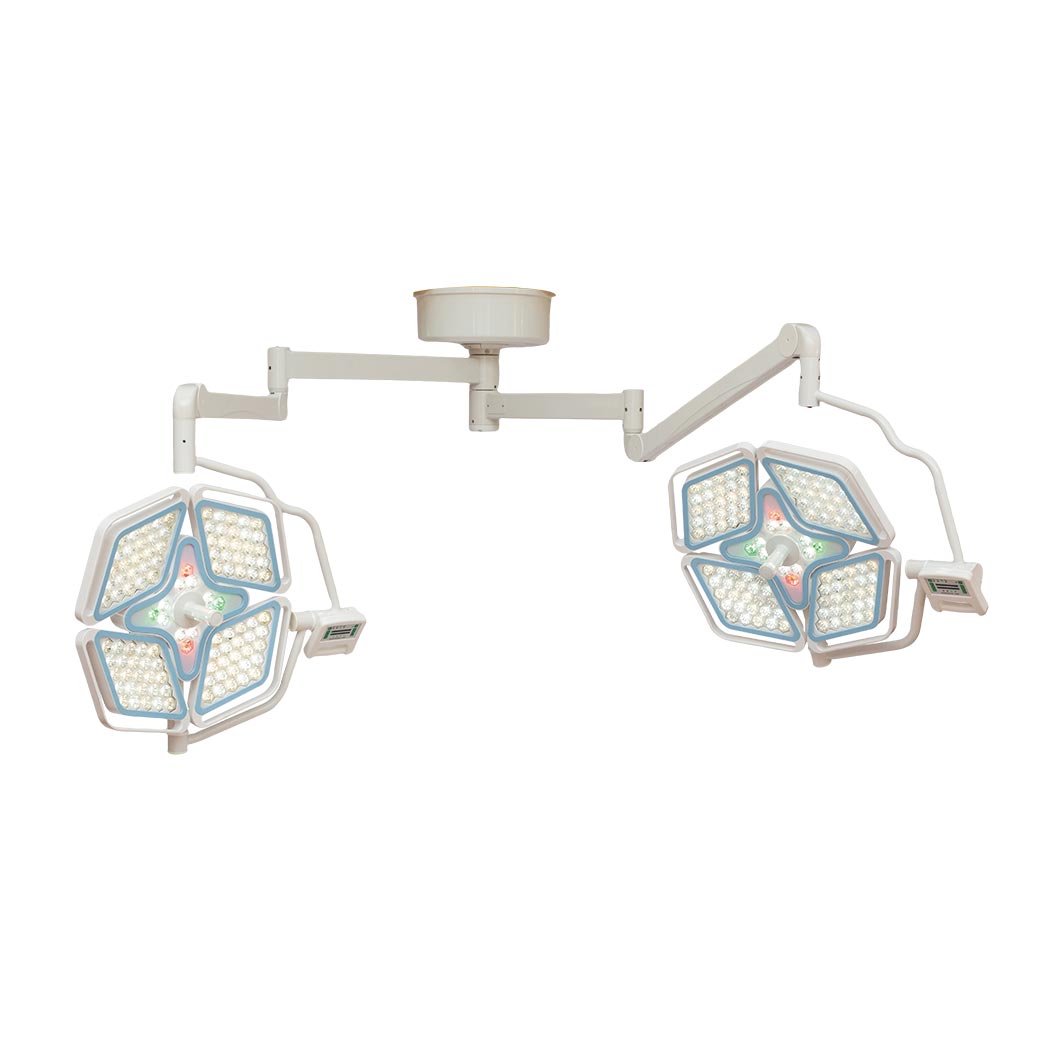

HLED-4/3 petal-shaped Shadowless LED Operating Lamps Surgical Light


1


2

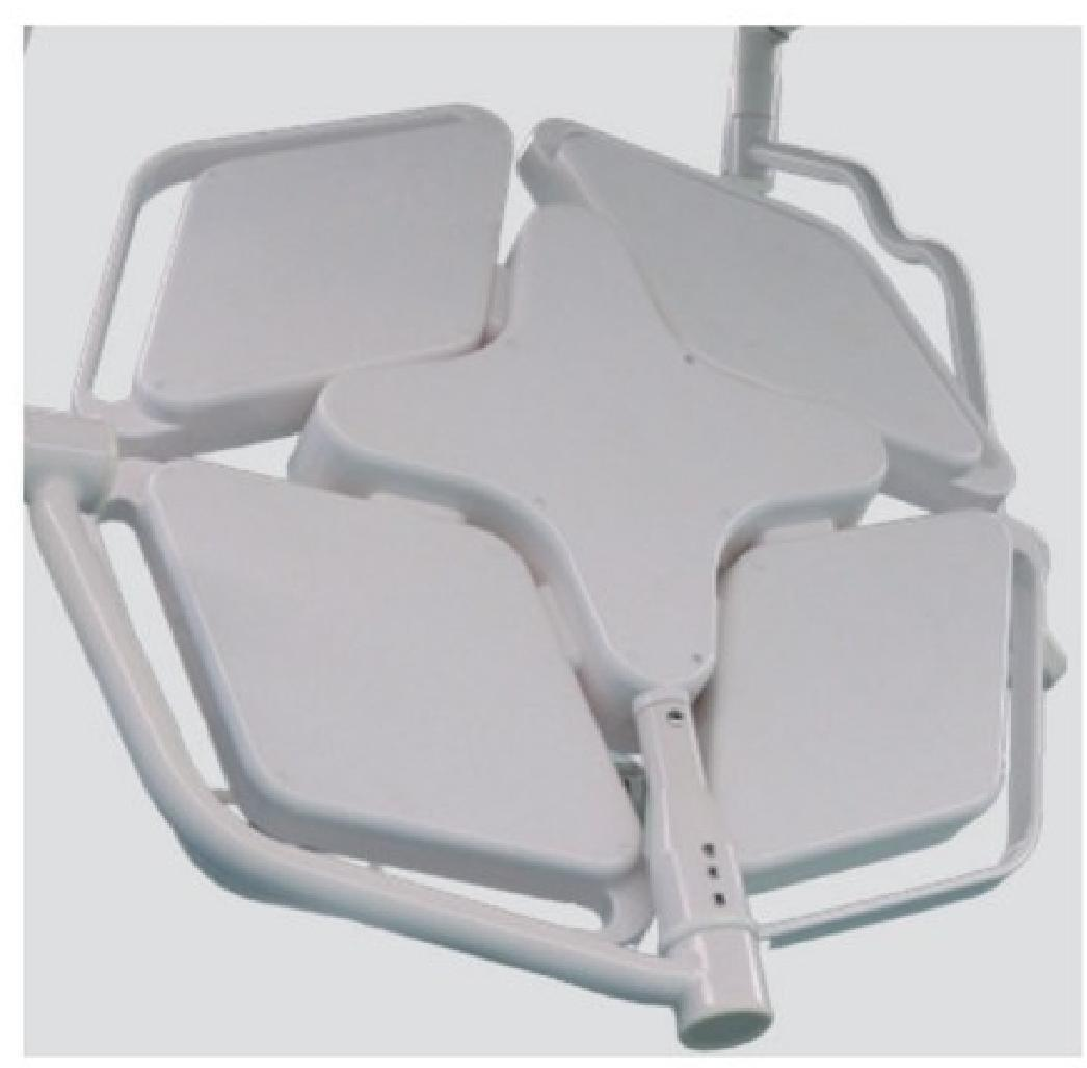

1、Modern laminar-flow lamp head

The petal-shaped ultra-thin design with a max.thickness of no more than 6.5CM is adopted,which brings an excellent laminar flow effect. The lampshade shell is made of a novel quality ABS material,which is resistant to corrosion,acid and alkali and can effectively increase the service life of the product.


2、The novel cold light source extends service life

A novel imported LED cold light source is used,which is energy-saving and environmentally-friendly and has a service life of up to 60,000 hours.The temperature rises at the physician′s head<1℃.


3、Perfect cold light effect

The novel imported LED cold light source does not generate infrared and ultraviolet radiation and will not cause a temperature rise and tissue damage to the wounds like those caused by halogen Shadowless lamps.It can speed up postoperative wound healing and has no radiation pollution.The color temperature of the LED is constant and its color temperature is not attenuated.Meanwhile,its light is soft and not dazzling,very close to the natural sun light.

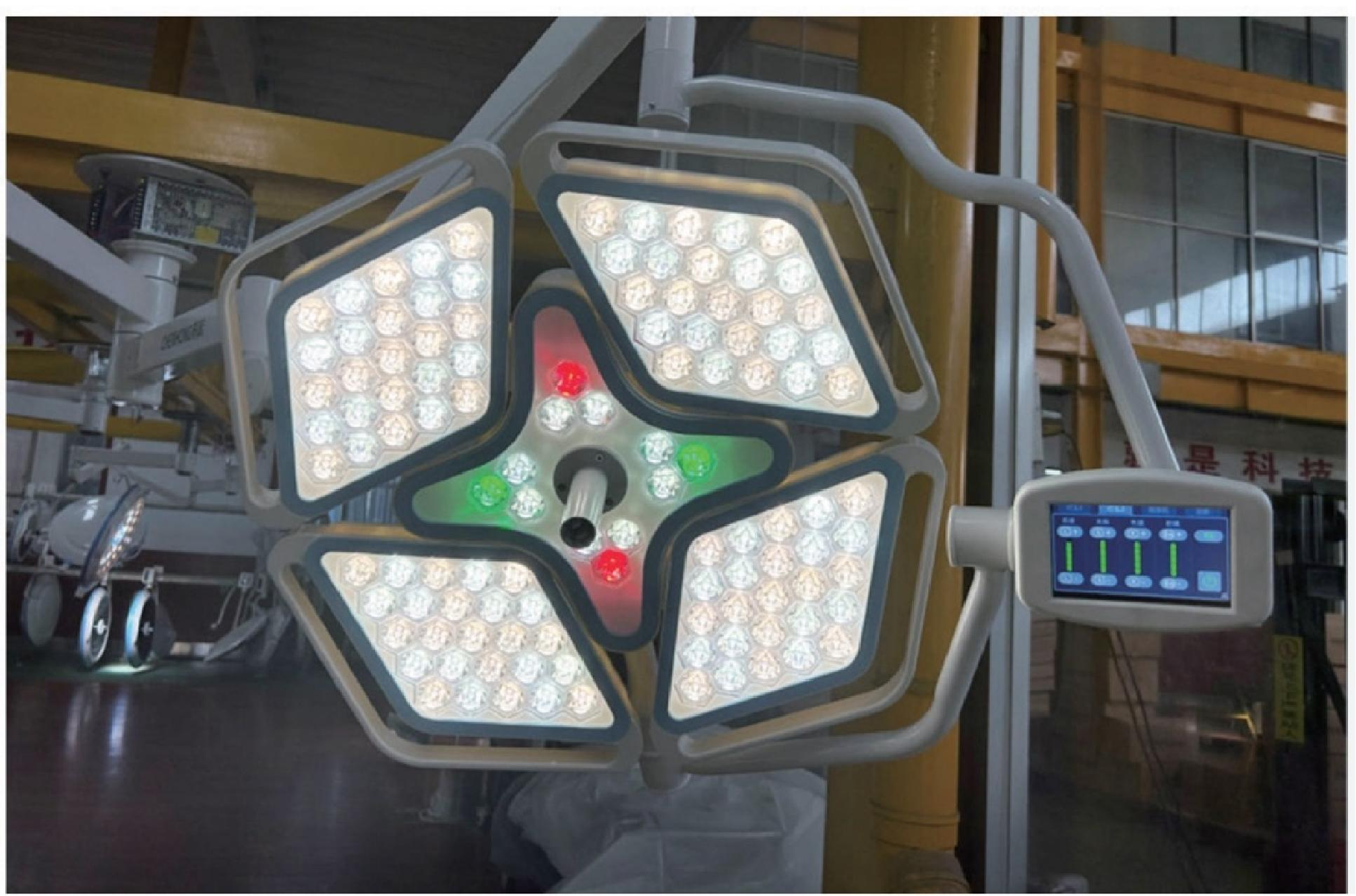

图片2 Modern laminar-flow lamp head

Imported cold light source


4、Exquisitely structured focusing system

Equipped with electronic focusing technology,the operation is simple and convenient,and it overcomes the problem of LED   surgical shadowless lamp focusing,the electronic focusing function is realized;the detachable handle can be sterilized by high  temperature(≤134℃)



5、Excellent deep lighting

Using computer-aided modular design and focused illumination by   multiple LED light beams,the product enables depth illumination with light beams of above 1200 mm.and the central illuminance is   up to 160000lux or above.It also provides a 3700K-5000K adjustable temperature close to natural daylight,which can truly reflect the colors of human tissues and fully meet the needs of various surgical lighting.

6、Superior shadow-free effect

The most scientific arc of the lamp head and multi-spot light source  design brings more uniform spot illumination.The same perfect     shadow-free effect can be achieved even when the operating lamp is partially shielded.Turning radius of lamp panel:≥182cm.The lamp    head can be pulled down to nearly vertical to the ground to facilitate lighting at various angles.

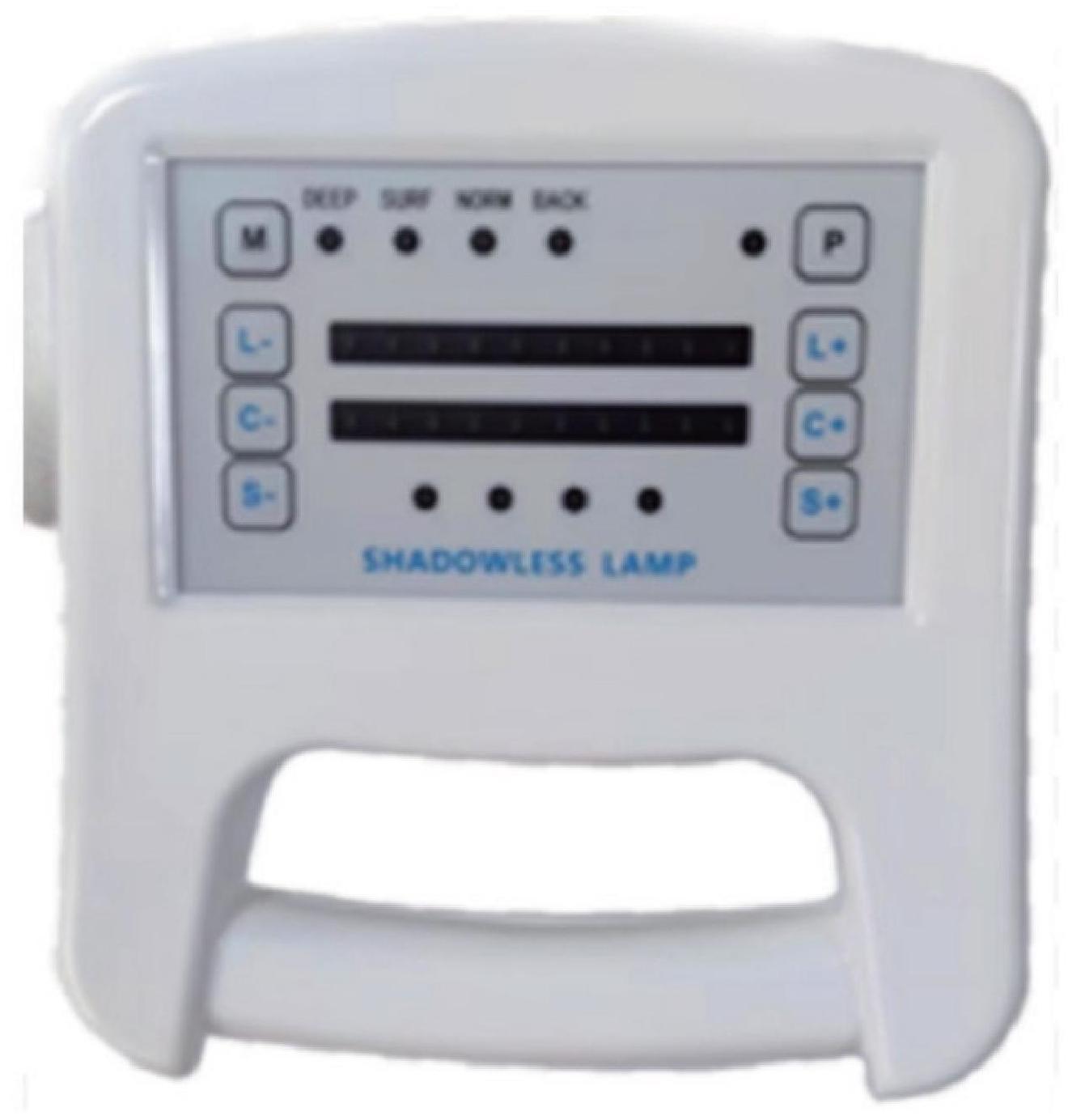

7、Advanced control system

LCD button control is adopted for adjustment of power switch,illuminance,color  temperature,etc.,to  meet  the  requirements  of   medical staff for the brightness of different surgeries.The digital    memory function can automatically memorize the appropriate illuminance with no need to debug when powering on again.The  centralized control method using multi-channel LED groups with   the same power to ensure that the damage of a single channel or  a single LED does not affect the compliance with the requirements of surgical lighting.

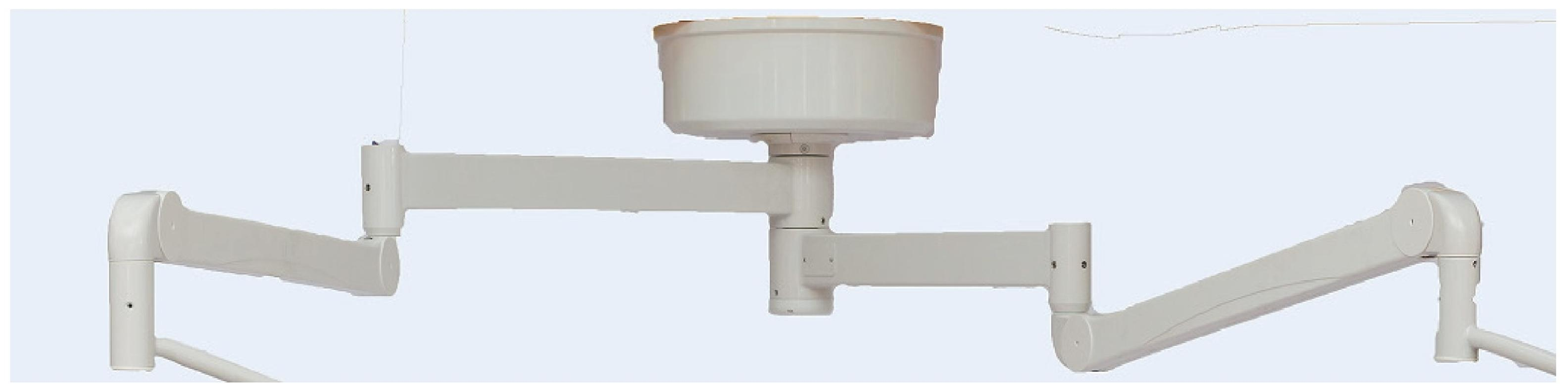

8、Universal suspension system

The big rotating arm is made into an octagonal shape using a new     type of alloy materials.The balance system adopts domestic spring    components,which are light in structure,easy to control,precise in   positioning,and can provide the widest adjustment range.It is equipped with a fatigue correction device and a positioning feel adjustment device to facilitate positioning adjustment and correction after long-time use.

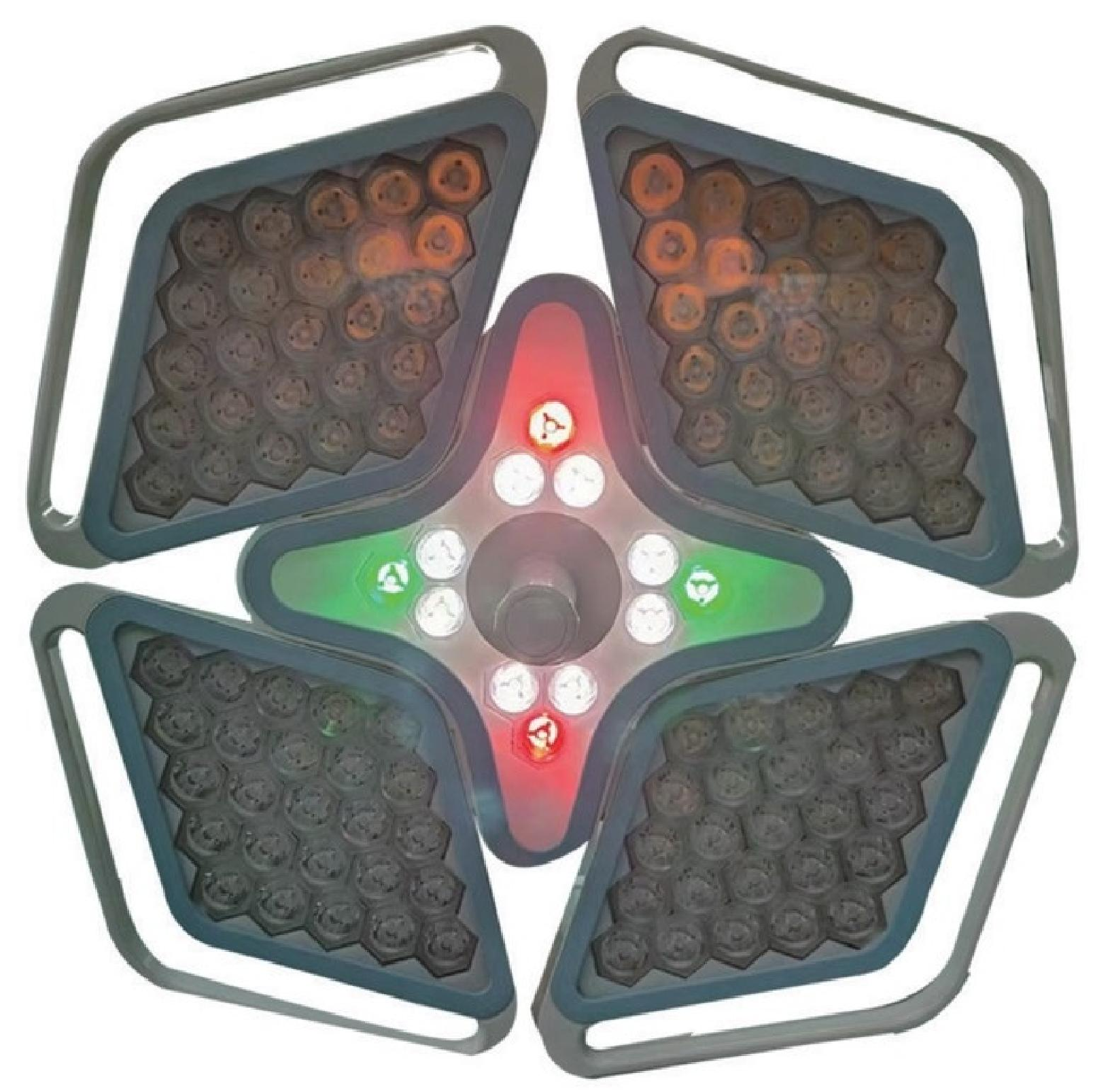

9、Lighting mode

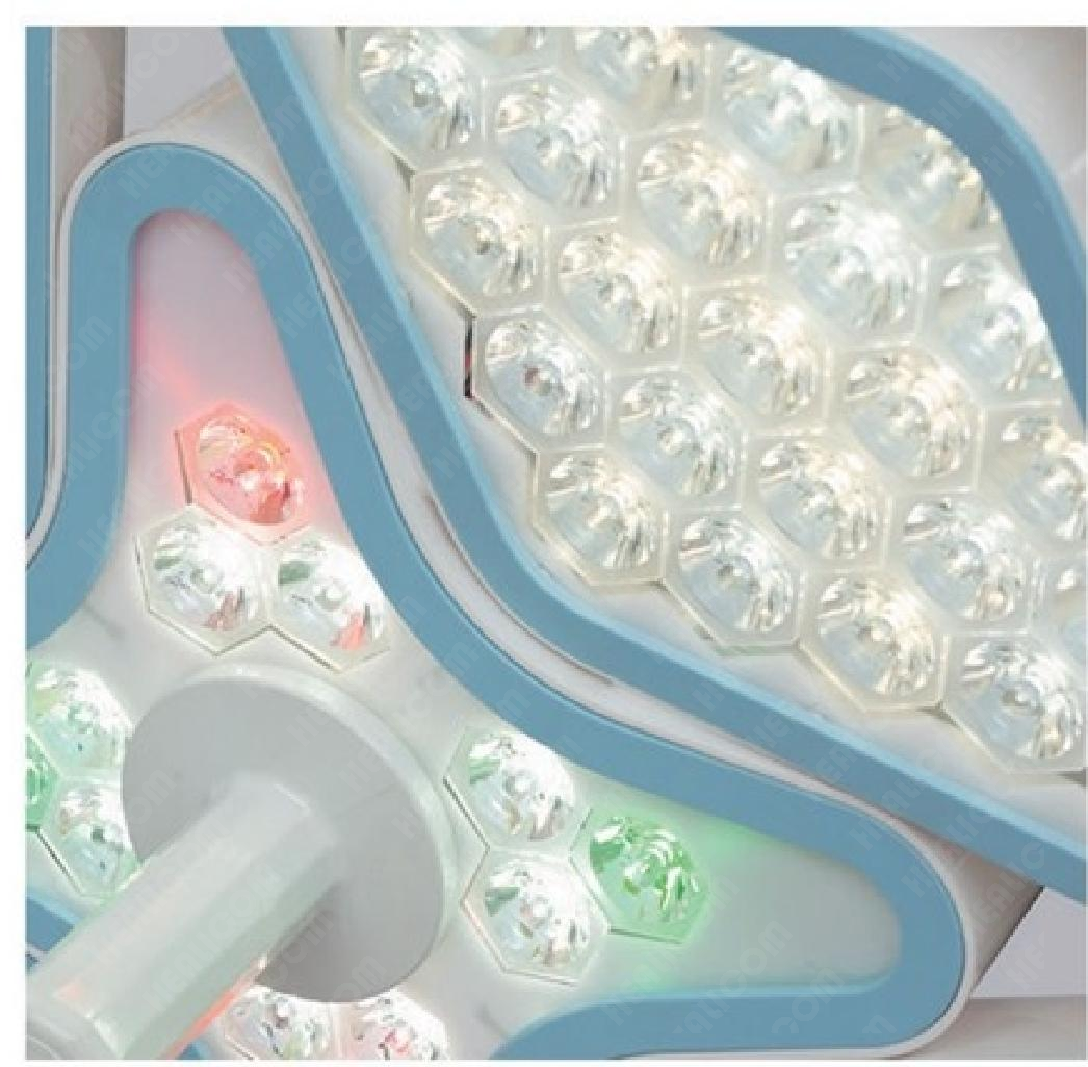

Switch between deep cavity mode,superficial mode,endoscopic mode and normal mode with one click.It is more convenient to meet the lighting requirements of various complex surgeries during surgery. Color  light  mode:

R11 green light source,which has obvious effect as ambient light     and is suitable for surgical operations with high color rendering       index such as cardiothoracic surgery and neurosurgery.The R9 red light source can easily identify the details of wound tissue and microvascular surgery,making it less likely to cause visual fatigue during long-term operations and meeting the needs of  medical staff for various operations.


TECHNICAL PARAMETERS
No. of LED beads
112个
81个
luminance (Lux)
80,000-160,000
60,000-160,000
Color temperature (K)
3700-5500
3700-5500
Diameter of light spot(mm)
160-350
160-350
Color rendering index
90-98(Adjustable)
90-98(Adjustable)
Lighting depth (mm)
≥1200
≥1200
Temperature rises at operator's head
<1℃
<1℃
Mains voltage
AC100-240V 50/60HZ
AC100-240V 50/60HZ
Input power (w)
400
400

2

3

8
