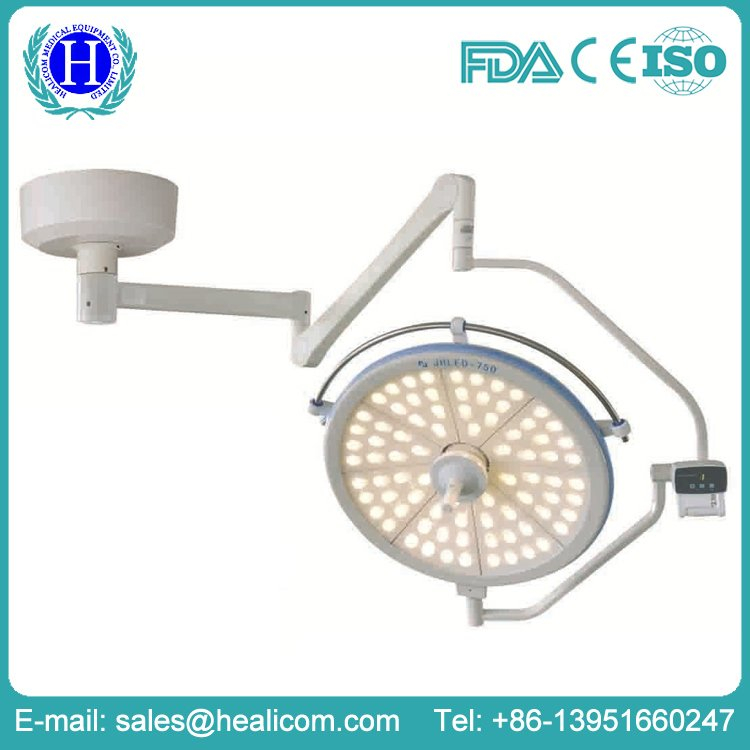

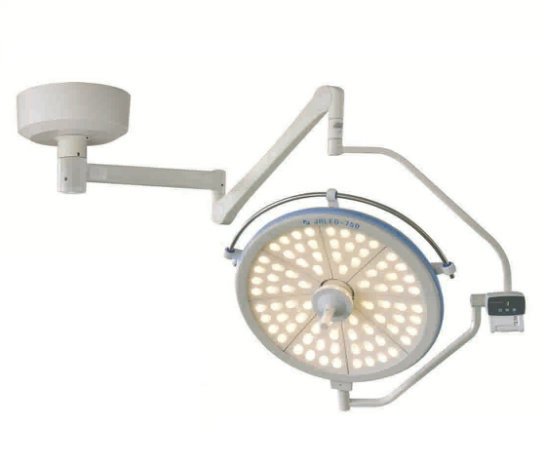

Hled-M7
Product Description
HLED series operating lamp is suitable for all kinds of operations. It is an ideal lighting technical equipment for modern operating room and purification operating room.
1. Ideal cold light effects. Imported LED cold light source for lighting devices as surgery. Doctors head and wound will have no temperature rise.
2. Reliability of circuit design. Digitally regulated LED brightness, wide range of uniform brightness, adjust and flicker-free.
3. Extremely long service life of light source. LED lamp life of up to 50,000 hours, each LED can be replaced individually, which guarantees maximum economy.
4. Ideal for meeting the requirements of clean appearance. Streamlined design meets the requirements of modernization in laminar flow operation room.
5. Advanced digital imaging technology.
| HLED-M7 main lamp | |
| Reflector diameter | 750mm |
| Center illuminance | 40~160klx |
| Spot diameter(d10) | 230mm |
| Spot diameter(d50) | 160mm |
| Light beam depth | 700mm |
| Color temperature | 4200±300k |
| Color rendering index | Ra>95 |
| Maximum illuminance | Ec<1000W/m2 |
| Light source | LED(1W×152) |
