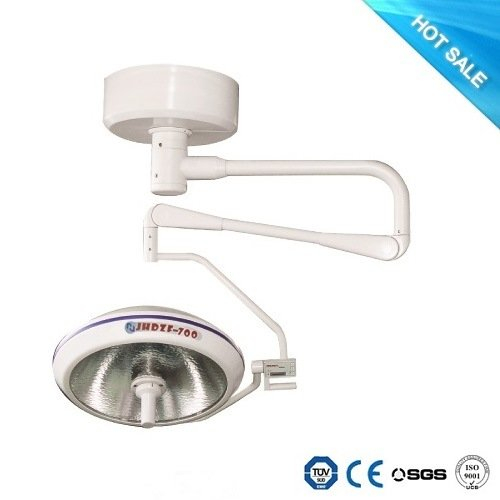

Hdzf 700 Overall Reflection Shadowless Operation Lamp


PDF Export

  • HDZF-700

Product Description

Main Use
Operation shadowless lamp HDZF-700 series is widely used in various lighting situations, meeting all different needs of lighting during operation.
HDZF series is fully enclosed streamlined dual-lamp body structure, fully meeting the high standards of disinfection and laminar flow in today's operating room.
Using CAD / CAM technology to create overall reflection optical system, Adopting color temperature compensation technology to enhance color reproduction, more suitable for brain surgery, thoracic surgery and other complex large lighting operations.
The type is movable with stand.
It is mounted type and has monitor, the product can be based on user's demand matching video surveillance system for image

ContentReflector diameter 700mmReflector diameter 500mm
Center Light intensity120klx~140klx80klx~120klx
Spot diameter(d10)≥180mm≥160mm
Column depth≥700mm≥600mm
Color temperature4500±500K
Increasing Temperature≤10ºC
Color rendering Index (CRI)≥92
Switch between main and assistant bulbAutomatic
Illumination adjustment8-level sequentially
Bulb watt150W
Total radiated energy Ee where the illuminance reaches max level≤500w/m2
Mechanical characteristics
Spring arm around fixed holder≥360°
Bracket around spring arm≥360°
rotation of horizontal bracketclockwise ≥140°,anti-clockwise ≥140°
Lamp head around horizontal bracketclockwise ≥100°,anti-clockwise≥100°
Up and down of balancing armup≥40° down ≥40°
