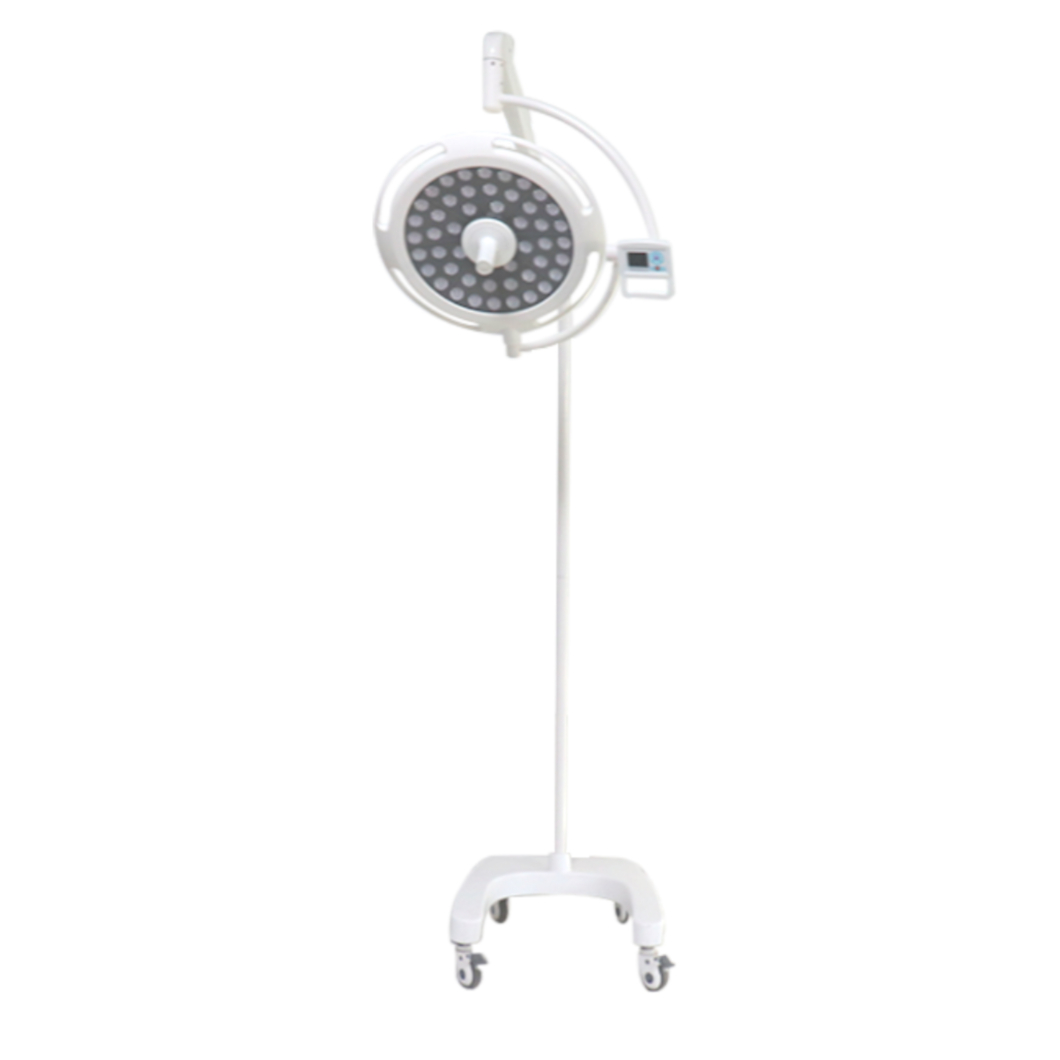

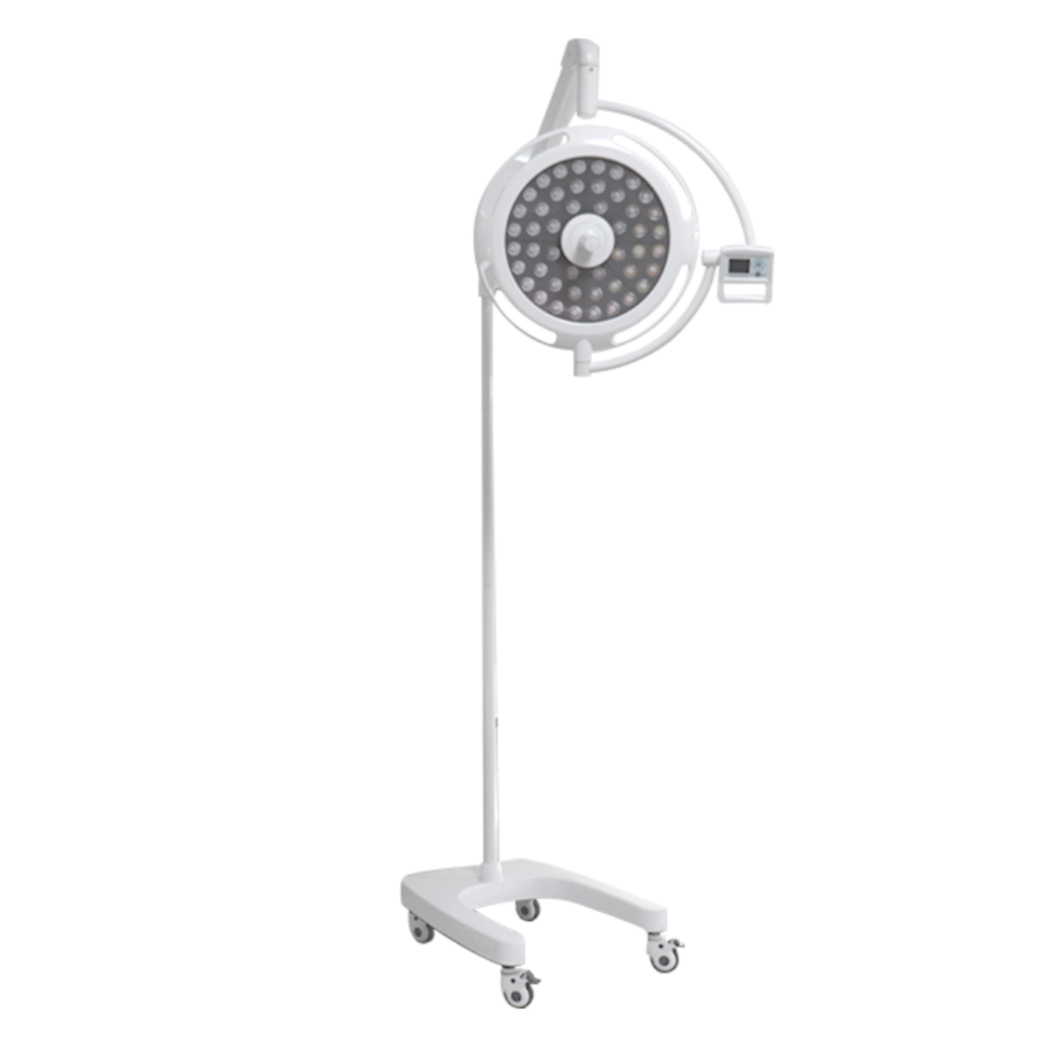

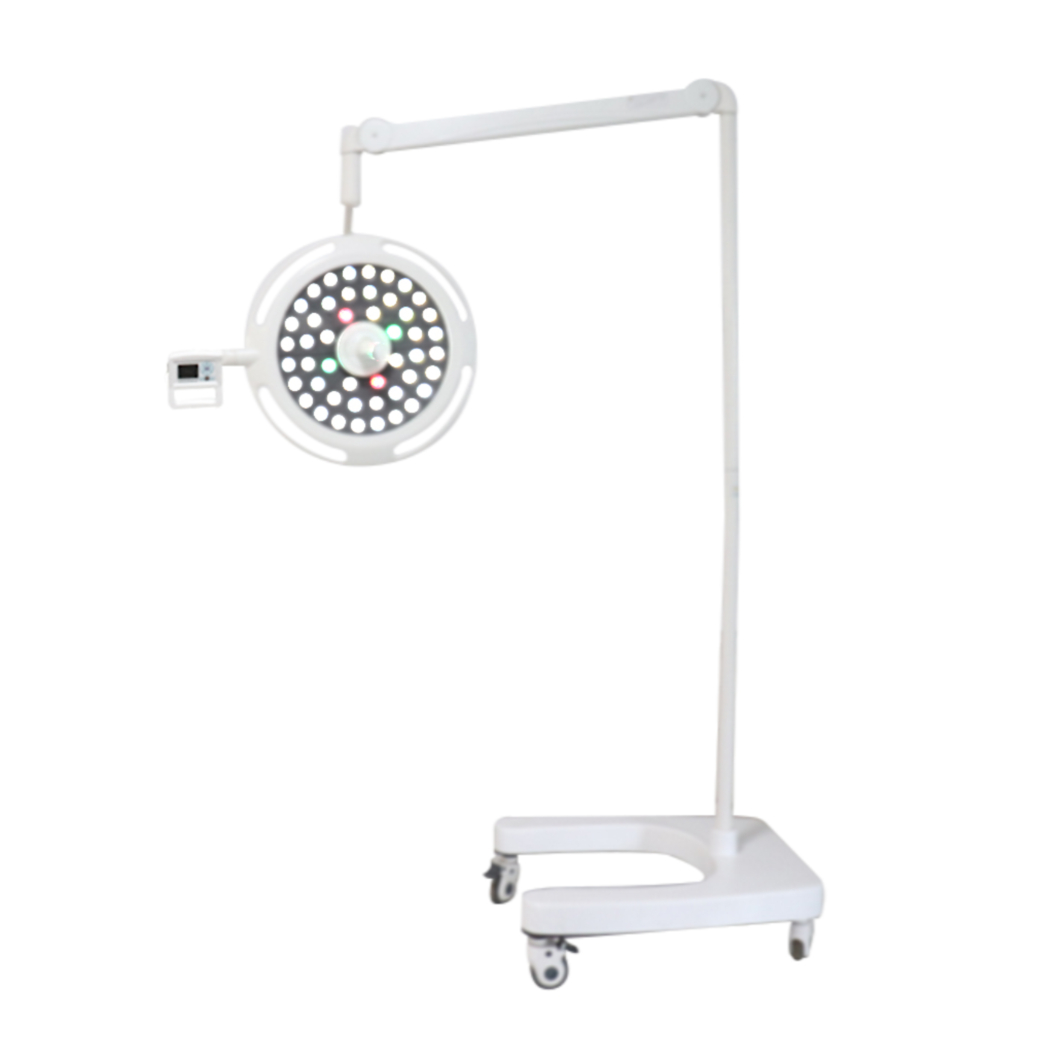

HNLED-550 Movable Led Operation Examination Light Mobile Operating Lamp

The HNLED-550 LED Operating Lamp is a high-performance surgical lighting solution. It features a ≥500mm diameter with ≥48 LED beads, using Osram cold light sources for a lifespan of ≥50,000 hours. The lamp provides direct lens-based illumination without mirrors, ensuring clear, shadow-free lighting. Its aluminum alloy cover offers excellent heat dissipation and eco-friendly powder coating. The user-friendly control panel allows adjustable brightness, color temperature, and contrast. The lamp includes a focusing handle and central disinfection handle (sterilizable at ≤130℃). With a lightweight balance arm and 360° rotation, it ensures stable positioning and flexibility. It also features one-key endoscopy mode, ideal for endoscopic surgeries.
Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • HNLED-550

  • Healicom

Product Description


HNLED-550 Hospital Surgical Room Led Examination Operation Theatre Light
1

Product performance parameters:

1. Lamp diameter ≥500mm LED lamp bead quantity ≥48.

2. Light source: LED cold light source, imported from Osram from Germany, using imported lamp beads with a service life of ≥ 50,000 hours

3. The light is directly irradiated through the lens, without the need for a mirror surface;

4. The cover of the shadowless lamp shell is made of aluminum alloy, which is suitable for heat dissipation, and the surface is treated with environmentally friendly powder spray.

5. The control panel adopts a user-friendly interface design, which can change the lighting brightness according to the hospital's needs for different surgical lighting, realize the lighting switch and adjust the contrast, color temperature, and brightness mode;

6. The life of the circuit and signal line; the operating light does not need response time, and it will turn on immediately;

7. The focus is adjusted by the focusing handle, which is convenient to use; the central disinfection handle can be sterilized by high temperature and high pressure steam ≤130℃;

8. The service life of the bulb is ≥50000 hours; no stroboscopic, strong impact resistance, corrosion resistance;

9. Equipped with a lightweight balance arm suspension system, which is light in movement and stable in positioning. The 360° all-round design can meet any height and angle in surgery.

10. It has the function of one-key endoscopy, which can switch between endoscopy and normal mode with one key, which can meet the needs of endoscopic surgery lighting.

Main Technical Parameters
Illumination
30000--160000LUX
Color temperature
3700K-5000K (adjustable)
Spot diameter
160-350 mm
Illumination depth
≥1200mm
Brightness level dimming
1—100% (stepless dimming)
Color rendering index
≥85--98% (adjustable)
Power supply voltage
220V±22V, 50Hz±1Hz;
Bulb power
3.2V/1W
wheels
4
LED lamp head LED Lamp Bead Quantity
550 lamp head ≥ 48
LED light group life
50000H
LED light group brand
imported Osram
Lamp body diameter
550≥500mm

2

3

Company Profile


2025年2月24MIC详情页_01

2025年2月24MIC详情页_02

2025年2月24MIC详情页_03

2025年2月24MIC详情页_04

FAQ


1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.

2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.

3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.

4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.

5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
