HFX-08D Medical X-ray Equipments 8KW Digital X Ray System

High Quality Digital Portable X-ray System Price

Technical Specifications

· Power: The device is equipped with an 8kW power unit, ensuring sufficient energy for high - quality X - ray generation.

· Voltage Compatibility: It operates within a voltage range of AC220V ± 10%, making it adaptable to various power supply conditions.

· kV Adjustability: The kV range spans from 40 to 125kV, allowing for precise control over the X - ray energy according to different diagnostic requirements.

· mA Range: The mA range is 5 - 160mA, enabling flexibility in adjusting the X - ray intensity.

· mAs Range: With an mAs range of 0.1 - 200mAs, it provides a wide scope for optimizing the exposure settings.

· Working Frequency: Operating at a high working frequency of 100kHz, it can produce stable and efficient X - ray outputs.

· Exposure Time: The exposure time can be adjusted from as short as 0.0032S to as long as 10S, catering to different imaging needs.

· Single Focus: It features a single focus of 2.0 mm, which contributes to clear and sharp X - ray images.

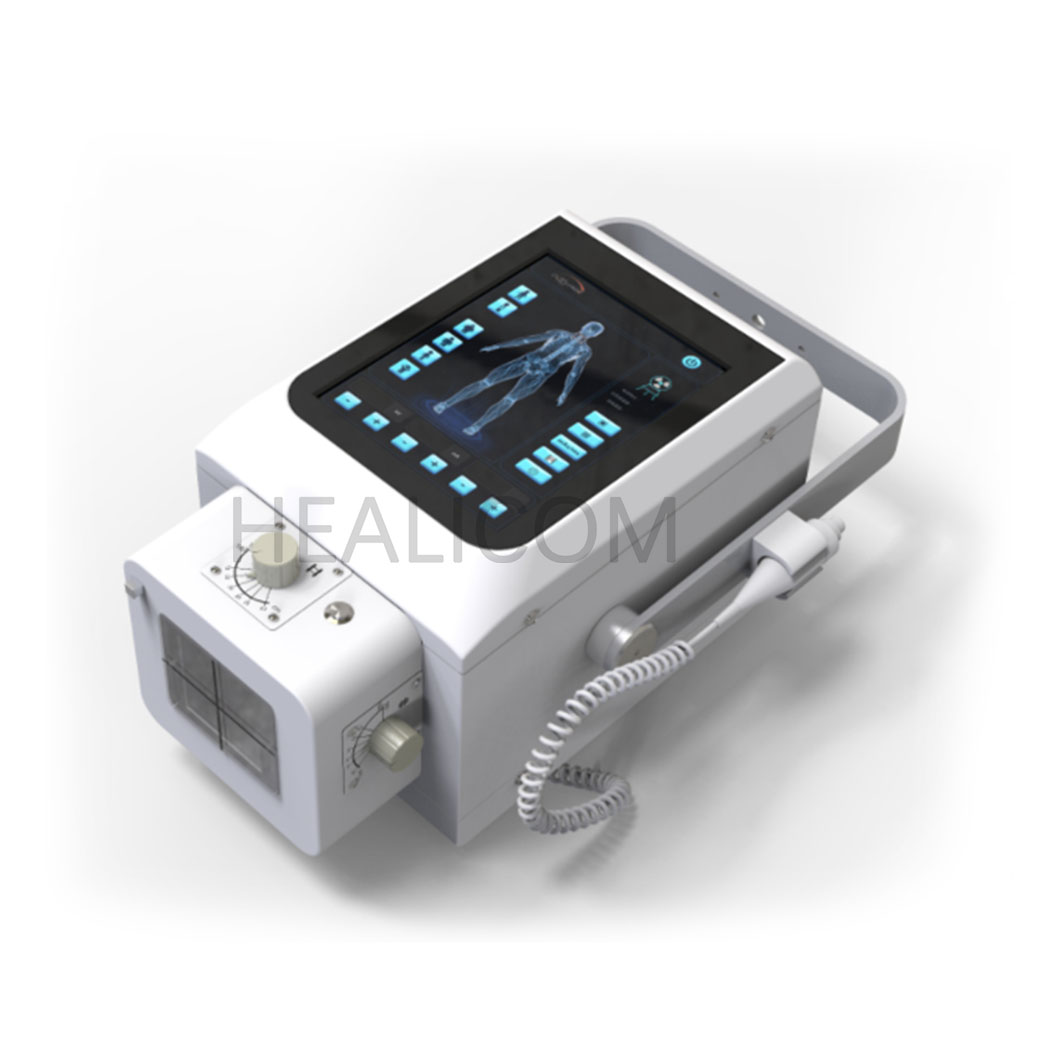

· Compact Head Design: The head size measures 420mm * 245mm * 240mm, and it weighs 18KG, making it relatively portable for medical applications.

· User - Friendly Interface: Equipped with an 18.5 - inch touch - screen computer, it offers an intuitive and easy - to - use interface for operators.

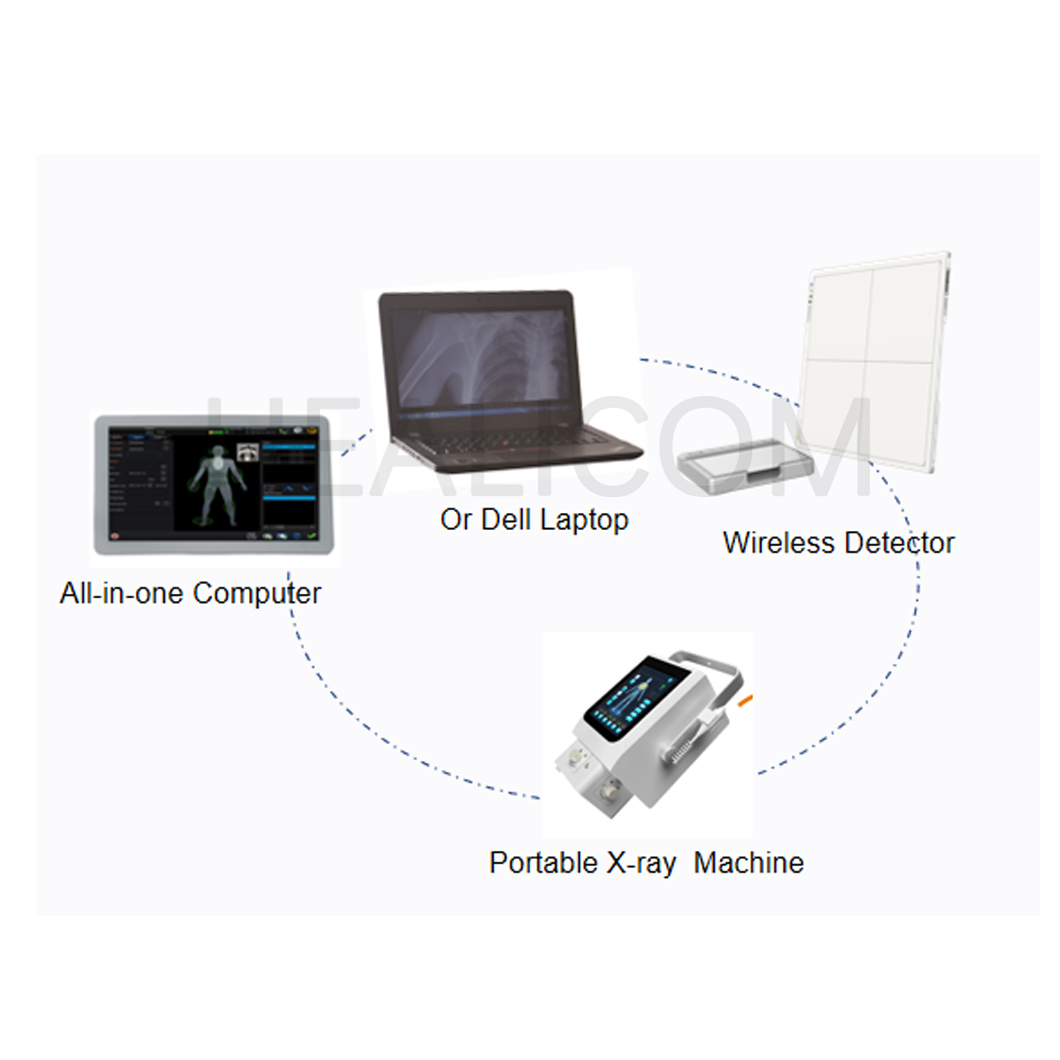

· Advanced Digital Detector: An Iray digital detector with a 17X17 - inch wireless design is integrated, facilitating seamless image acquisition and transfer.

Features a modular design, enabling easy customization.

• Compact and lightweight for convenient handling.

• Allows exposure operation via touch - screen remote control, offering user - friendly and flexible operation

Add Flat Panel Detector & Film Printer, updated to Digital X-ray System
